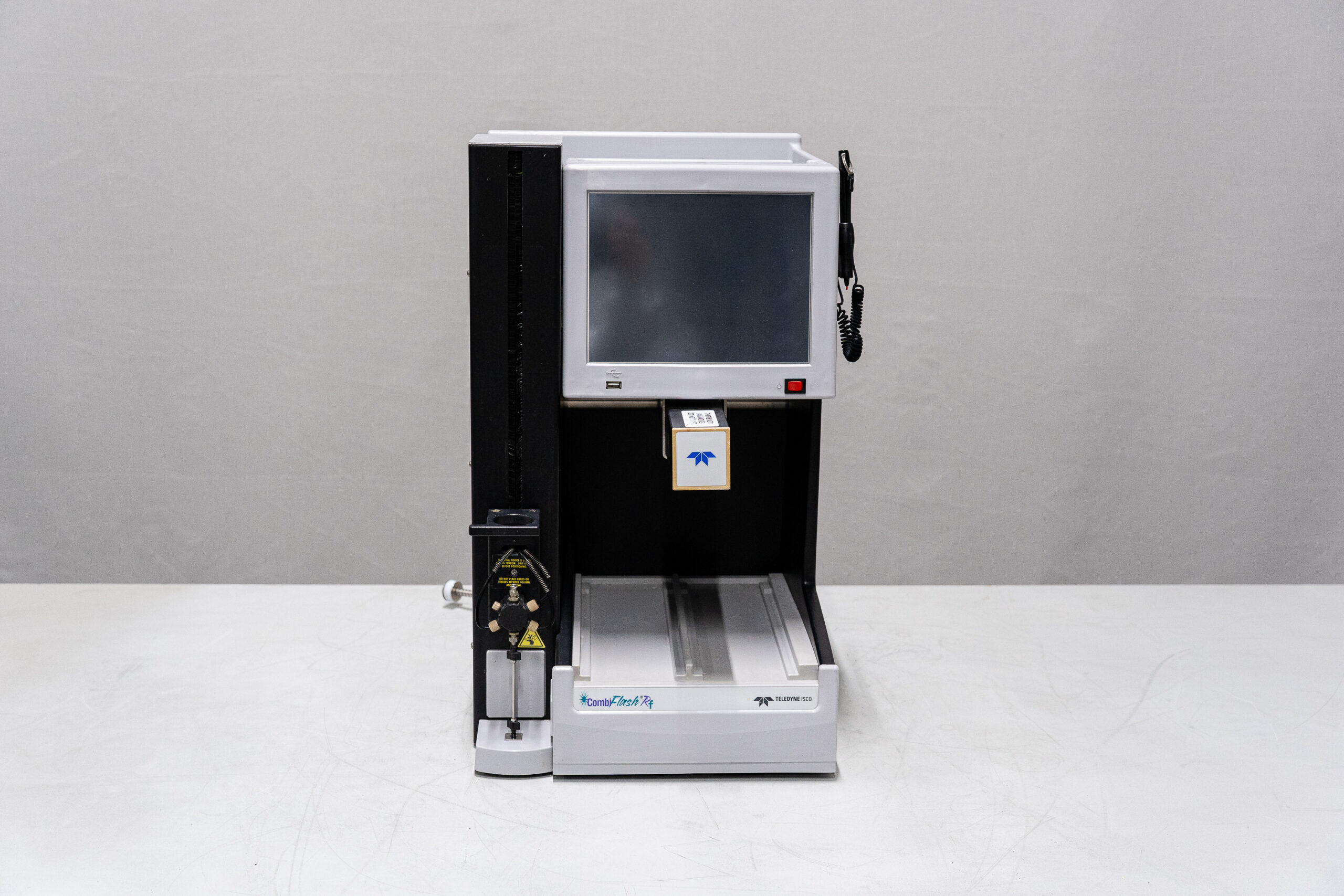

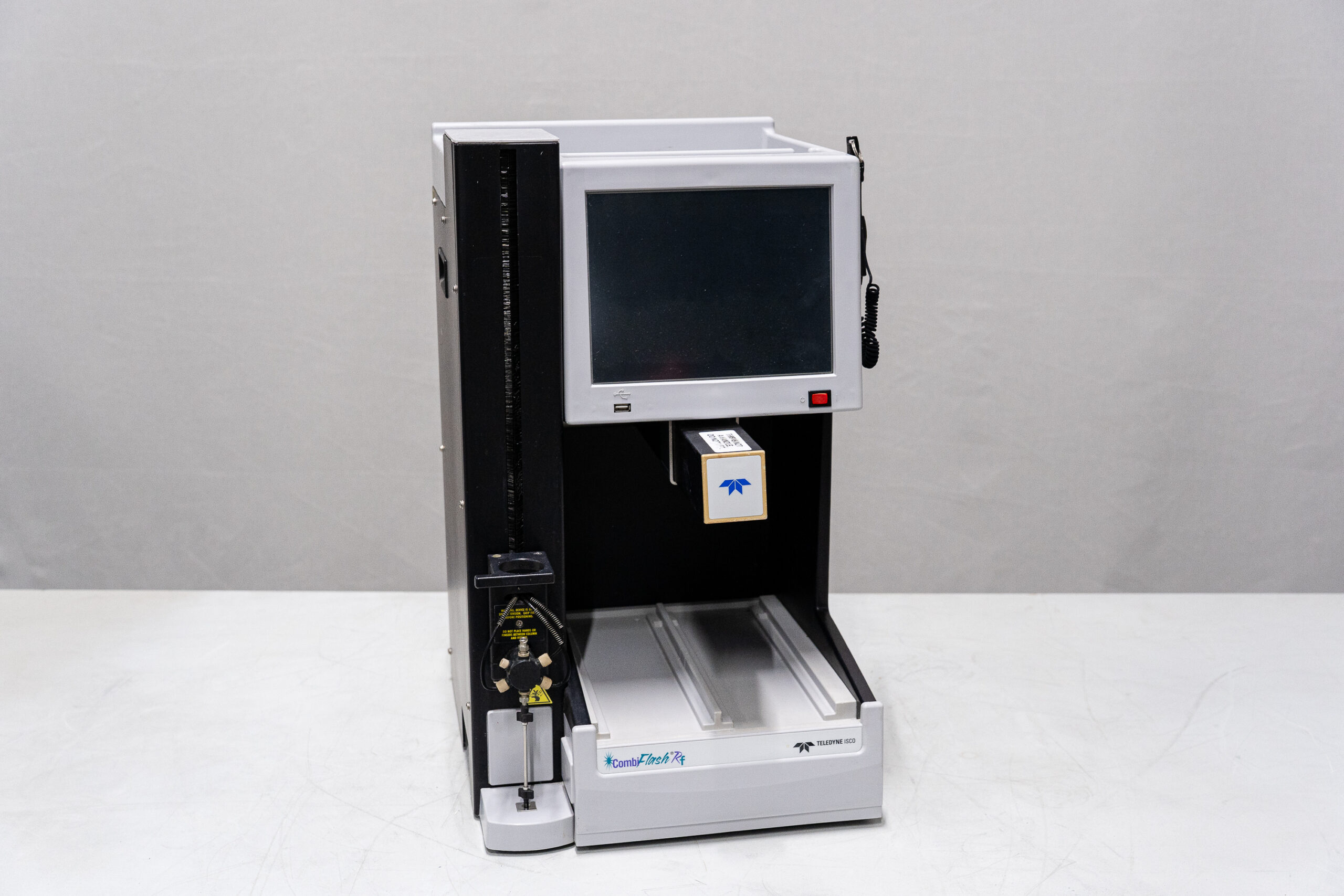

The Teledyne Isco CombiFlash RF chromatography system is designed for fast, efficient, and reproducible purification of chemical compounds. Thanks to its reliable Isco pump technology, advanced UV detection, and intuitive operation, this system offers a powerful solution for both research and production laboratories. The device supports versatile separations, including normal-phase and reversed-phase, and utilizes programmable gradients and automatic fraction collection. This ensures the CombiFlash RF delivers consistent performance and high purity, even with complex samples.
Technical Specifications

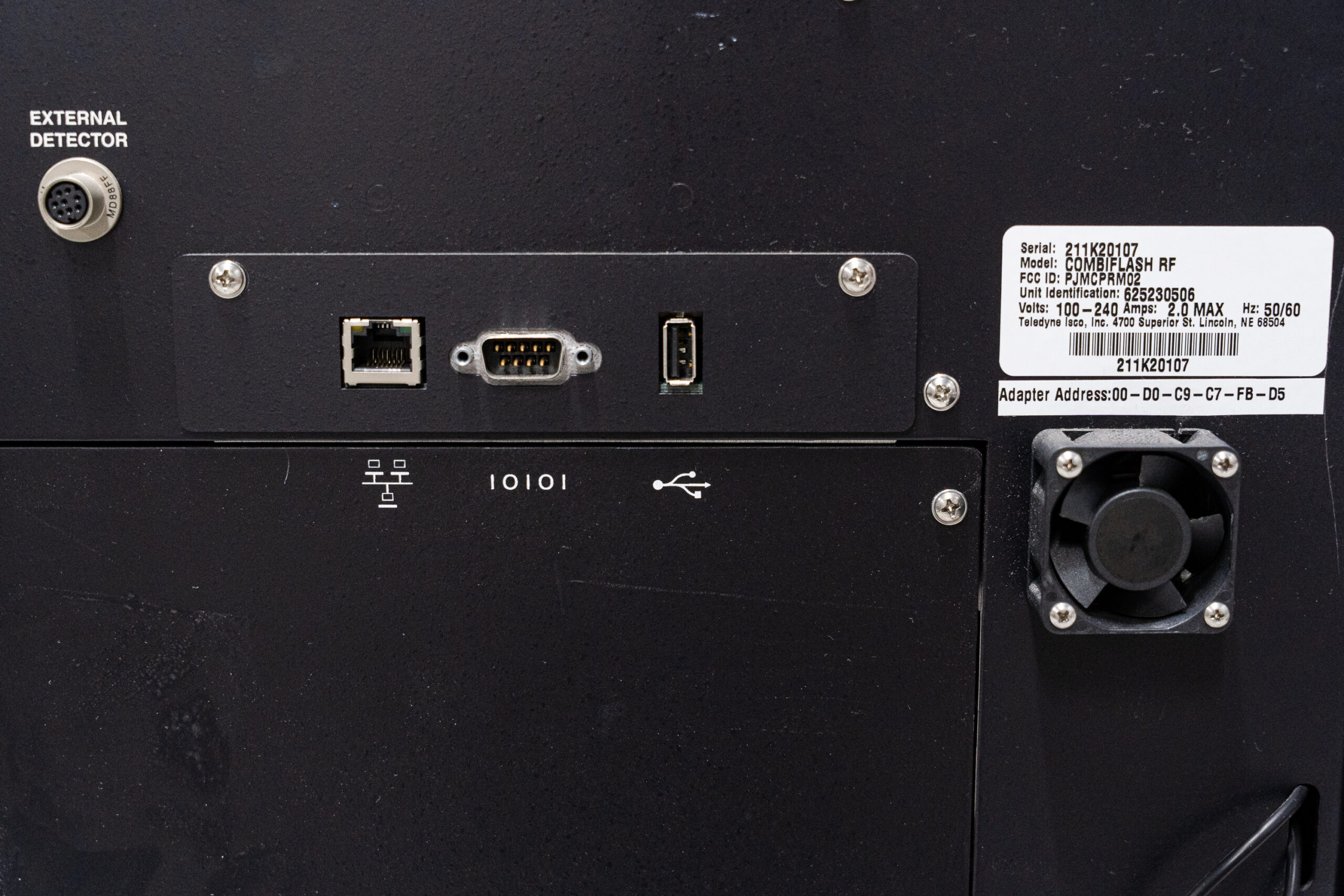

Voltage: 100–240 V (50/60 Hz)
Current: 2.0–2.5 A
Power: ≈ 200–250 W
External dimensions (W × D × H): 420 × 360 × 610 mm
Weight: 27.6 kg
Pressure limit: Up to 1379 kPa (≈ 200 psi), depending on the column used

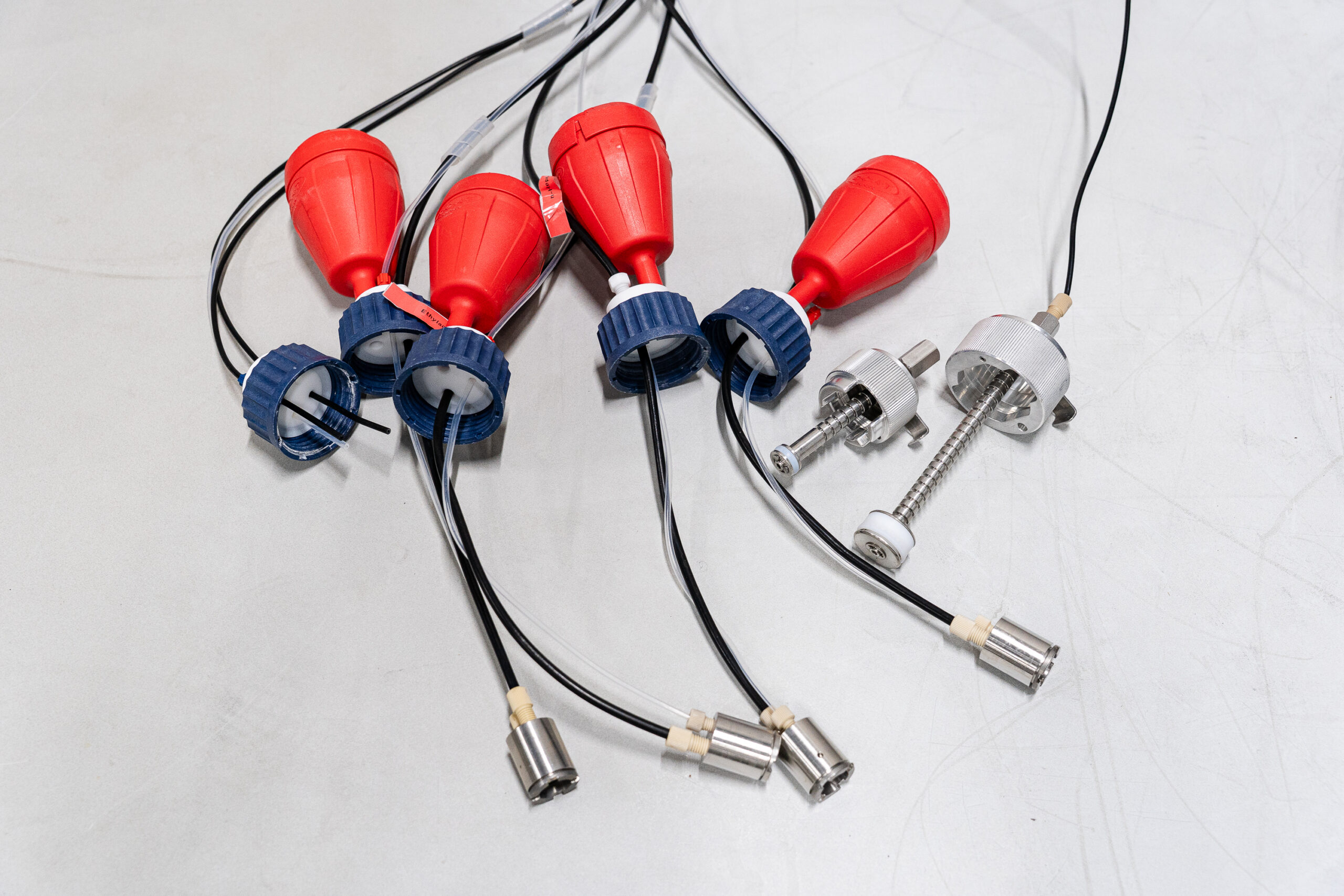

Gradient generation: Binary gradient from 2–4 solvent inlets; automatic solvent selection possible.
Detection: Online UV detection with selectable wavelength 200–400 nm (or optional UV-Vis 200–780 nm); optional ELSD (evaporative light scattering detector) or UV-Vis is available for some configurations.
Wavelength accuracy: ± 5 nm
Fraction collection accuracy: ± [2 mL + (flow rate ÷ 60)]
Environmental conditions (when switched on): 20–40°C; humidity up to 95% relative humidity is acceptable at these temperatures.
