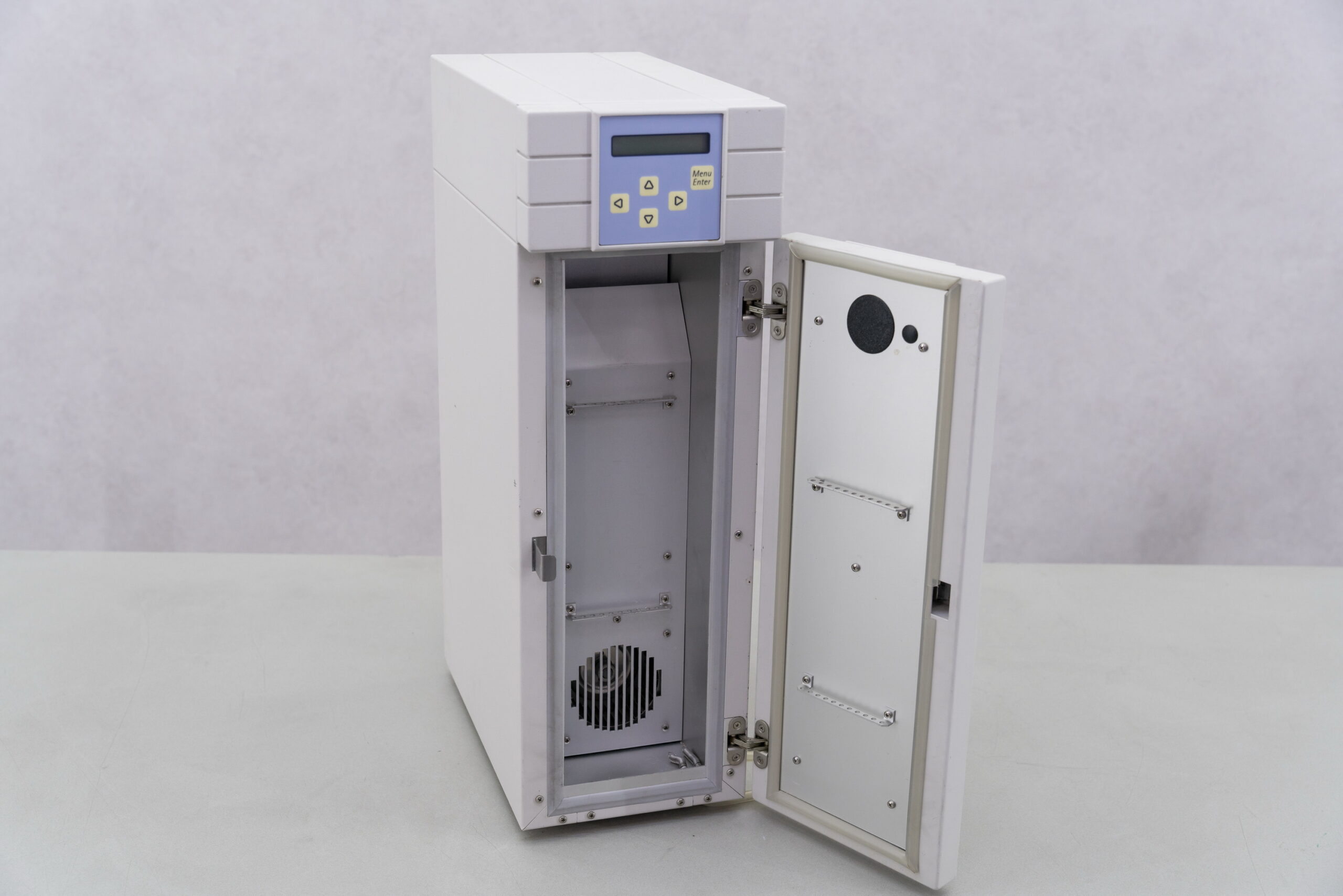

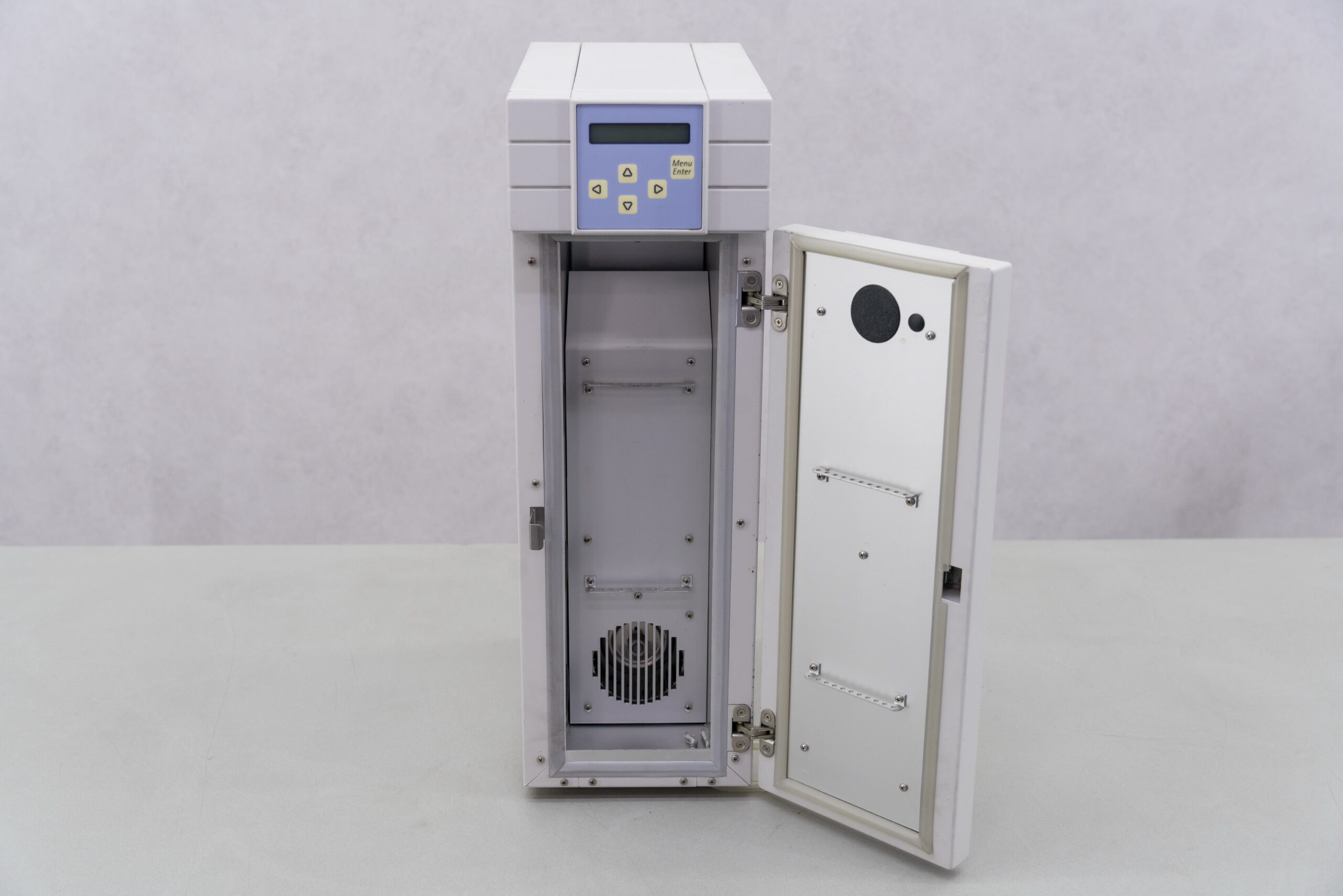

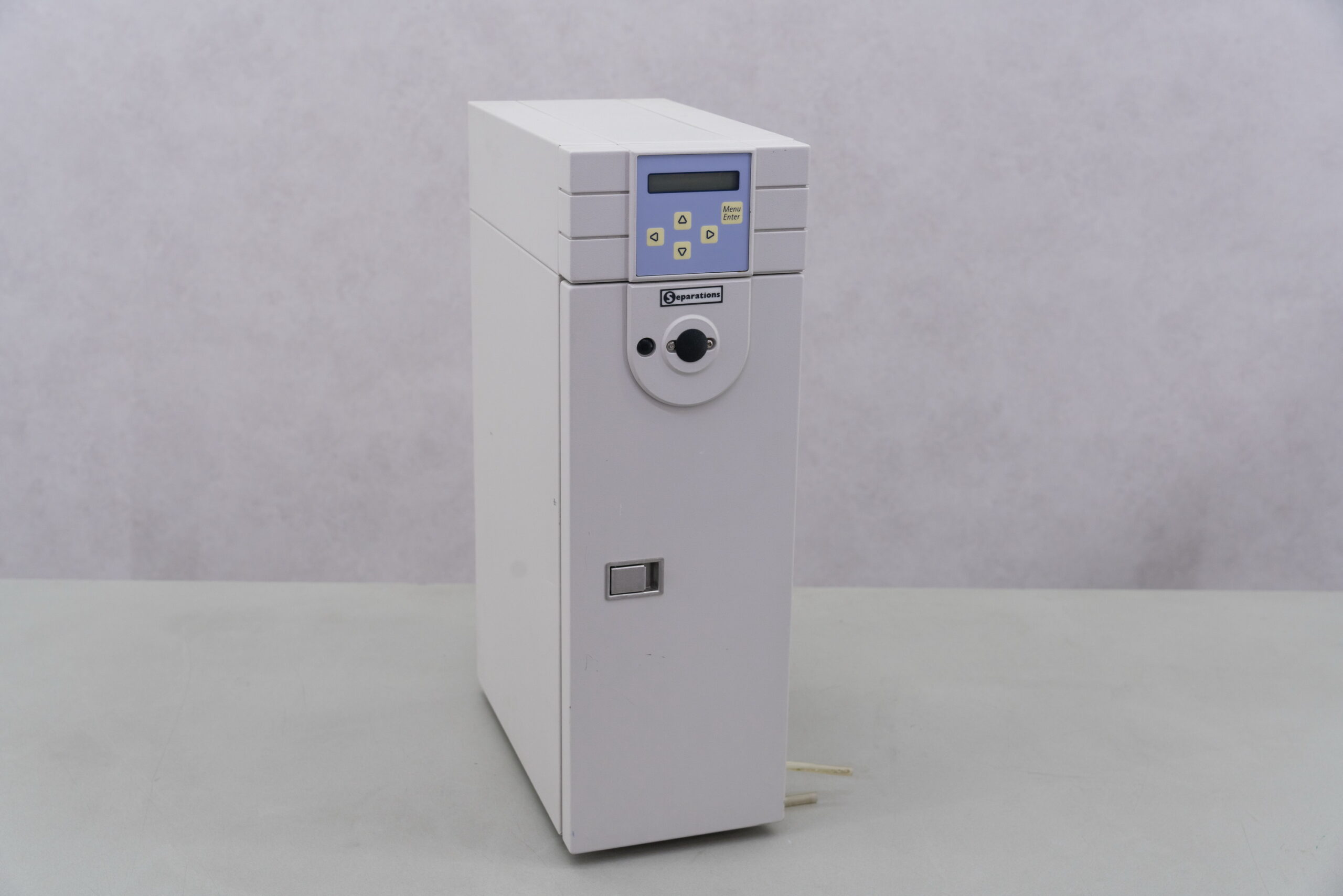

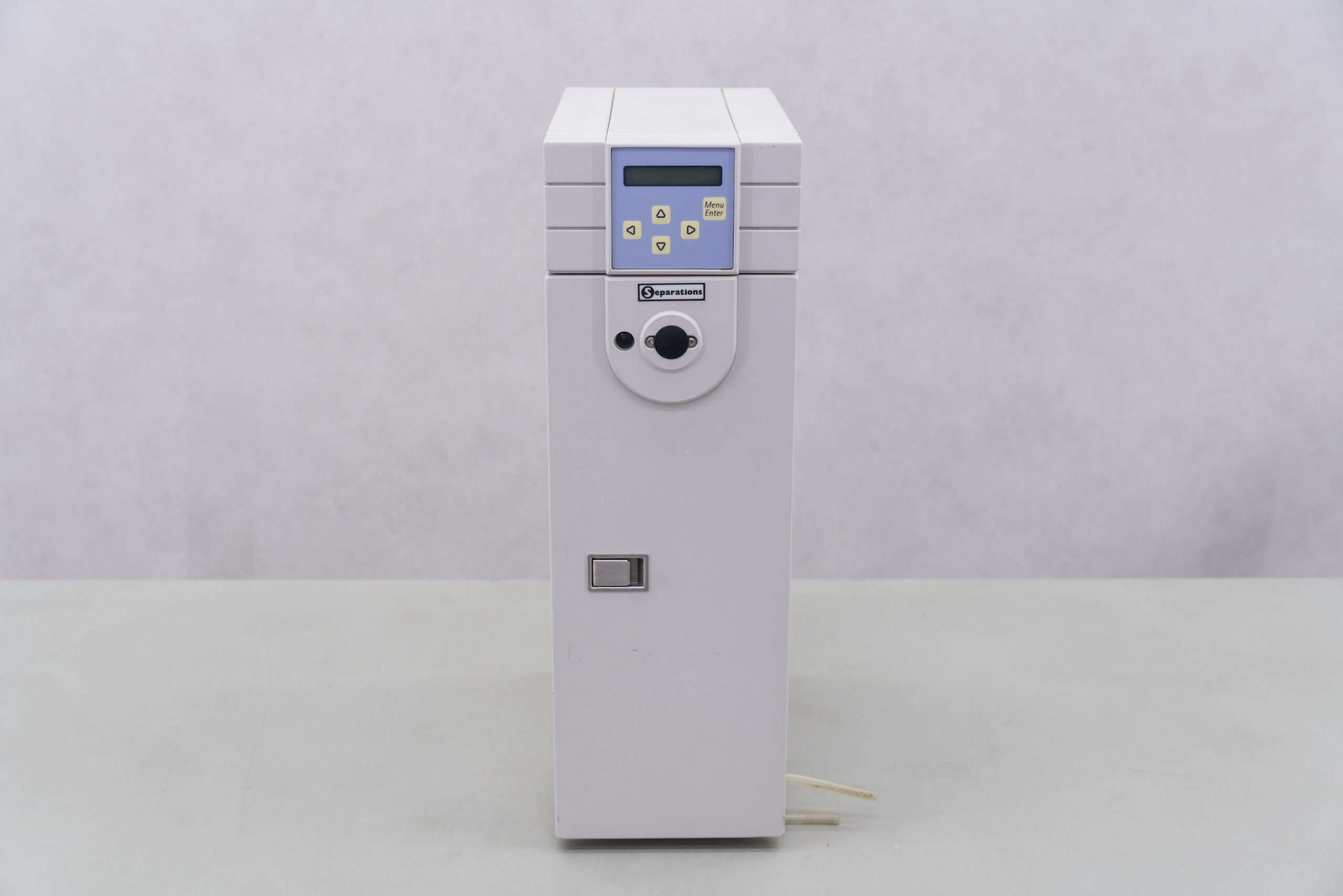

HPLC Column oven from Spark Holland, type Mistral 880 with Peltier cooling. The Mistral™ is a column thermostat that provides exact and reproducible temperature control. Large area heating plates guarantee a safe and stable operation at a temperature range from ambient +5°C up to 90°C, while forced air circulation ensures excellent temperature uniformity in the column area. The Peltier cooling allows a temperature range from 5°C up to 90°C and temperature changes are achieved in shorter time.
A temperature controlled column area contributes to the reproducibility of retention times. HPLC separations are more consistent at a constant temperature and some times more efficient at elevated or sub–ambient temperatures. With a temperature controlled column area room temperature changes will no longer affect your separations.

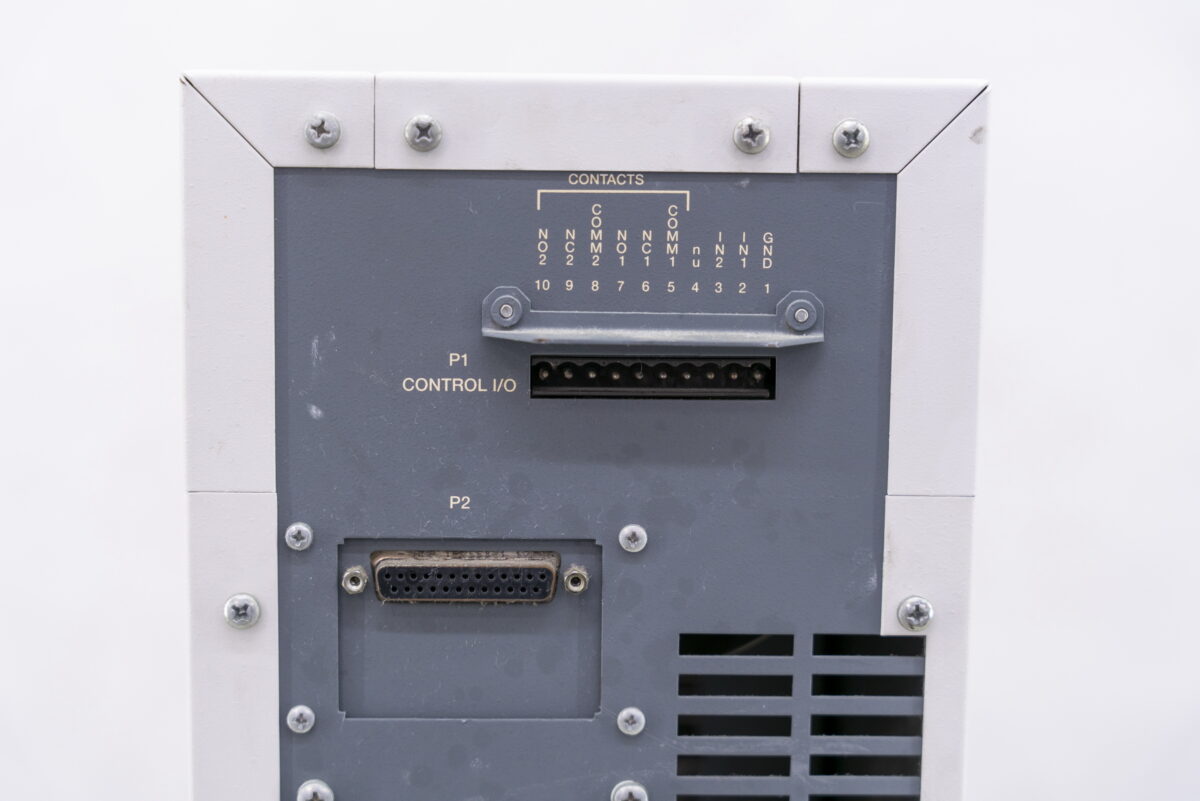

An injector is mounted inside the oven to achieve a maximum temperature stability of the HPLC system. With the Mistral™ it is possible to perform temperature gradients to optimize a separation. The Mistral™ column thermostat is compatible with most HPLC instruments. It has a remote I/O connector for communication with other HPLC components.
Technical specifications:
Voltage: 220-240 V
Power: 400 W
Temperature range: ambient +5°C up to 90°C
Outer dimensions (W) x (D) x (H): 171 x 330 x 525 mm
