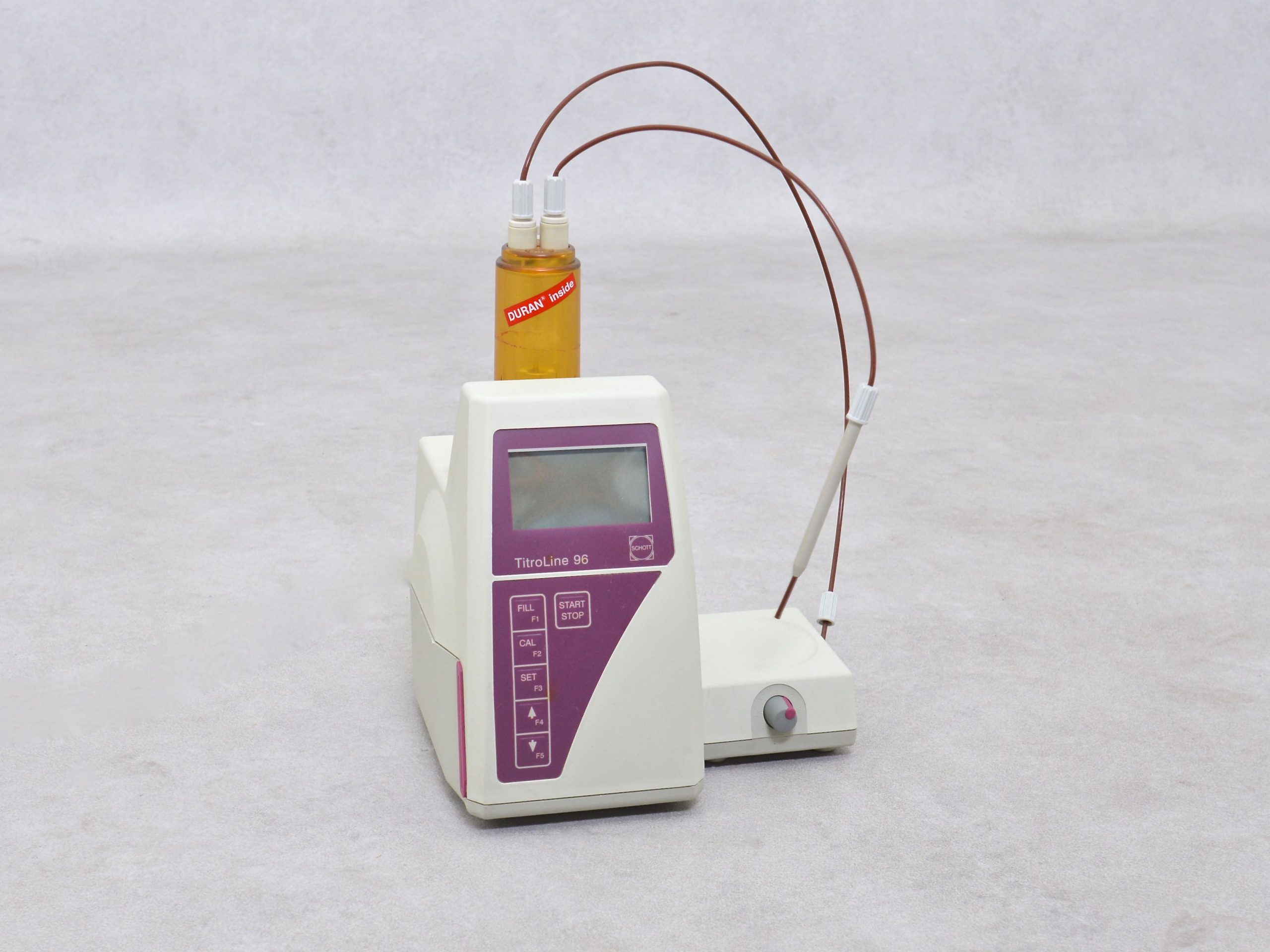

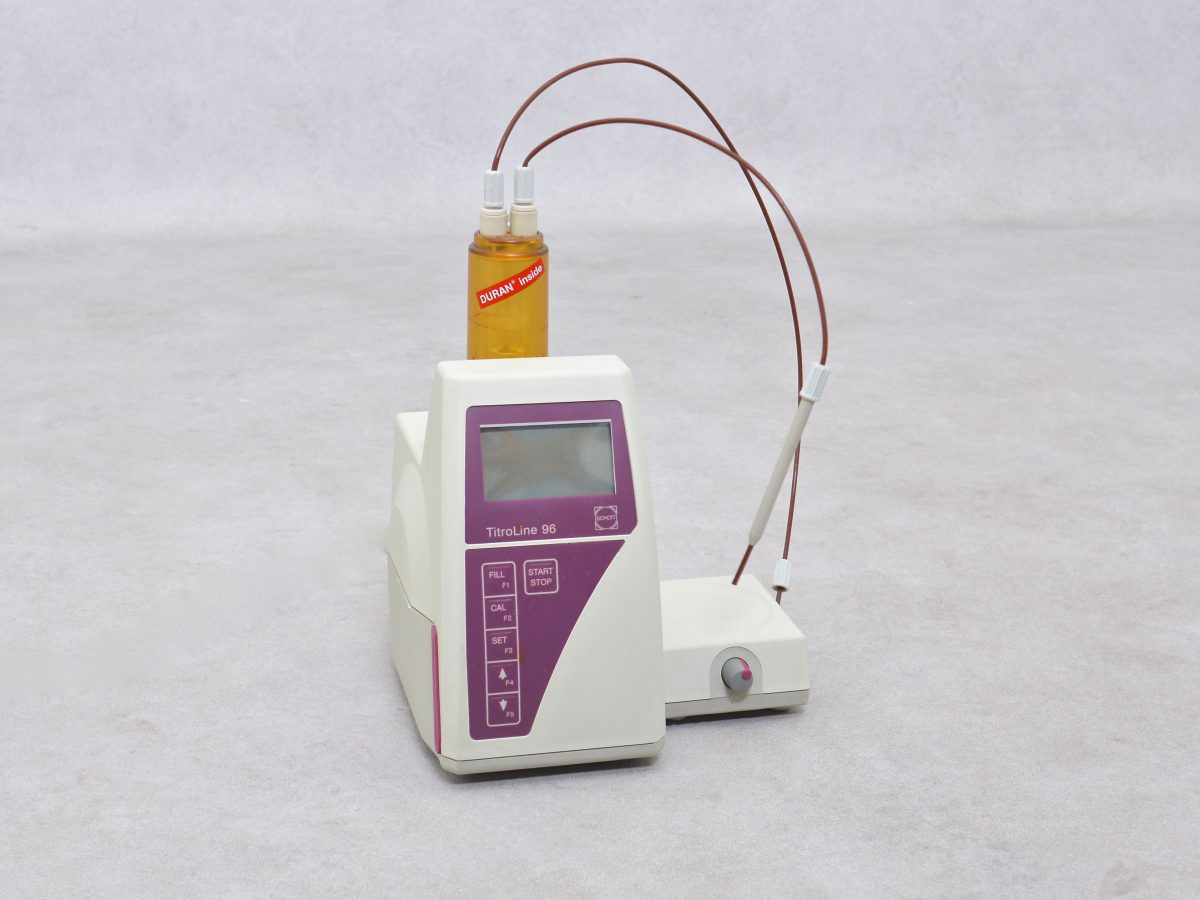

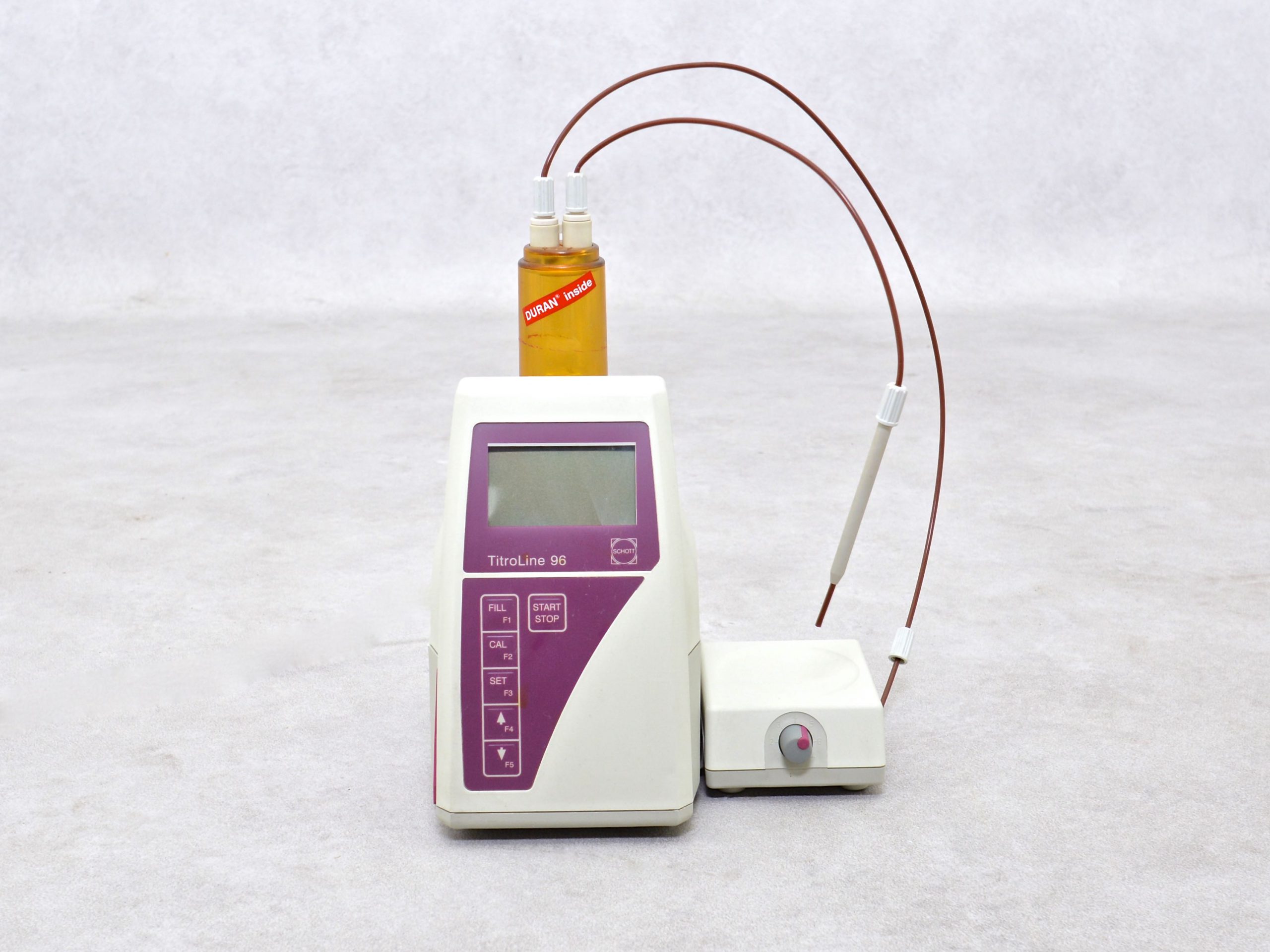

Schott TitroLine 96 Titrator

The automatic titrator of the brand Schott type TitroLine 96 is ideal for accurately, quickly and easily performing pH and potentiometric (mV) endpoint titrations to determine the concentration of a particular substance in a particular solution. Unlike visual titrations, in the case of a potentiometric titration, the end point (when sufficient reagent is added) is not determined by a color change in the liquid, but by the electropotential that occurs when the electrois placed in a solution.
The titrator dosing unit is protected from ultraviolet radiation and automatically fills itself. This titrator can be connected to a computer and printer via the RS-232-C interface. Incidentally, this titrator is supplied with a magnetic stirrer of the brand Schott type TM 96. This stirrer is directly coupled to the burette.
Technical specifications
Voltage: 230V 50/ 60Hz
Power: 24VA
pH measuring range: 0 – 14
Potential measuring range: -1400mV to + 1400mV
Content dosing unit: 20mL
External dimensions (W) x (D) x (H): 13 x 20 x 30 cm
Technical specifications Schott TM 96 stirrer:
Voltage: DC 16V
Power: 1VA
External dimensions (W) x (D) x (H): 9 x 11,5 x 5 cm
