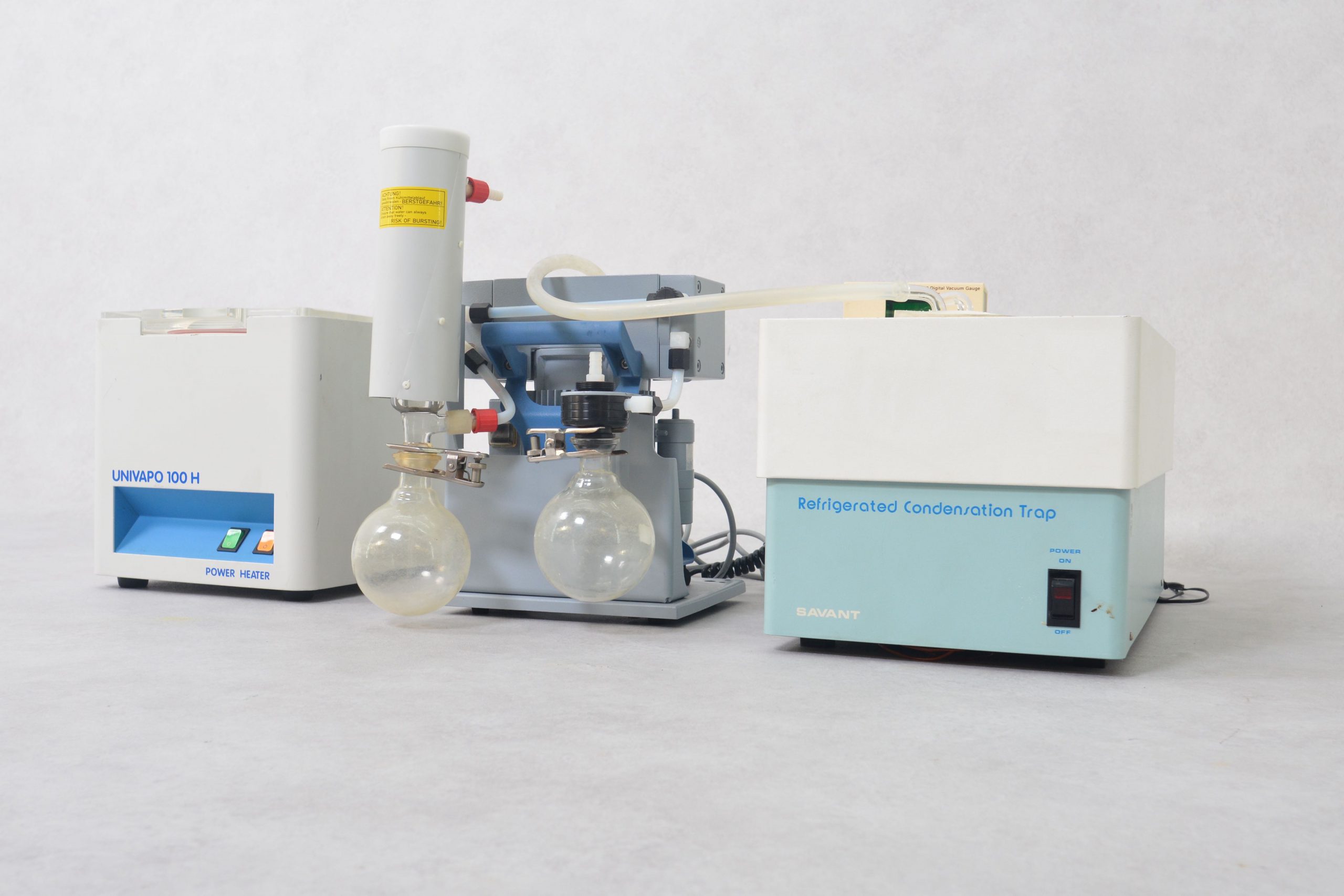

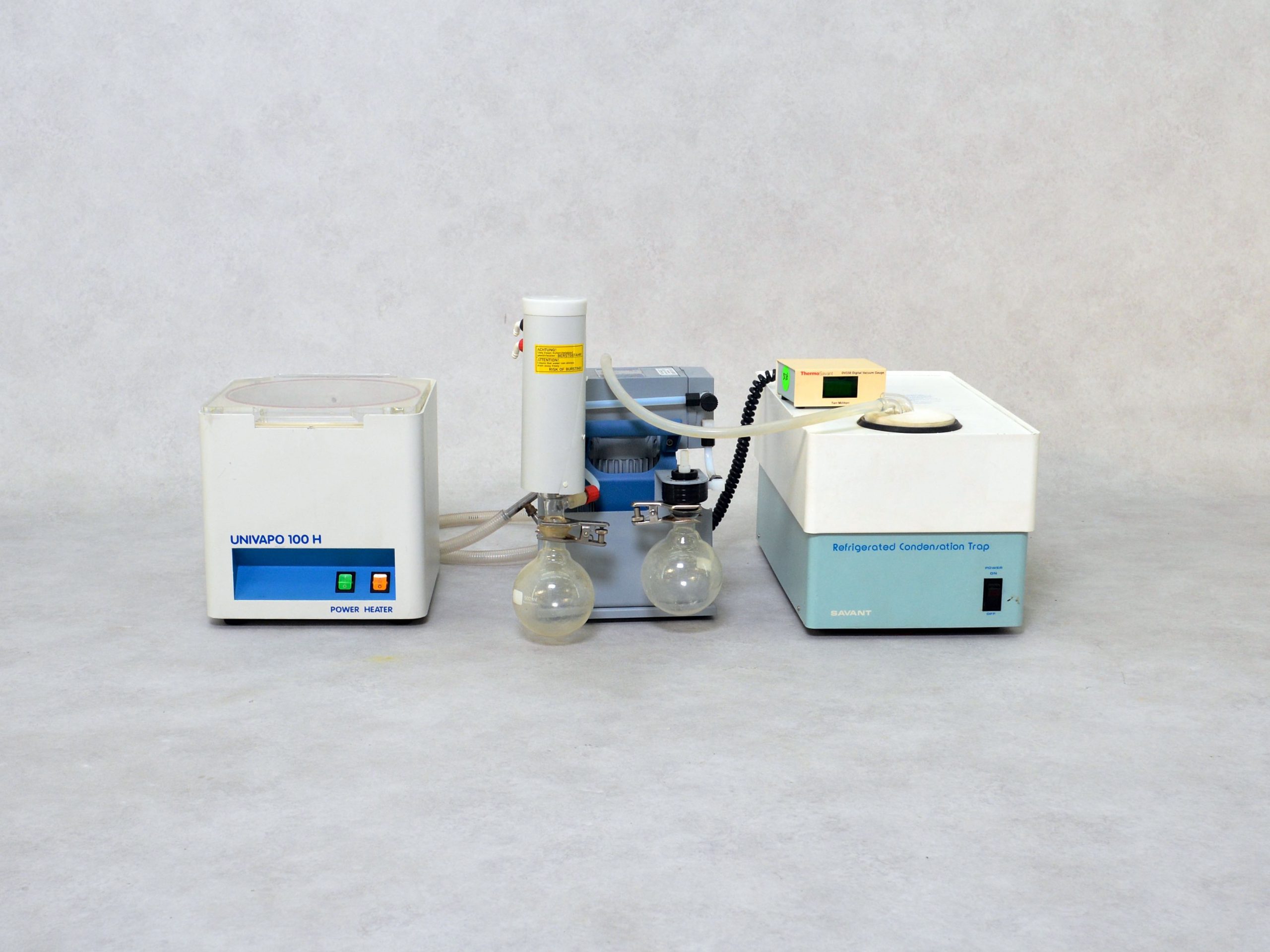

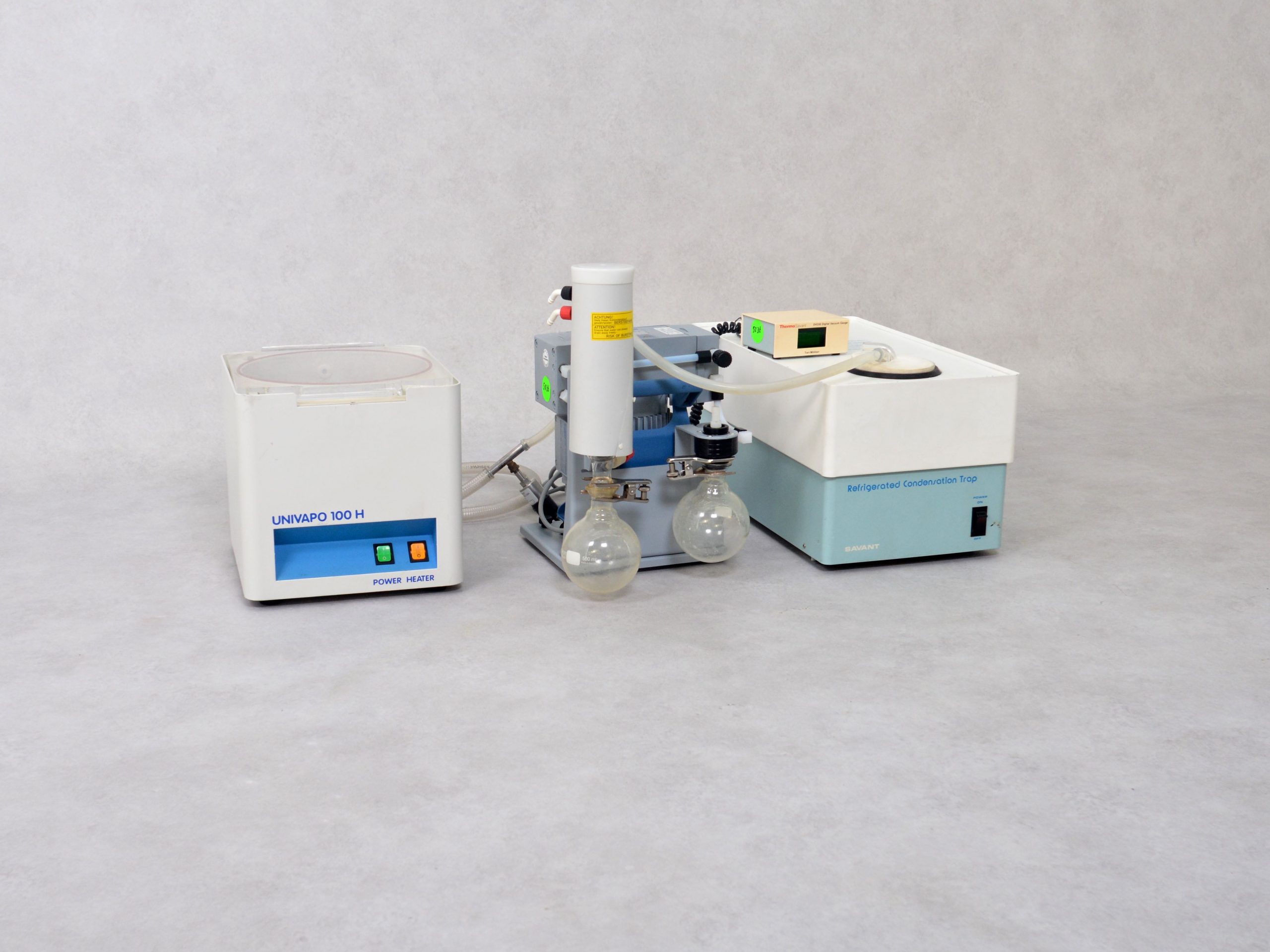

Savant RT-100A Refrigerated Vapor Trap

The Refrigerated Vapor Trap of the brand Savant type RT-100A is extremely suitable for the protection of vacuum pumps in, among other things, freeze dryers, ovens, desiccators, centrifugal or rotary evaporators. The Savant RT-100A Refrigerated Vapor Trap is supplied with vacuum pump and centrifuge.
The vacuum pumps will be protected against harmful acids in water, alkaline and organic solvents that are released during bioresearch operations. Such vapors can damage pump parts and break down the pump oil, which increases the risk of corrosion.
The Refrigerated Vapor Trap uses mechanical cooling to freeze and remove contaminants before they reach the pump. The Savant/ UniEquip Univapo 100H vacuum centrifuge rapid evaporation and solidification of biological solutions in microtubes by centrifugal force in vacuum. In addition, the container of the Refrigerated Vapor Trap is equipped with stainless steel material.
Technical specifications Savant RT-100A Refrigerated Vapor Trap
Voltage: 220V, 50 / 60Hz
Current: 2A
Temperature range: fixed temperature -50 ºC
Container capacity: 1 L
External dimensions (W) x (D) x (H): 30 x 53 x 27 cm
Technical specifications Savant / UniEquip Univapo 100H vacuum centrifuge
Voltage: 220V, 50 Hz
Power: 390W
Temperature range: fixed temperature at 40 ºC
Speed: 1250 rpm
Rotor type: 72-11 for 72 tubes of 1.5 – 2.0 mL
External dimensions (W) x (D) x (H): 29 x 37 x 29 cm

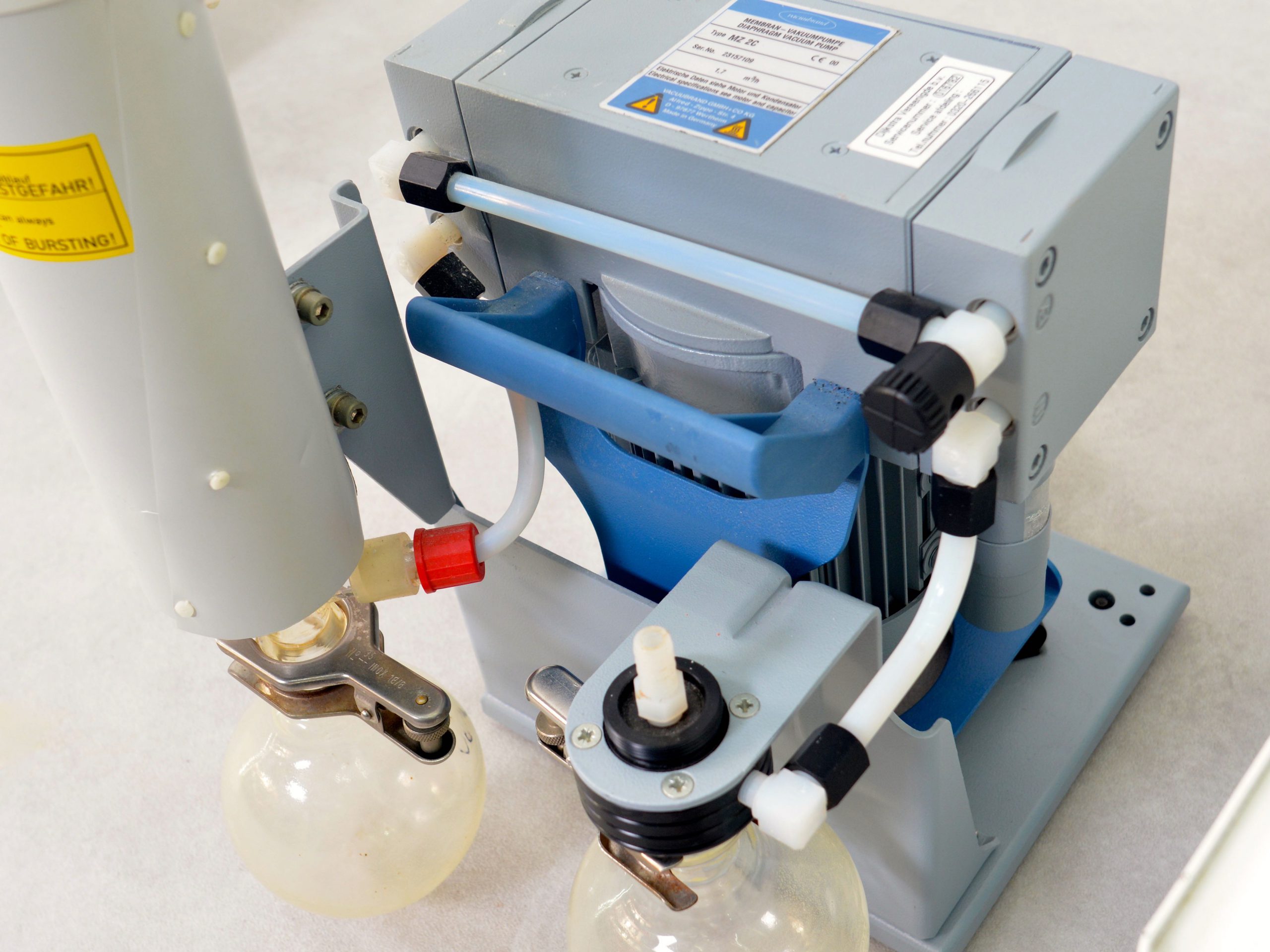

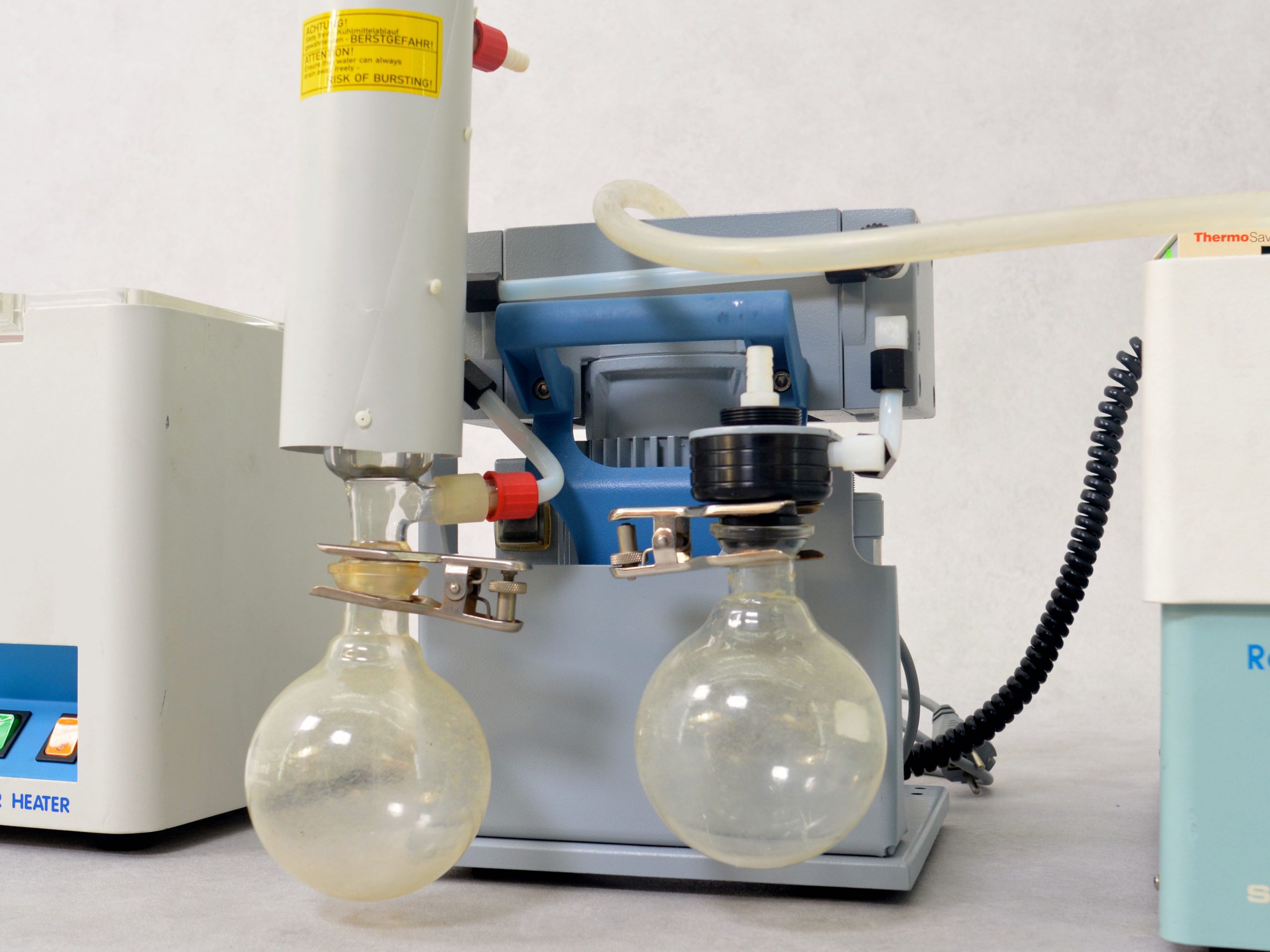

Technical specifications Vacuubrand MZ2C vacuum pump
Voltage: 230V, 50 / 60Hz
Current: 1.4A
Power: 0.18kw
Final vacuum: 4 mbar
Pump speed: 1.7 m3 / hour
External dimensions (W) x (D) x (H): 24 x 34 x 44 cm
