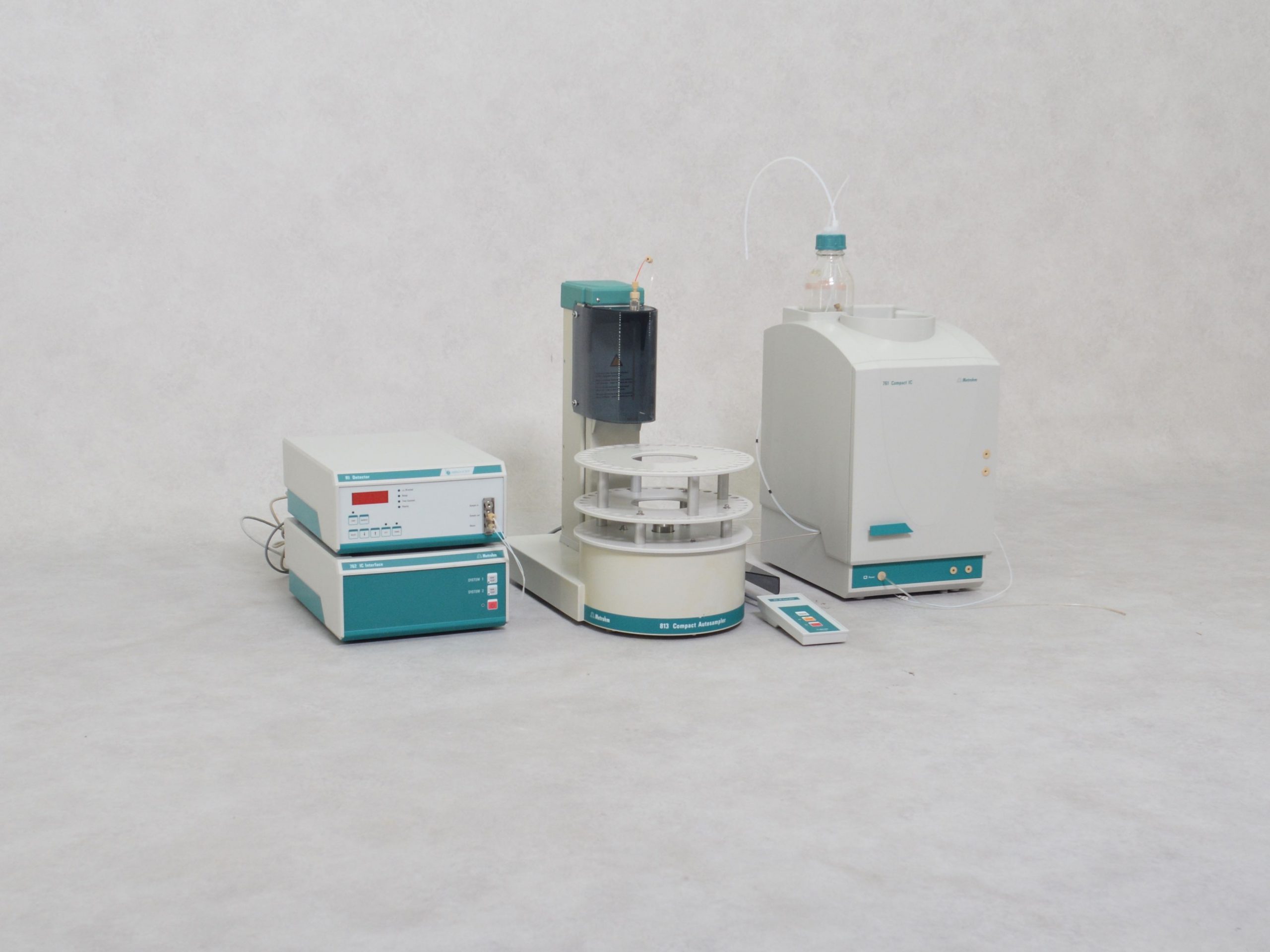

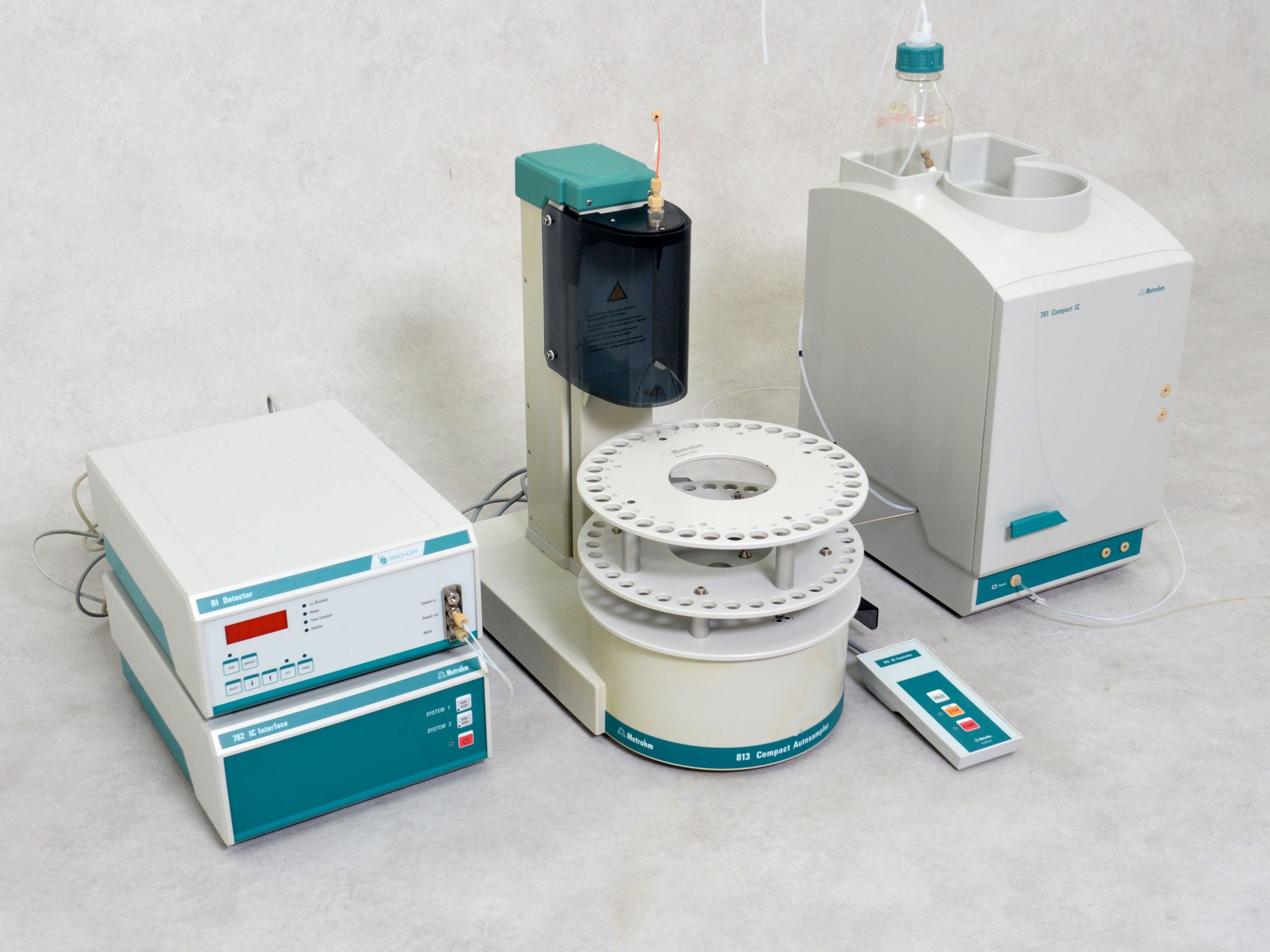

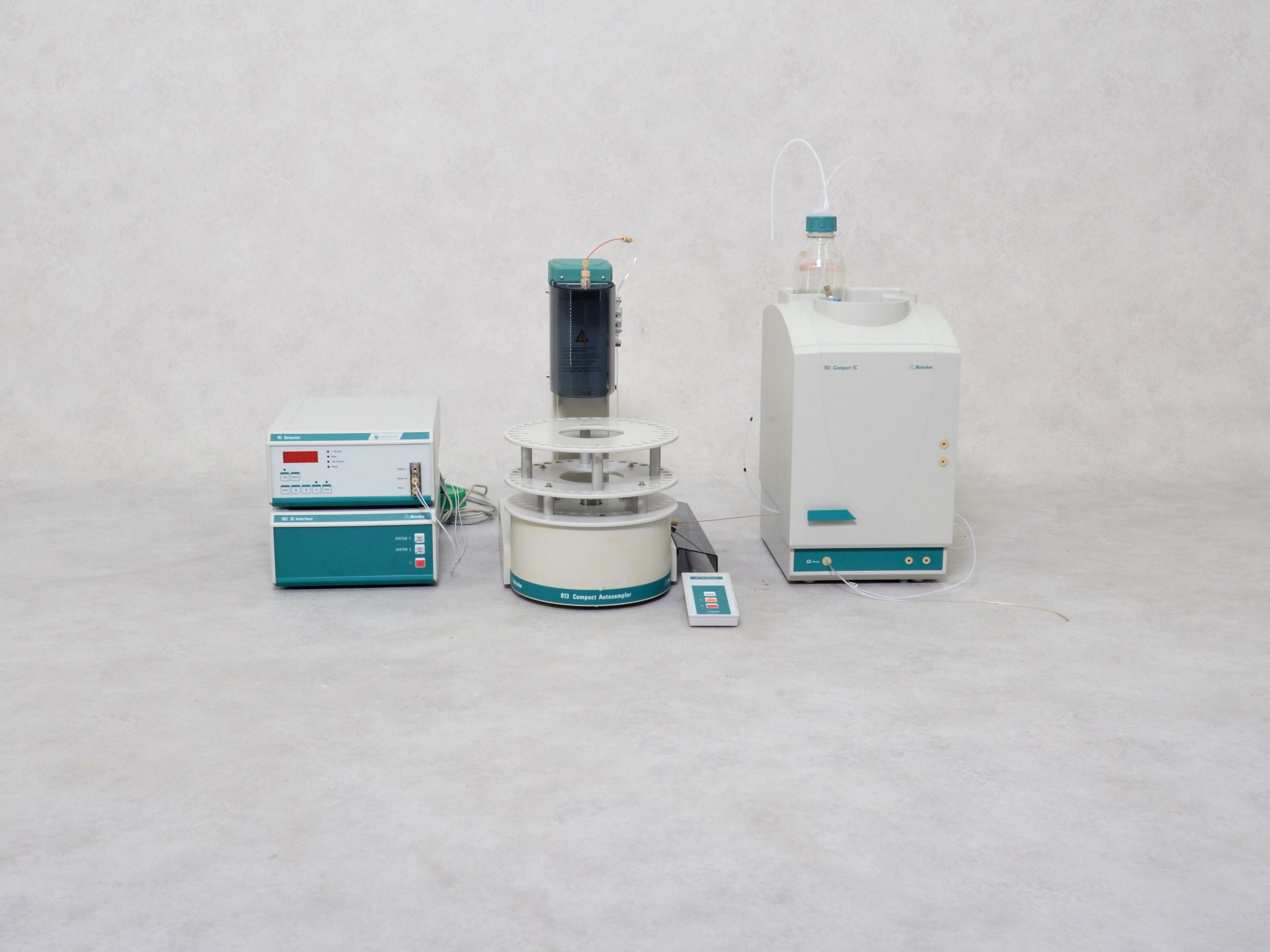

Metrohm Ion chromatography system

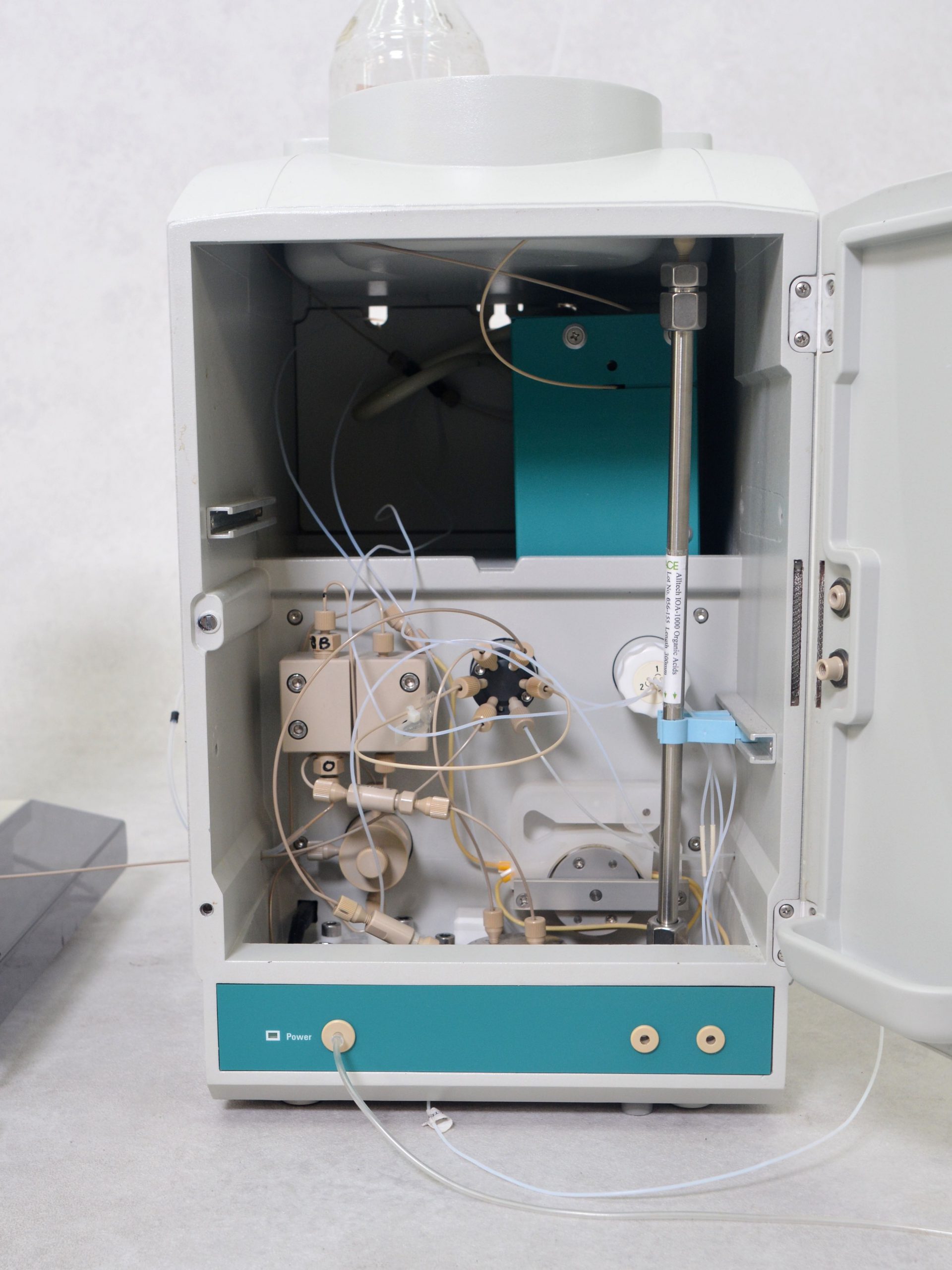

The Metrohm 761 compact IC is a PC-controlled system for ion chromatography analyzes. The Metrohm 761 compact IC is used for applications such as protein purification, water analyzes and quality checks.The compact housing of the 761 IC is equipped with an injection valve, high pressure pump, pulsation evaporator, column chamber, two-channel peristaltic pump and a conductivity detector. In addition, the Metrohm 761 compact IC can accommodate both anion columns and cation columns.

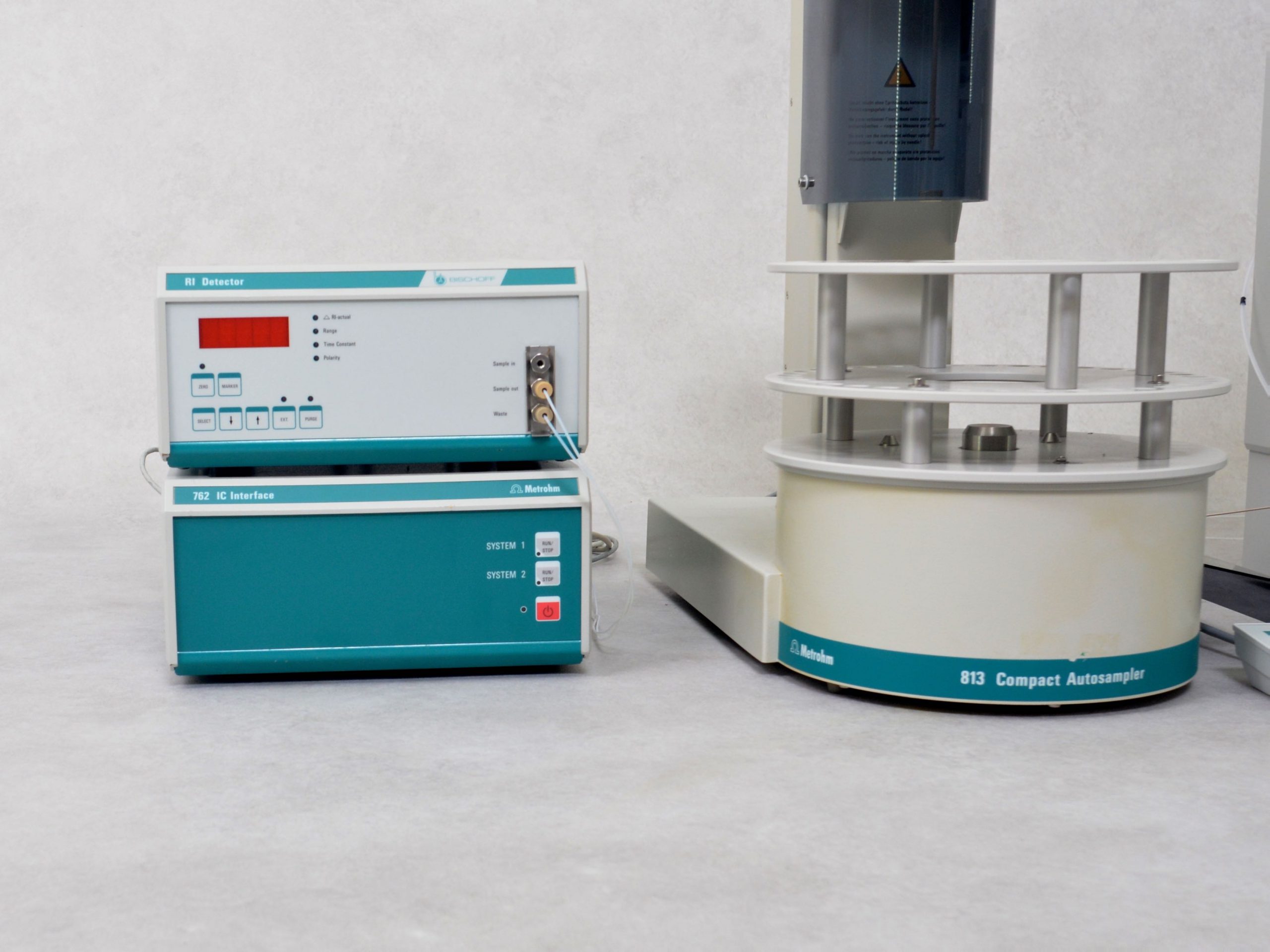

The 762 IC interface provides the connection between the PC and external ion chromatography or HPLC instruments. Up to 16 instruments including four detectors can be connected and controlled on the 762 IC interface.

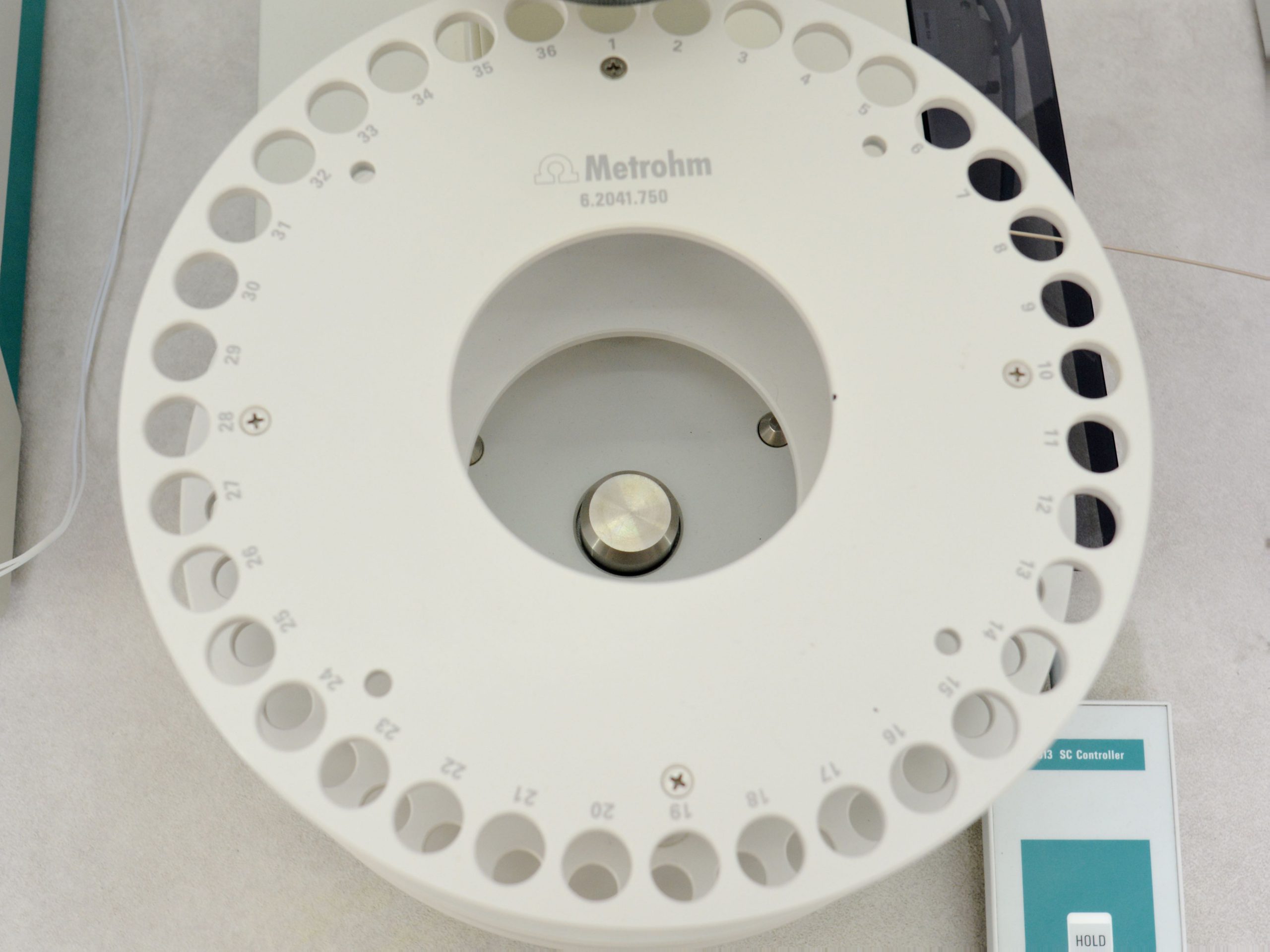

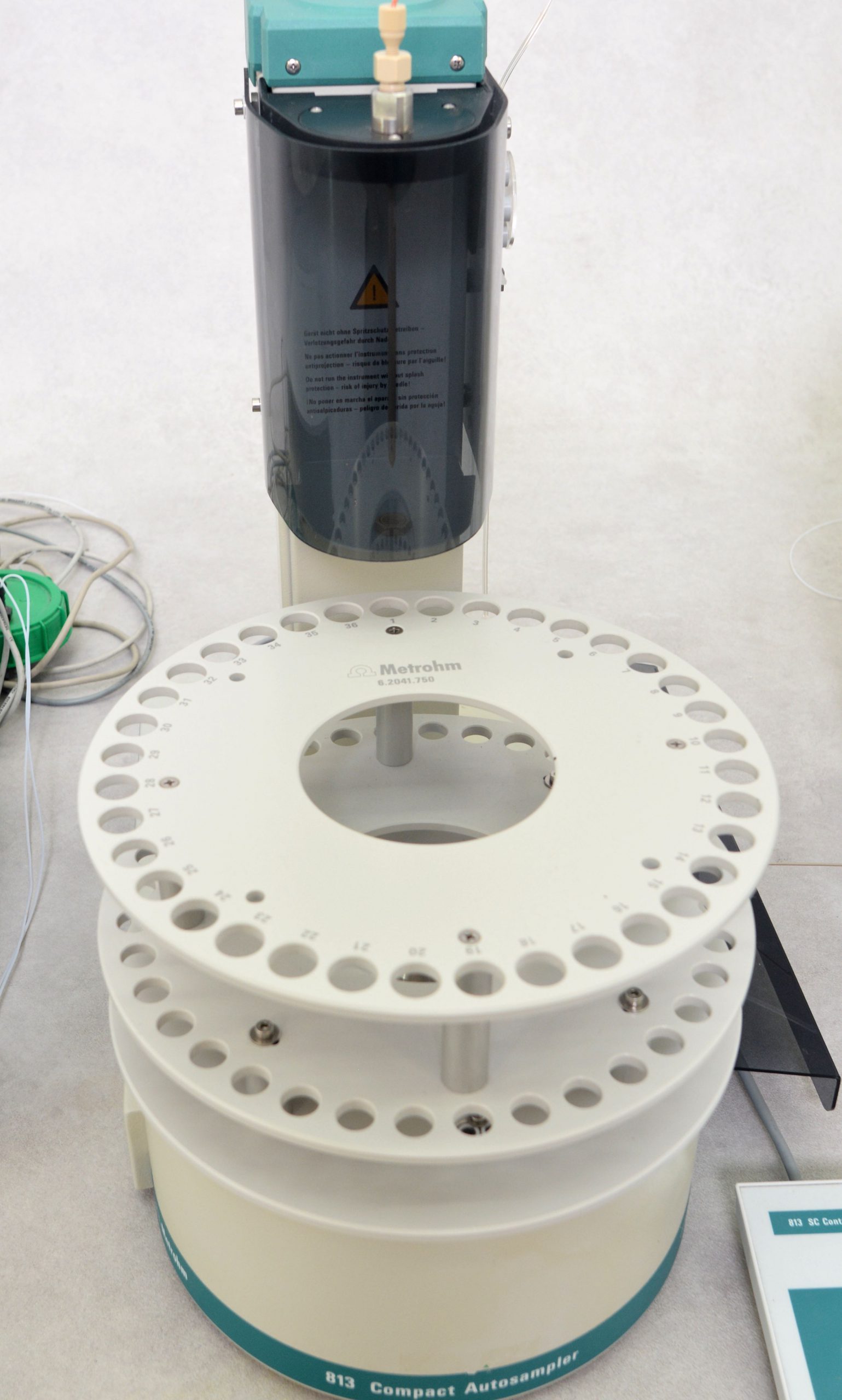

The Metrohm 813 Compact Auto Injector can be used for automation of various tasks, including for ion chromatographic determinations with the Metrohm IC system instruments or for voltammetric determinations with the Metrohm 746 Trace Analyzer or 757 VA Computrace. For instance, this auto-injector can be used to inject samples into the 761 IC system.
Technical specifications Metrohm 761 Compact IC
High pressure pump: 0.20 – 2.5 mL/ min
Two-channel peristaltic pump: 20 rpm at 50Hz and 24 rpm at 60Hz
External dimensions (W) x (D) x (H): 26 x 36 x 5 cm
Technical specifications Bischoff 8020 RI detector
Voltage: 100-120V 0.8A 220-240V 0.4A
External dimensions (W) x (D) x (H): 26 x 37 x 12.5 cm
Technical specifications Metrohm 762 IC Interface
Voltage: 100-240V, 50-60Hz
Power: 7VA
External dimensions (W) x (D) x (H): 26 x 37 x 12.5 cm
Technical specifications Metrohm 813 Compact Autosampler
Voltage: 100-120V, 220-240V
Frequency: 50-60Hz
Power: 40VA
Speed one-channel peristaltic pump: 20 rpm
Maximum pressure: 1.5 bar
External dimensions (W) x (D) x (H): 27 x 50 x 50 cm
