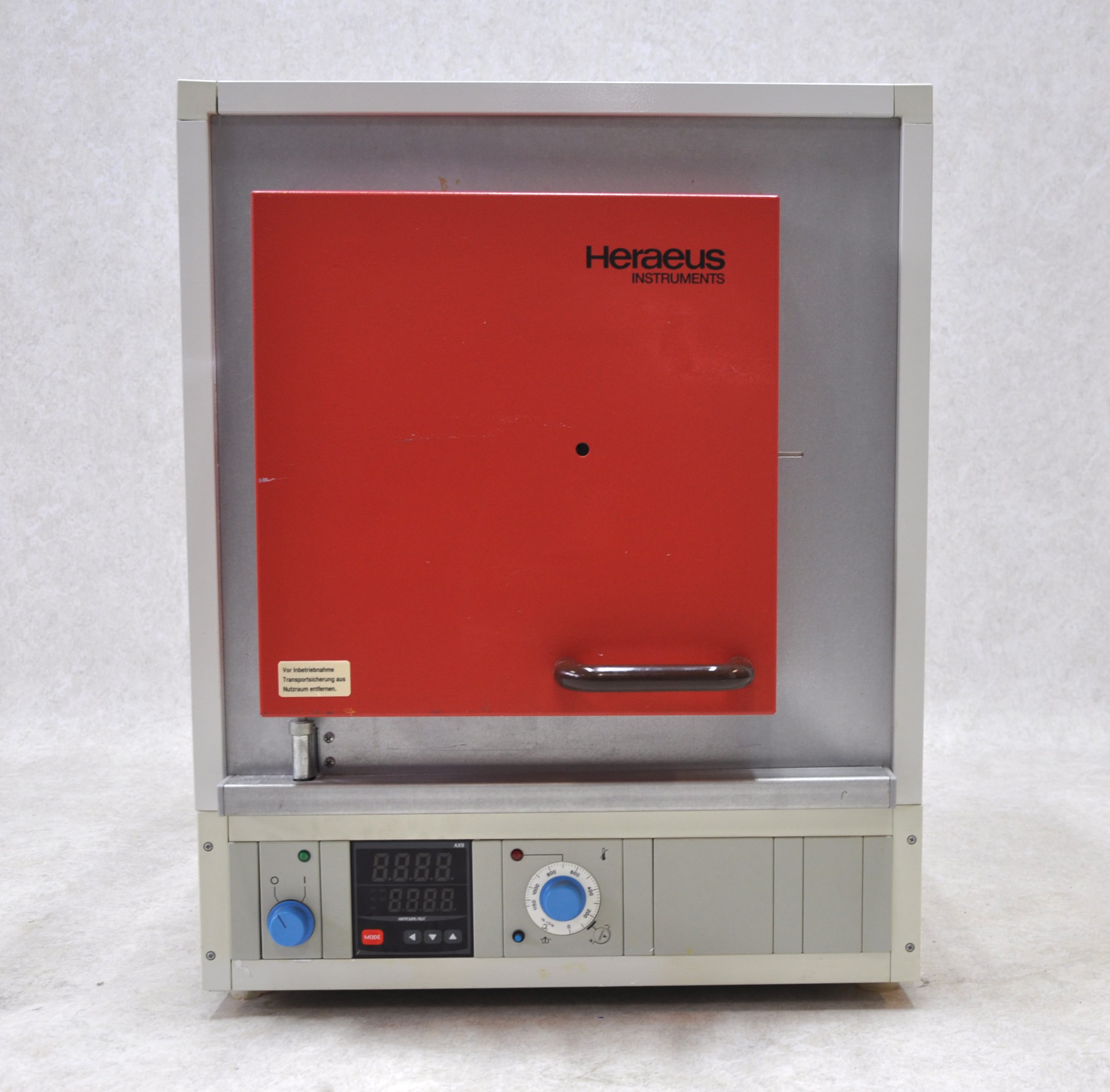

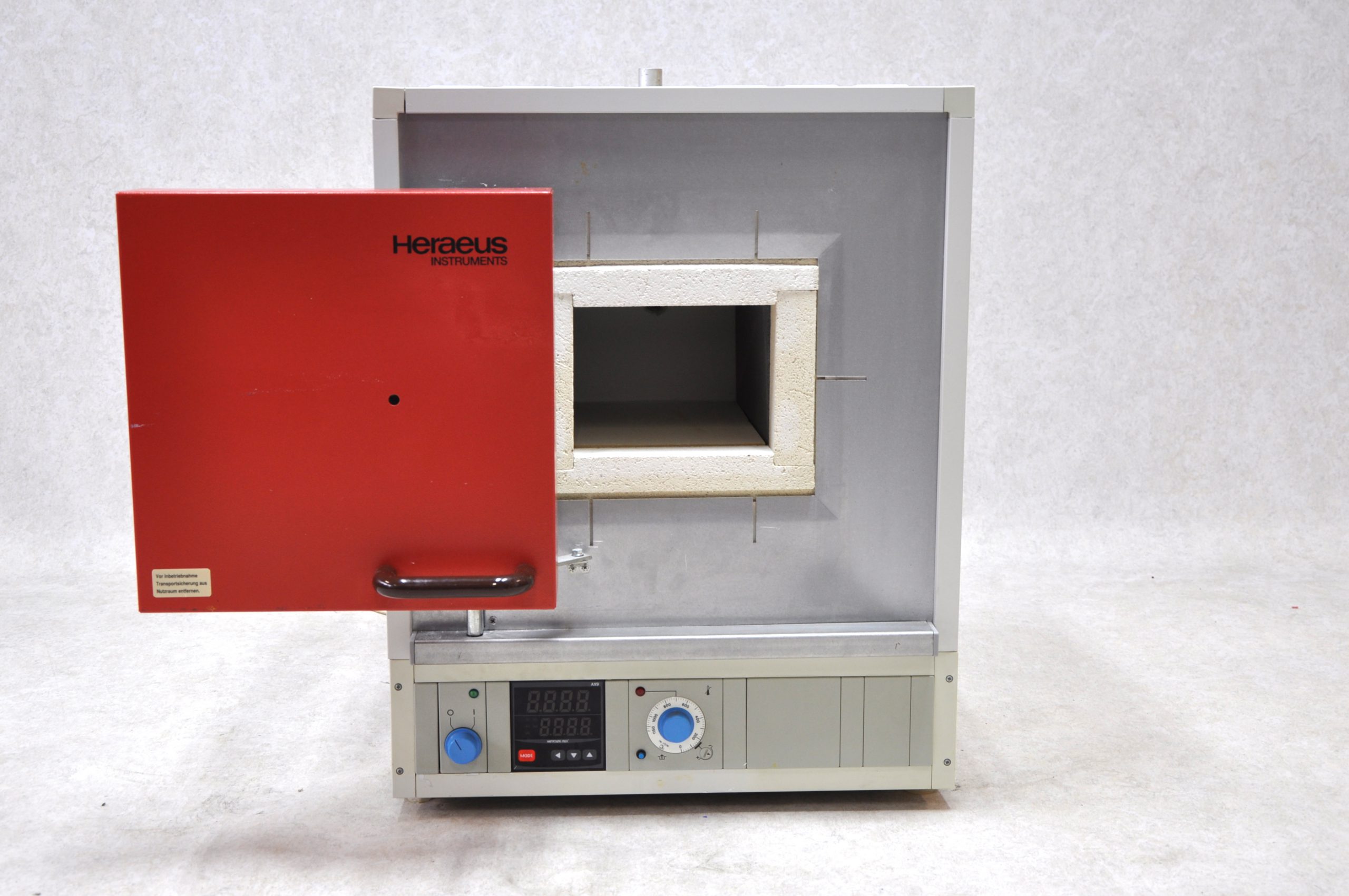

Muffle or Hightemperature oven from Heraeus, type M 110.
The optimum isolation and heating ensure a homogeneous temperature distribution in the furnace chamber, a high temperature constant in the chamber and in time.
The outer casing of this particular Muffle Furnace is of precoated galvanized steel sheet.
The front plate is of aluminized steel sheet with an easily removable facing.

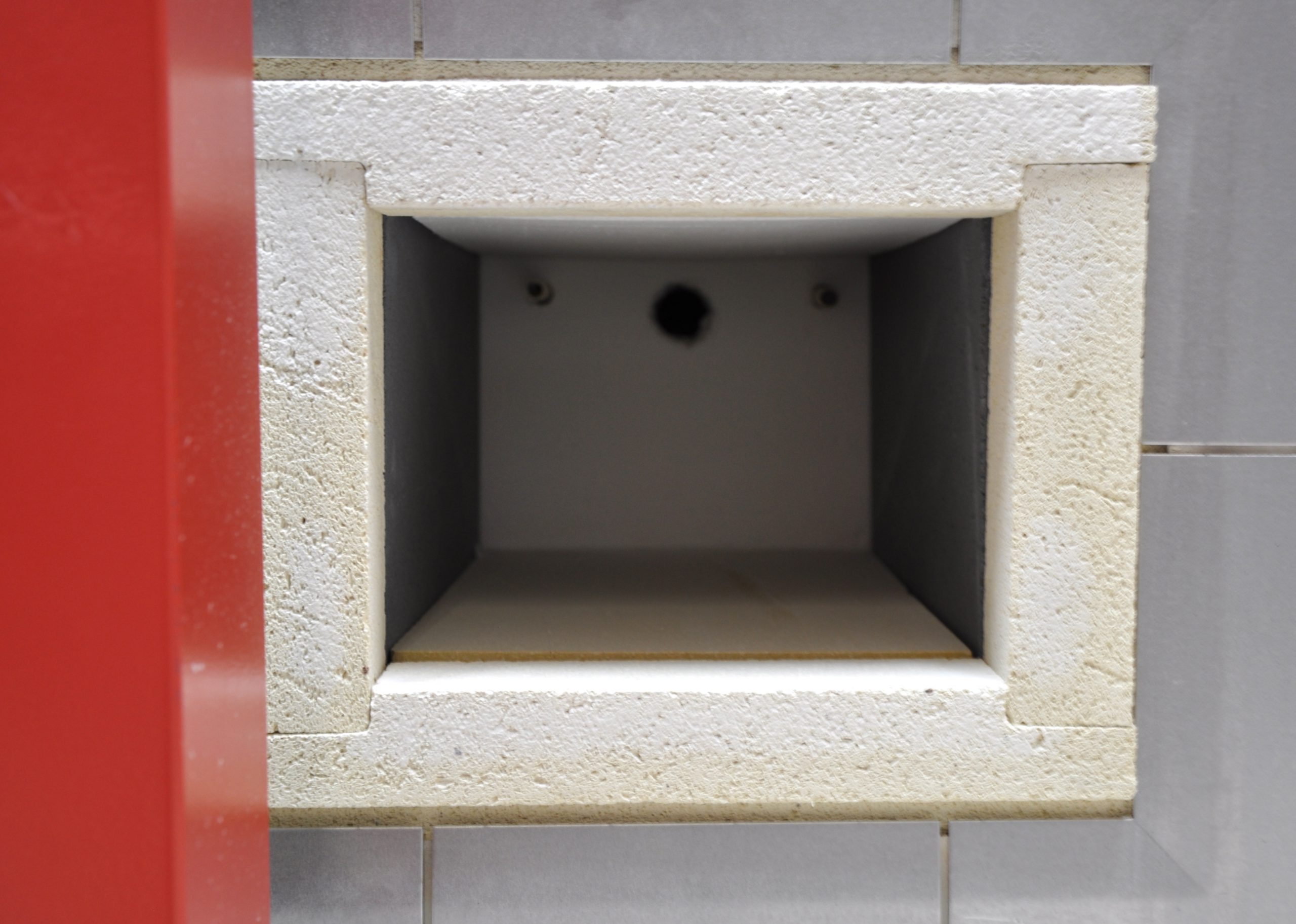

The annealing chamber is heated from two sides. CrFeAI heating coils are embedded in readily exchanged grooved refractory bricks and covered by silicon carbiplates.
The control insert in the bottom part of the furnace sits on pulI-out rails. All switching and control elements are thus easily accessible in case maintenance becomes necessary.
The door insulation, the rear wall of the annealing chamber as well as the ceiling are of fibrous material (aluminum silicate).
The bottom plate and furnace mouth are of refractory bricks (ceramic plates).

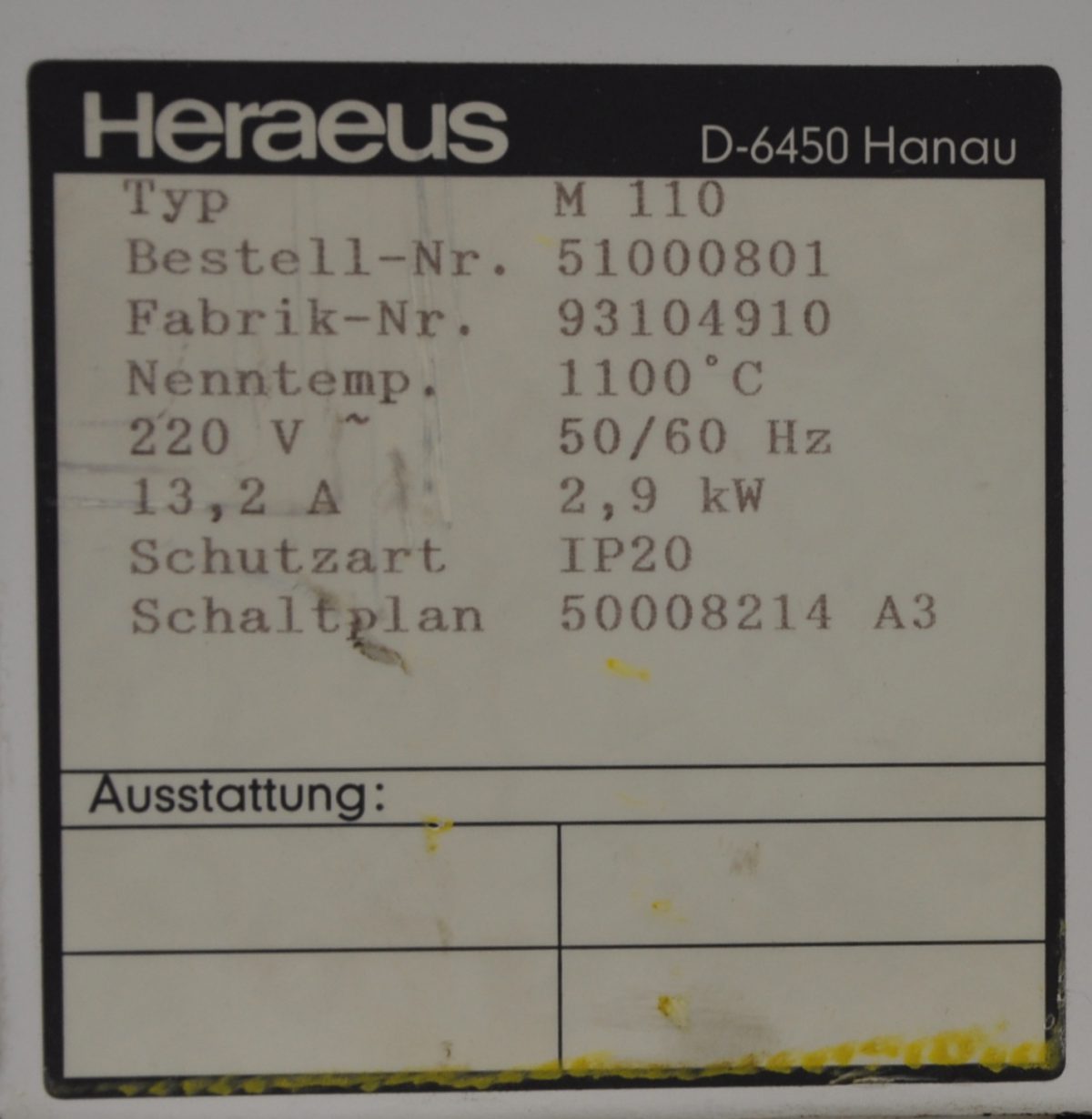

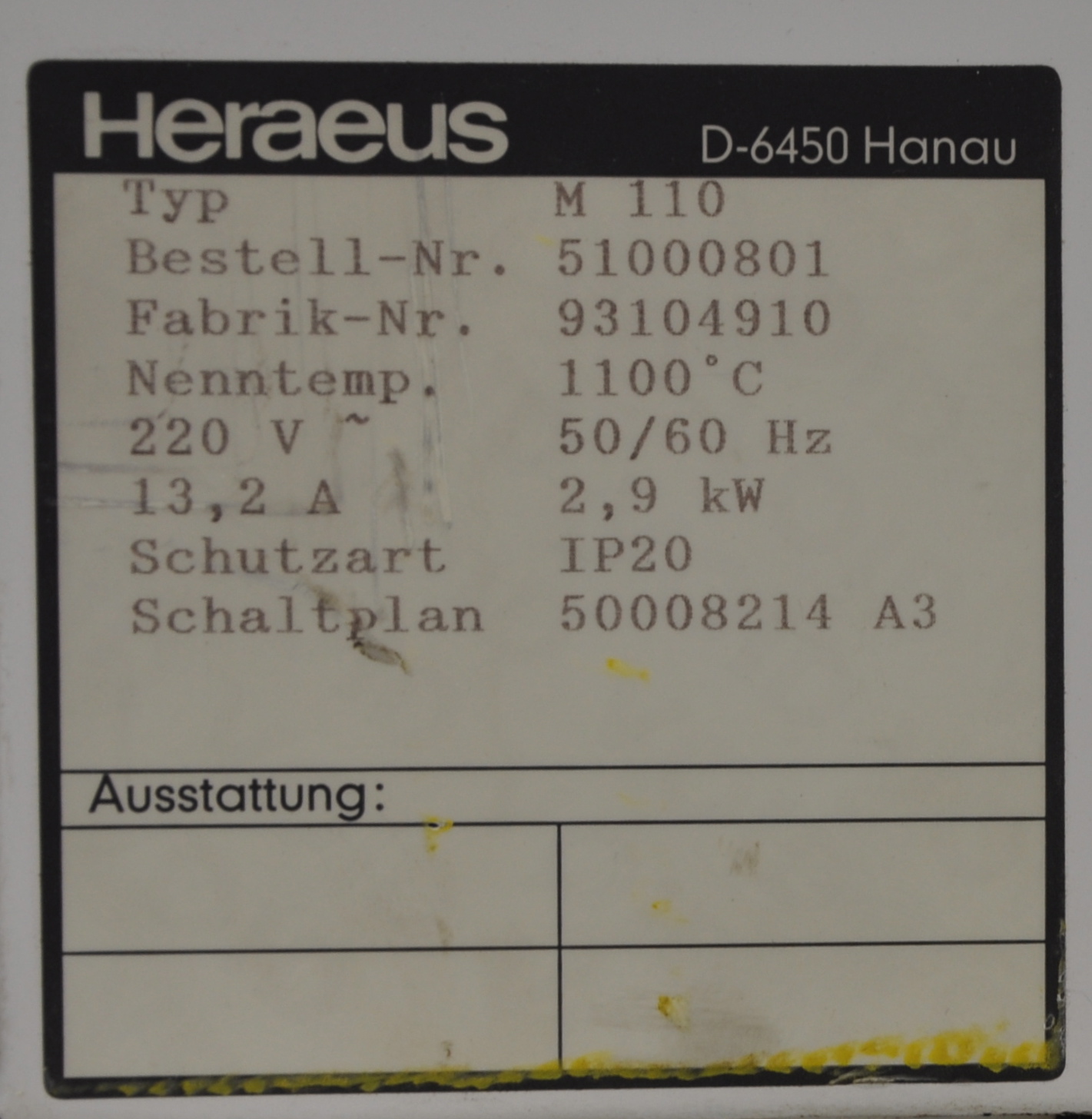

Technical specifications:
Voltage: 220 V / 50 Hz
Power: 2.9 kW
Current: 13.2 A

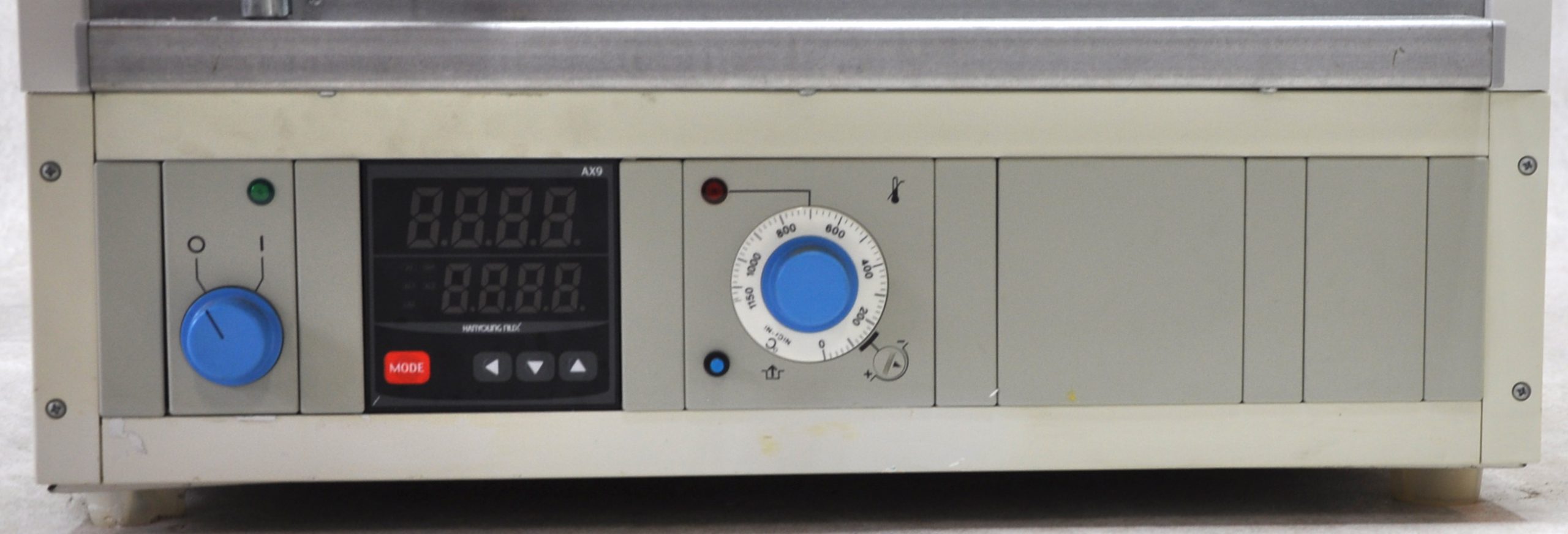

Equipped with a new AX9 controller
Nominal temperature: 1100 ยบ C.
Capacity: 9 liters.
External dimensions (W) x (D) x (H): 57.5 x 77 x 80 cm
Interior dimensions (W) x (D) x (H): 20 x 37.5 x 15 cm
