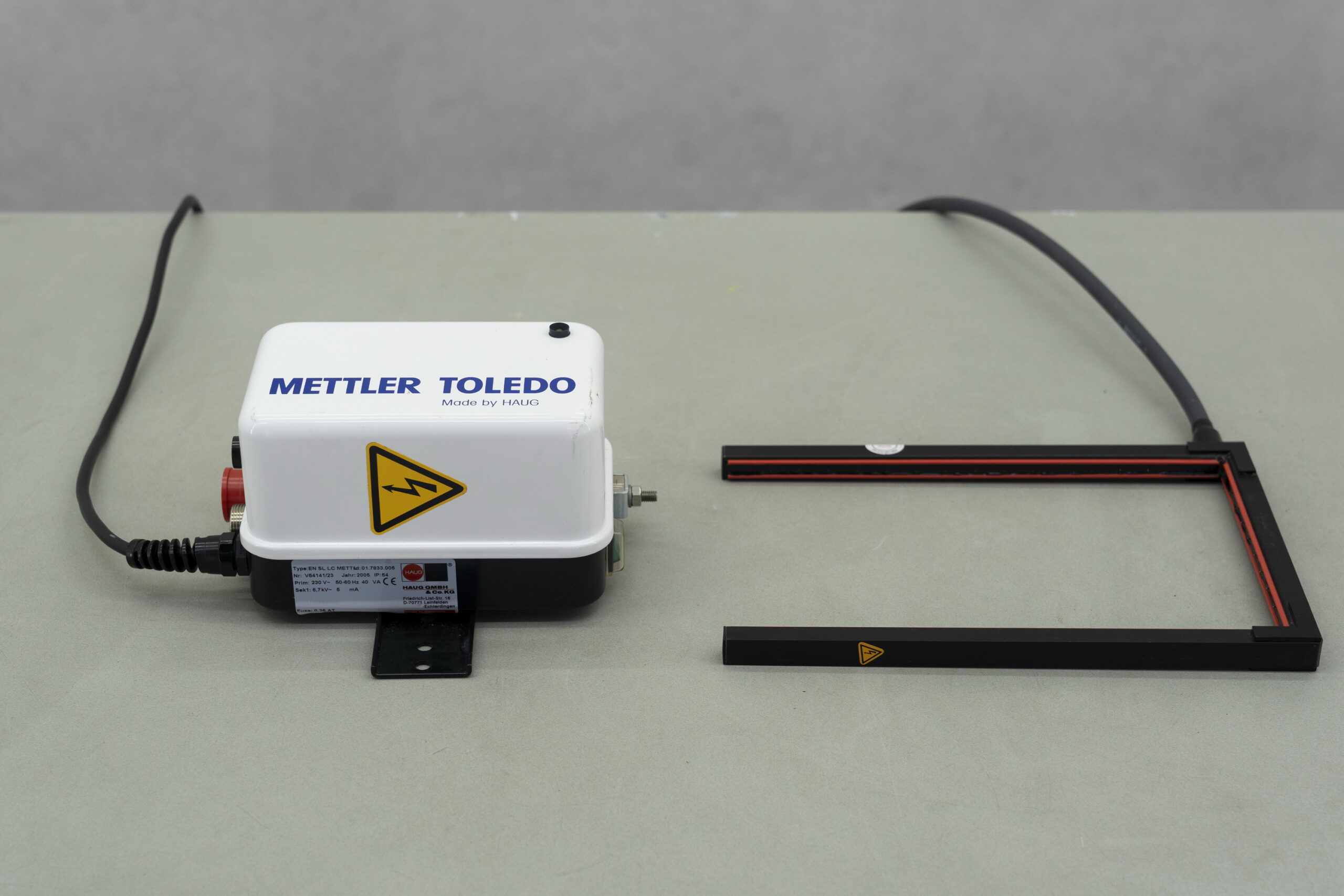

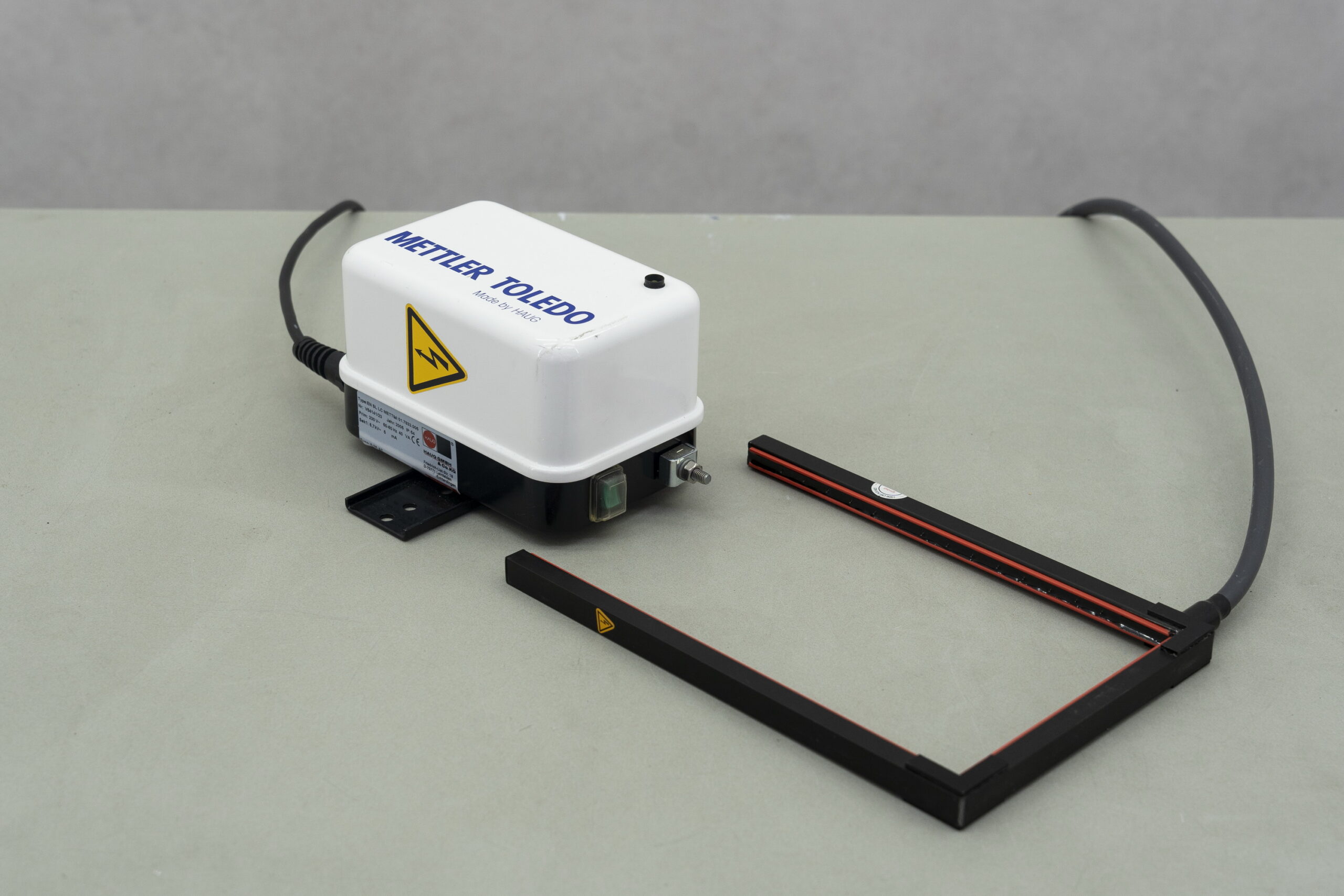

This Haug Mettler kit is the answer to solve weighing issues as a result of static electricity. The resolution is a system that eliminates the forces that cause disturbances by discharging electrostatic charges on the surface of the sample and weighing containers before they can enter the weigh cell. The result is stable and reproducible results every time. The Kit consists of an anti-static electrode and a power pack.
Power pack type EN SL LC
The power pack type EN SL LC guarantees a service-friendly power supply. The power pack comes with two high-voltage connections and was designed to provide HAUG ionizing systems with the required voltage.
The integrated HV-transformer produces an alternating current of approx. 7 – 8 kVAC. The main on/off switch with a build-in display light, always lets the user know that the power pack is ready for operation. The S-Line power pack works ideally with HAUG ionizing products, such as ionizing bars, air gates, ring ionizers etc.
This power pack also features integrated full-electronic function monitoring. This system constantly monitors all functions of the ionizing system without any further measuring or test equipment. It alerts the operator of any irregularities by causing the LED indicator integrated in the housing to flash.
Technical specifications:
Voltage: 115 V / 240 V
Current: 5 mA
Power: approx. 50 VA
Max. connectable length: 10 m
Signalling cable type to be used: K6
Protection type: IP 54
Protection class: I
Operating temperature: +5 °C to +45 °C
Storage/transport temperature: -15 °C to +60 °C
Anti-static electrode
Features of the anti-static electrode, type PRX U are:
– Standard U-Ionizer dimensions: 15 cm x 18 cm
– High-voltage cable Coaxial
– High-voltage connection X-2000 plug connection system
– Ambient temperature maximum: +50 °C
