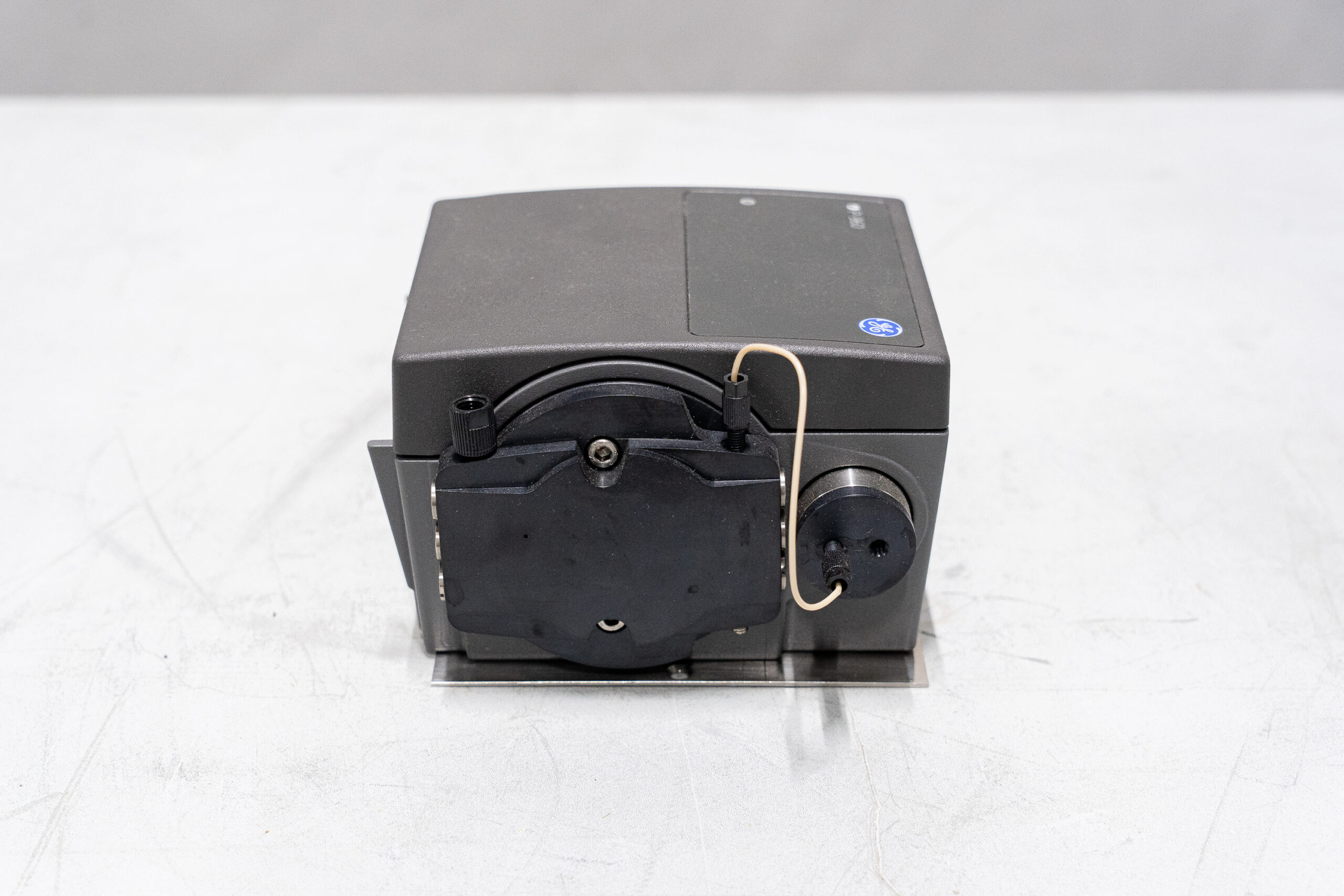

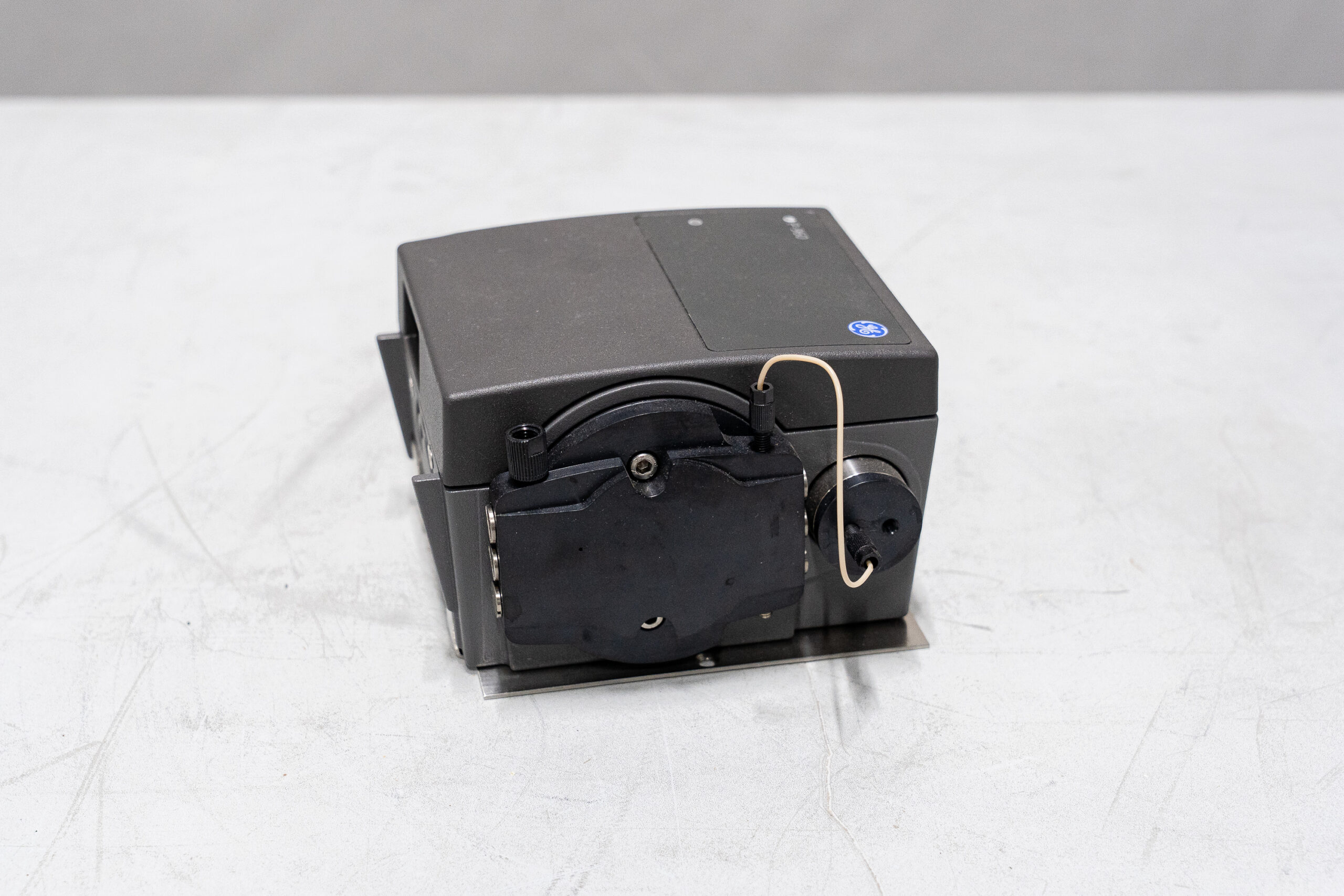

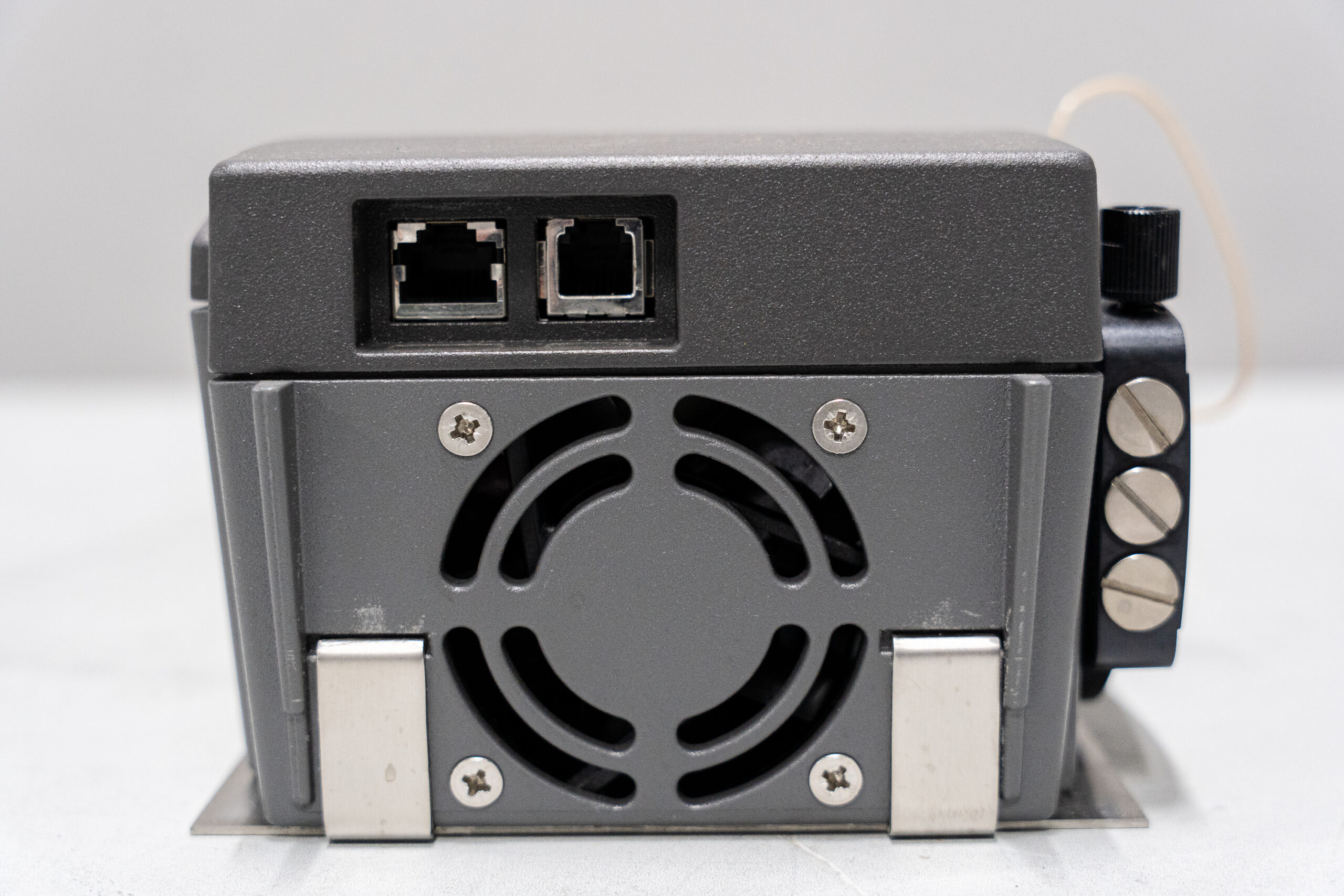

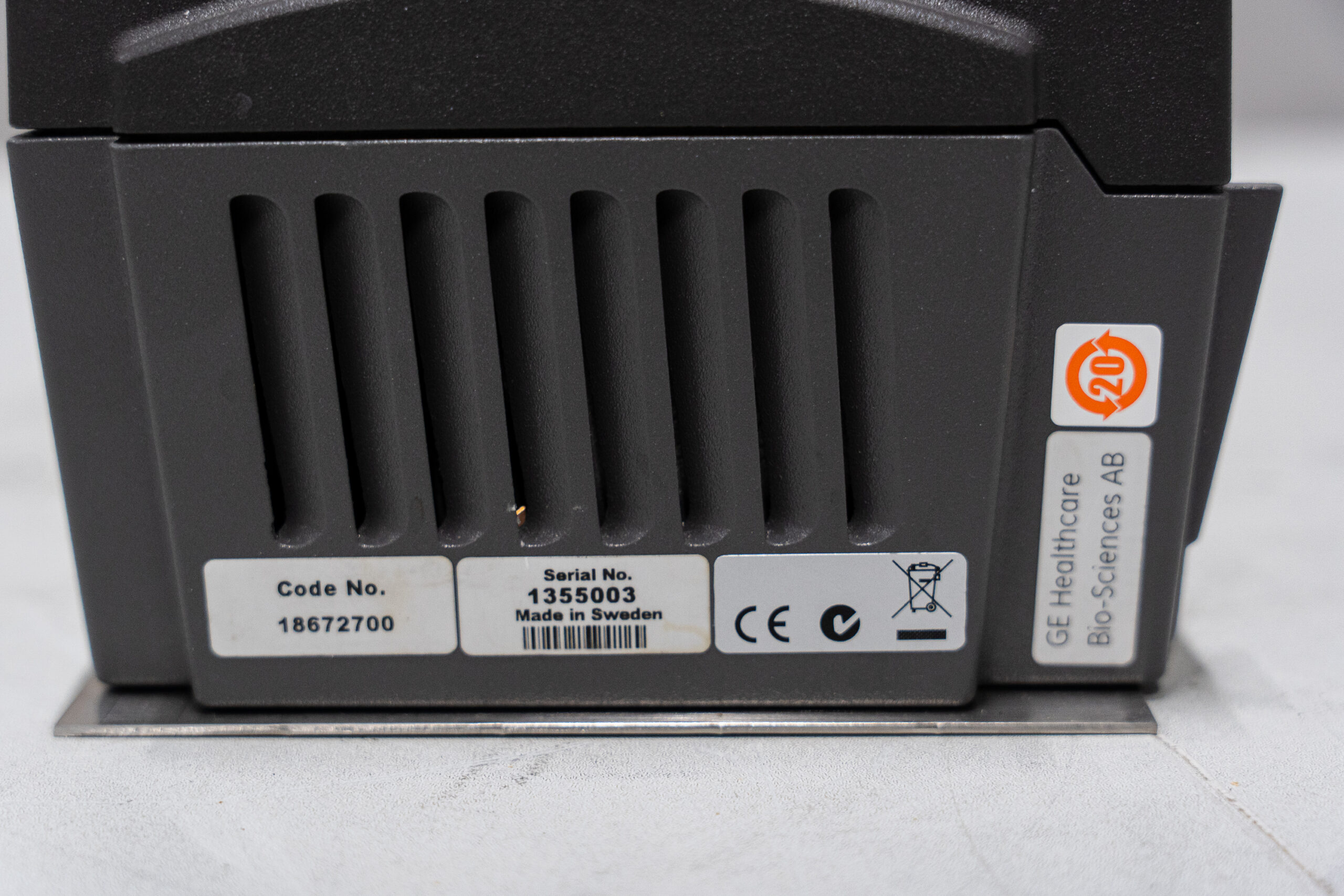

The GE ÄKTA P-960 HPLC Sample Pump is a single-channel pump designed to deliver samples to chromatography columns or sample loops with precision, low pulsation, and reproducibility. Its piston drive, stepper motor, and integrated pressure and air sensors make it suitable for automated chromatography workflows.
Technical specifications:
Flow rate: 0.1–50 mL/min
Maximum pressure / pressure range: 0–2.0 MPa (≈20 bar / 290 psi)
Pump type / drive: Piston pumps, driven by a stepper motor
Pulsation / stability: Low pulsation — designed for stable and reproducible flow, independent of temperature or load
Sensors / monitoring: Integrated pressure sensor on the outlet; interface for direct connection of an air sensor possible
Application: Loading samples into the sample loop, direct injection onto the column, filling “Superloops” in a chromatography system
External dimensions (W x D x H): 150 x 150 x 100 mm
Weight: 4 kg
