EmbryoS@fe Series workstations are dedicated to IVF and stem cells manipulation. Temperature, humidity and CO2 concentrations control together with an aseptic working conditions environment are key factors for a successful and reliable process.

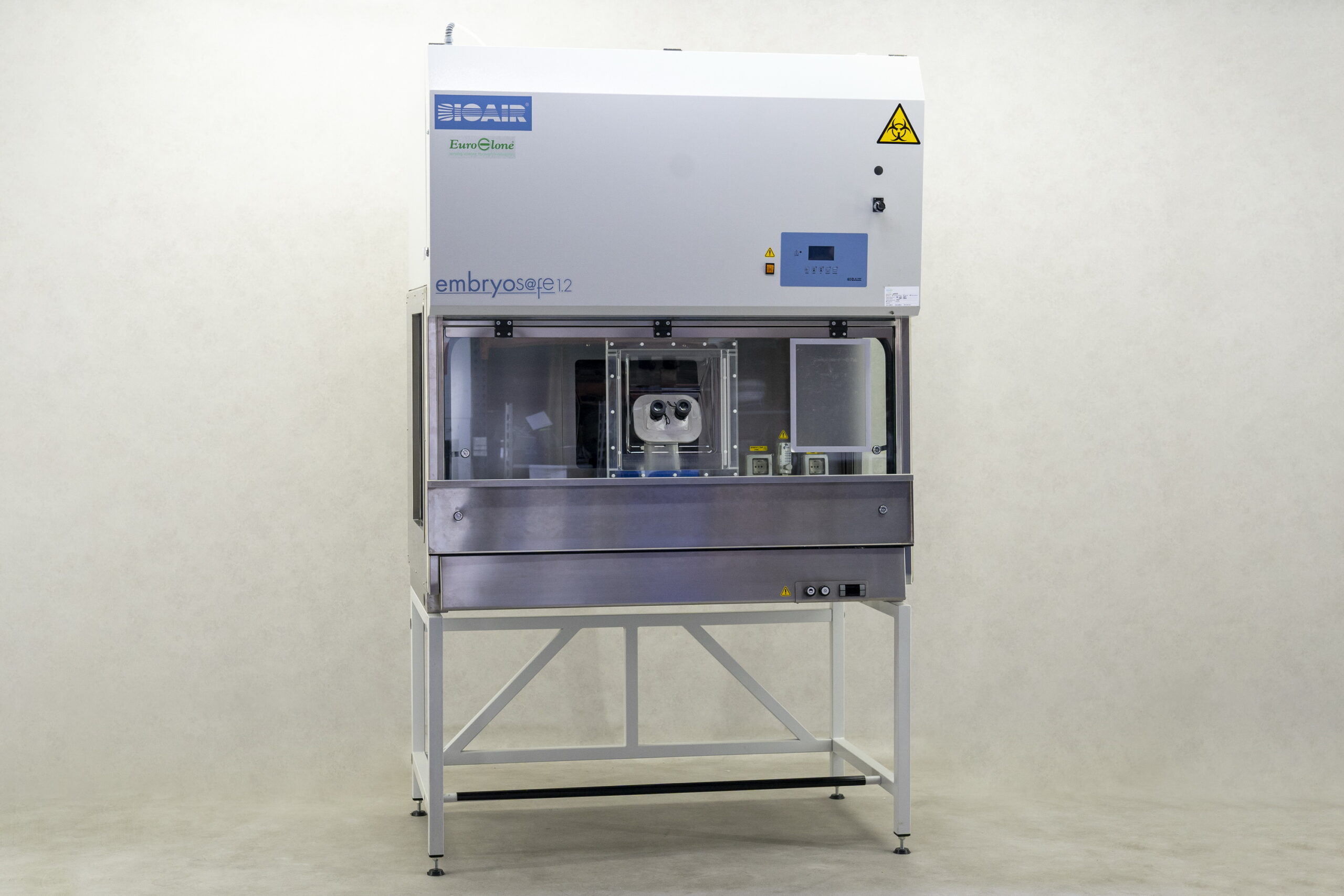

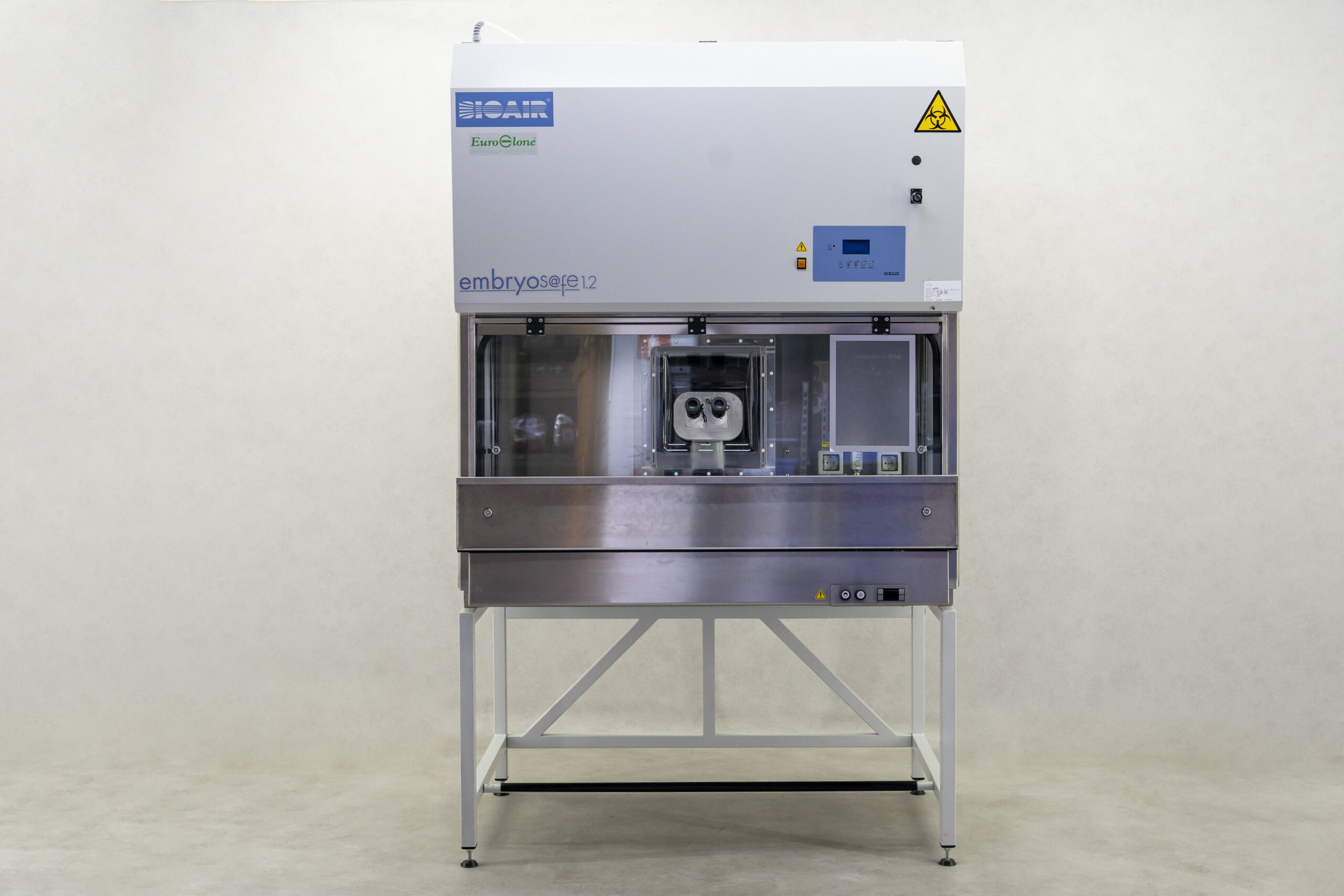

For the most demanding applications a biohazard environment is required. EmbryoSafe/StemSafe is a high retention efficiency recirculating cabinet engineered to provide the same level of safety required by the EN12469:2000 European Standard for Microbiological Safety Cabinets, that off ers Product, Operator and Environment Protection with the plus of a working environment dedicated to IVF procedures and stem cell culturing.

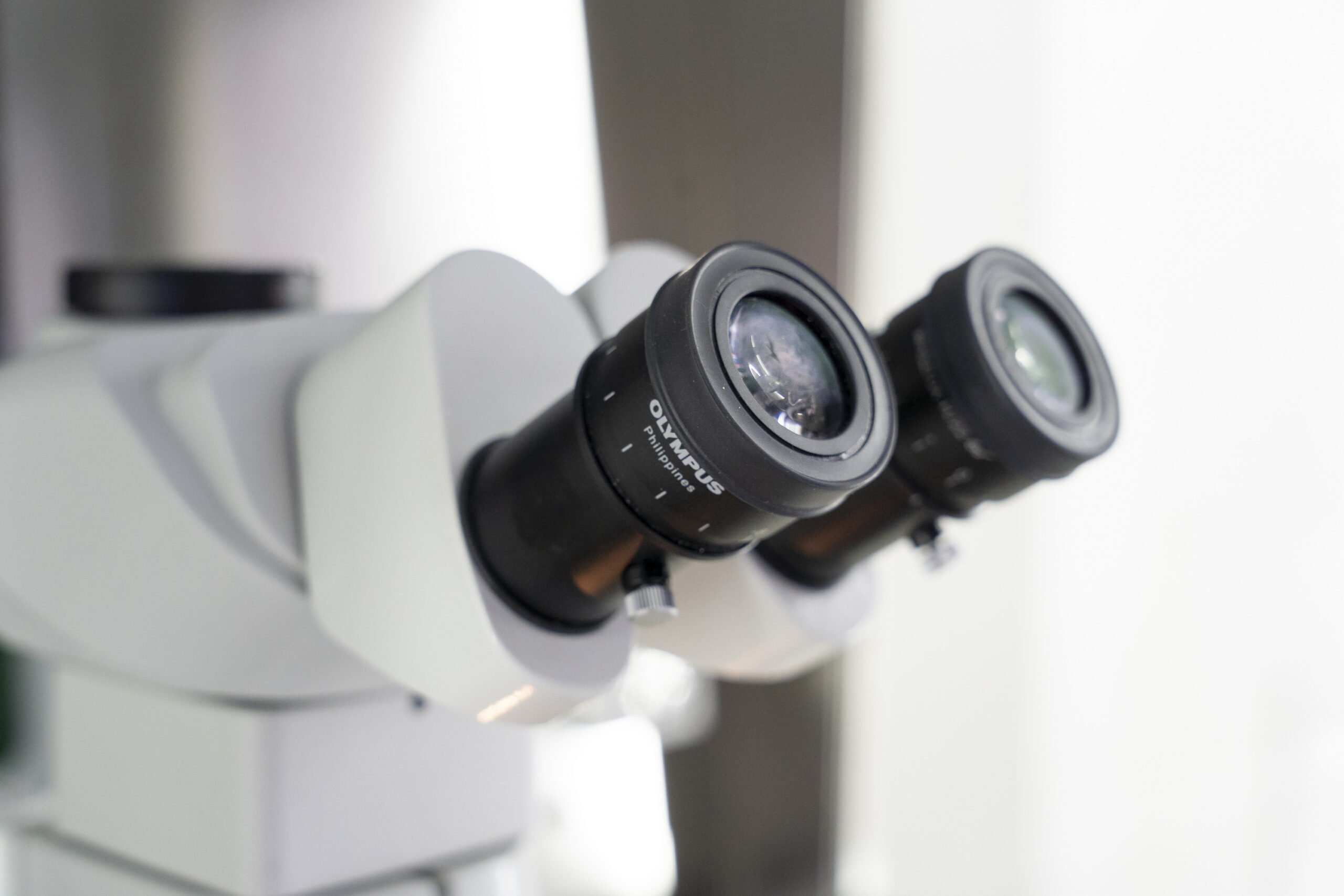

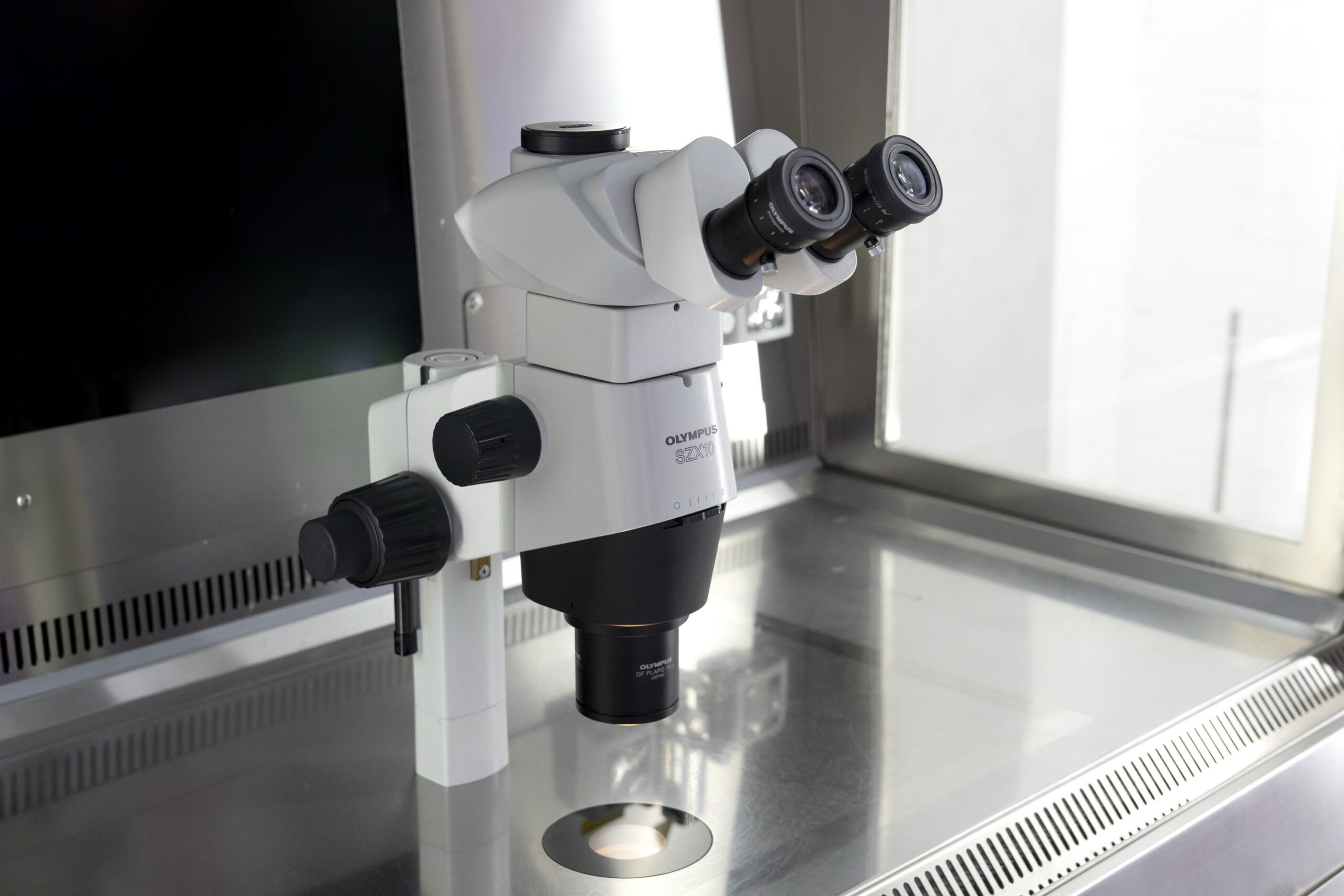

This cabinet will be delivered including an Olympus SZX10 camera.
Some of the cabinet features are:
- Integrated light source compatible with Olympus SZX series stereoscopes
- Integrated glass heated work area with temperature control

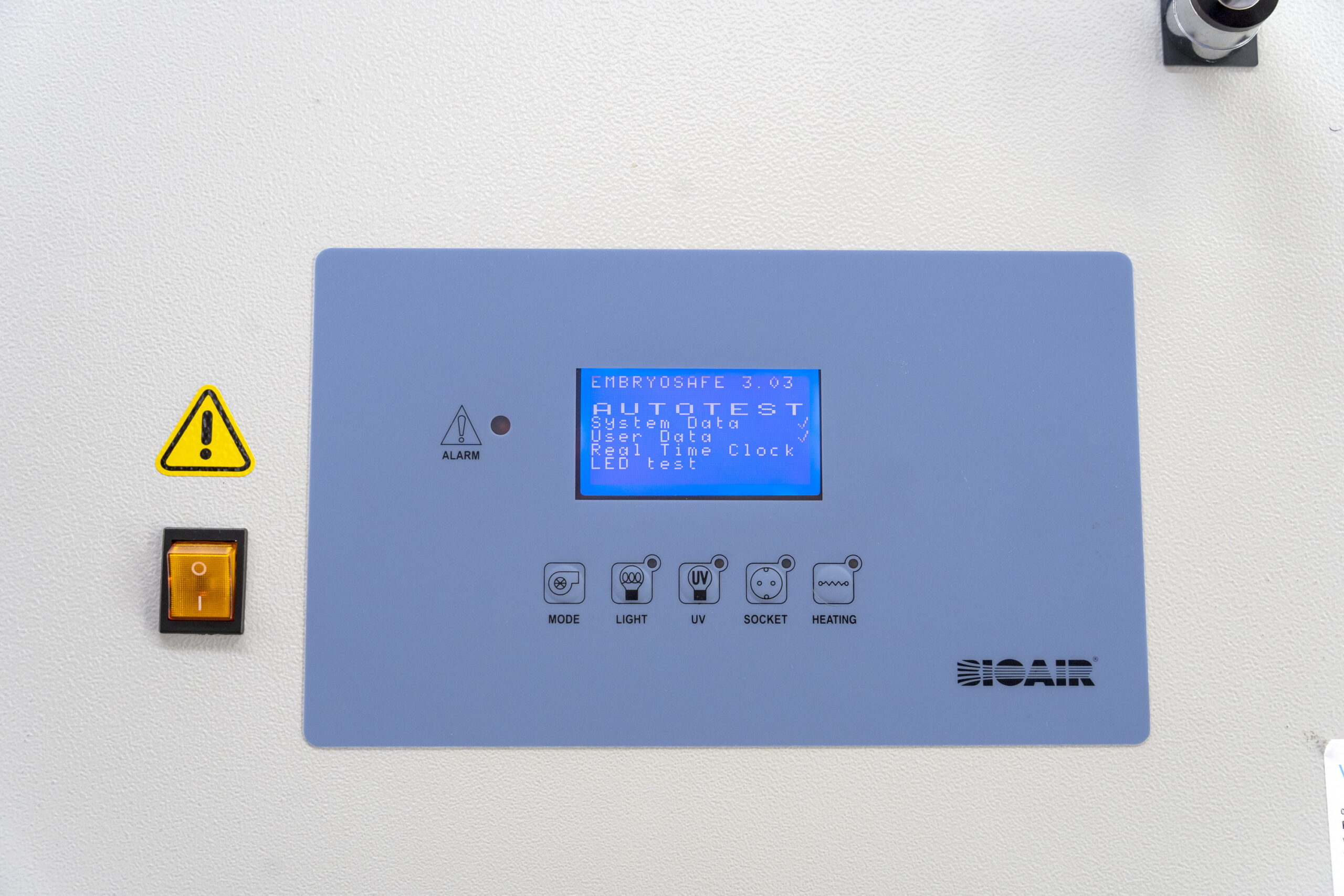

- Front controls for temperature and microscope light intensity & contrast
- Optional backwall monitor for microscope camera connection
- Side glasses
- Stainless steel working area
- Integrated LCD monitor
- Nominal size: 1.2 meter
Voltage: 230 V – 50 Hz
Power: 1475 W
Noise Level: ≤ 57 d(B)A
Lighting: > 1200
Outer dimensions (W) x (D) x (H): 1380 x 860 x 1450 mm
Inner dimensions (W) x (D) x (H): 1320 x 650 x 730 mm
