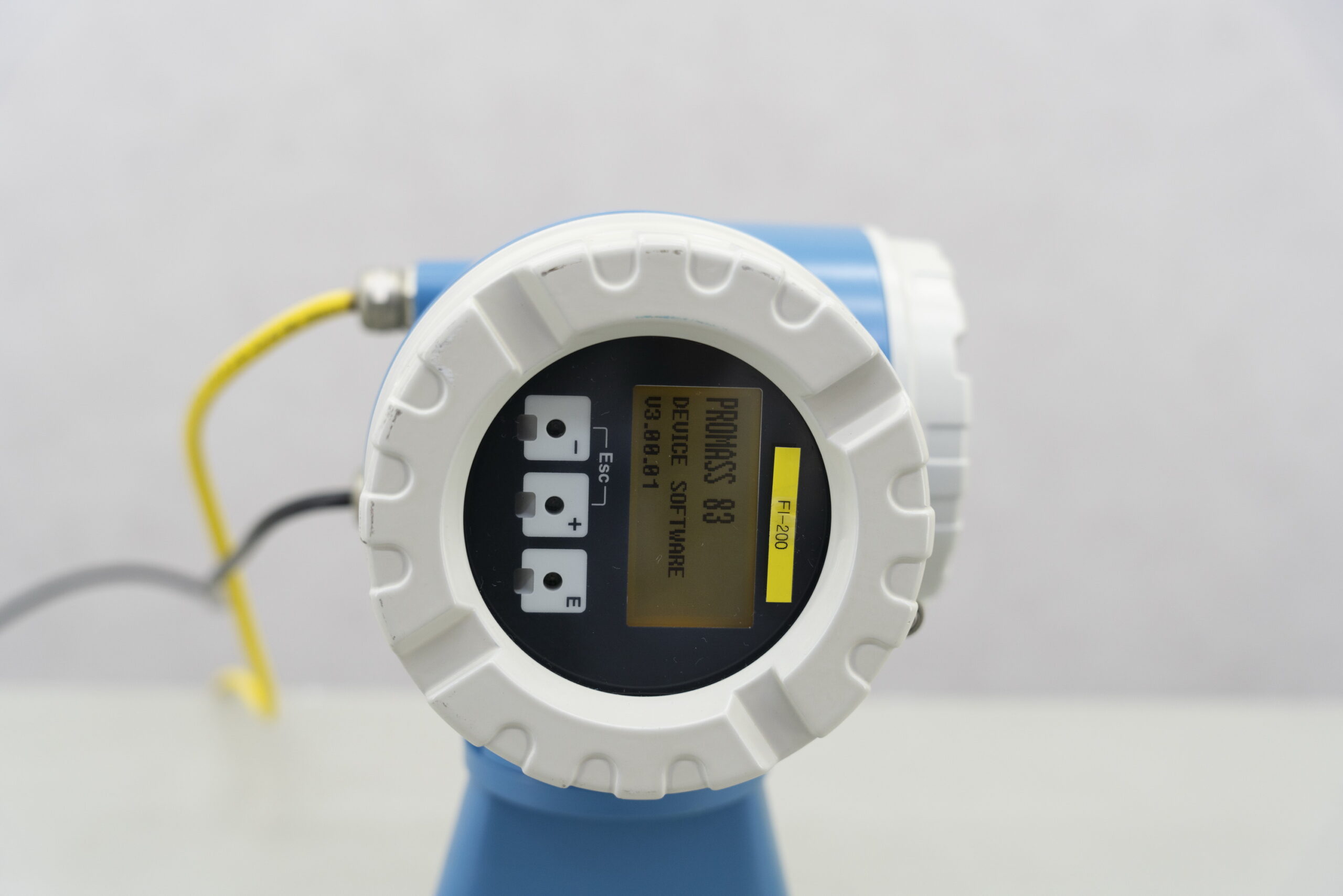

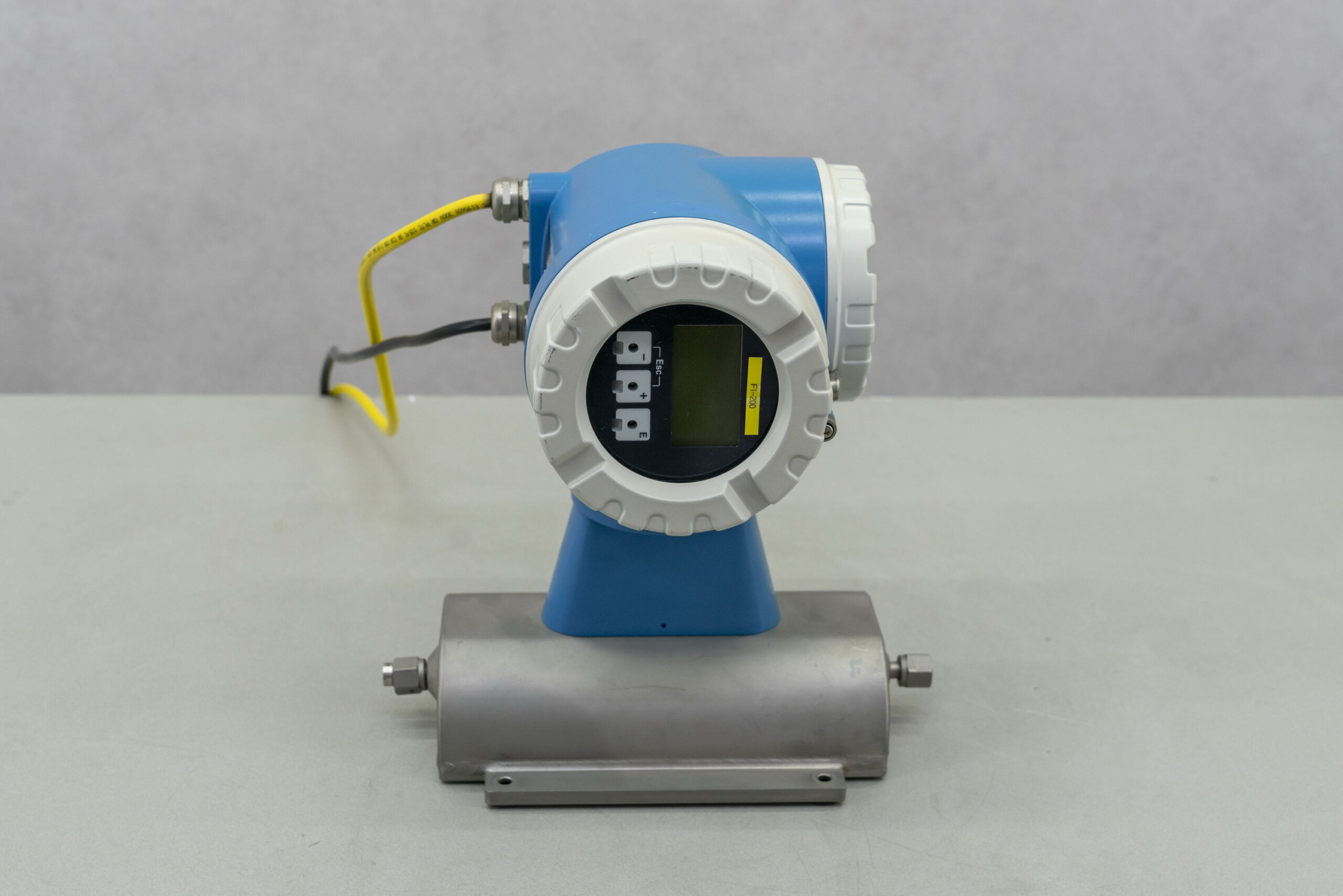

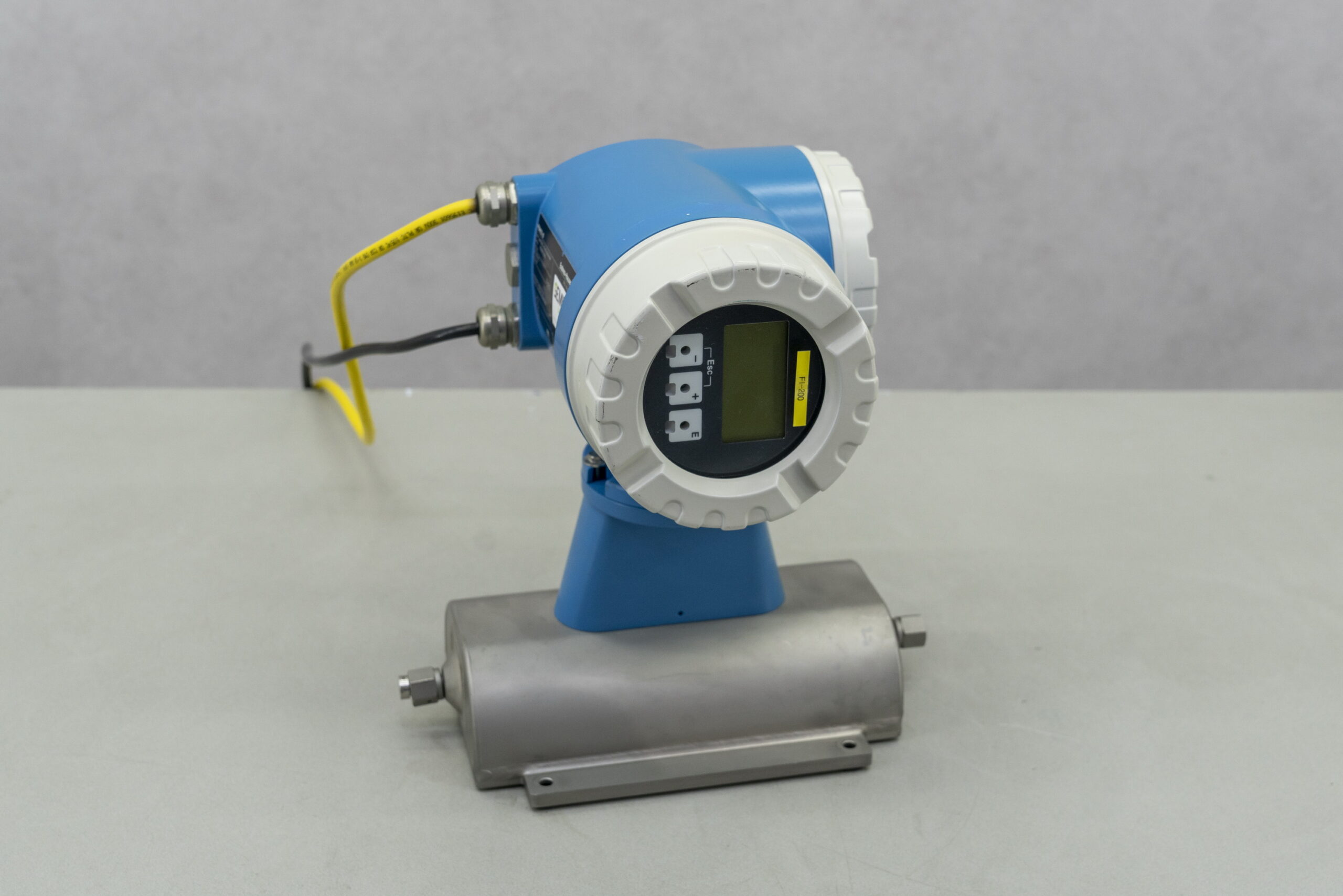

The Promass 83A is a Coriolis flowmeter of which the measuring principle operates independently of physical fluid properties such as viscosity or density. The flowmeter also measures accurately the smallest quantities of liquids and gases for continuous process control.
Benefits:
- Highest process safety – self-drainable measuring tube design.
- Fewer process measuring points – multivariable measurement (flow, density, temp).
- Space-saving installation – no inlet / outlet run needs.
Technical specifications:
Voltage: 85 – 260 V AC
Current: < 1 A
Power: 15 W
Nominal diameter: DN 1 to 4 (¹⁄₂₄ to ¹⁄₈”)
Process pressure: up to 400 bar (5800 psi)
Medium temperature: up to +200 °C (+392 °F)
Device versions: compact or remote
Outer dimensions (W) x (D) x (H): 240 x 300 x 300 mm
