Endress & Hauser flowmeter

Electromagnetic flow measuring system from Endress+Hauser. This measuring system is used to measure the flow rates of conductive fluids in closed pipes. Most fluids can be metered, provided they have a minimum conductivity of 5 mS/cm. Examples are: acids, alkalis, pastes, mashes, pulps, drinking water, mineral water, wastewater, sewage sludge, milk, wine, beer, yogurt, molasses, etc.
Several types available:

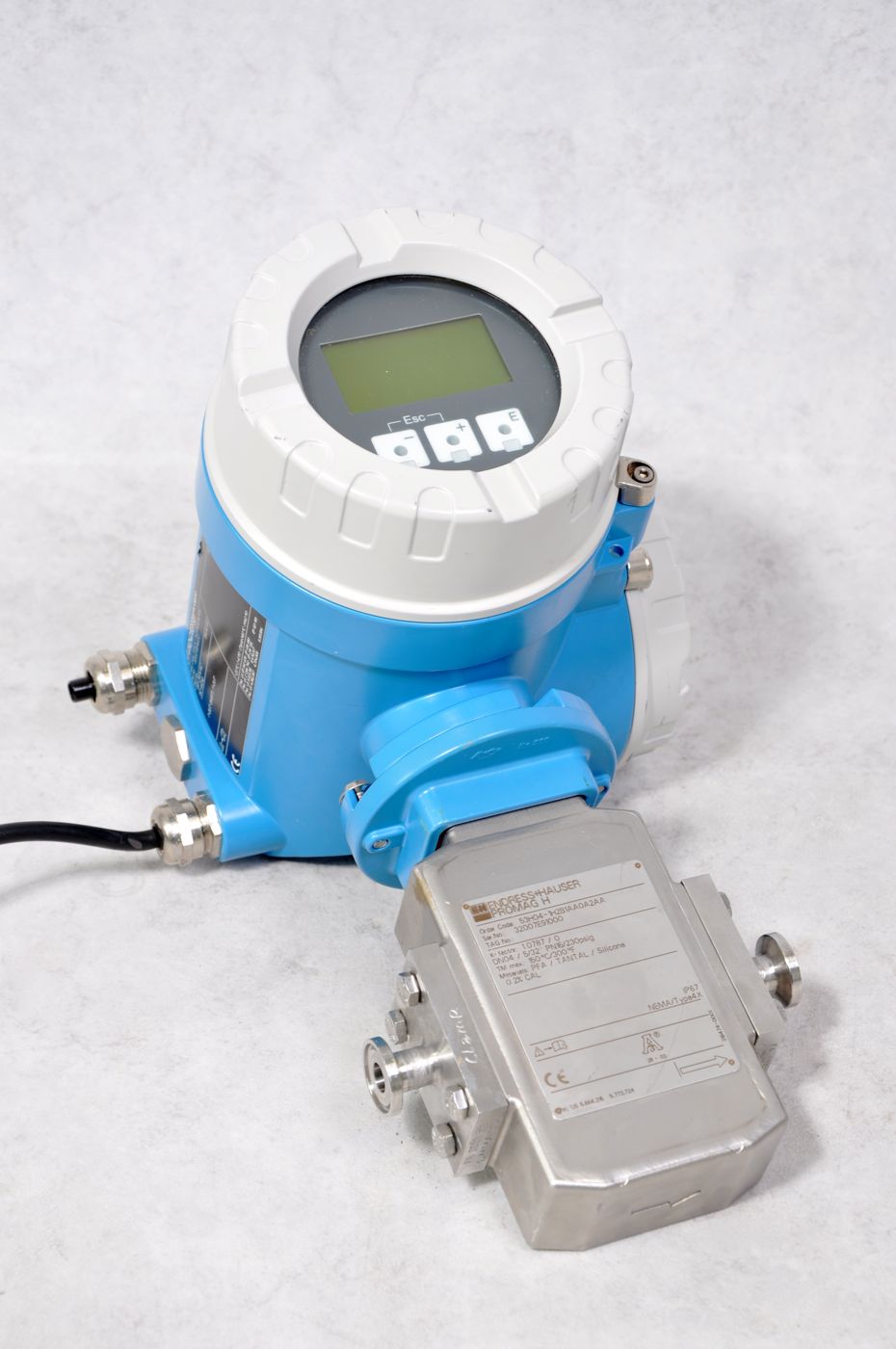

* Proline Promag 53 (2x) with sensor Promag H (53H04-1H2B1AA0A2AA). Measuring range: 0,25…7 L/min. Process temperature: -20…150ºC. Pressure range: PN16…40. Output: 4…20 mA.
* Proline Promag 33A (2x) with sensor Promag A (33AT08-4N1AA11A21A). Measuring range: 0,91…30,1 L/min. Process temperature: -20…130ºC. Pressure range: PN40.
* Proline Promag 30A (1x) with sensor Promag A (30AT15). Measuring range: 3,18…106 L/min. Process temperature: -20…130ºC. Pressure range: PN40.
Technical specifications: 220 V, 50 Hz.
