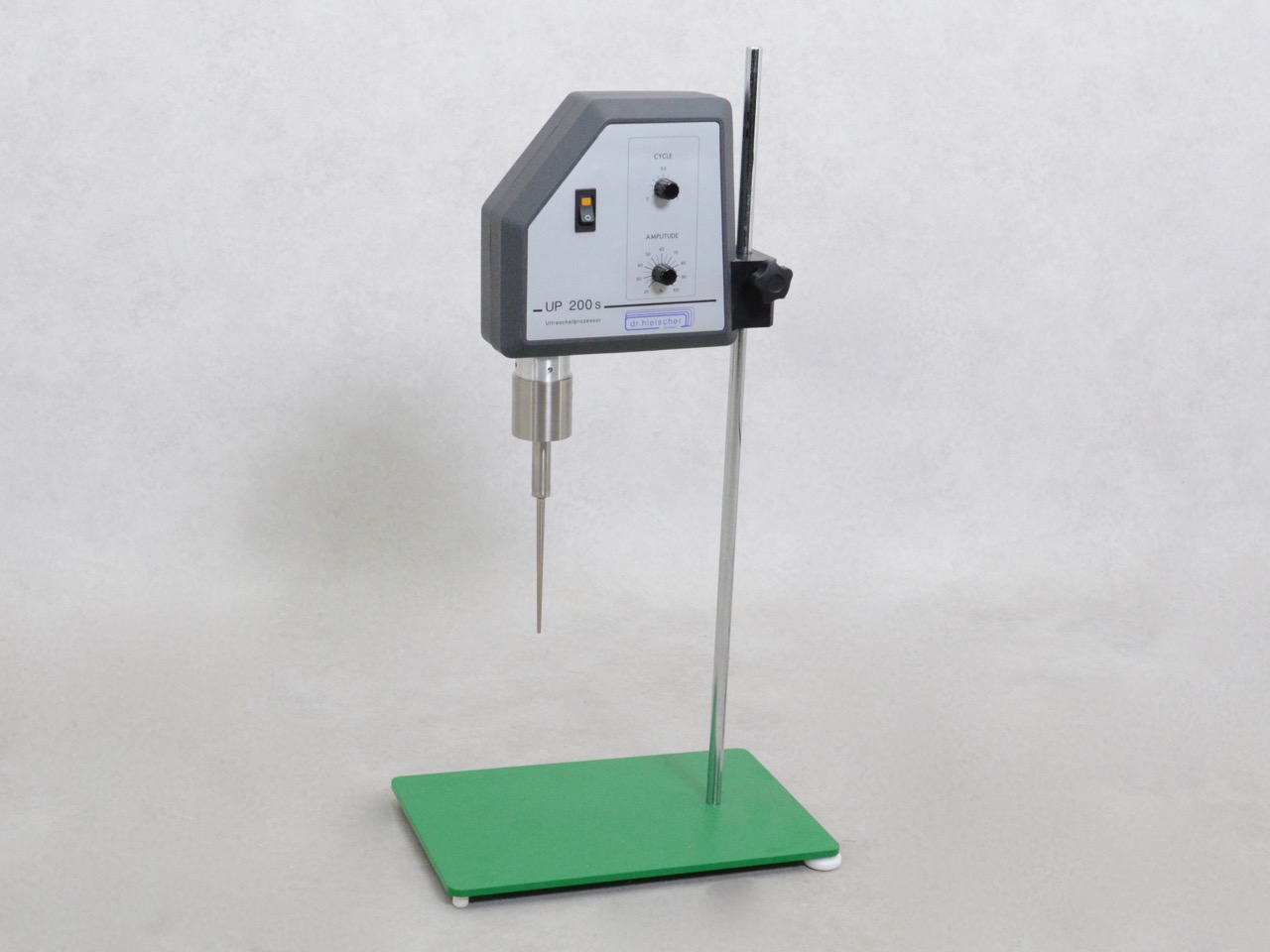

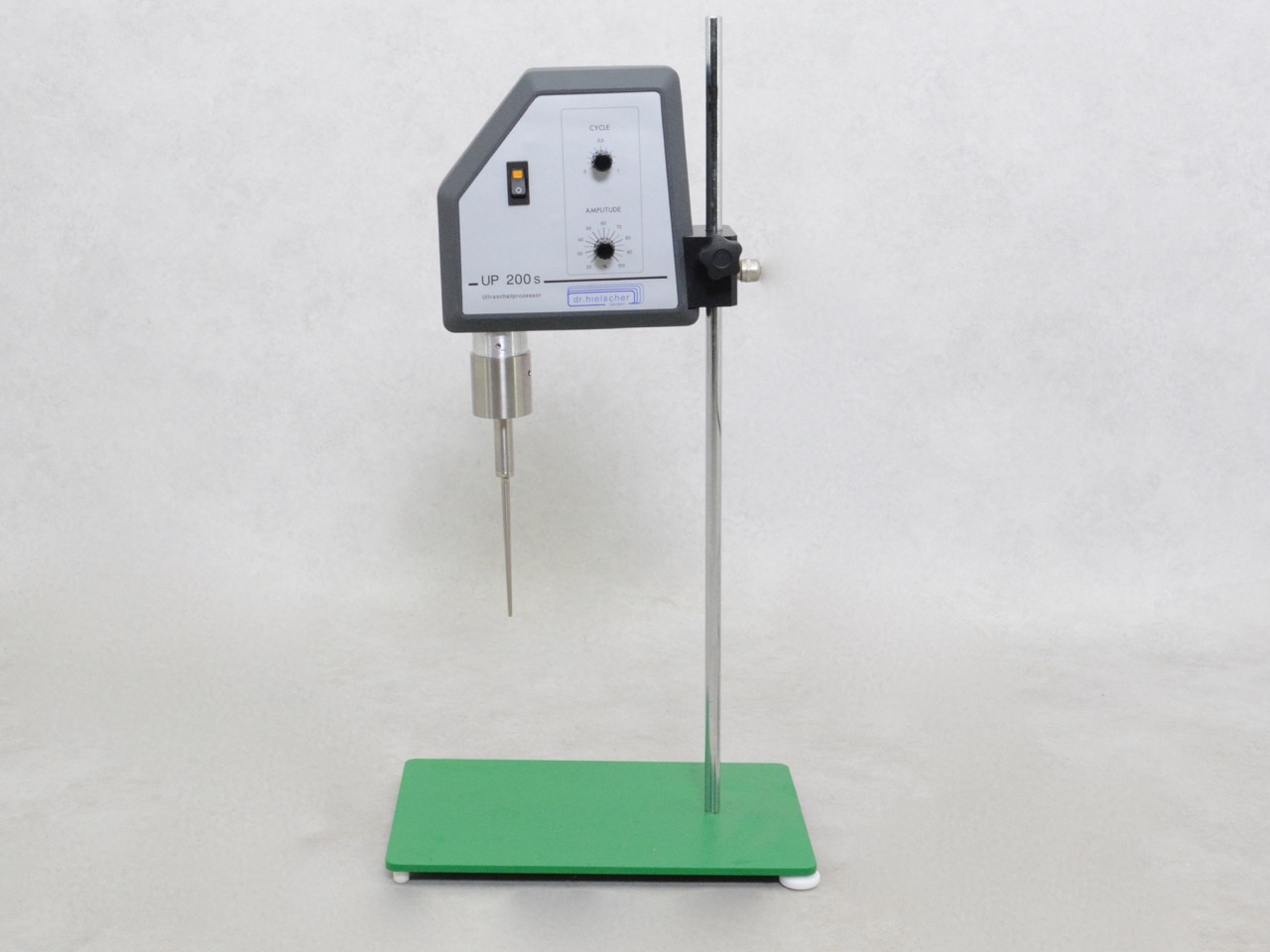

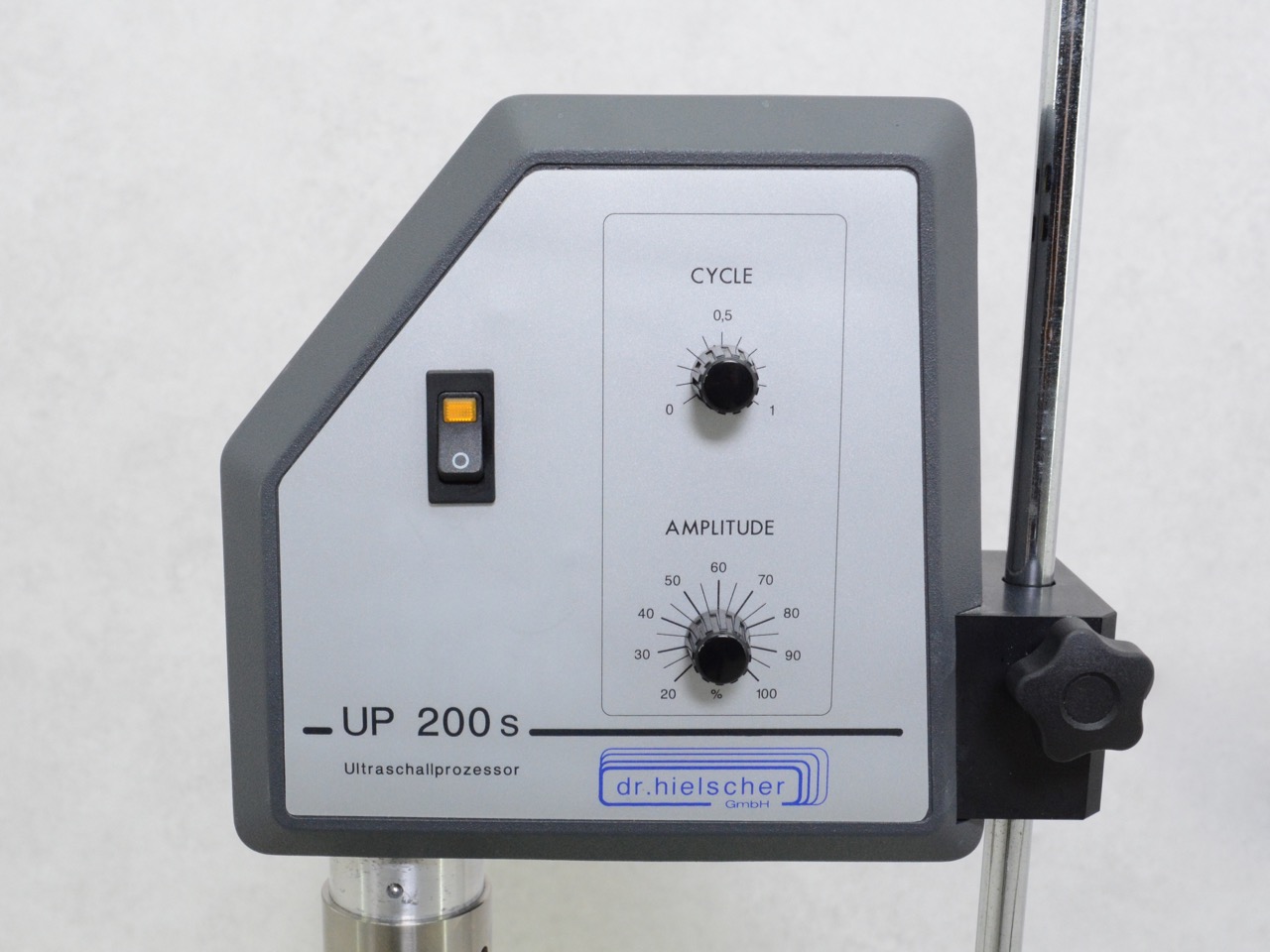

The ultrasonic homogenizer of Dr. Hielscher type UP 200S generates ultrasonic vibrations which are transmitted through the sonotrodes to the liquid medium. This device is ideal for various applications in laboratories, such as homogenisation, disintegration and sonochemistry. The tripod will be supplied at an additional cost.
Technical specifications
Voltage: 230V, 50 / 60Hz
Current: 2A
Maximum frequency: 24kHz
The frequency is steplessly adjustable from 20% to 100%

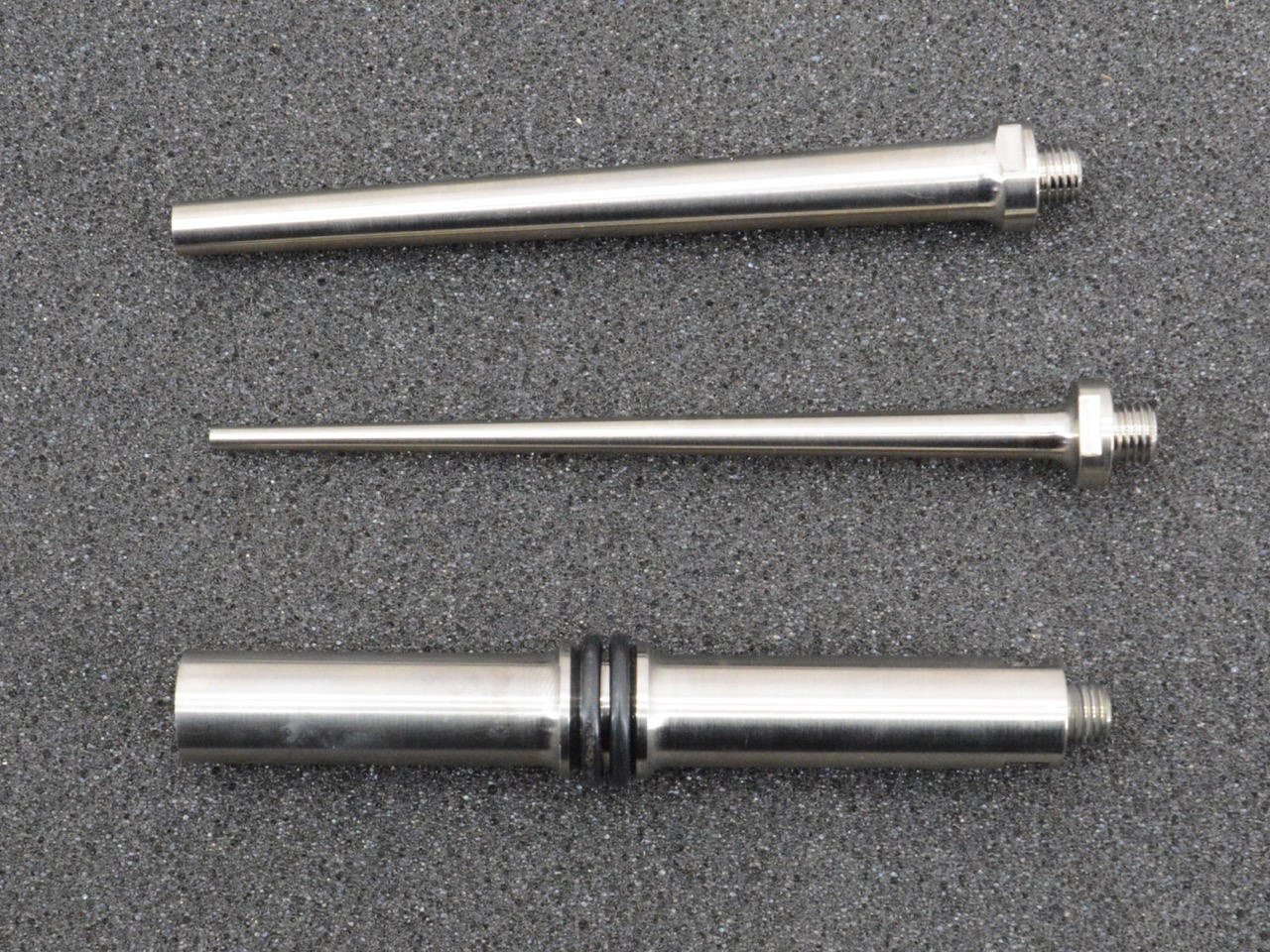

Sonotrodes:
– 1x Micro tip S2
– 1x Micro tip S7
– 1x Flow tip S14D
External dimensions (W) x (D) x (H):
9 x 21 x 29 cm
Sold out
Dr. Hielscher UP 200S Ultrasonic homogeniser
Sold out
Click for quote
description
Specifications
| Status | |
|---|---|
| Guarantee | |
| Manufacturer |
Downloads
