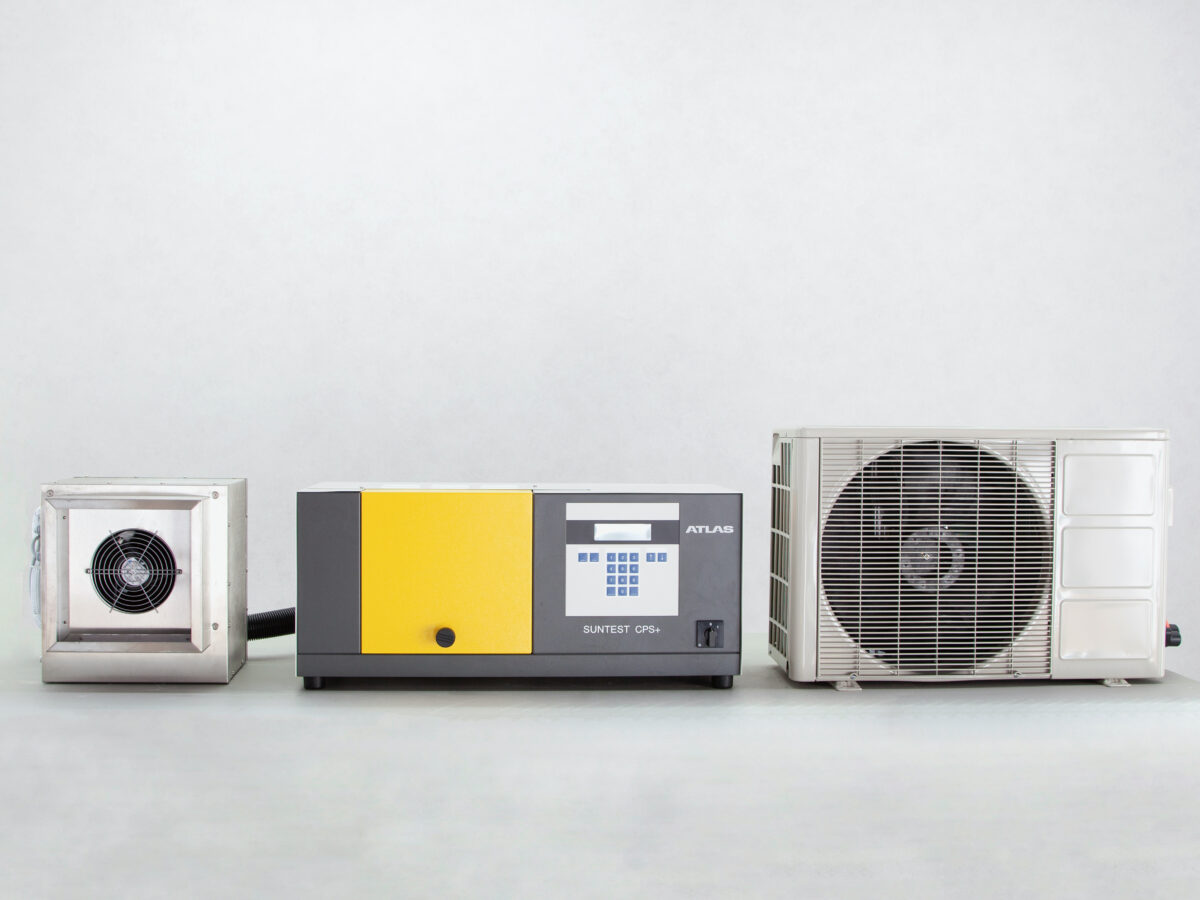

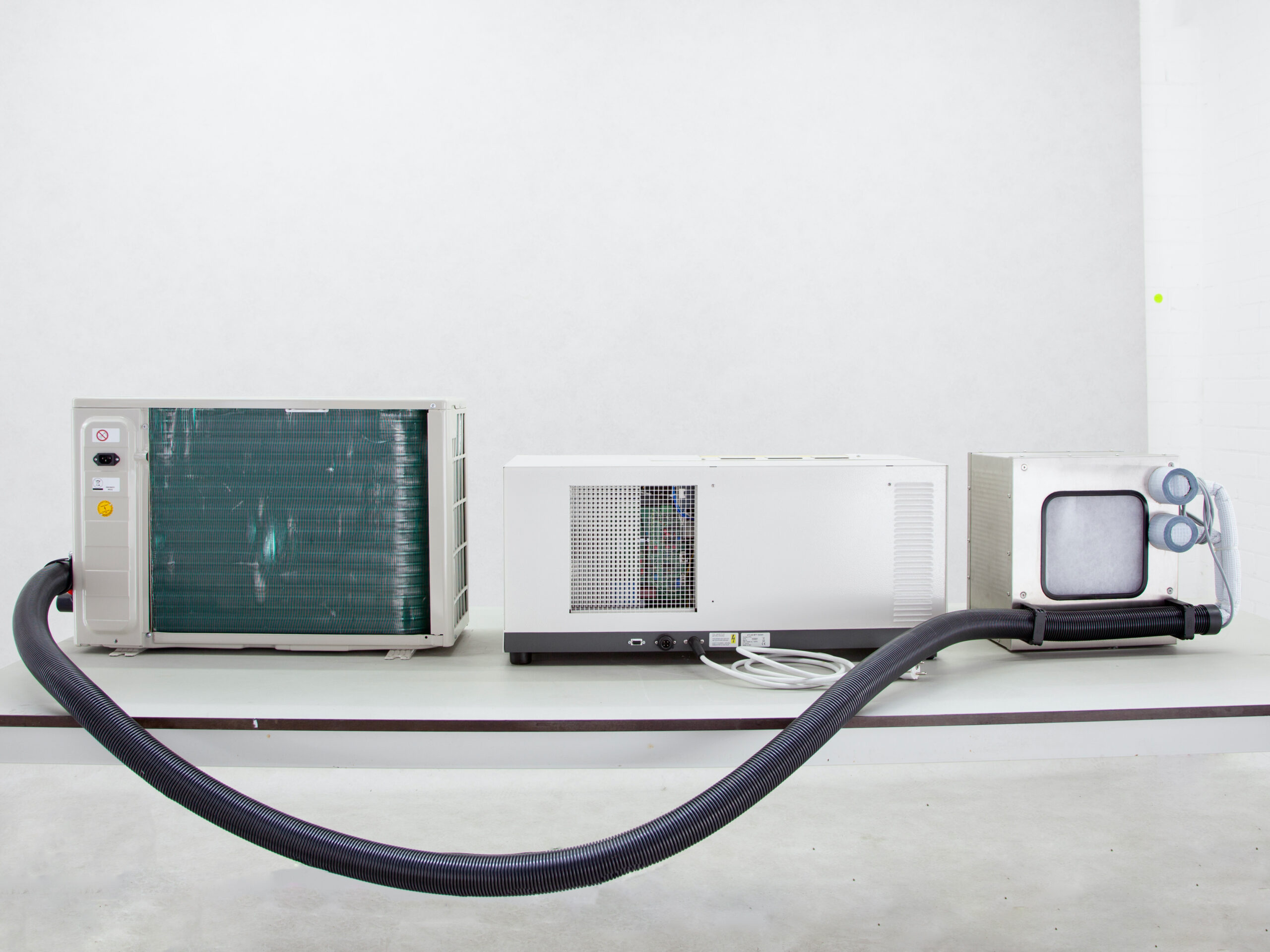

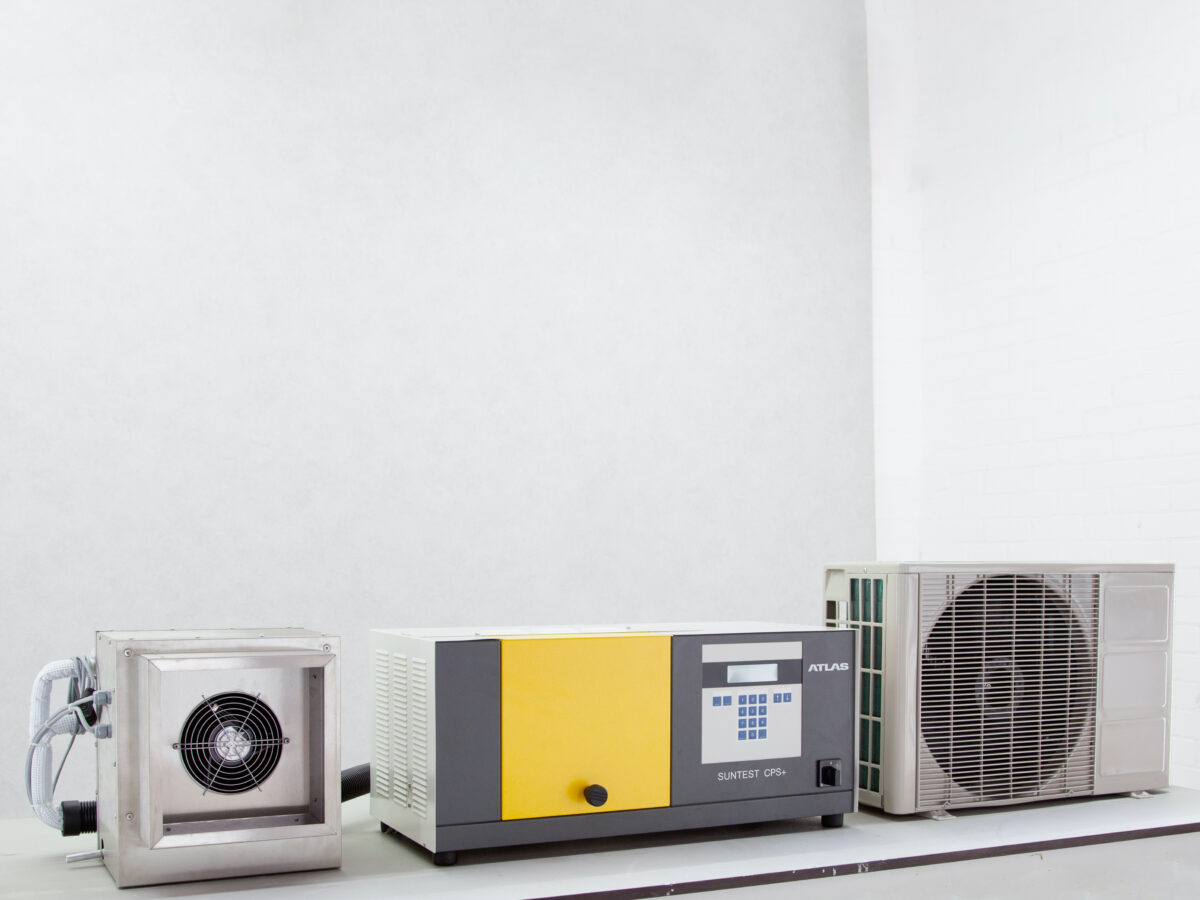

Atlas Suntest CPS+ Weathering Tester – Suncool CPS II Cooling System
NB:
The Suntest CPS+ can also be purchased without the Suncool CPS II cooling system.
Price Suntest CPS+ excl. Suncool: eur 6,500.
Price Suntest CPS+ incl. Suncool: eur 8,750.
If desired, a quotation can also be made for a matching stainless steel table (photos on request).
The Suntest CPS+ is used to quickly test for changes in the properties of materials caused by sunlight, temperature and moisture. Product changes that take months or years indoors or outdoors, such as fading, yellowing or embrittlement, can often be simulated in a Suntest CPS+ within weeks.
This Suntest CPS+ is suitable for routine testing during production, for incoming goods inspection or for screening new materials for the production of finished products.
Advantages:
• Premium simulation of solar radiation according to CIE85 reference sun.
• Optional simulation of daylight filtered through window glass and others.
• User-friendly interface with 11 selectable languages.
• 300 hour pre-programmed tests for quick installation or as templates for custom tests.
• Black standard temperature sensor (BST) according to ISO 4892-1.
• Automatic irradiance control for different testing needs.
Accessories:
• SunCool chiller for testing at low temperatures (eg cosmetics).
Characteristics:
• 28 x 20 cm (560 cm2) exposure area
• 1 air-cooled 1500 W xenon lamp
• Microprocessor control, with programming keyboard and black and white display
• Direct setting and control of the irradiation at 300-400 nm or 300-800 nm
• Instant setting and control of Black Standard Temperature (BST)
• Display of the room air temperature (CHT)
• Display of test values and diagnostic messages
• Parameter check
• Two pre-programmed test methods plus storage for six user-defined tests
Technical specifications:
Voltage: 220-240 V
Current: 14.5A / 3.8A
Outer dimensions (W) x (D) x (H): 78 x 35 x 35 x cm (Suntest)
Outer dimensions (W) x (D) x (H): 75 x 30 x 47 x mm (Suncool)
Outer dimensions (W) x (D) x (H): 33 x 35 x 35 x mm (filter / fan)
