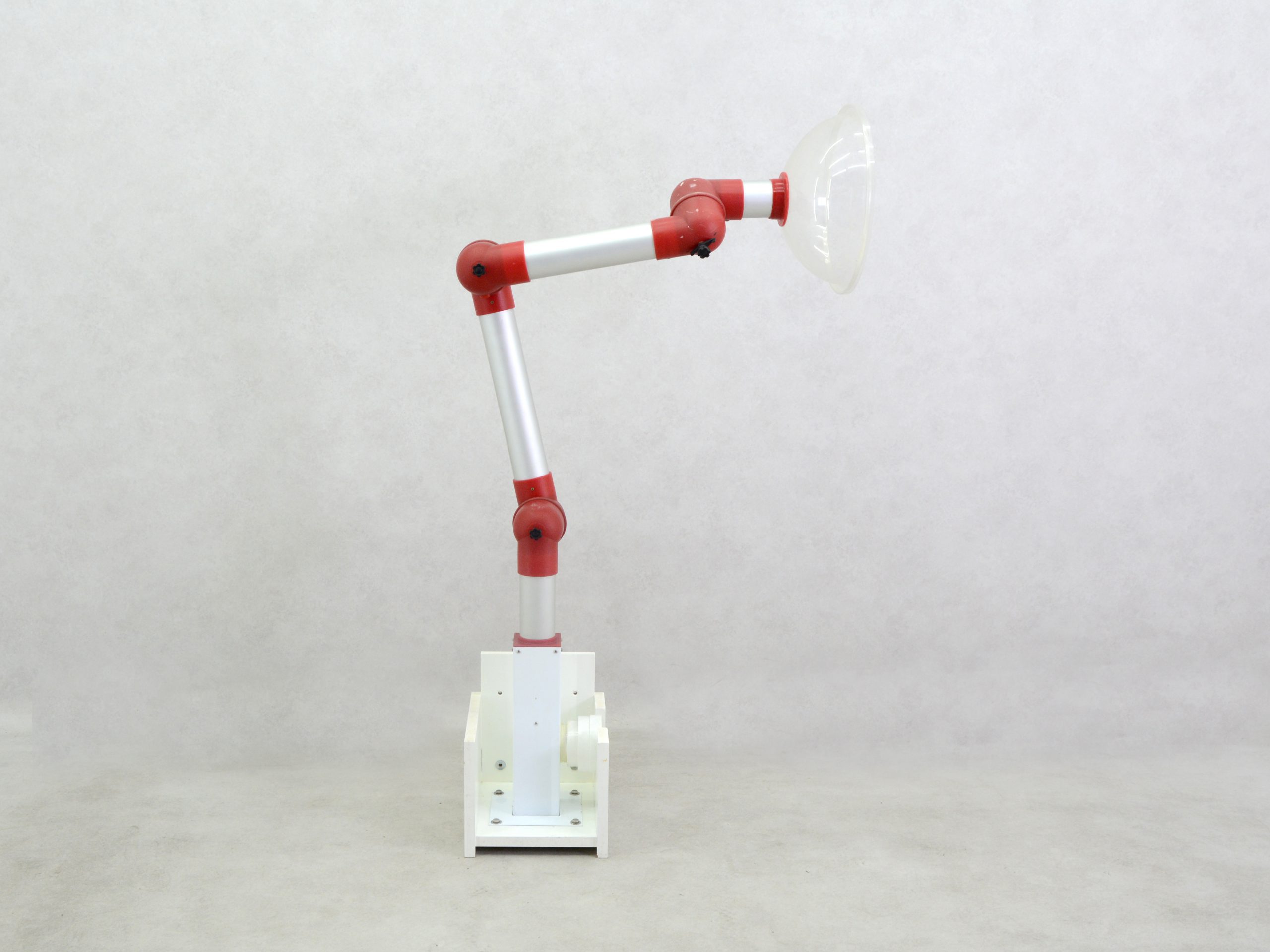

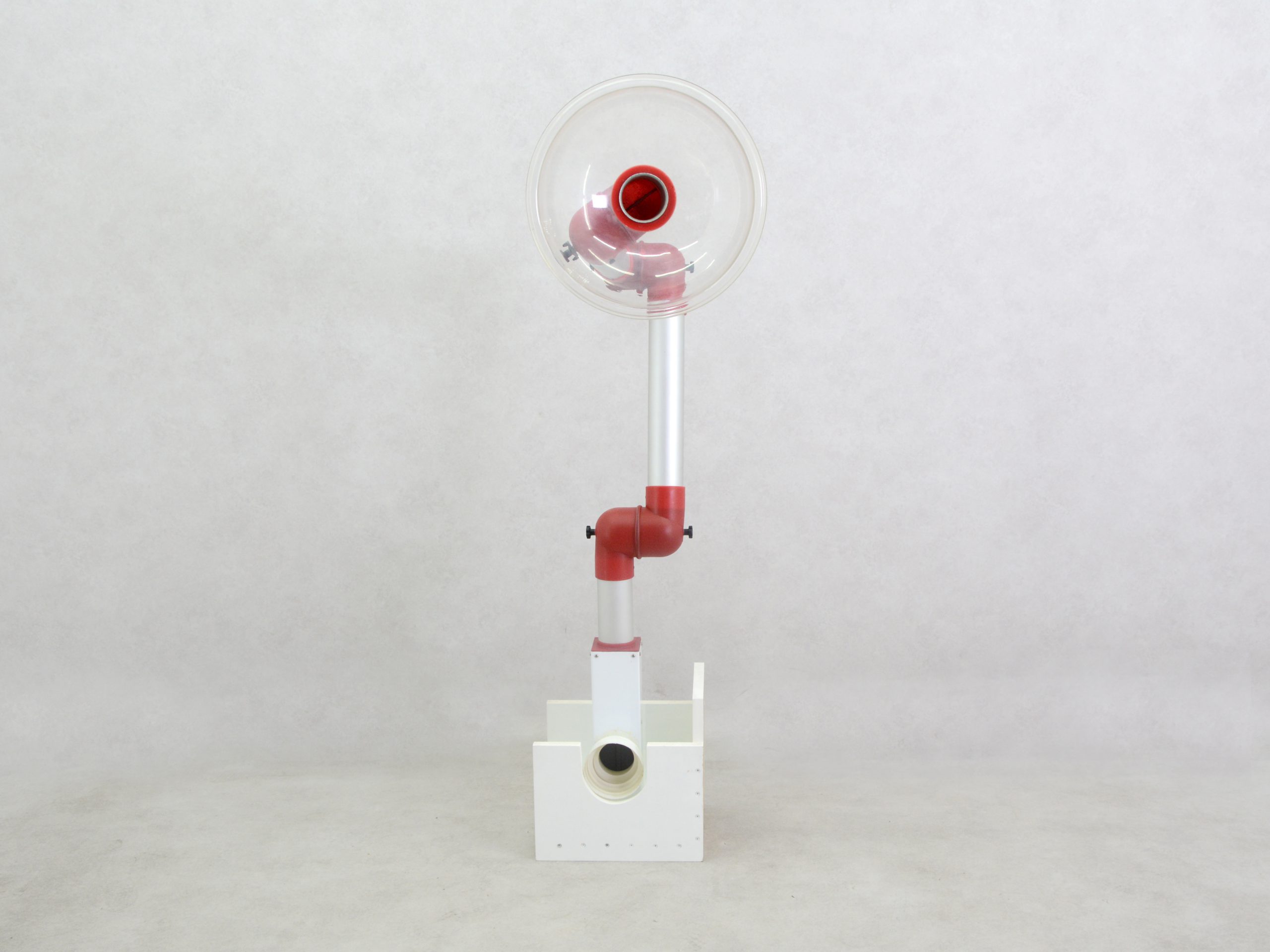

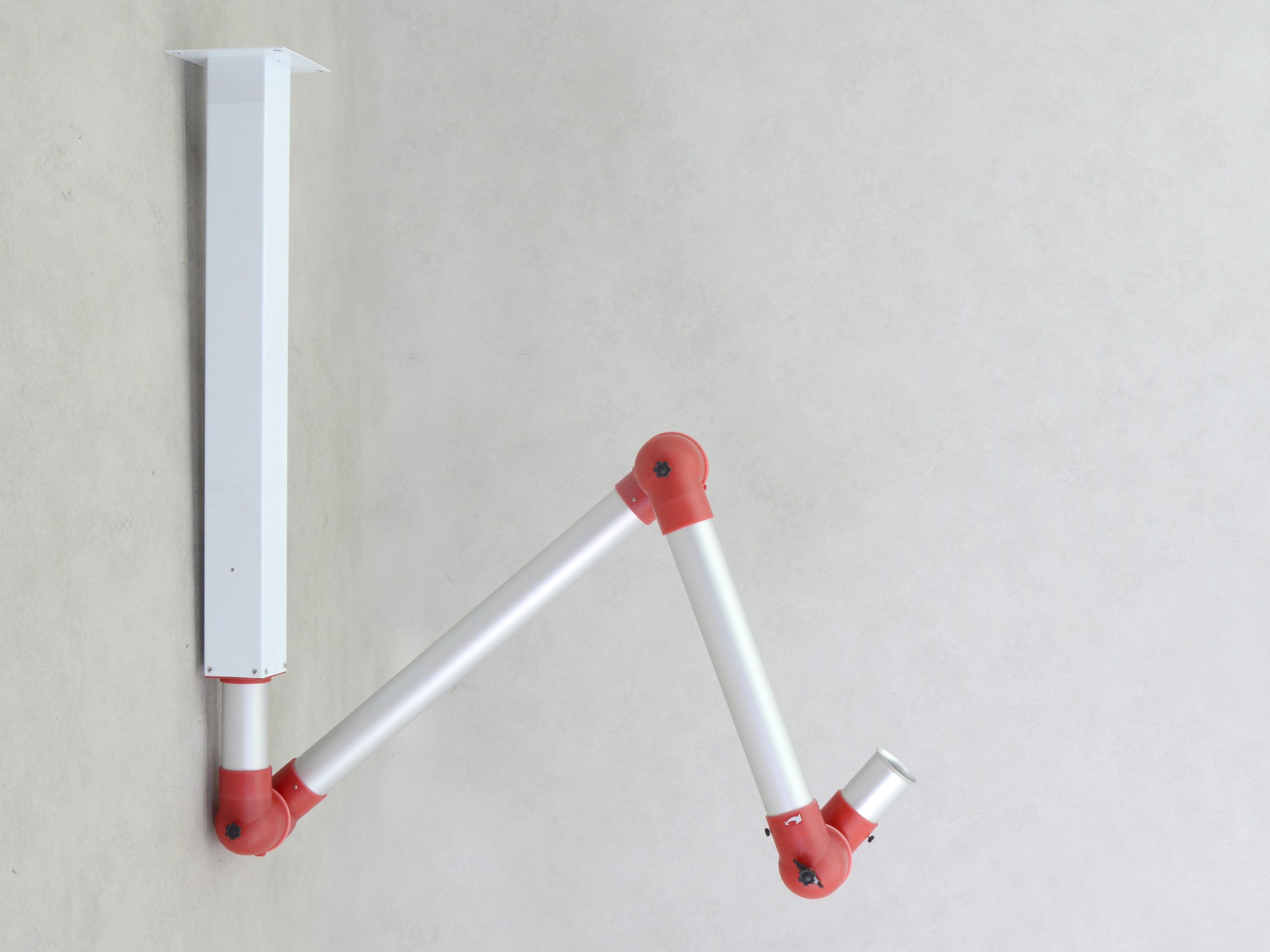

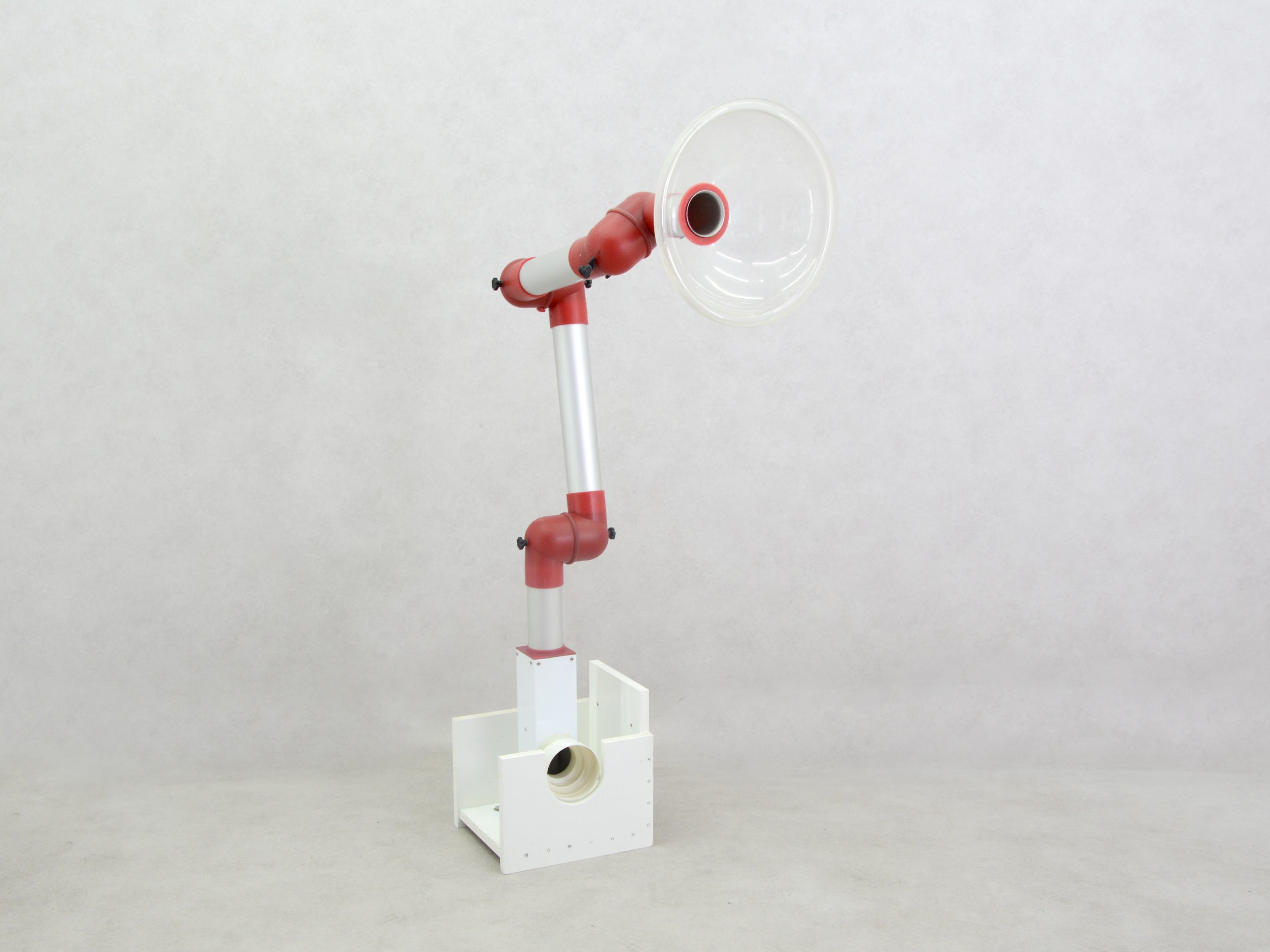

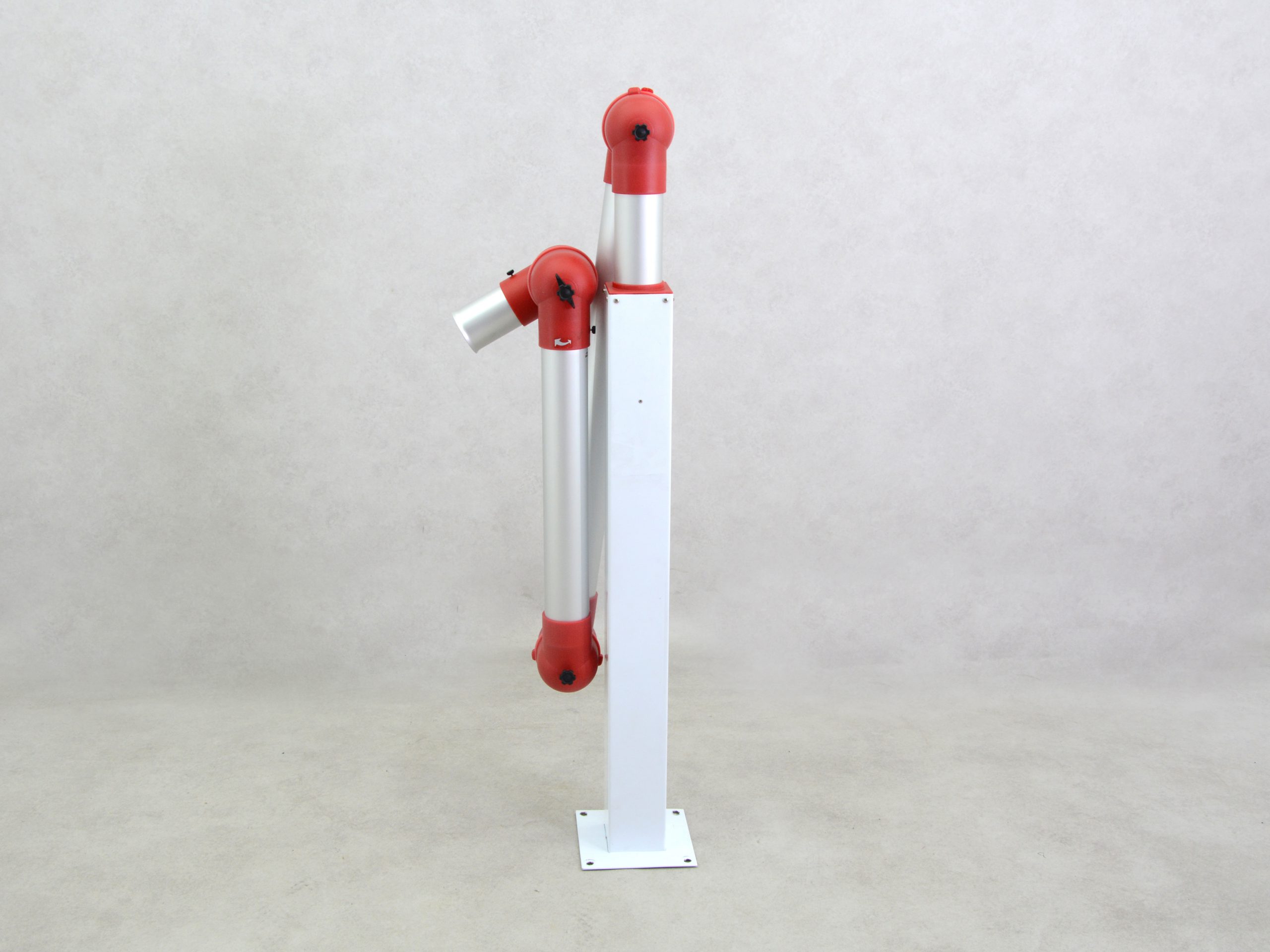

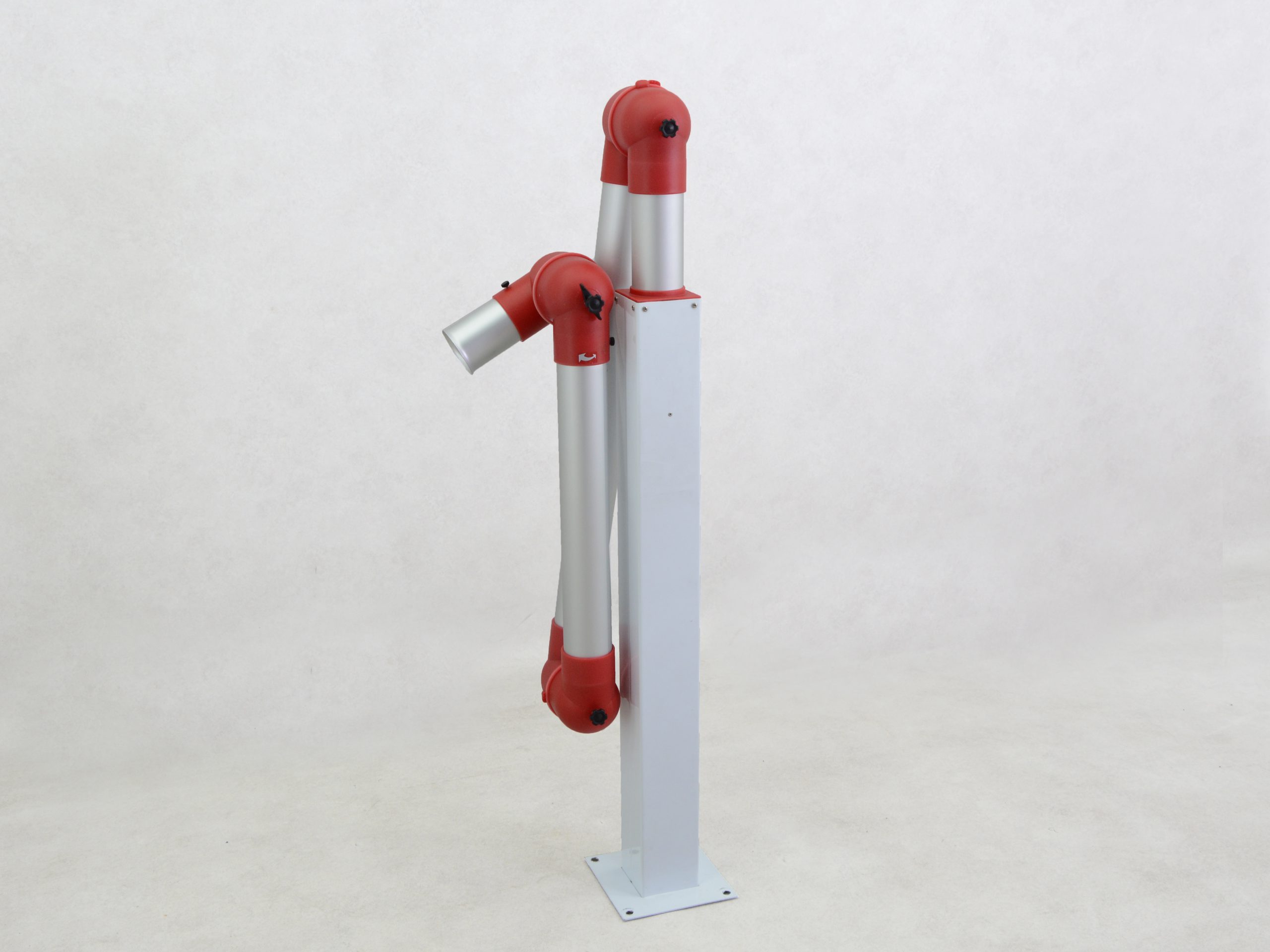

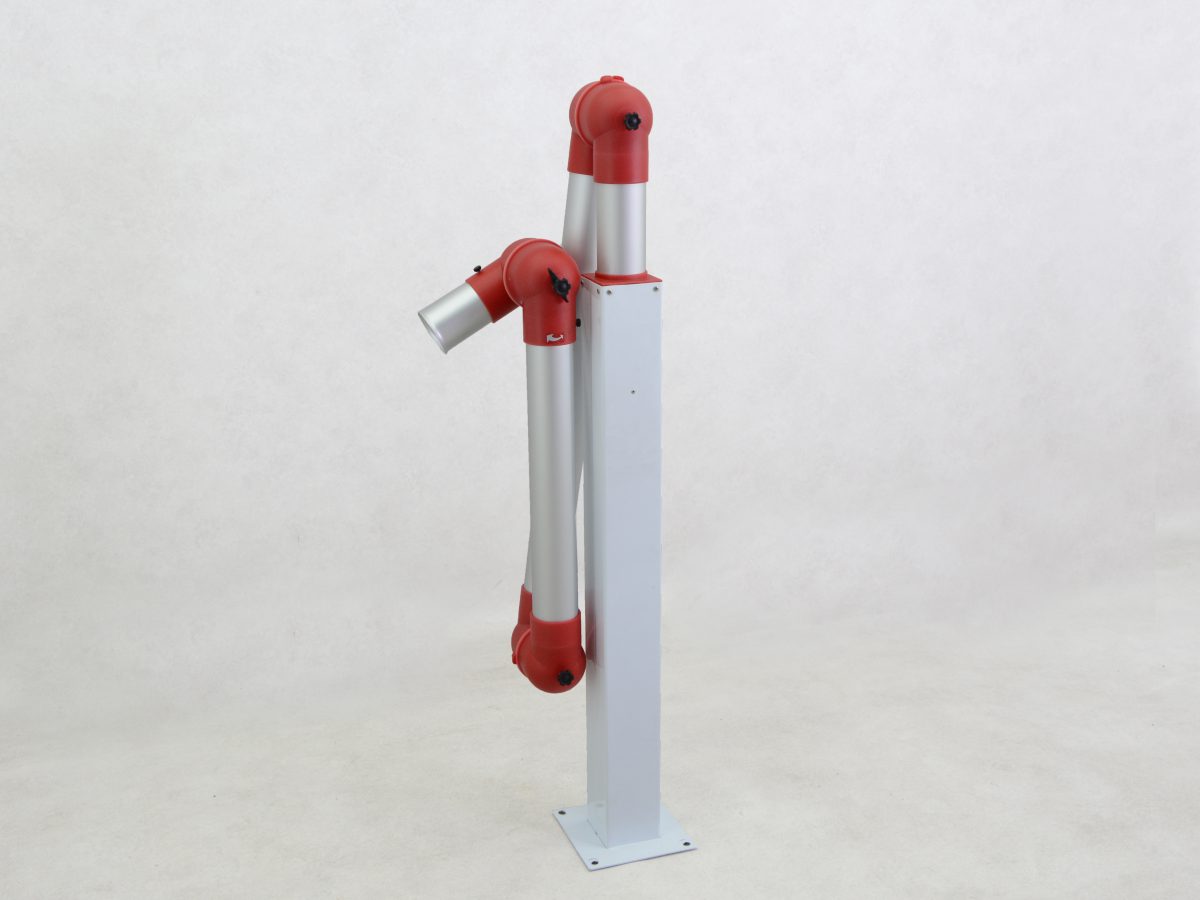

Alsident 50 Extraction arms

The extraction arms of the brand Alsident type 50 are designed to keep the breathing atmosphere clean during work. This extraction arm is suitable for both ceiling mounting and wall mounting.
Technical specifications
Dimensions Alsident system type 50 extraction arm 1
Diameter: 75 mm
Transparent cover size: Ø 390 mm
Length: Fixed piece 63 cm
1st to 2nd hinge point 54 cm
2nd to 3rd hinge point 45
3rd hinge point to end of 35 cm
Total length: approximately 200 cm
Dimensions Alsident system type 50 extraction arm 2
Diameter: 75 mm
Length: Fixed piece 123 cm
1st to 2nd hinge point 90 cm
2nd to 3rd hinge point 64
3rd hinge point to end 20 cm
Total length: approximately 300 cm
