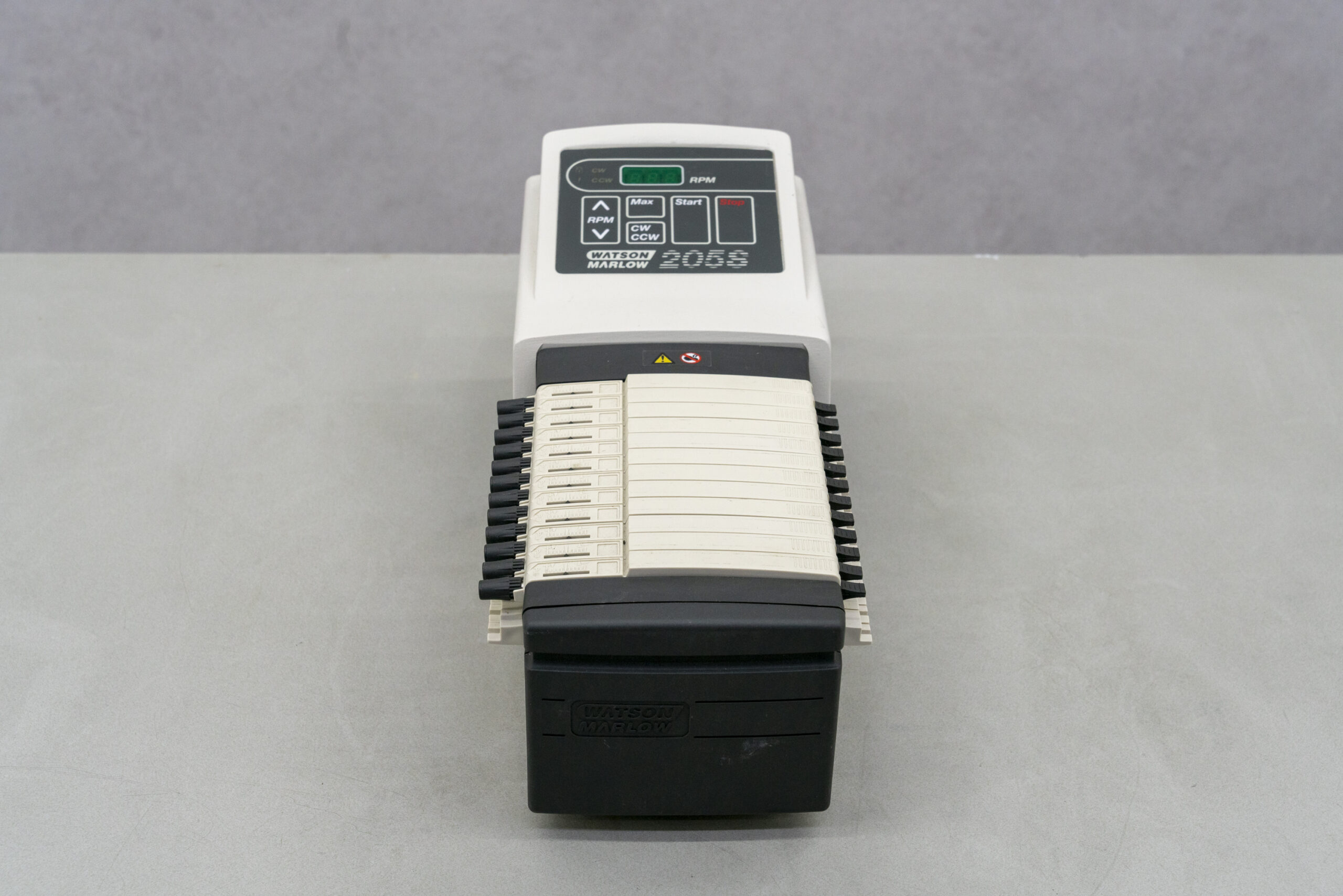

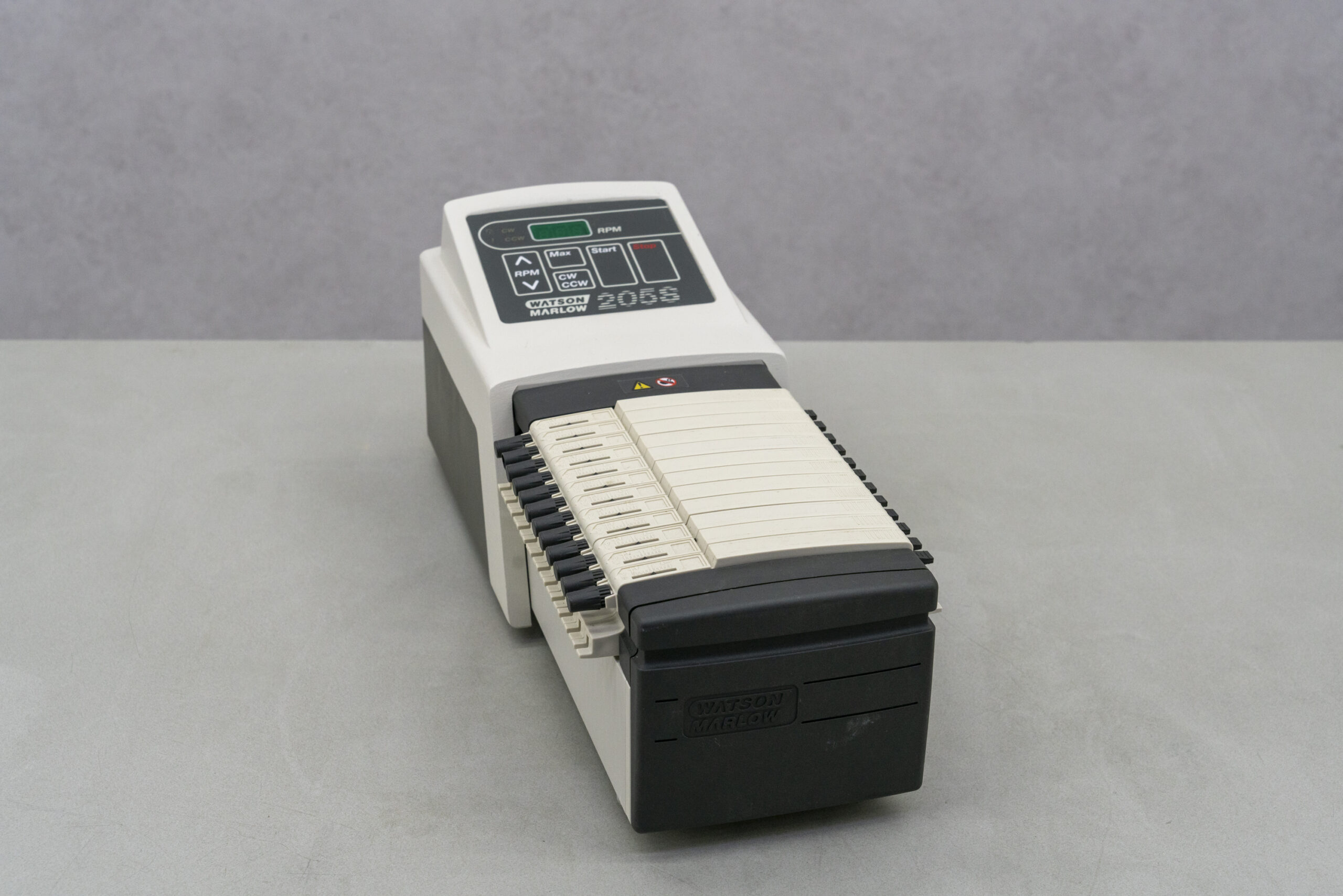

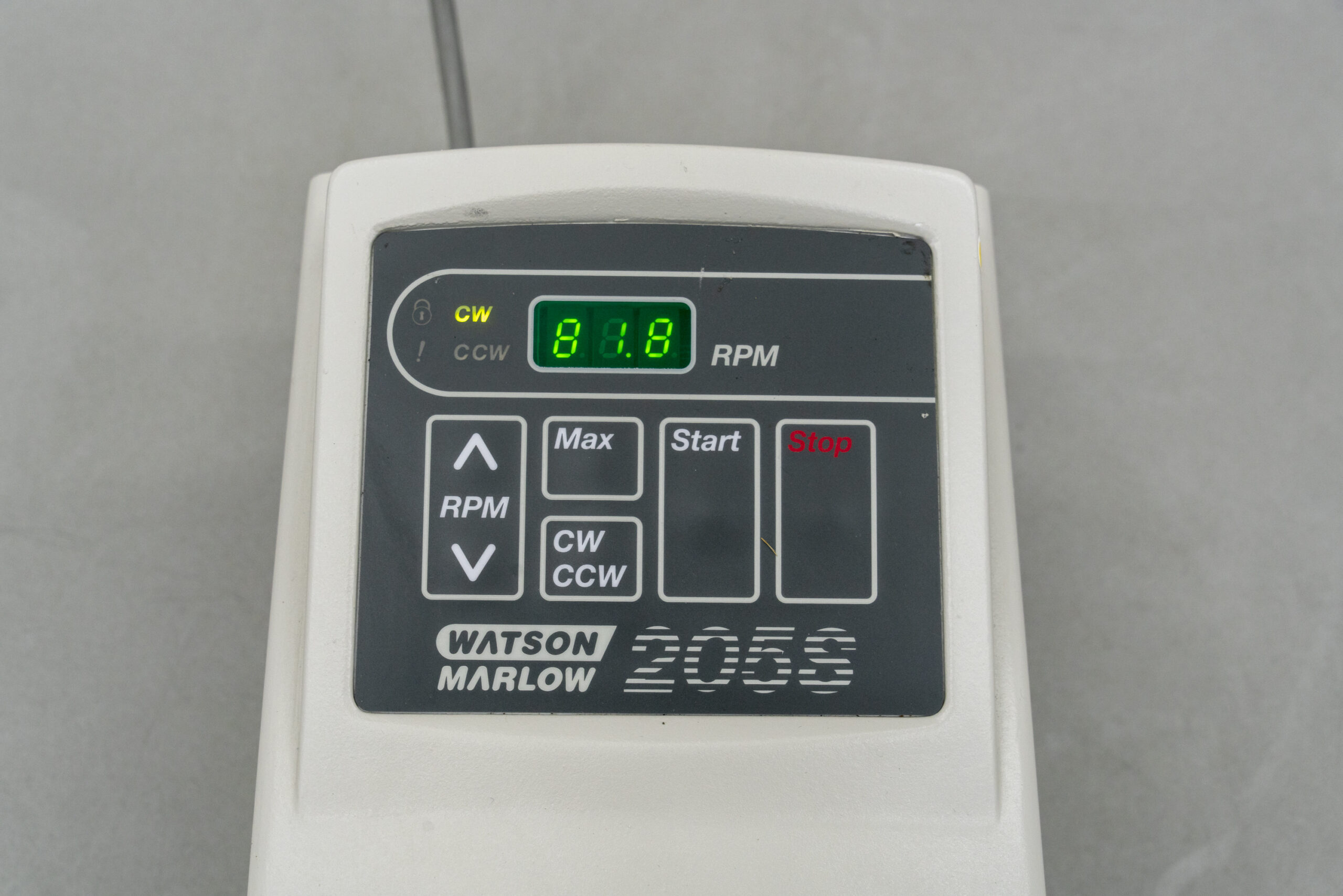

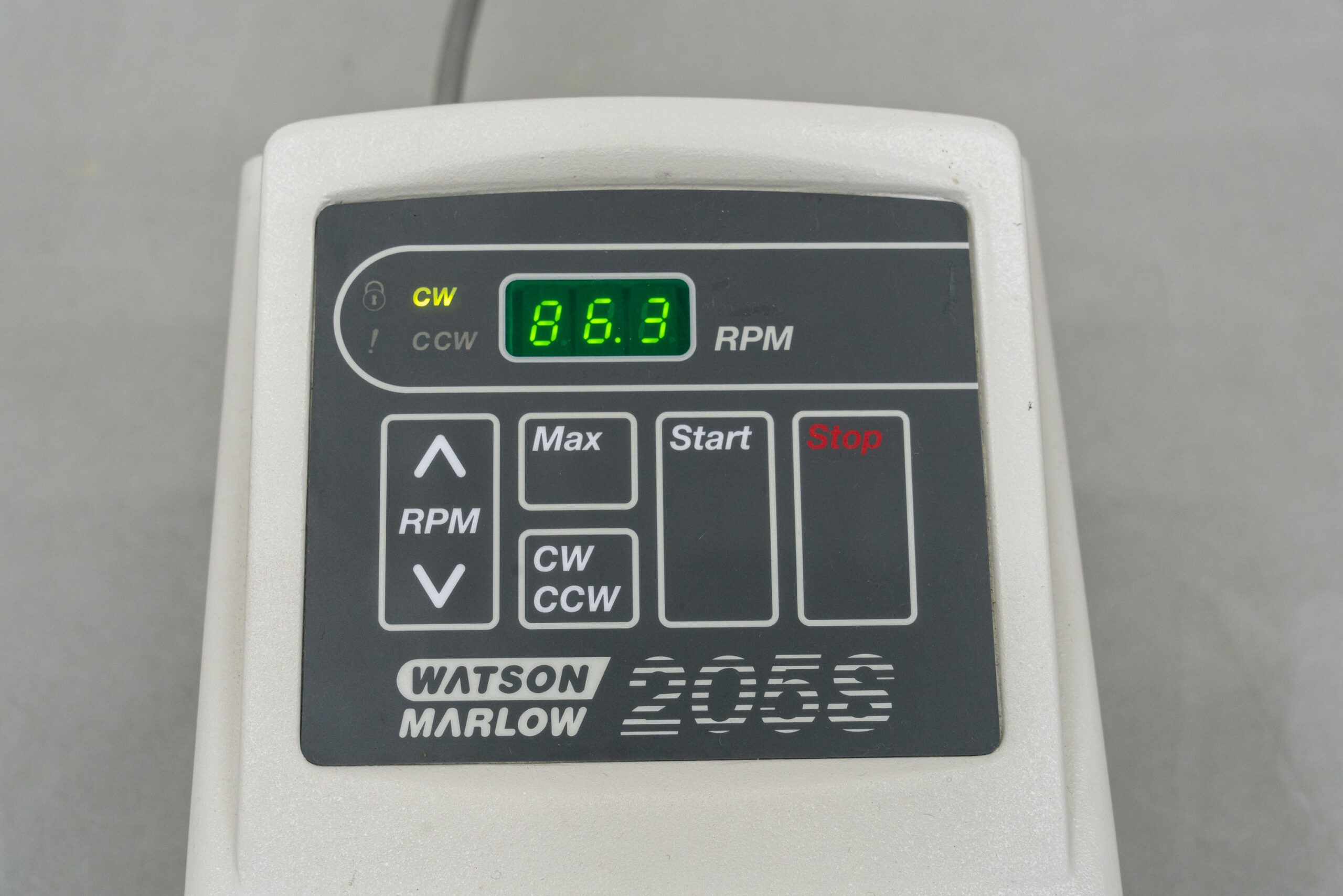

The 200 series multi-channel pumps are designed for precise, pulsation-free pumping. The 205S/CA is a manually operated variable speed pump. The pump features a tachometer controlled DC motor for precise speed control. Keypad lock prevents misuse and accidental changes, and there is also a function to suck at a high maximum speed.
The flow control for each individual channel is via a rotatable ‘click-stop’ pressure regulator on each cassette. The 205CA pumphead has snap-fit ​​cassettes with tubing beds and is factory set for standard use. You can optimize the settings if desired by means of the lockable rotary knob. A unique feature is that these settings are not disturbed when changing the hoses. The 205CA pump heads are suitable for manifold pump hoses in various materials and sizes.
Technical specifications:
Voltage: 100-120 / 220-240 V
Power: 100 W
Flow rate: 0.0006 to 22.0ml/min
Speed ​​Control: Manual
Stop/start, direction and suction control: manual
Instant stop and reverse option: yes
Auto restart and keypad lock option: yes
Number of channels: 12
Hose elements inner diameter: 0.13 – 2.79 mm
Outer dimensions (W) x (D) x (H): 150 x 390 x 160 mm
