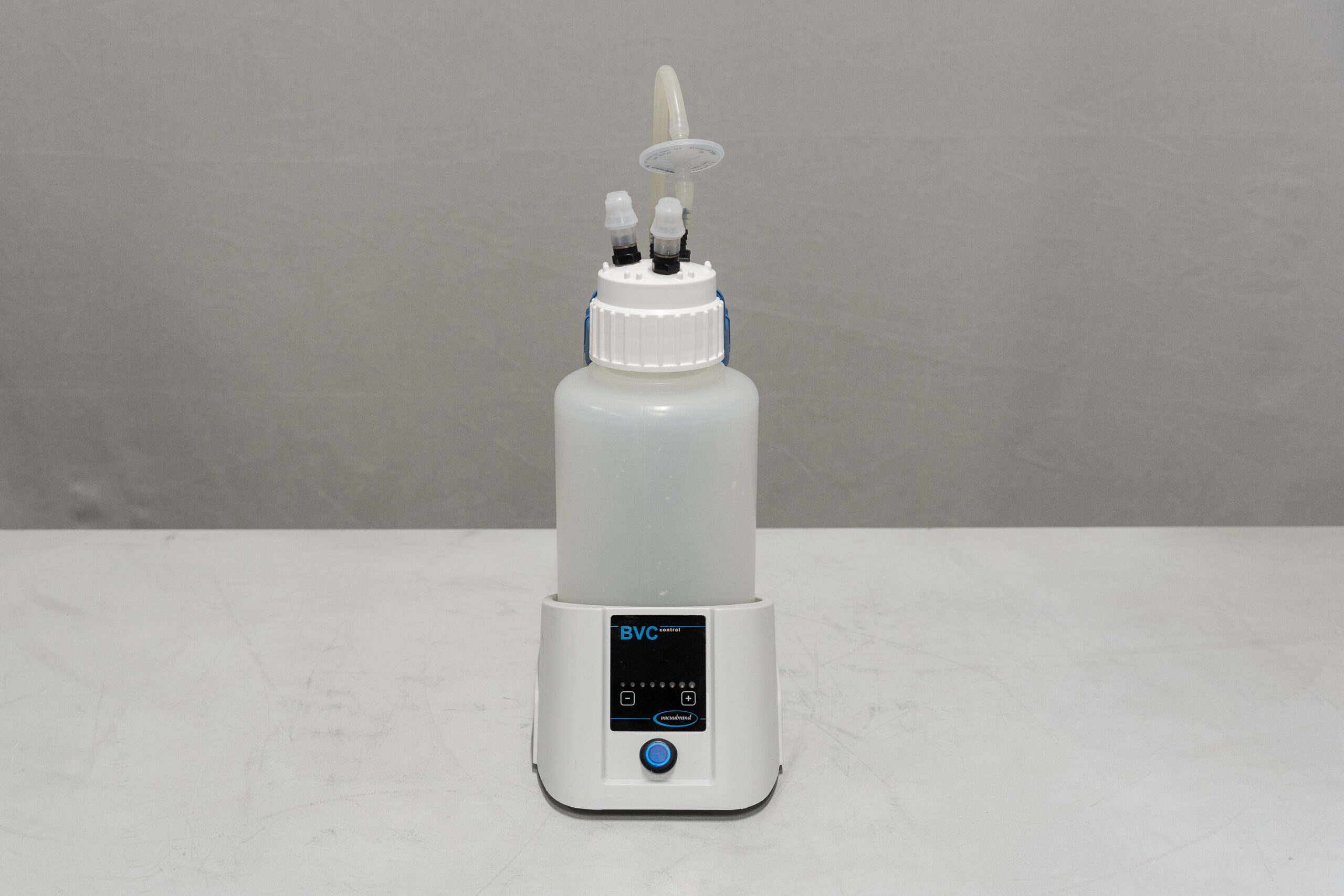

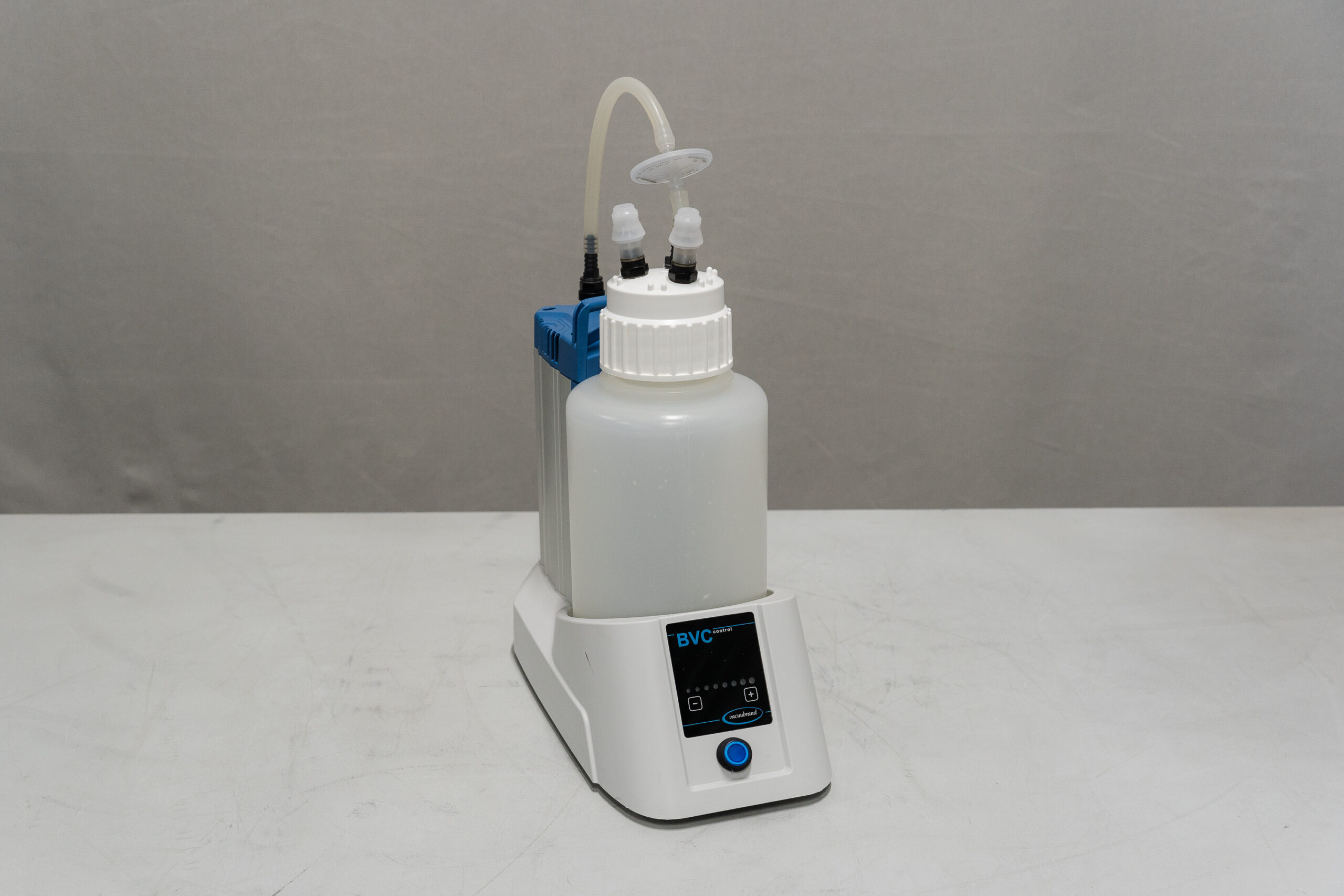

The Vacuubrand BVC Control Liquid Extraction System ensures efficient and comfortable extraction of supernatants. The vacuum level – and thus the suction power – can be precisely adjusted via the electronic touchscreen and enables sensitive and reproducible operation.
Technical spesifications:
Max. pump speed 50 Hz 0.7 m³/h (vacuum pump)
Max. pump speed 60 Hz 0.5 cfm (vacuum pump)
Ultimate vacuum 150 mbar / 112 torr

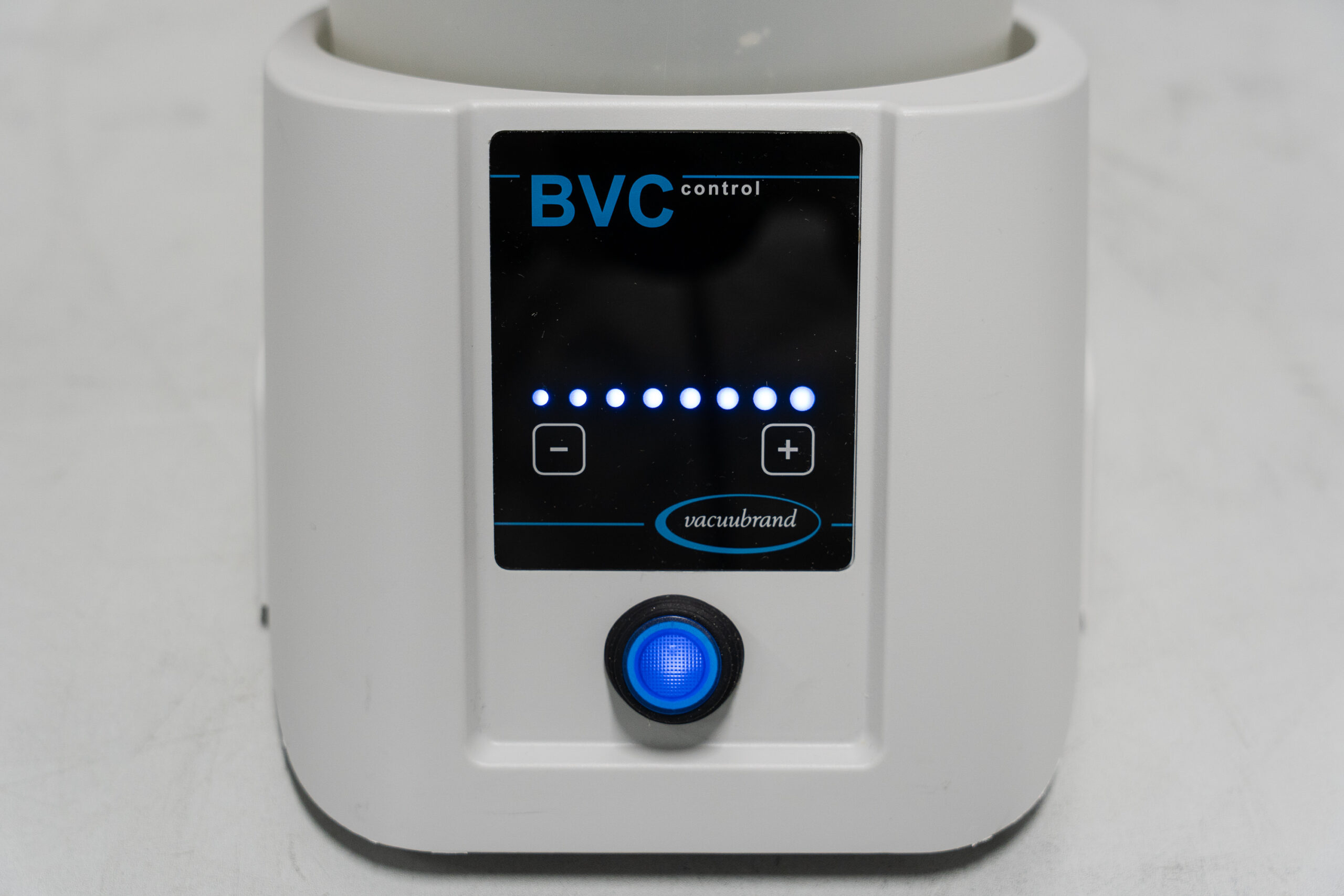

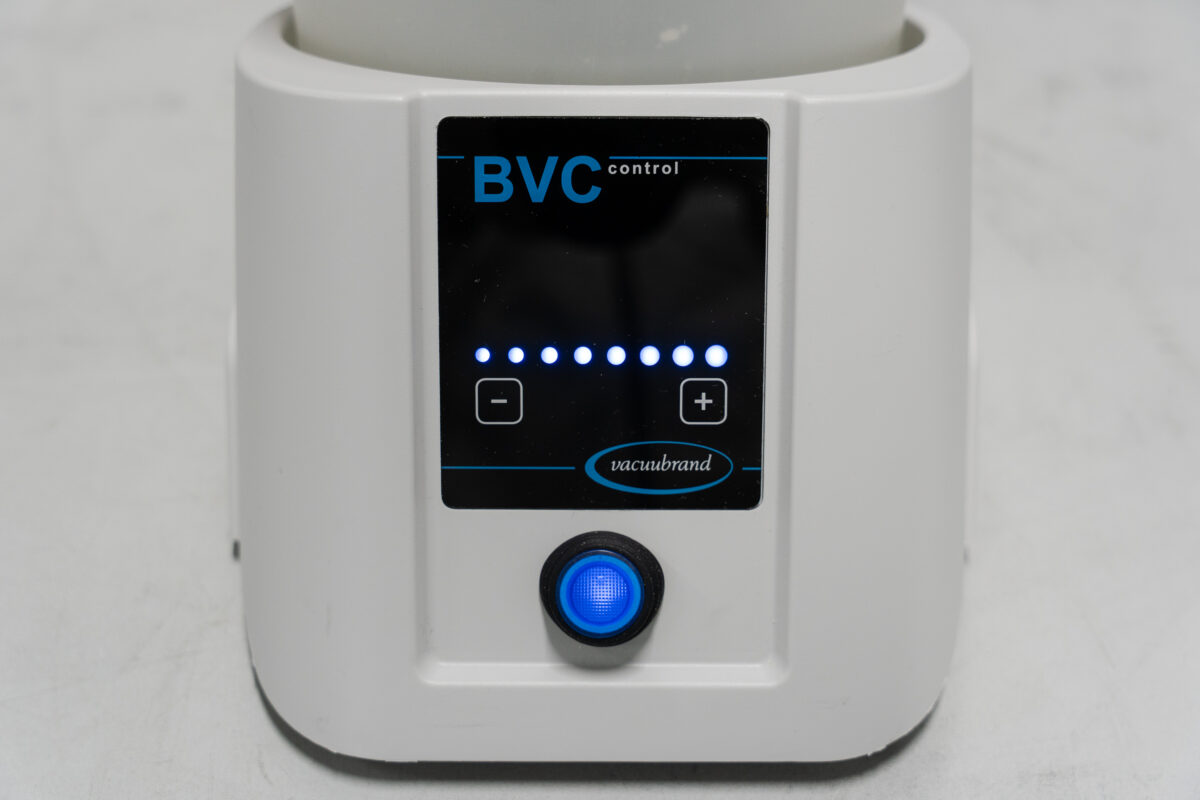

Vacuum controller Touchscreen
Control range 150 – 850 mbar (adjustable)
Collection bottle 4 l Polypropylene
Max. Back pressure (abs.) 1.1 bar
Inlet connection Suction regulator
Outlet connection Hose nozzle DN 8 mm / silencer
Nominal motor power 0.04 kW
Nominal motor speed at 50/60 Hz 1500/1800 min-1
Protection class: IP 40
Weight 7.7 kg
External dimensions: 410 x 194 x 426 mm
