The Tuttnauer 3870 ELVCGD Autoclave is a laboratory autoclave with an internal steam generator (“G”), vacuum pre- and post-flow systems, and the classic 85 L chamber of the 3870 series. “ELVC-G” refers to: EL/ELV series (vertical or benchtop), VC = Vacuum + Cooling/Comfort options, G = built-in steam generator. This combination ensures reliable, repeatable steam sterilization, air removal, and efficient heating and drying. Ideal for labs, research, clinical, or medical applications requiring broad compatibility: glassware, instruments, media, liquids, porous materials, etc.
Technical specifications:
Voltage: 380 V
Current: 14 A
Chamber volume: 85 Liters
Sterilization temperature range: 105°C to approximately 138°C
Applications: Glass, instruments, media, liquids, porous materials
Steam supply: Built-in steam generator (“G”) for fast and efficient heating and sterilization.
Vacuum + post-run/drying option: Vacuum for air removal and improved sterilization and drying of loaded items.

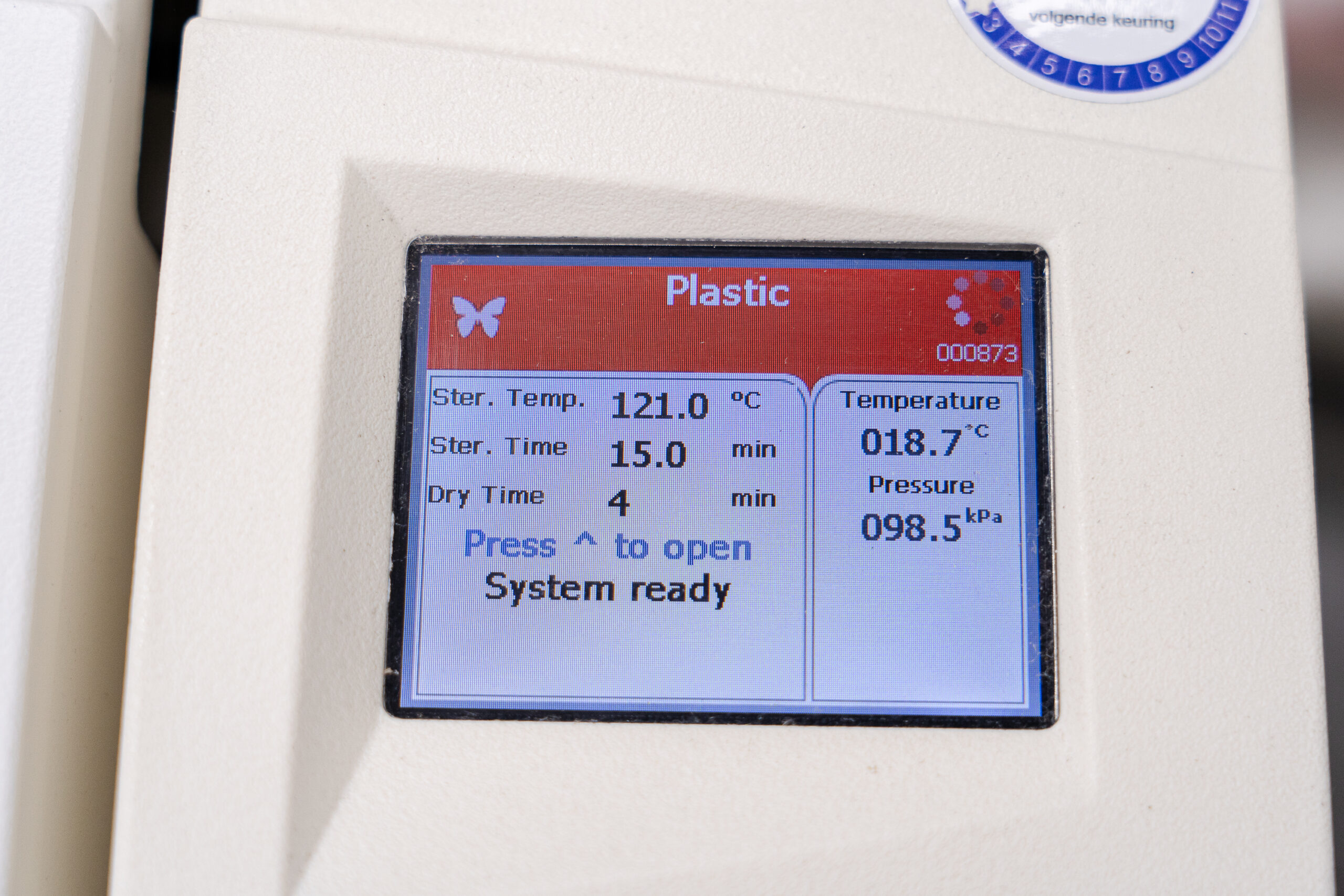

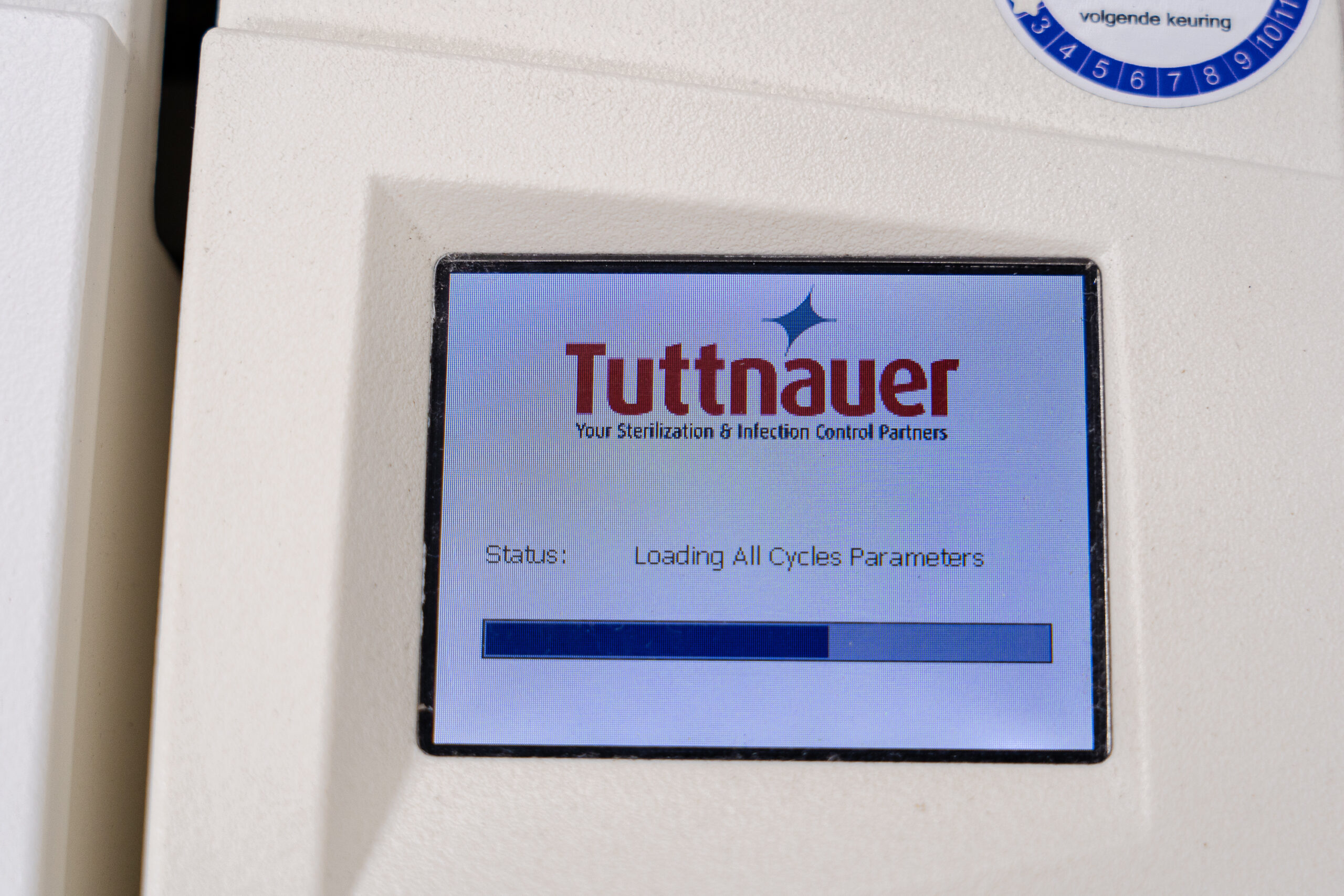

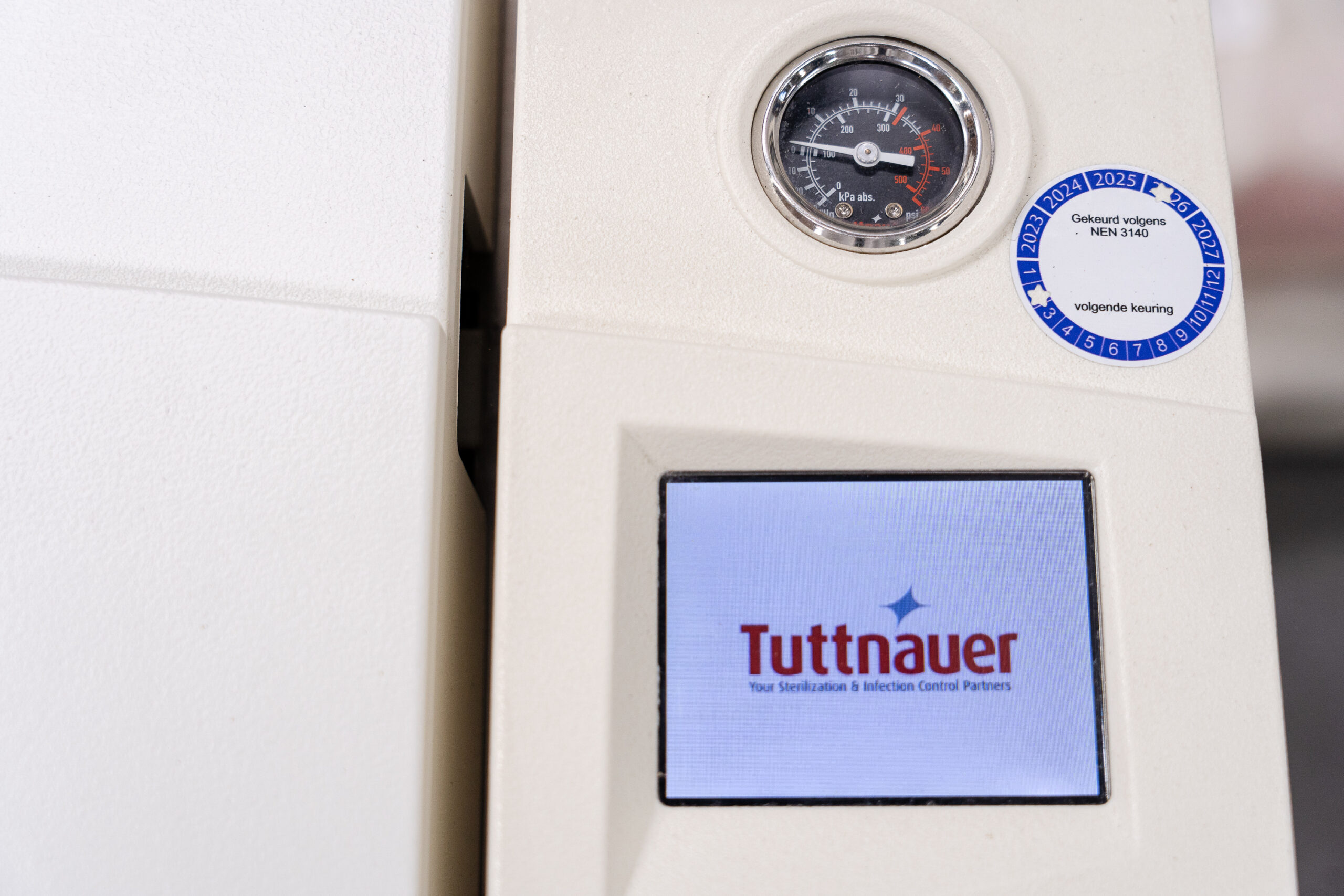

Control: Advanced control system, multi-colour display; with option for internal printer, USB/Ethernet data export; up to 200 cycles of storage.
Safety: IP31 – Automatic door lock under pressure, overpressure protection, steam pressure and temperature monitoring, insufficient water/level protection.
Application standards/regulations: Complies with PED/pressure vessel guidelines and international standards for laboratory autoclaves.
External dimensions (W x D x H): 730 x 540 x 1000 mm

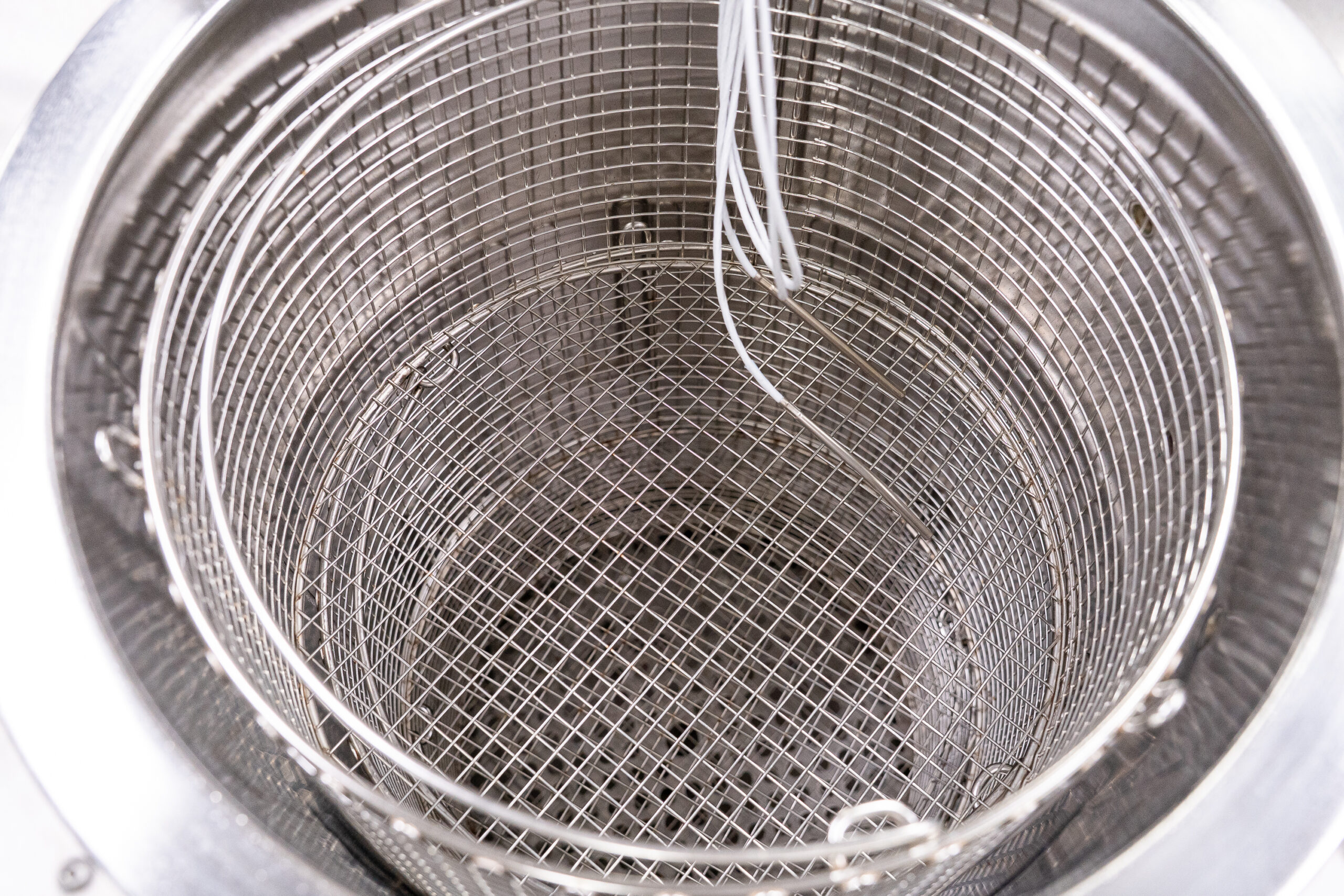

Chamber dimensions (Ø × D): Ø 380 mm × 690 mm deep
