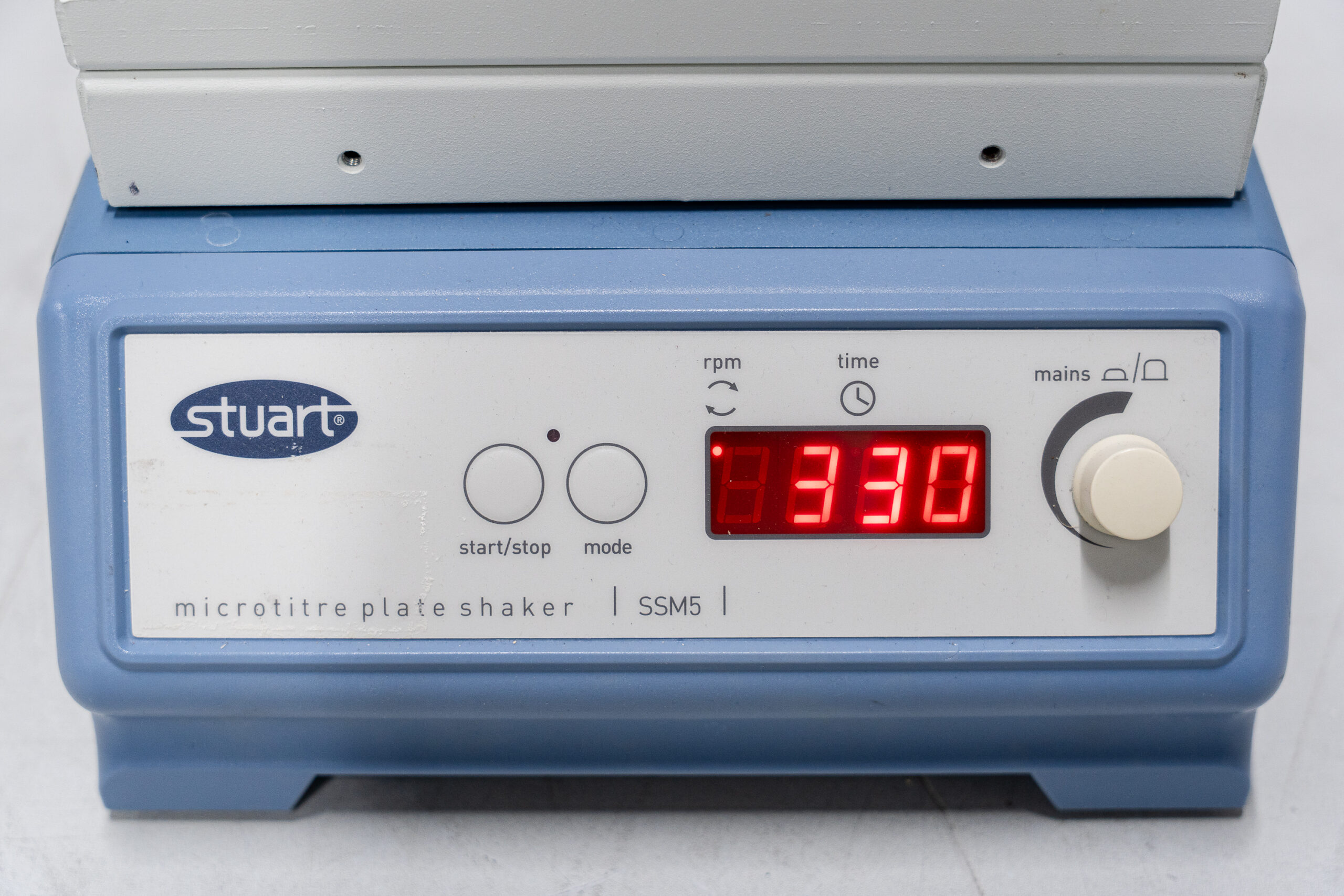

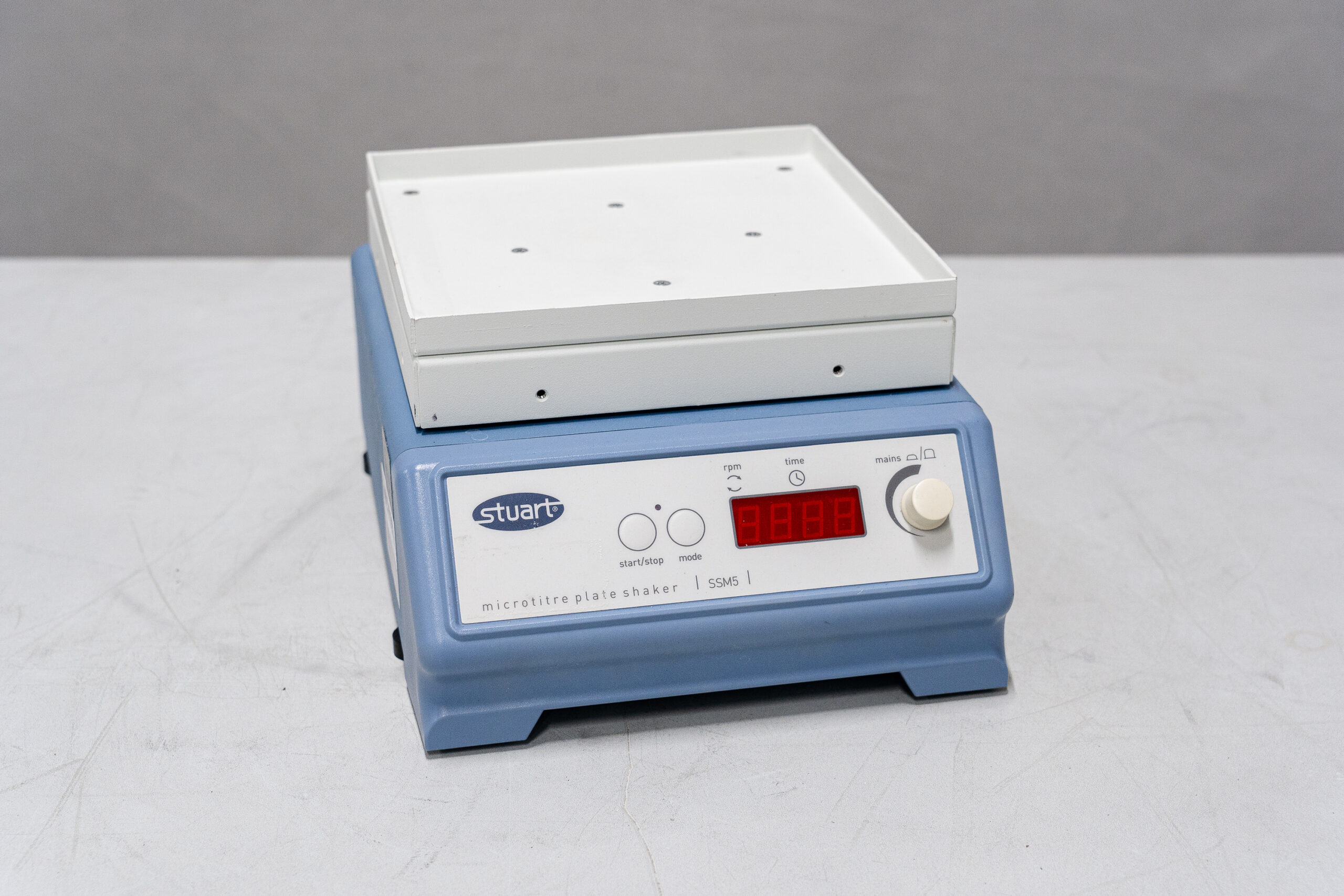

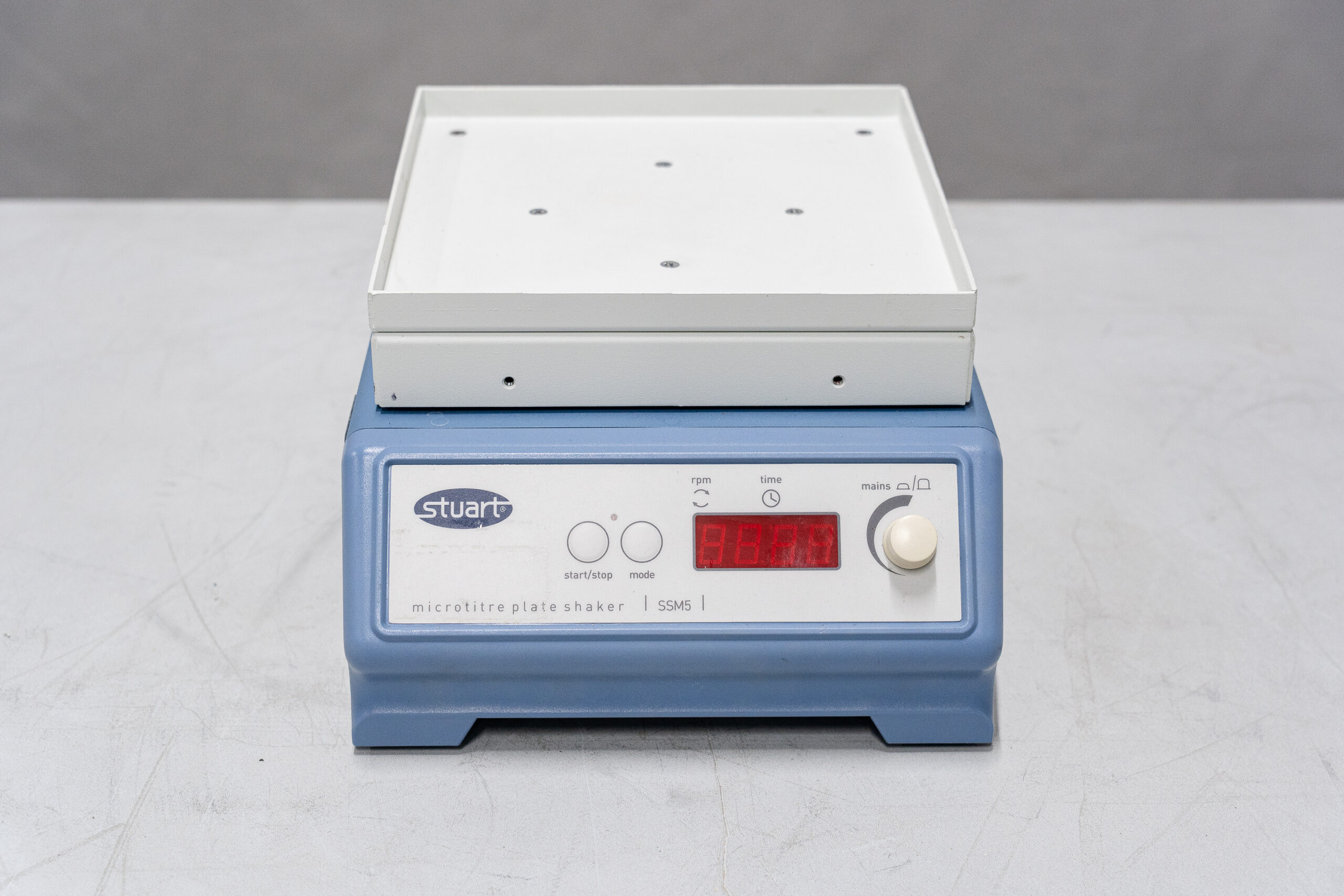

The Stuart SSM5 Shaker is a compact microplate shaker designed to gently and efficiently mix microtiter plates or microcentrifuge tubes—ideal for laboratory work with small volumes (e.g., reagents, cell suspensions, assays). Thanks to its high shaking frequency (250–1250 rpm) combined with a very small orbital shape (1.5 mm), samples are vigorously mixed without splashing or excessive foaming. It can handle up to four microtiter plates simultaneously—useful for parallel work or assays with multiple samples. Please note: No mat/plate fixation.
Technical specifications:

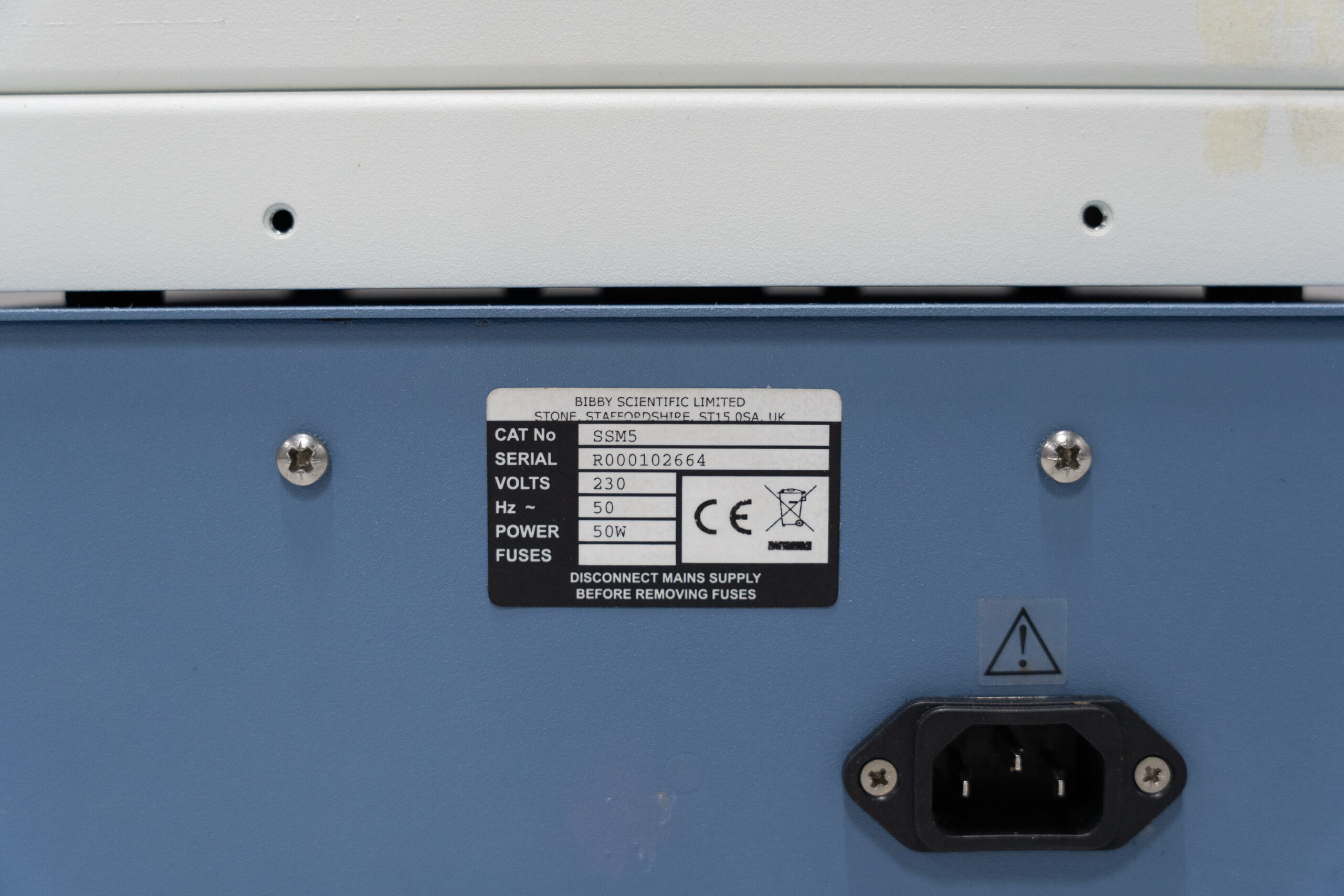

Voltage: 230 V
Power: 50 W
Speed range: 250 – 1,250 rpm
Shaking/orbital amplitude (orbit diameter): 1.5 mm
Maximum load capacity: ~1 kg (for SSM5)
Temperature range (ambient/incubator): +4°C to +40°C, max. 80% relative humidity
Timer: Adjustable digital timer (from approx. 1 second to several hours), or continuous operation possible.
External dimensions (W x D x H): 250 x 300 x 160 mm
Platform dimensions: approx. 220 × 220 mm
Weight: 2 kg
