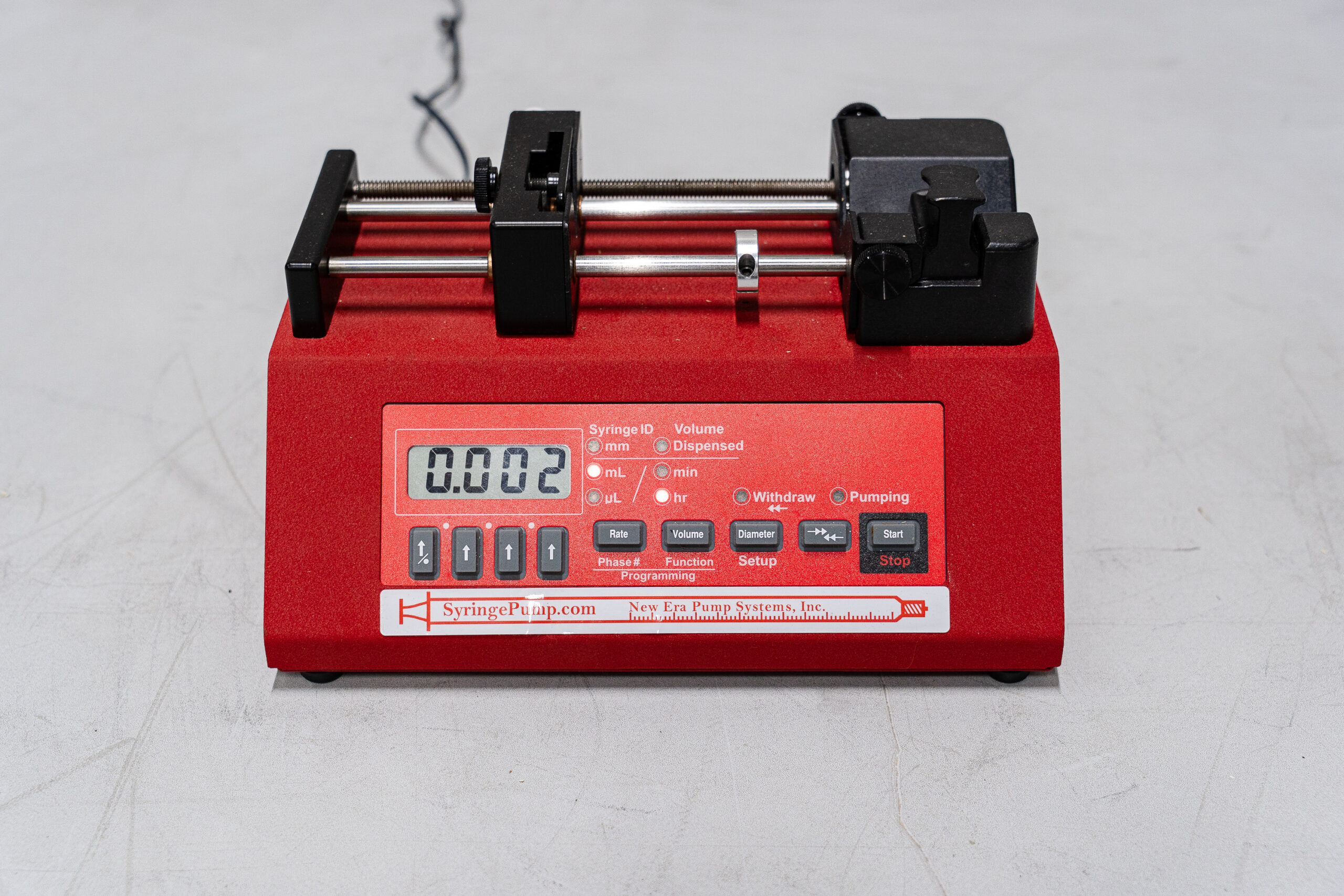

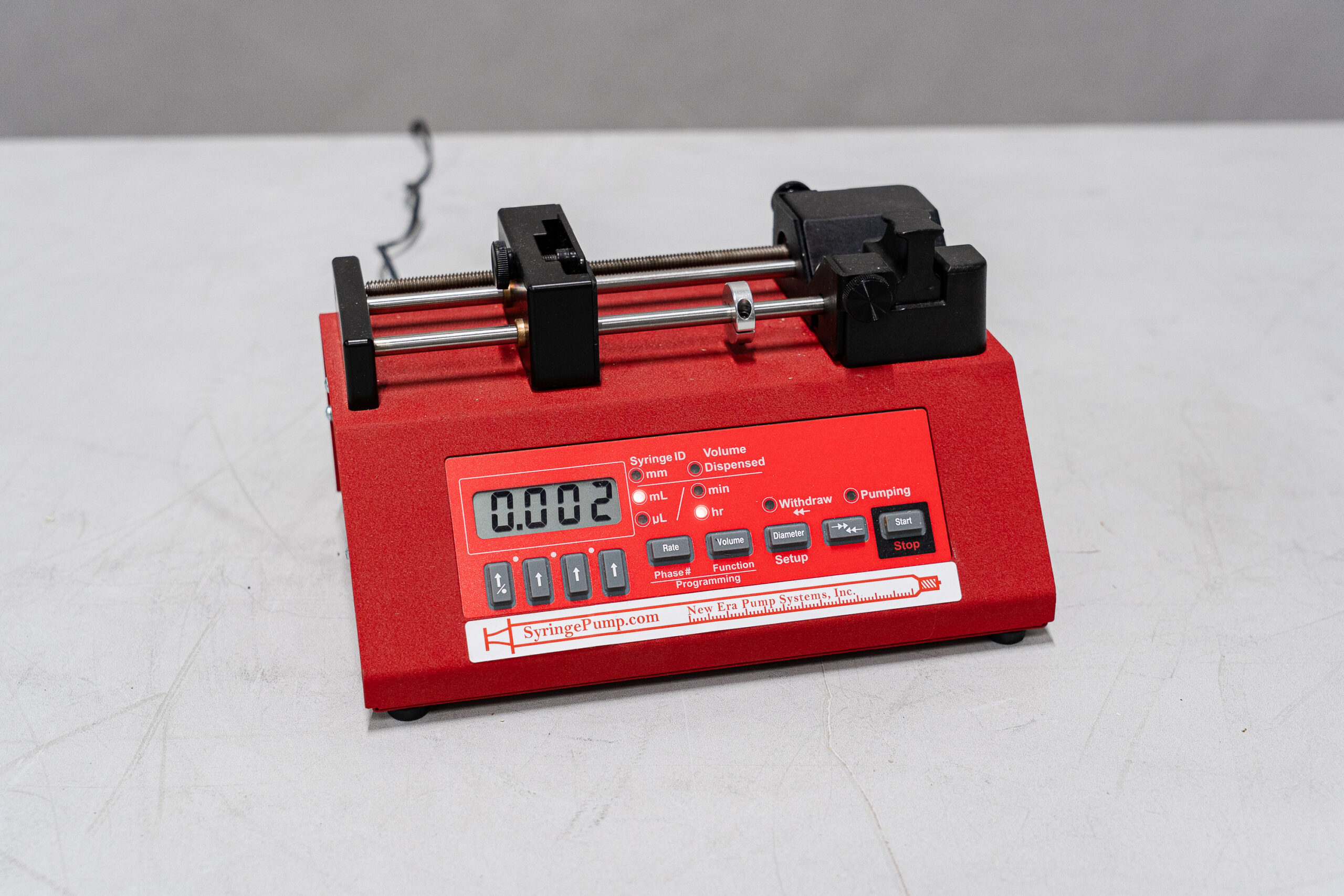

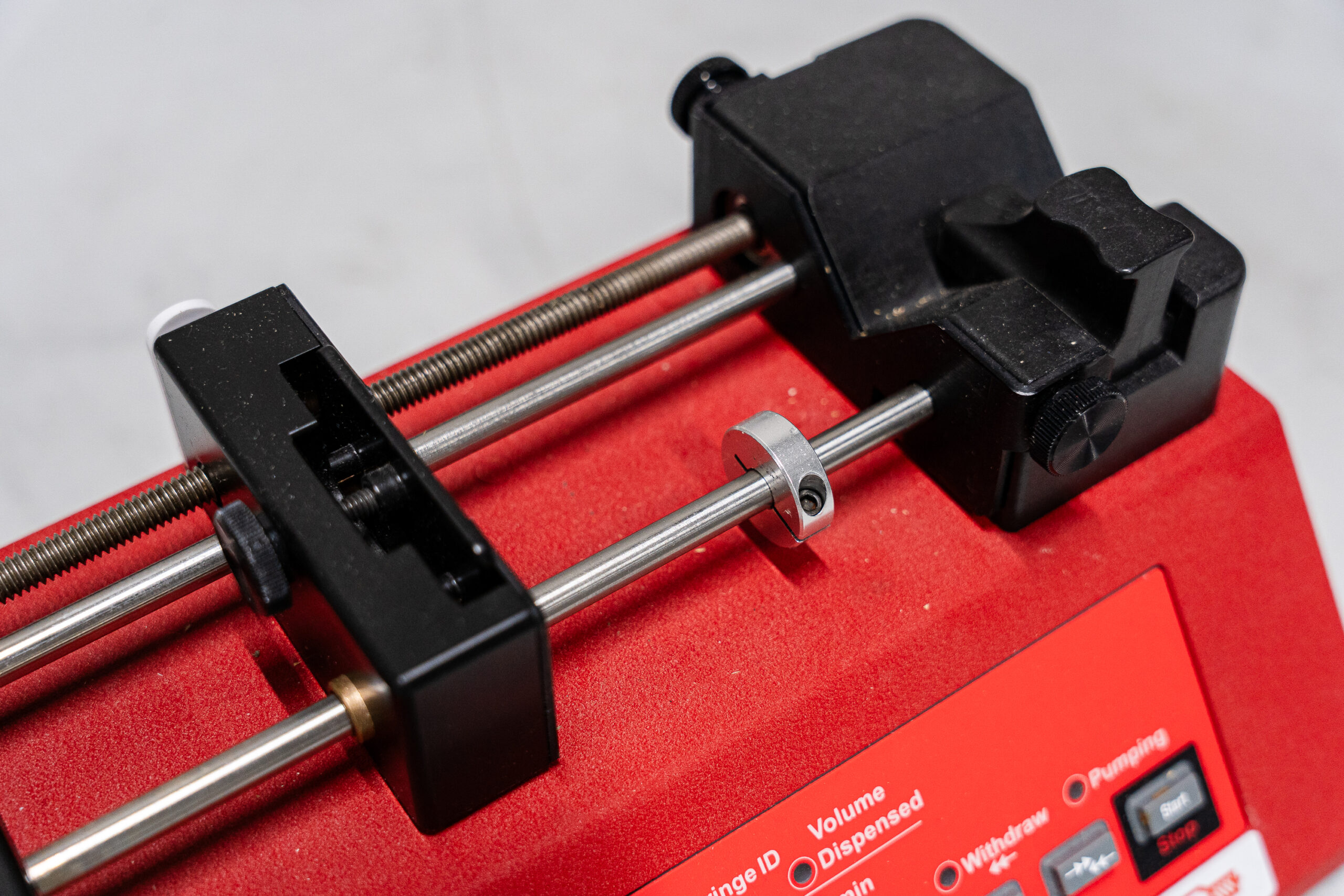

The New Era NE-1000 Syringe Pump is a programmable, single-channel syringe pump designed for precise dosing or delivery (infusion or “withdrawal”) of fluids—from very low flows (µL/h) to relatively high flows (mL/h). It can be used with glass, plastic, or stainless steel syringes and is suitable for applications in research, chemistry/biochemistry, process automation, and laboratories. Includes an adapter.
Technical Specifications:
Voltage: 12 V
Current: 0.75 A
Power: 10 W
Number of syringes: 1 (single channel)
Maximum syringe size: 1 mL – 50 mL
Syringe inner diameter: 0.100 – 50.00 mm
Minimum pumping speed / flow: ~0.73 µL/h (with a 1 mL syringe)
Maximum pumping speed / flow: Up to ~2120 mL/h
Accuracy / Reproducibility: ± 1% accuracy
Force (linear force): Up to ~35 lbs at low speed (max force), ~18 lbs at maximum speed
Programmable phases: Up to 41 phases per program — with adjustable flow, volume, pauses, direction, etc.

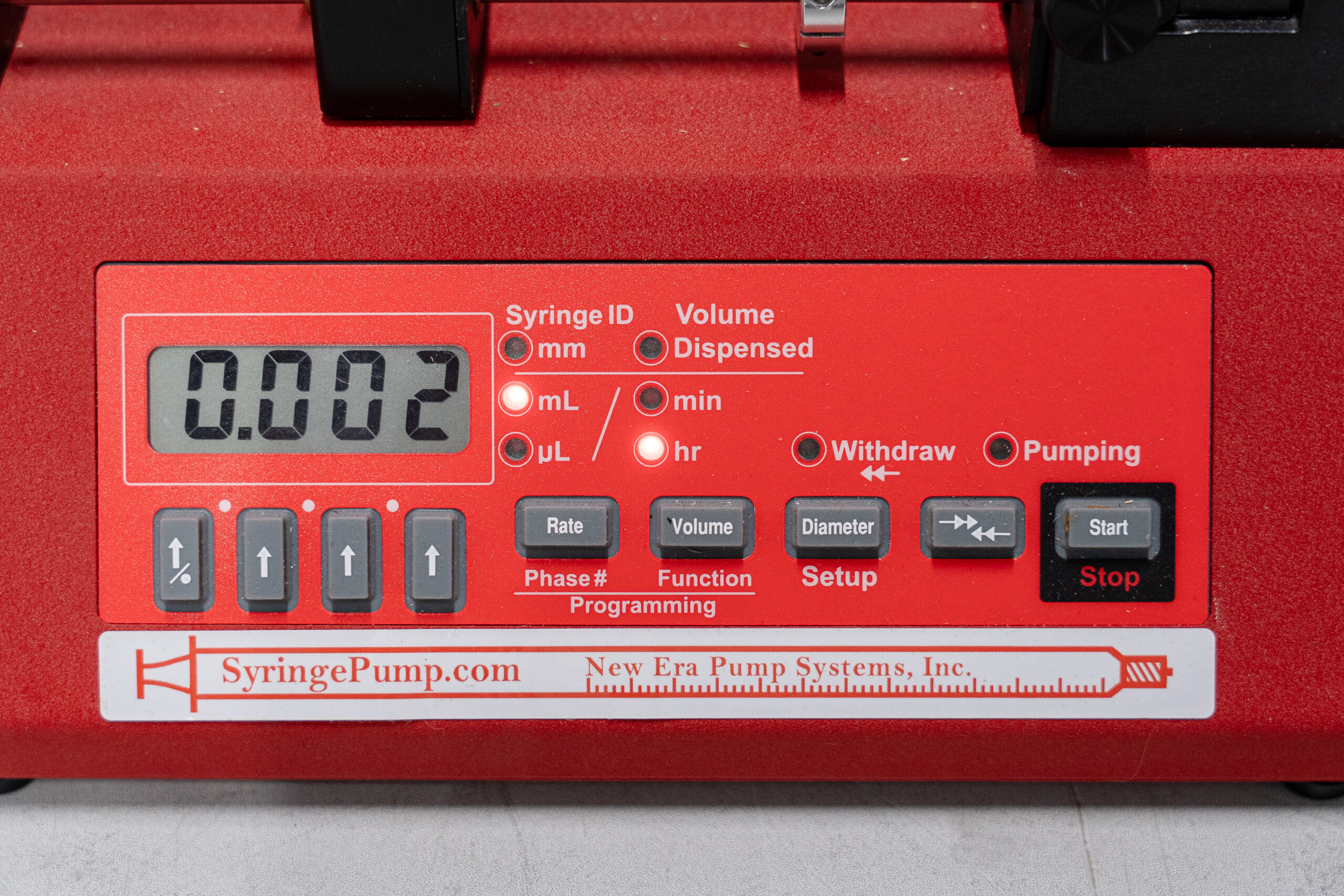

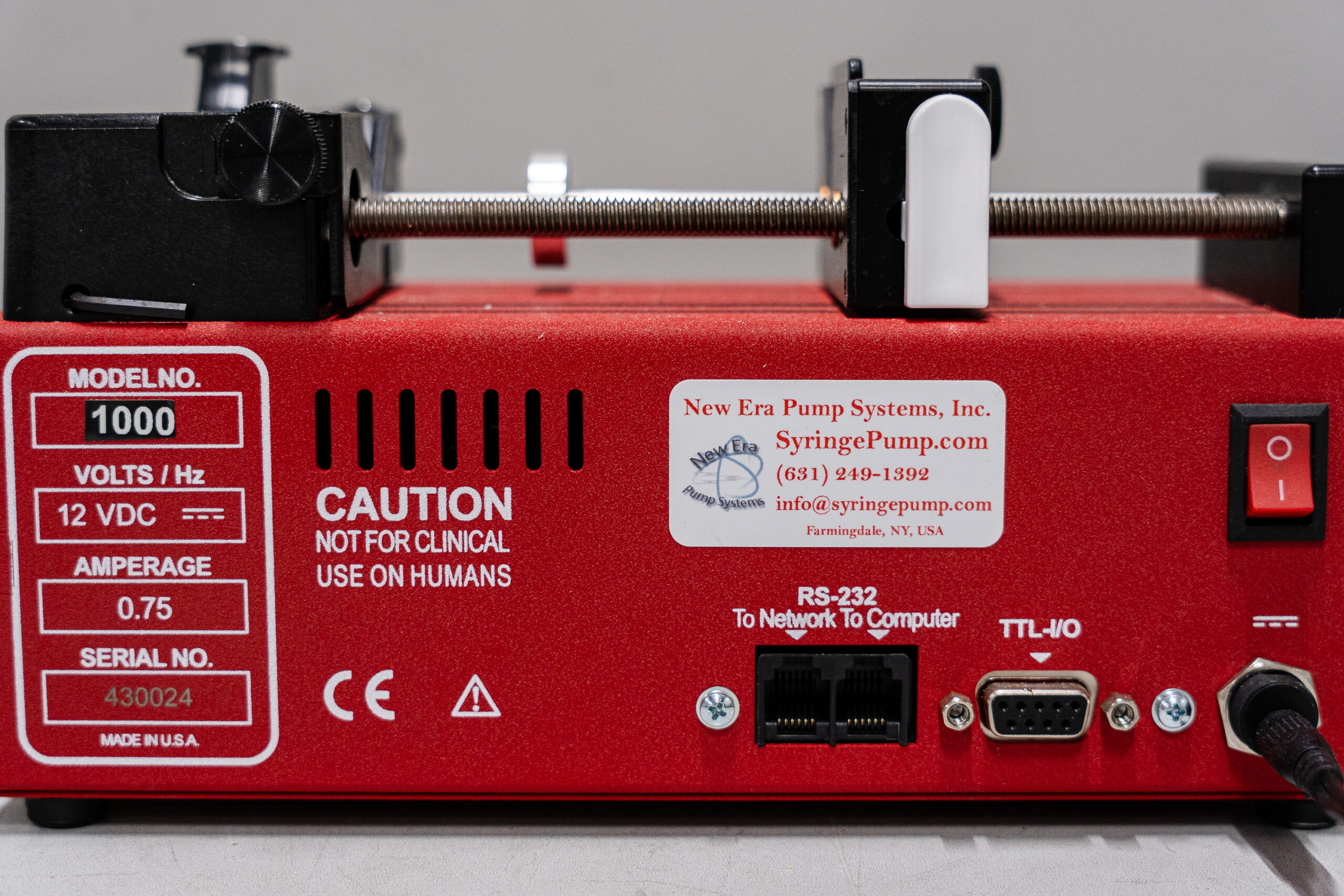

Interface / Control: Stand-alone via keyboard or PC (RS-232) + TTL I/O possible — network up to 100 pumps
External dimensions (W x D x H): 230 x 150 x 130 mm
Weight: 2 kg
