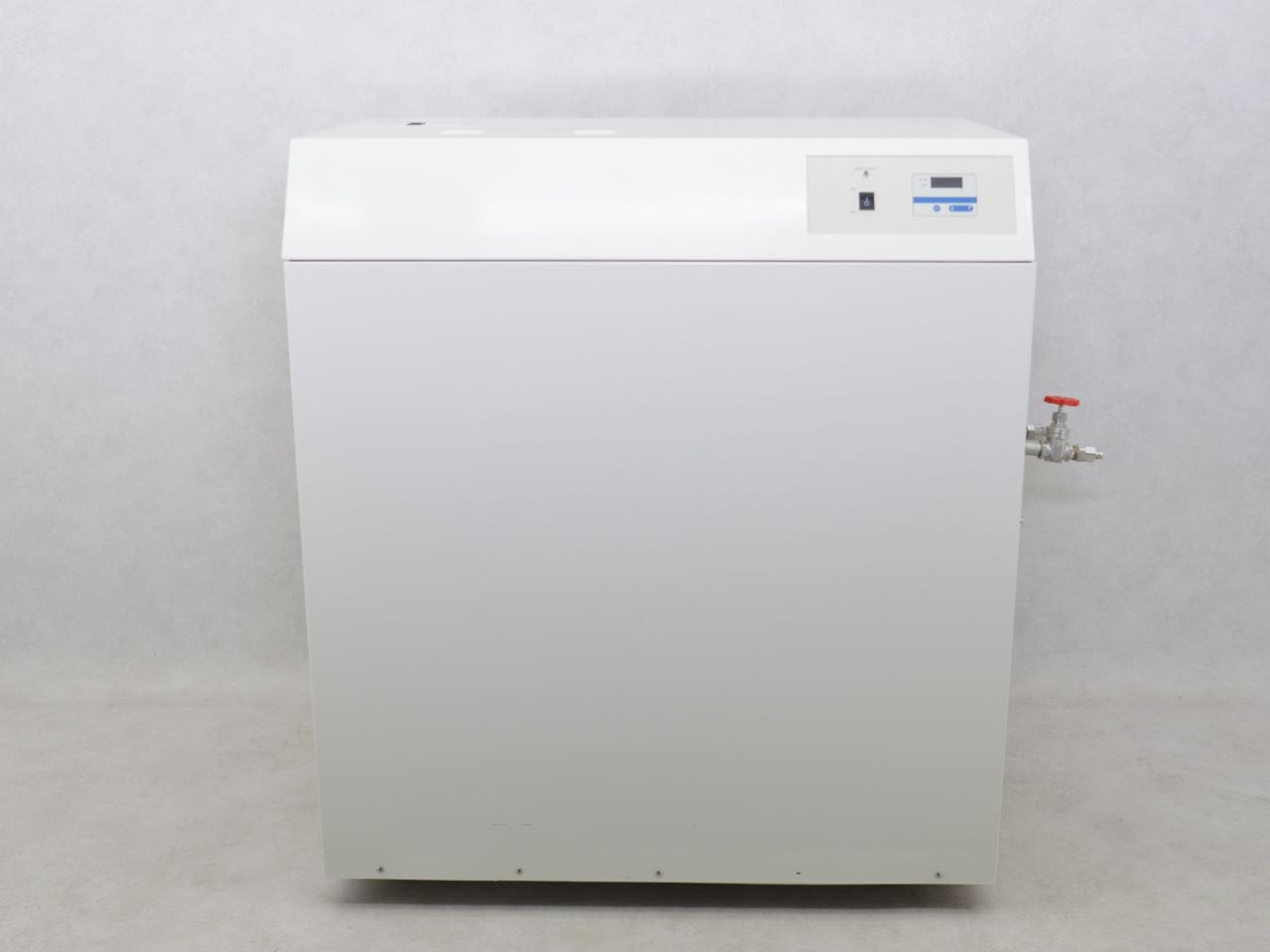

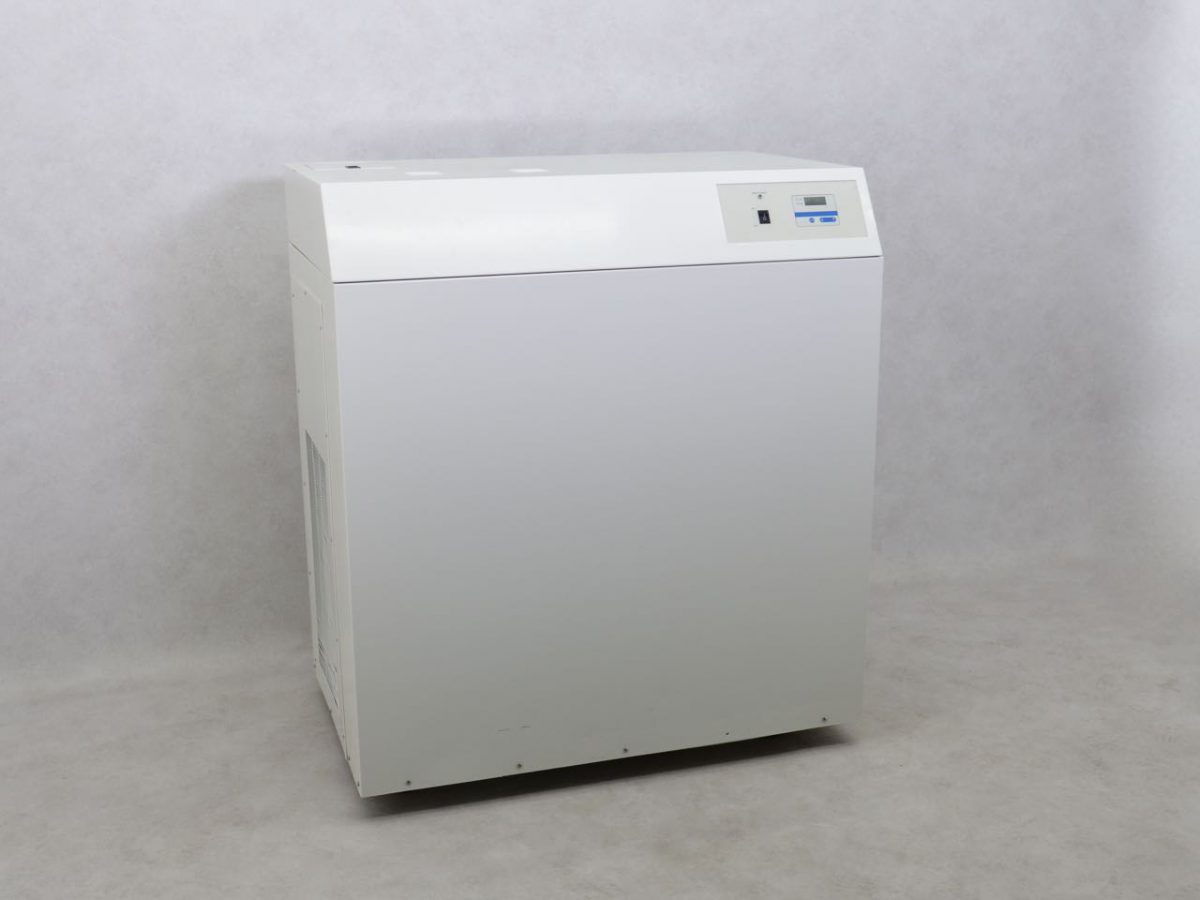

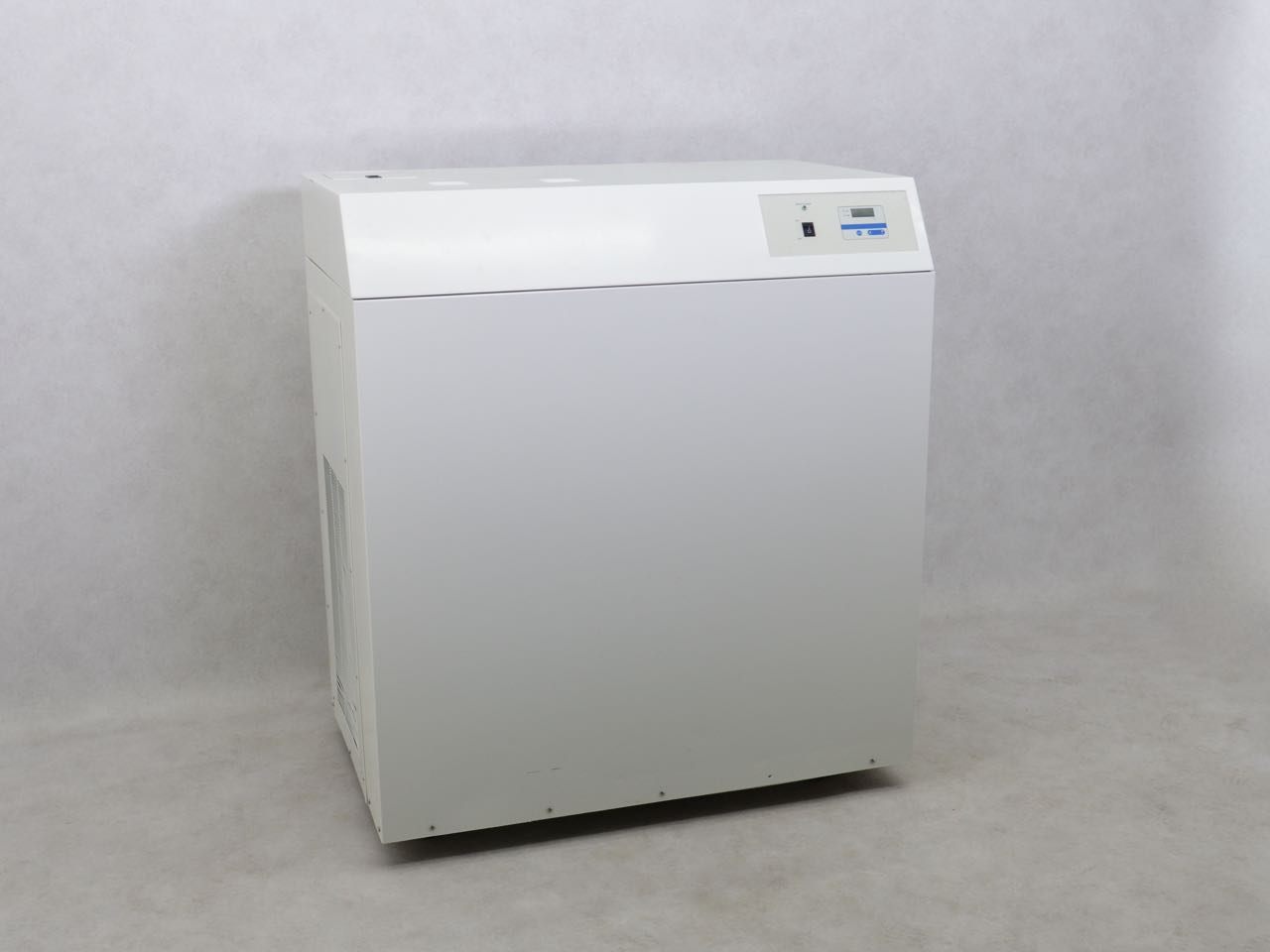

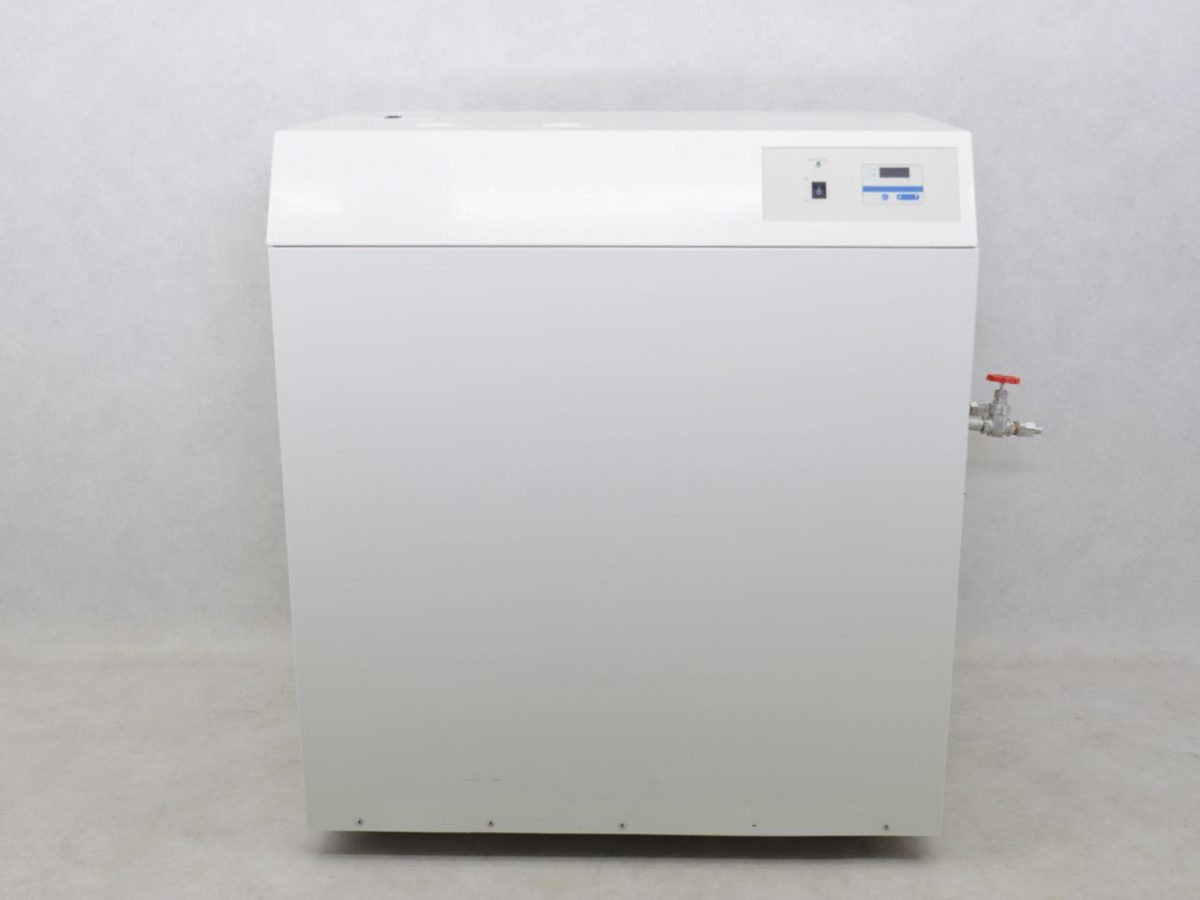

Neslab HX-500 Circulation cooler

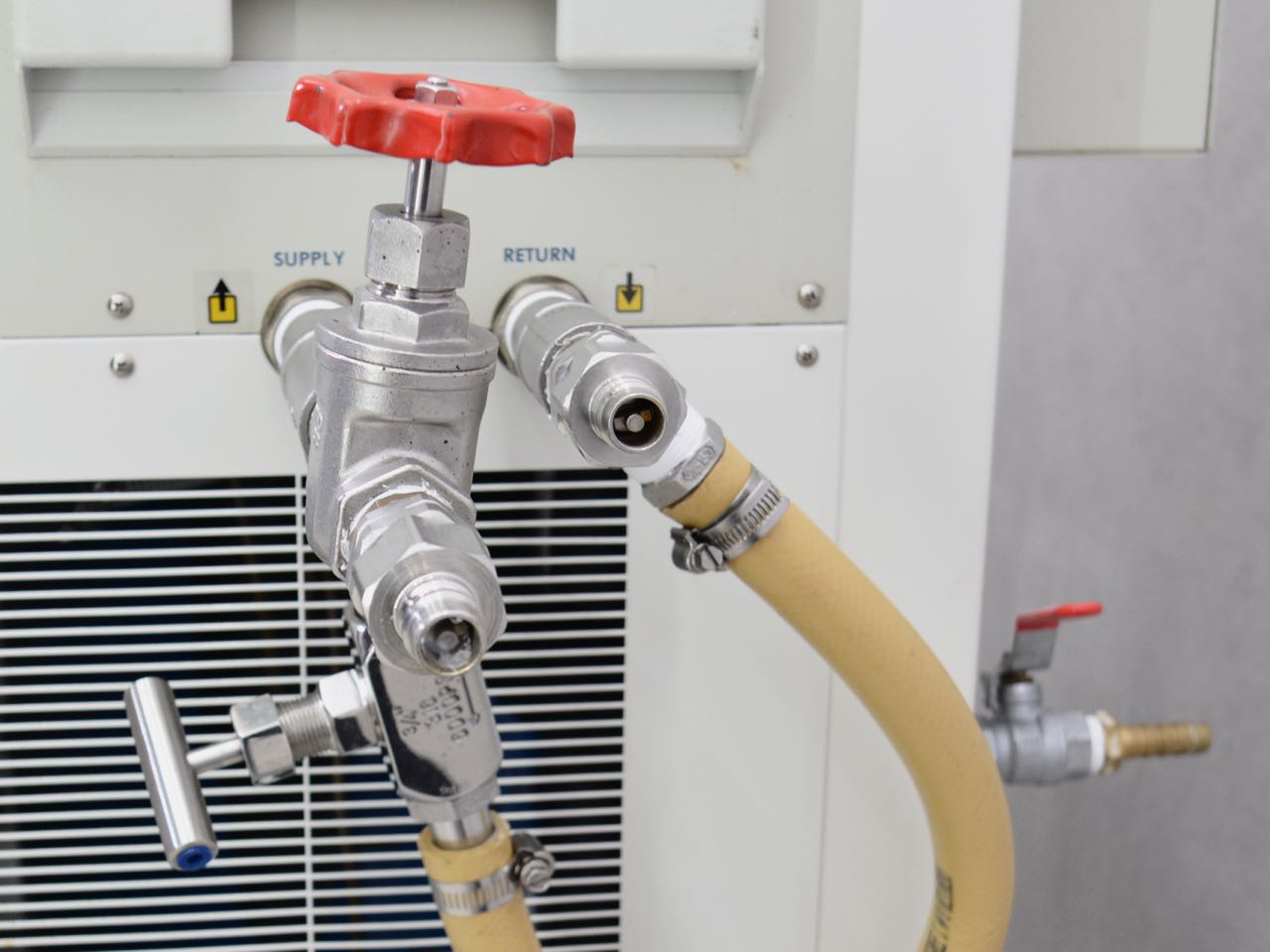

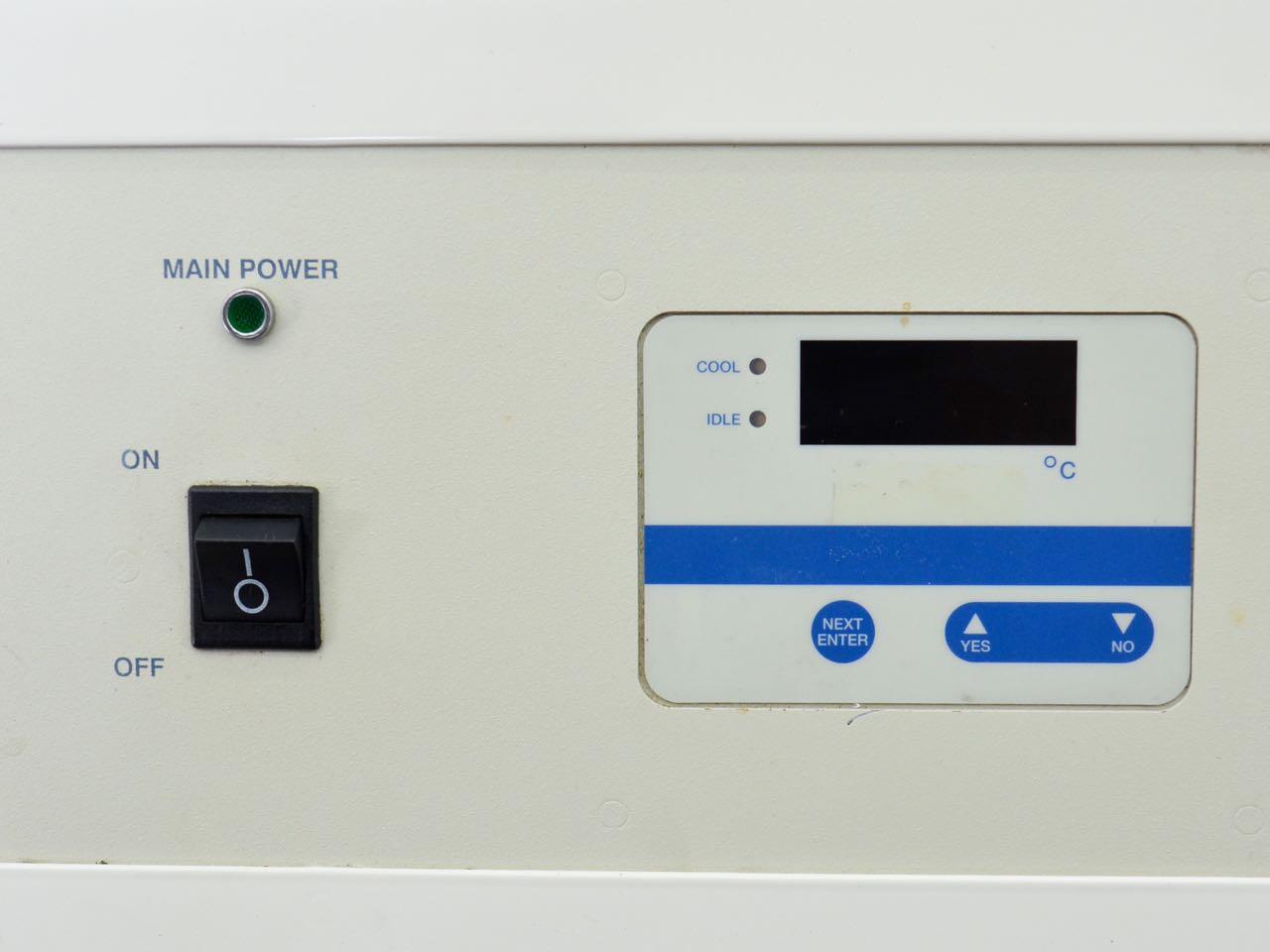

The circulation cooler of Neslab typ HX-500 is developed for use across a broad range of industry applications. This thermo chiller is ideal when installation space and ventilation flow is restricted, yet stable cooling performance is required. This device consists of an water-cooled refrigeration system, a fluid reservoir, a fluid recirculation pump, and a temperature controller. The cooler needs external cooling water, facility water, to discharge heat.
Technical specifications
Voltage: 380-415V, 50Hz
Current: 19,9A
Cooling capacity at set temperature 25 °C SP: 15 kW
Cooling capacity at set temperature 10 °C SP: 10 kW
Refrigerant: R134a
Temperature range: +5°C to +35°C
External dimensions (W) x (D) x (H): 128.5 x 117 x 73.0 cm
