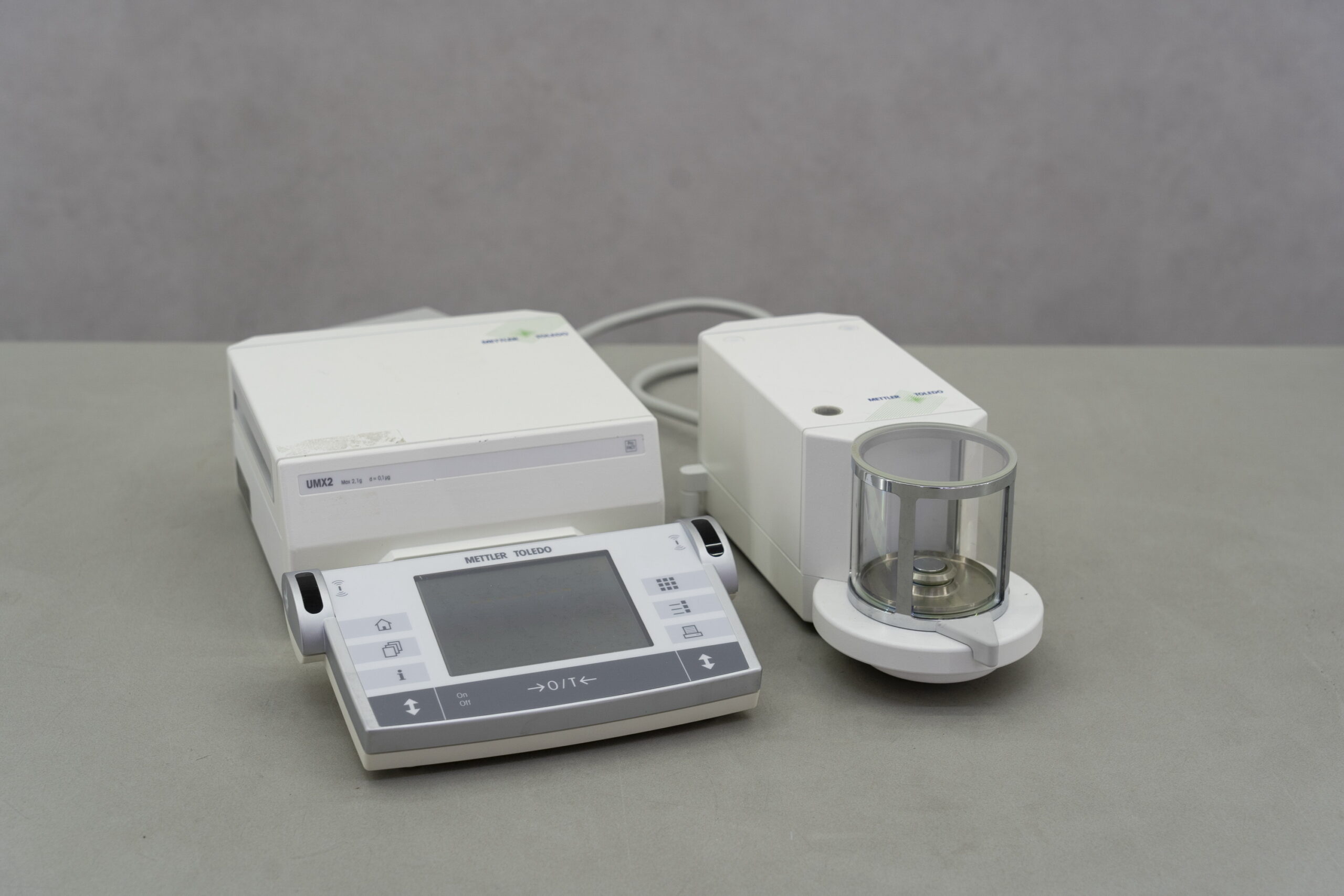

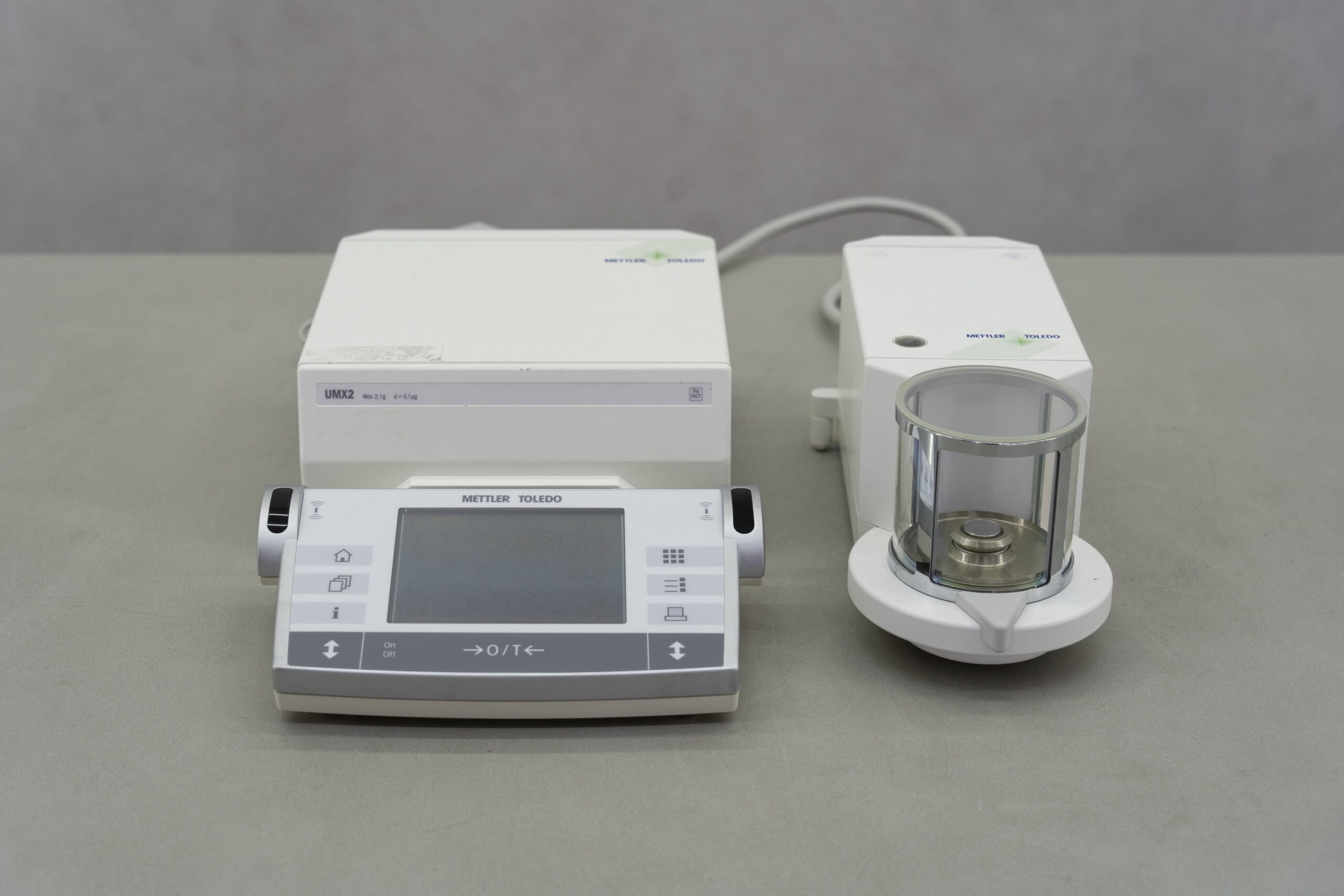

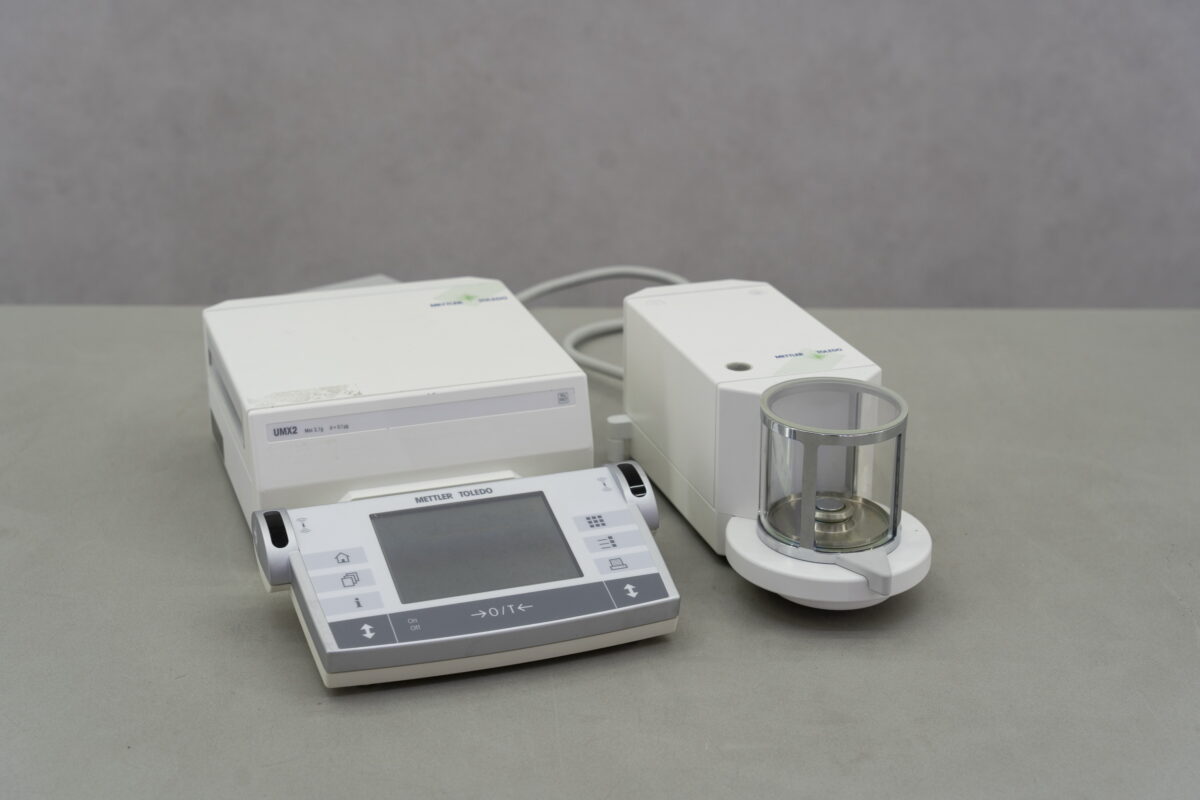

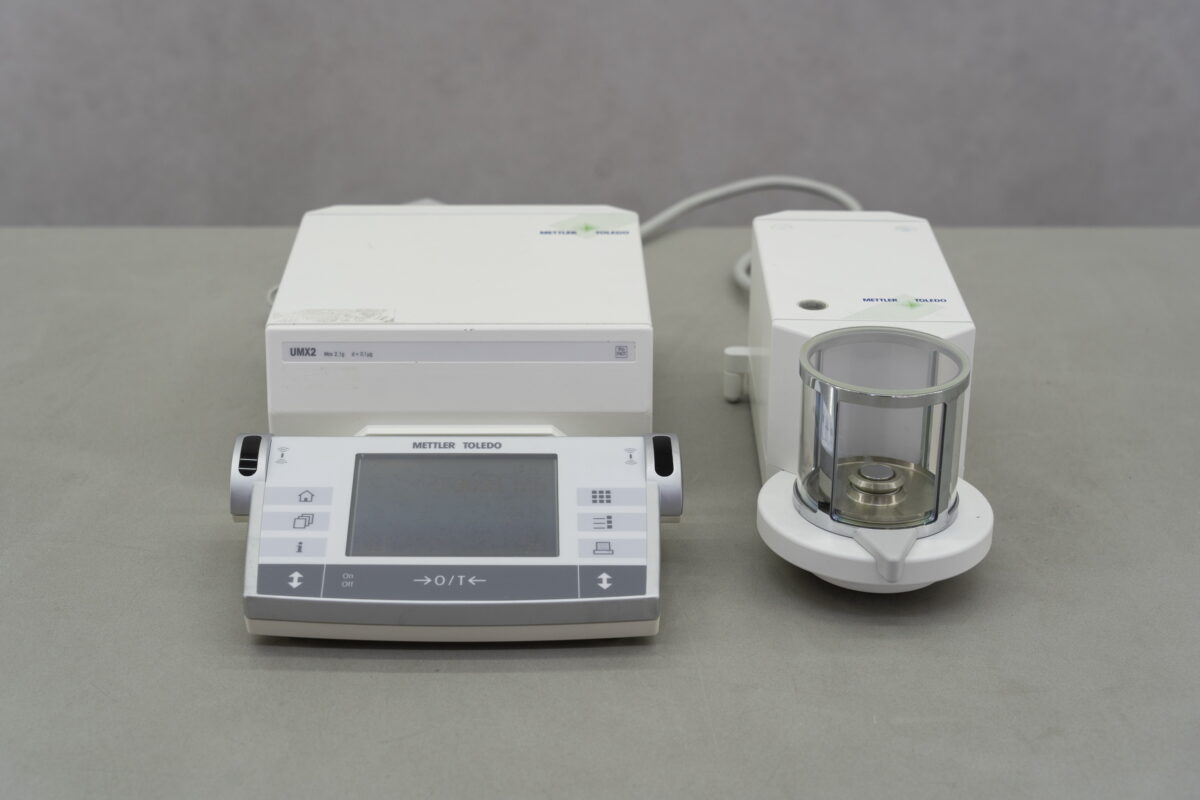

This UMX2 ultra-microbalance has a large number of weighing and adjustment possibilities with exceptionally convenient operation. The UMX2 has a readability of 0.0001 mg and can handle a maximum load of 2.1 g.
The following are common features to all models of the AX and MX/UMX lines:
- Glass draft shield with motorized opening for precise weighing even in unstable environments.
- Fully automatic adjustment (calibration and linearization) using internal weight.
- Integrated applications for normal weighings, piece counting, percent weighing, differential weighing, and density determination.
- If required, further applications can be downloaded from the Internet onto your computer and from there onto your balance.

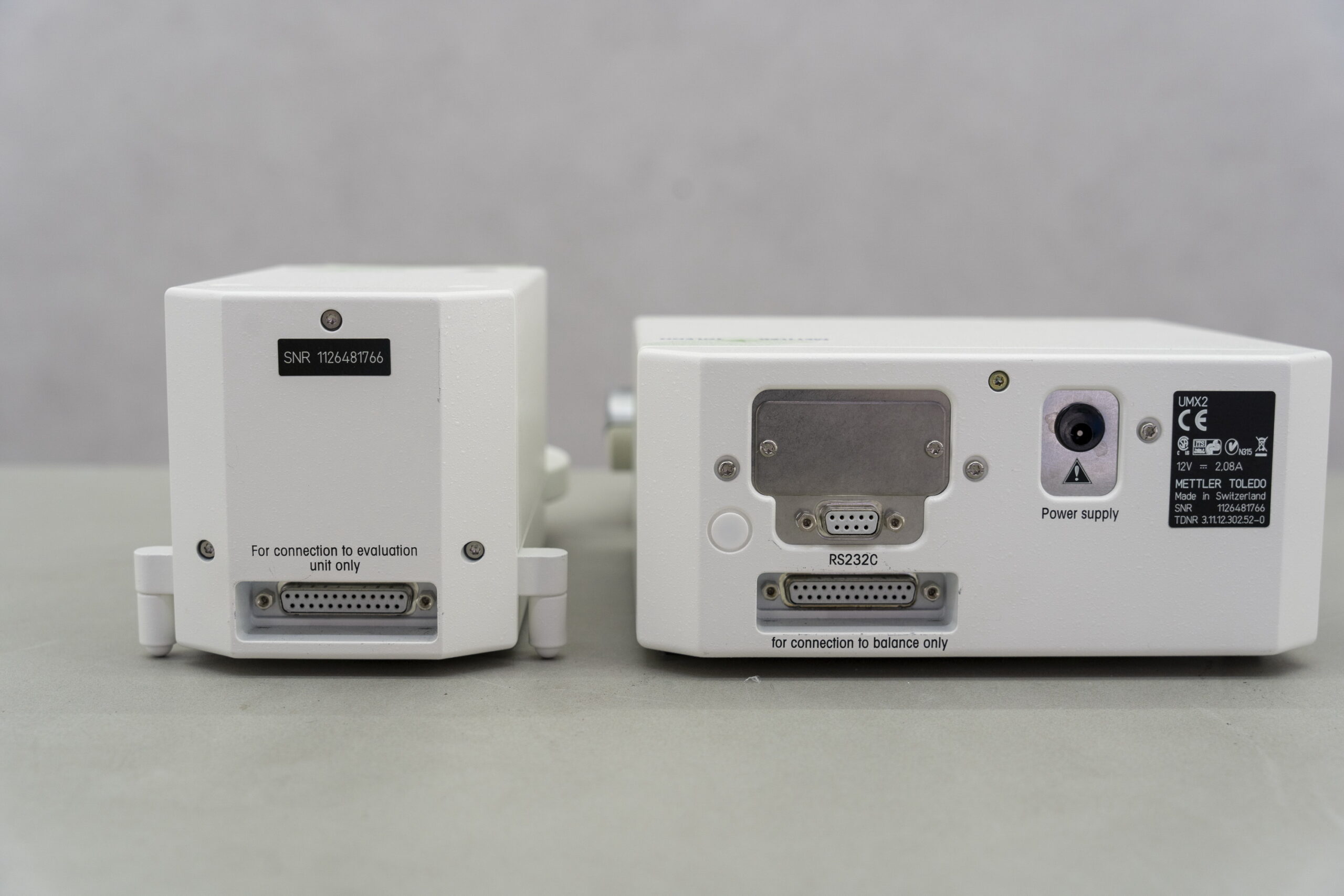

- Integral RS232C interface.

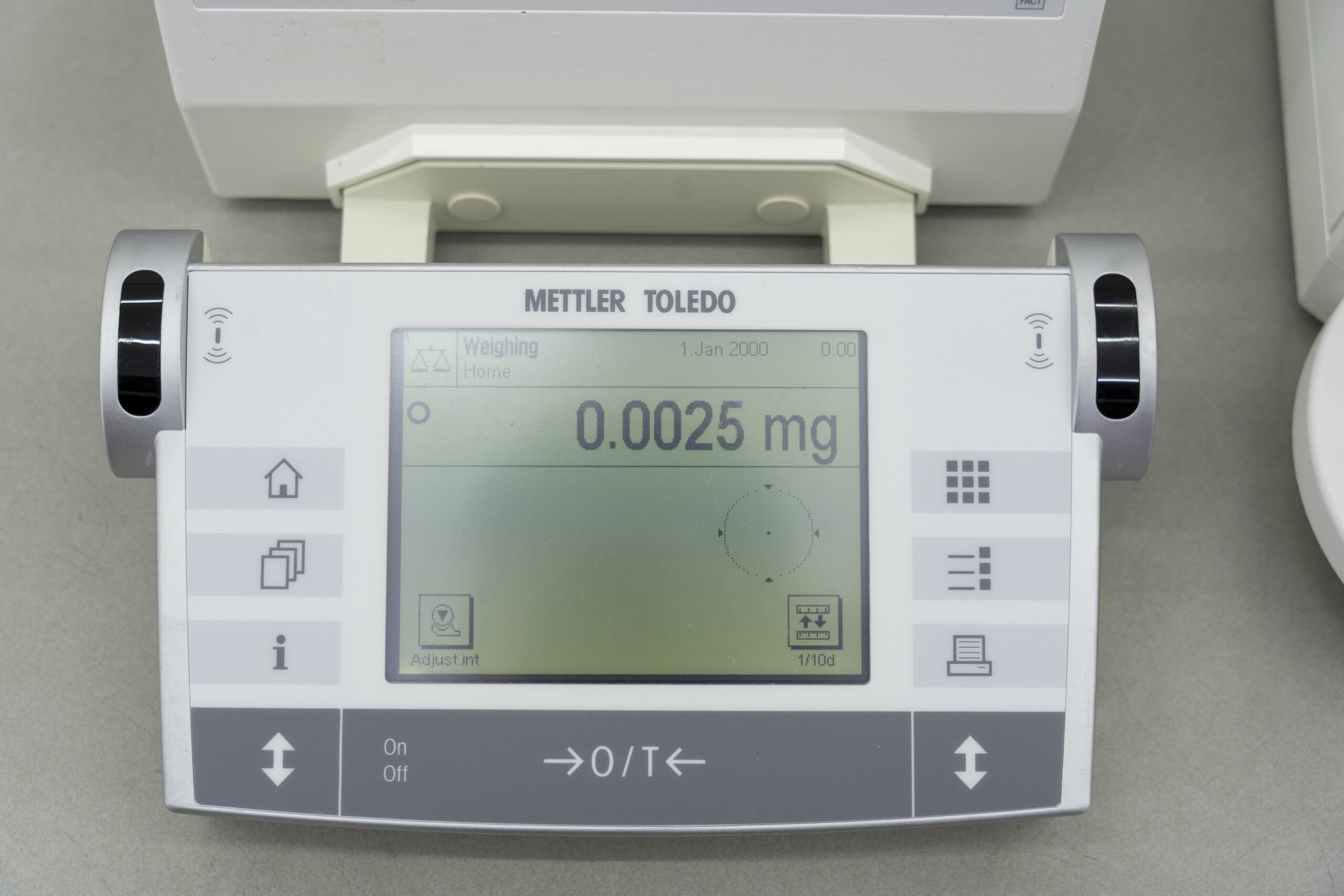

- Touch-sensitive graphics terminal (“TouchScreen”) for easy, convenient operation.
- Two programmable sensors for hands-off operation (“SmartSens”) to speed up frequently recurring tasks.
Model specific data for UMX2 microbalance
Maximum load: 2.1 g
Readability: 0.0001 mg
Repeatability (sd) at full load: 0.00025 mg (valid for compact objects)
Repeatability (sd) (at gross load): 0.00025 mg (0.2 g) (valid for compact objects)
Linearity: 0.001 mg
Eccentric load deviation at 1/2 maximum capacity: 0.0025 mg (according to OIML R76)
Sensitivity offset: 1.5×10
Sensitivity temperature drift: 0.0001%/°C (in the temperature range 10…30 °C)
Sensitivity stability: 0.0001%/a
Weighing time typical: 16 s (incl. sample handling and setting time)
Interface update rate: 7 /s
sd = Standard deviation
Balance dimensions (W) x (D) x (H): 241 x 505 x 293 mm

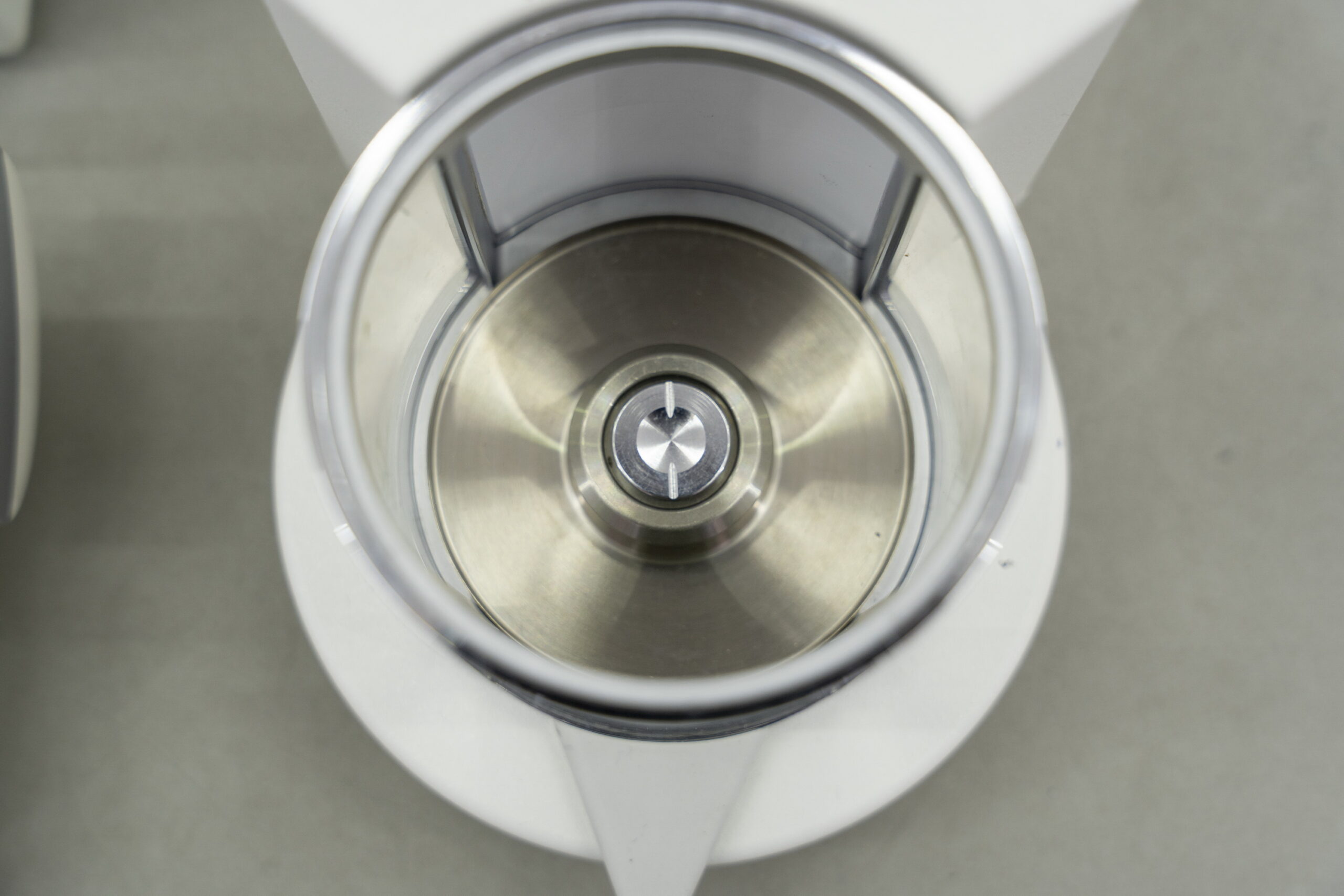

Weighing pan dimensions (W) x (D: 28 x 28 mm
Weight: kg
General data
Power supply
Power supply connector primary: 220-240 V, 0.7 A
AC/DC adapter: Secondary: 12 V DC, 2.08 A
Protection and standards
Overvoltage category: Class II
Degree of pollution: 2
Protection: Protected against dust and water
Standards for safety and EMC: See Declaration of Conformity (separate brochure 11780294)
Range of application: For use only in closed interior rooms
Environmental conditions
Height above mean sea level: Up to 4000 m
Ambient temperature: 5-40 °C
Relative air humidity: Max. 80% at 31°C, linearly decreasing to 50% at 40 °C, noncondensing
Warm-up time: At least 120 minutes after connecting the balance to the power supply; when
switched on from standby-mode, the balance is ready for operation immediately.
Materials
Housing: Die-cast aluminum, lacquered
Terminal: Die-cast zinc, lacquered, and plastic
Weighing pan: Chrome steel
