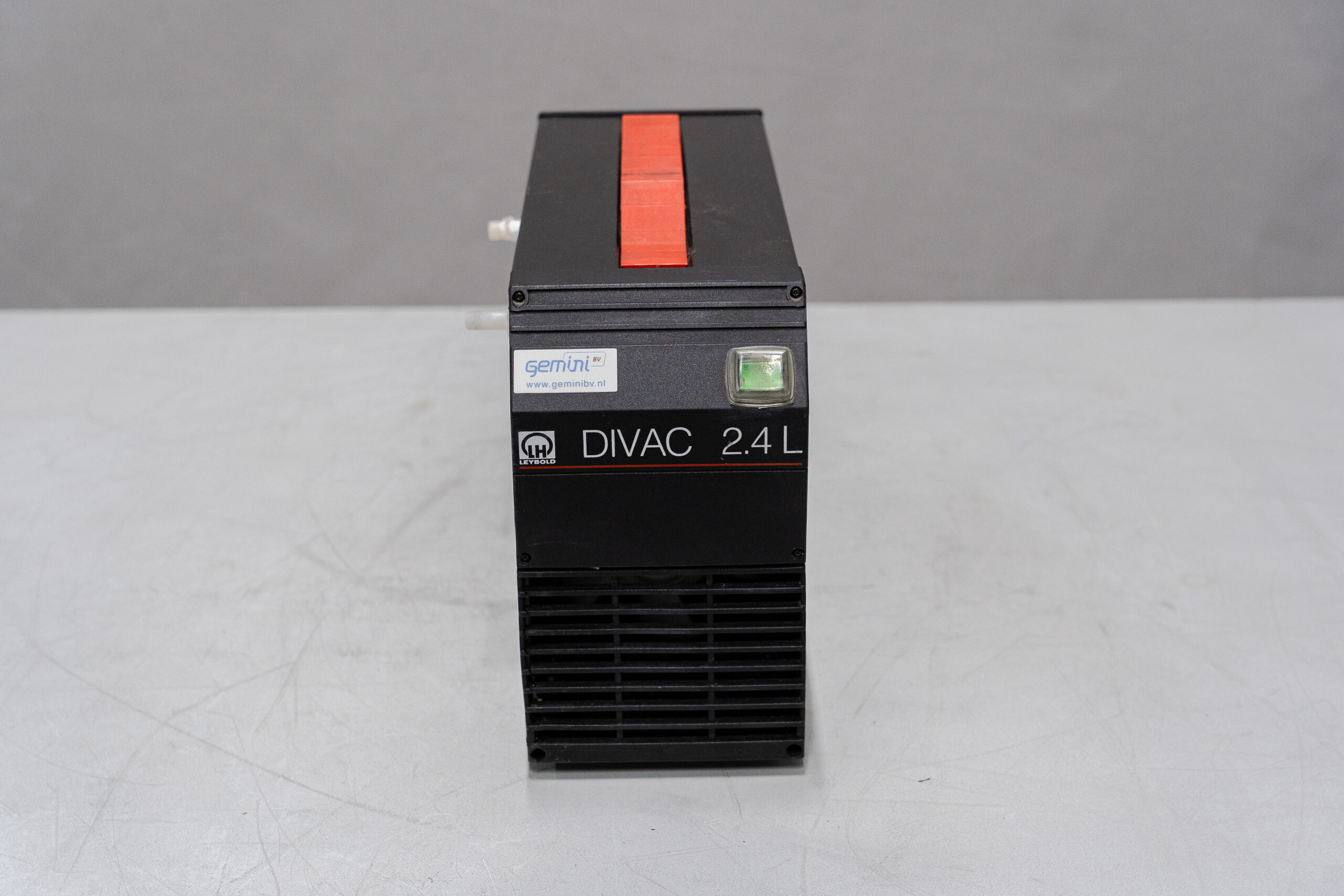

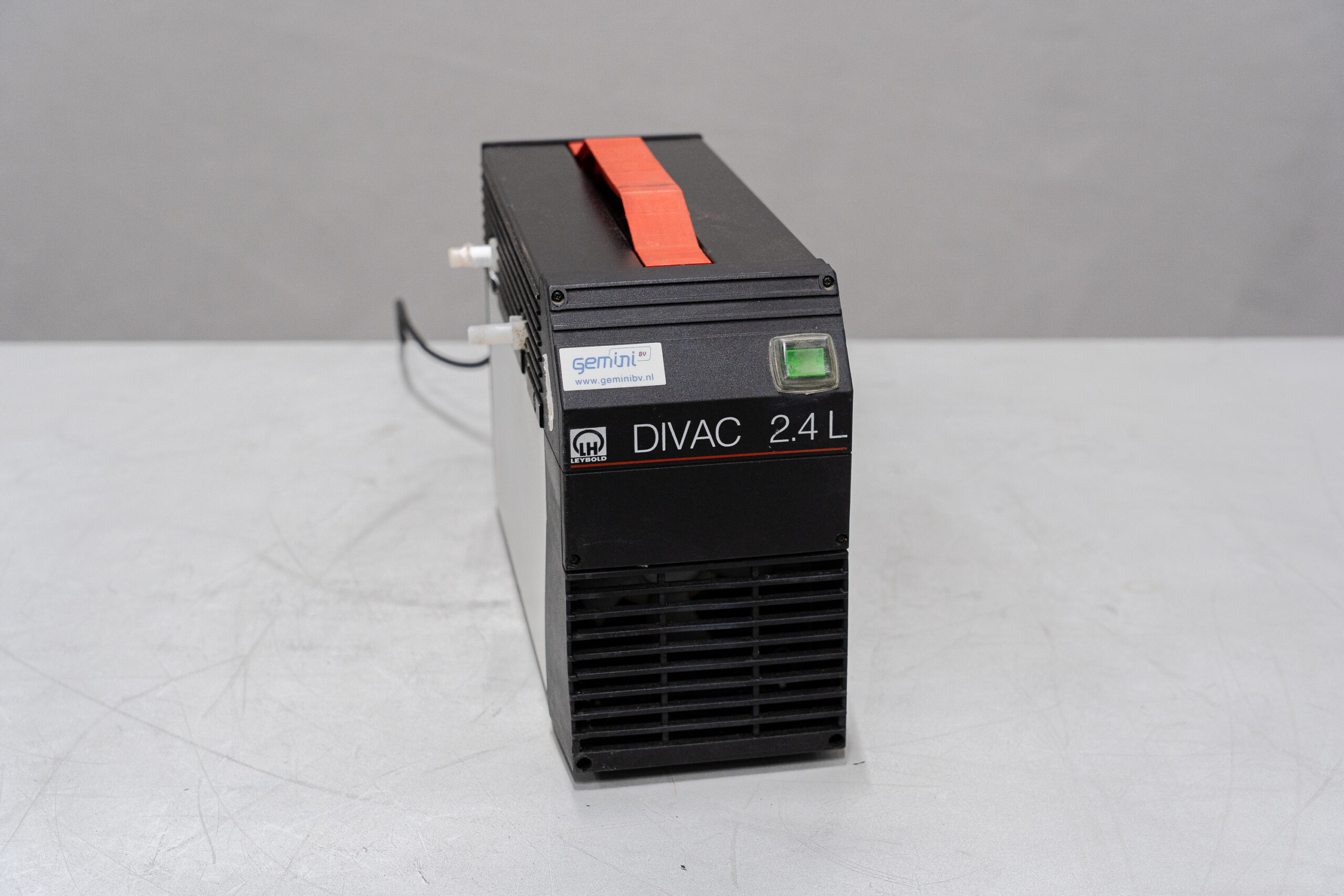

The Leybold Divac 2.4 L vacuum pump is an oil-free diaphragm vacuum pump designed for laboratory applications requiring a clean vacuum source—e.g., filtration, distillation, rotavap backing, or other vacuum tasks. Because the pump is oil-free, there is no risk of lubricant contamination—making it suitable for analytical work and applications involving chemically sensitive samples or vapors. Its compact size and relatively low reach make it ideal for space-constrained situations.
Technical specifications:
Voltage: 220 V
Current: 1.5 A
Power: 0.12 kW
Pump speed / flow rate: 2.4 m³/h (or ± 2.4 L/min)
Ultimate vacuum (ultimate pressure): 150 mbar
Rotational speed: approx. 950 rpm
Protection class: IP44
Chemical resistance: Pump heads made of chemically resistant materials (suitable for non-aggressive to mild chemicals) — diaphragm/valves designed for safe use with gases/vapors.
Applications: Filtration, distillation, vacuum systems, backing pump for turbo/vacuum setups, general laboratory vacuum applications.
Maintenance / Oil-free: Yes — diaphragm pump, oil-free, therefore low maintenance requirements and minimal contamination risks.
External dimensions (W x D x H): 130 x 360 x 230 mm
Weight: 13 kg
