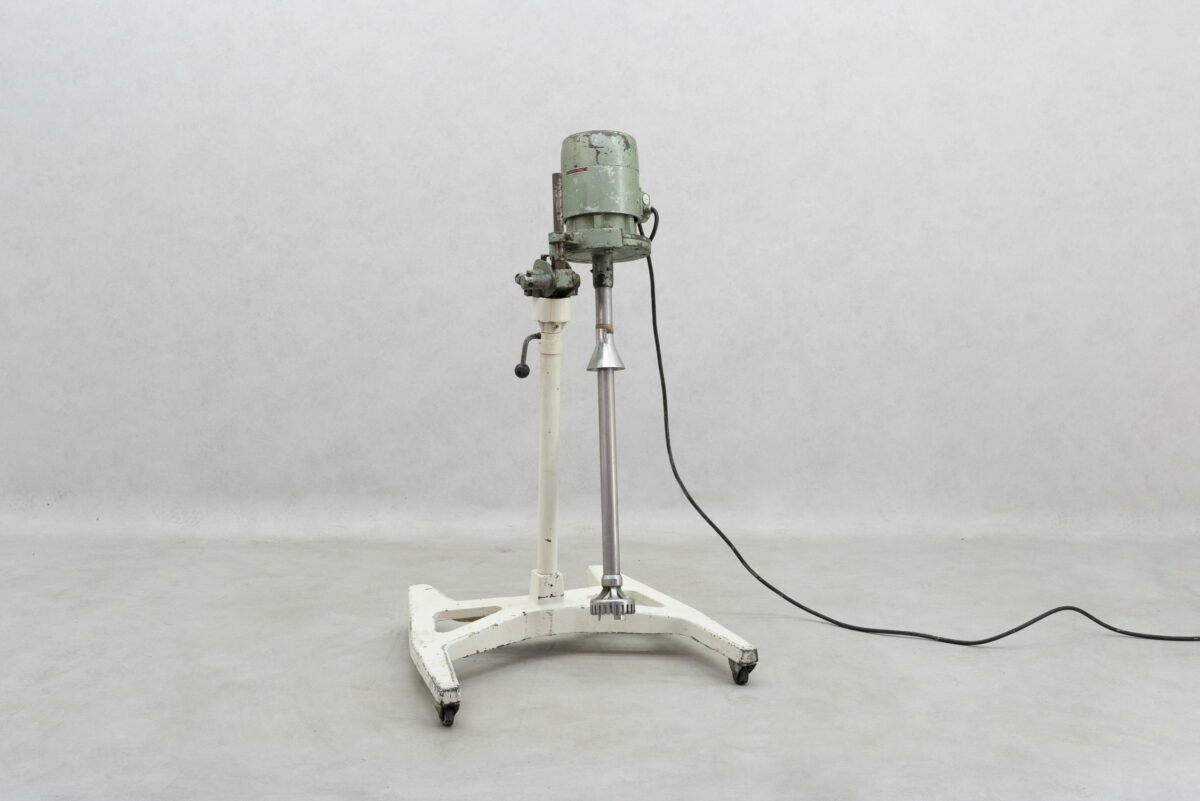

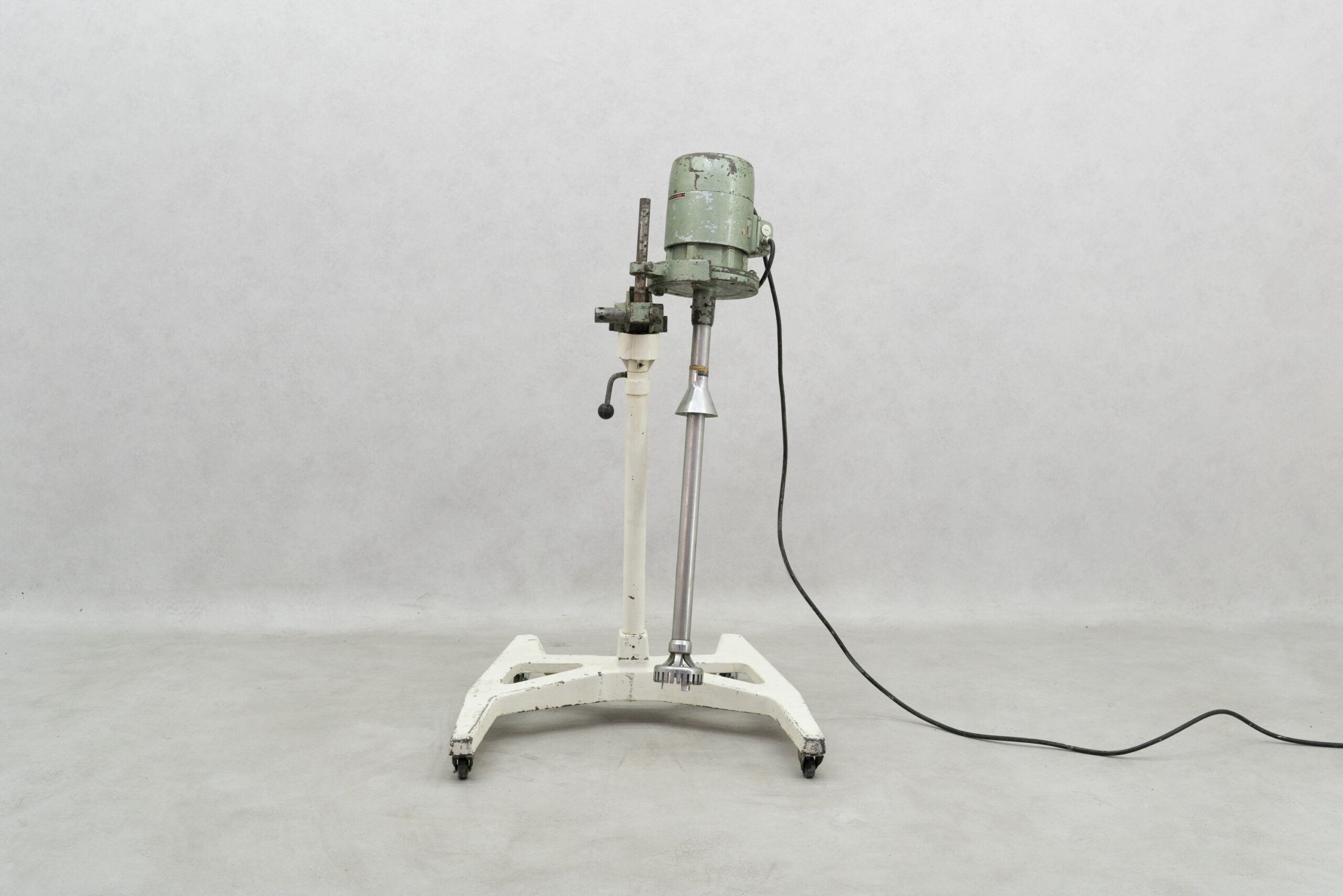

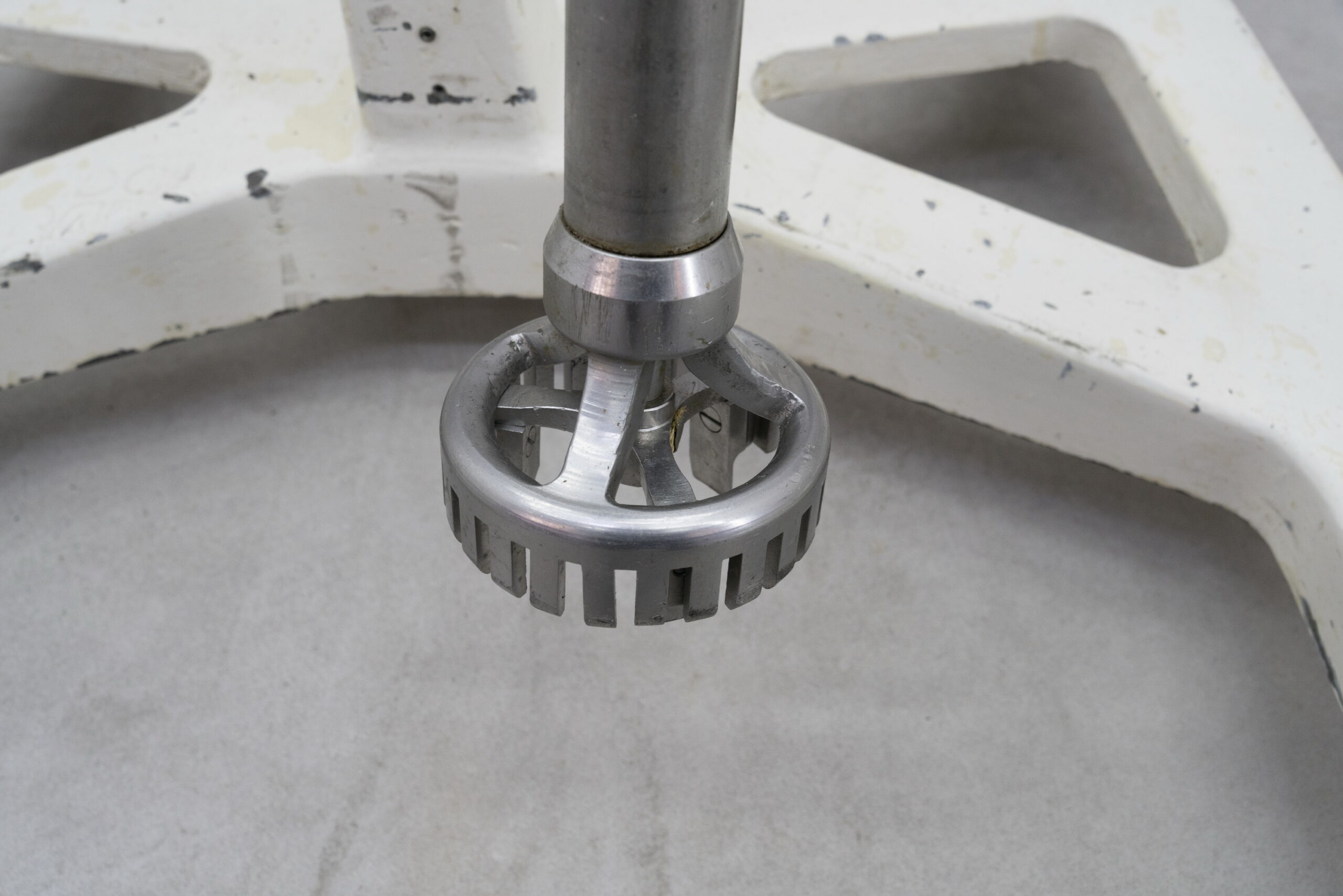

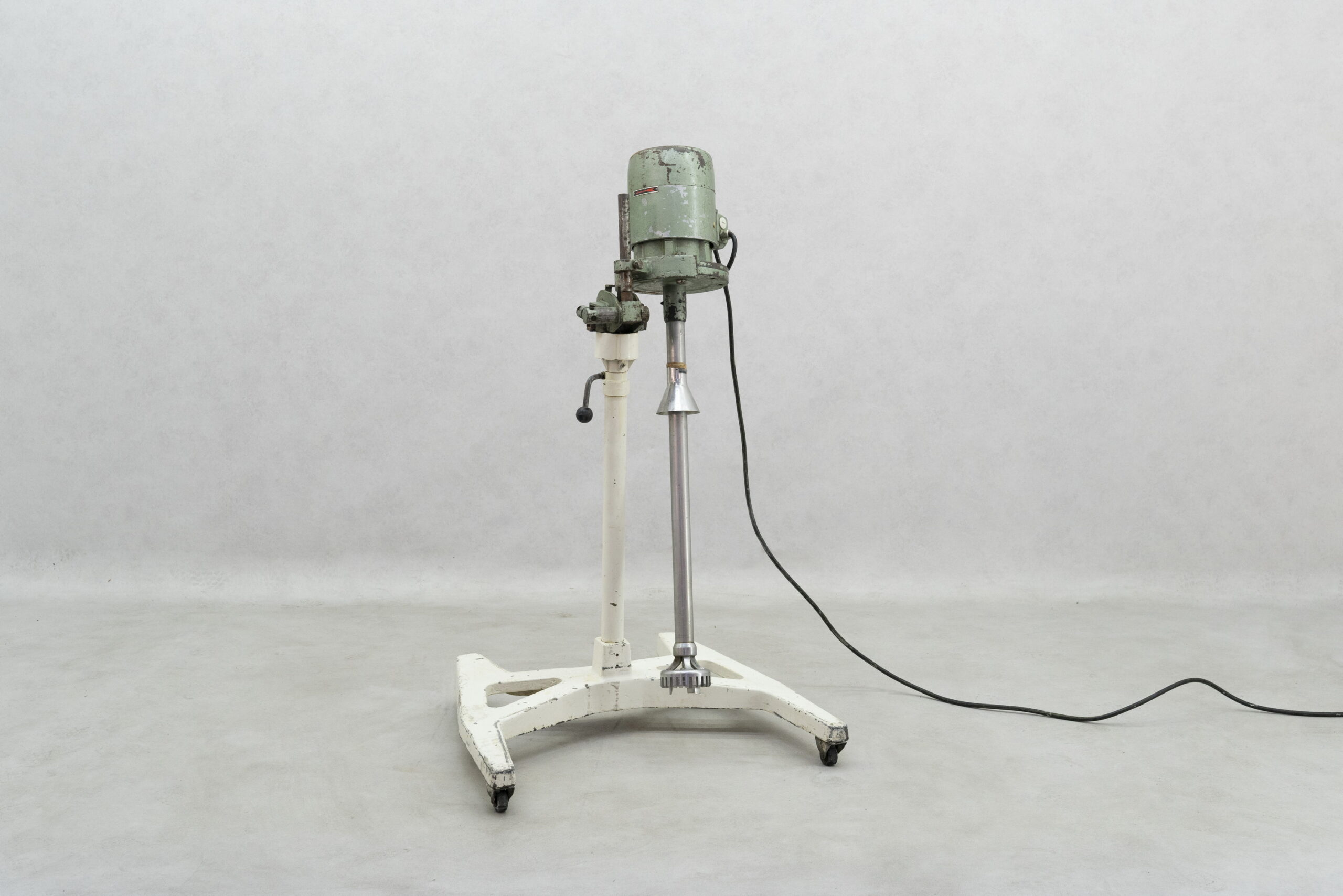

This Ultra Turrax is a high-performance dispersing machine used for the production of a variety of emulsions and suspensions in batch operations. Using the rotor-stator principle, the disperser is best suited for applications that cannot be accomplished using conventional stirring methods.
Technical specifications:
Voltage: 380 V
Current: 4.9 A
Power: 2200 W
Batch size max. (H2O): 500 liter
Rotor rotational speed: 3000 rpm
Shaft length (net): 810 mm
Shaft diameter: 45 mm
Stator diameter: 115 mm
Outer dimensions bottom – top motor (W) x (D) x (H) : 1310 mm
Tripod dimension width front end: 810 mm
Tripod dimension width back end: 580 mm
