High performance system
The EL1 is a flexible high-performance mixing system for challenging tasks in the fields of research, development and small-scale production. Materials from dry to plastic and pastry can be processed.
Applications:
The multi-functional mixing system can be used for many different applications,
e.g. for mixing, granulating, coating, kneading, dispersing, dissolving, defibering and many more.
Portable intensive mixer

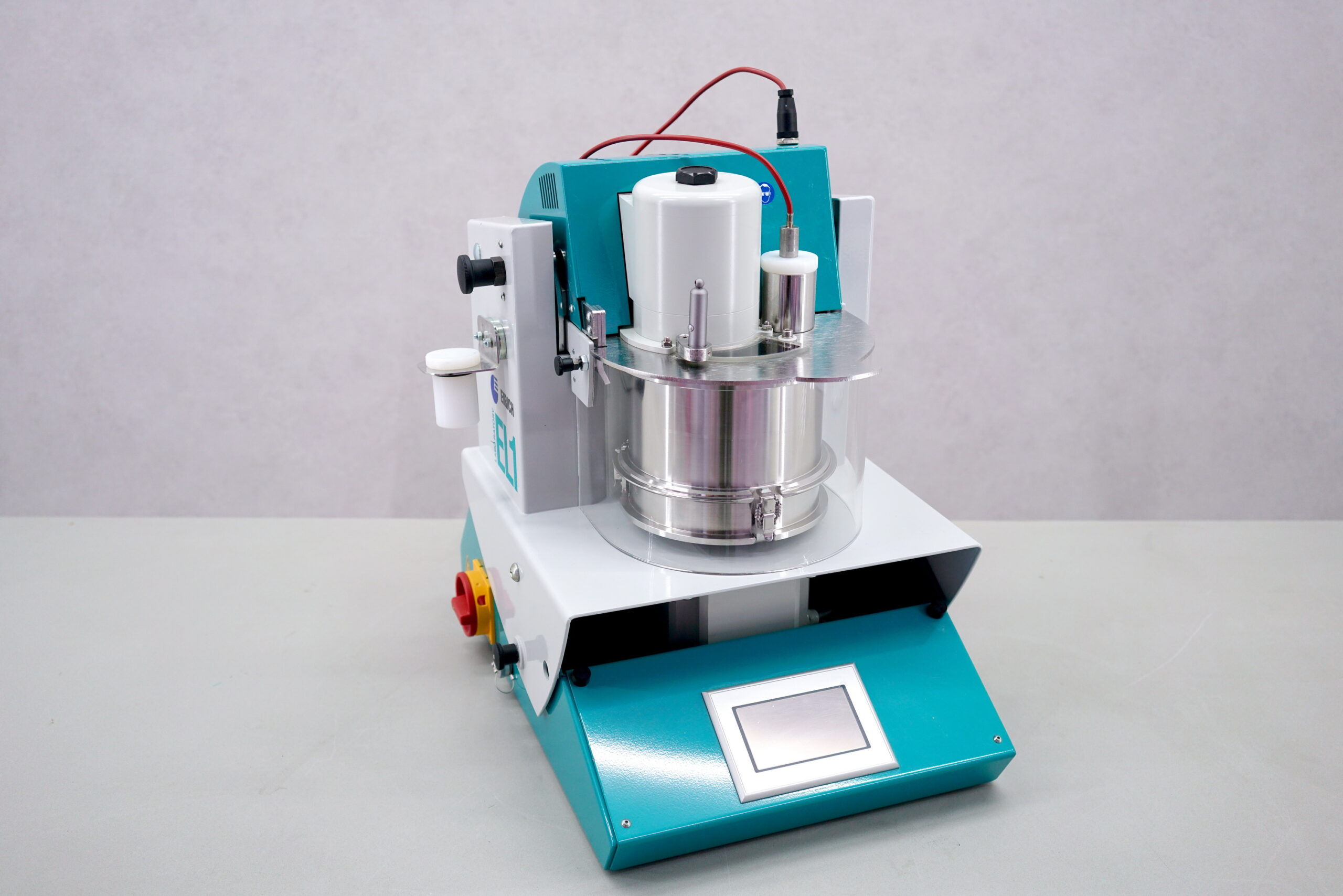

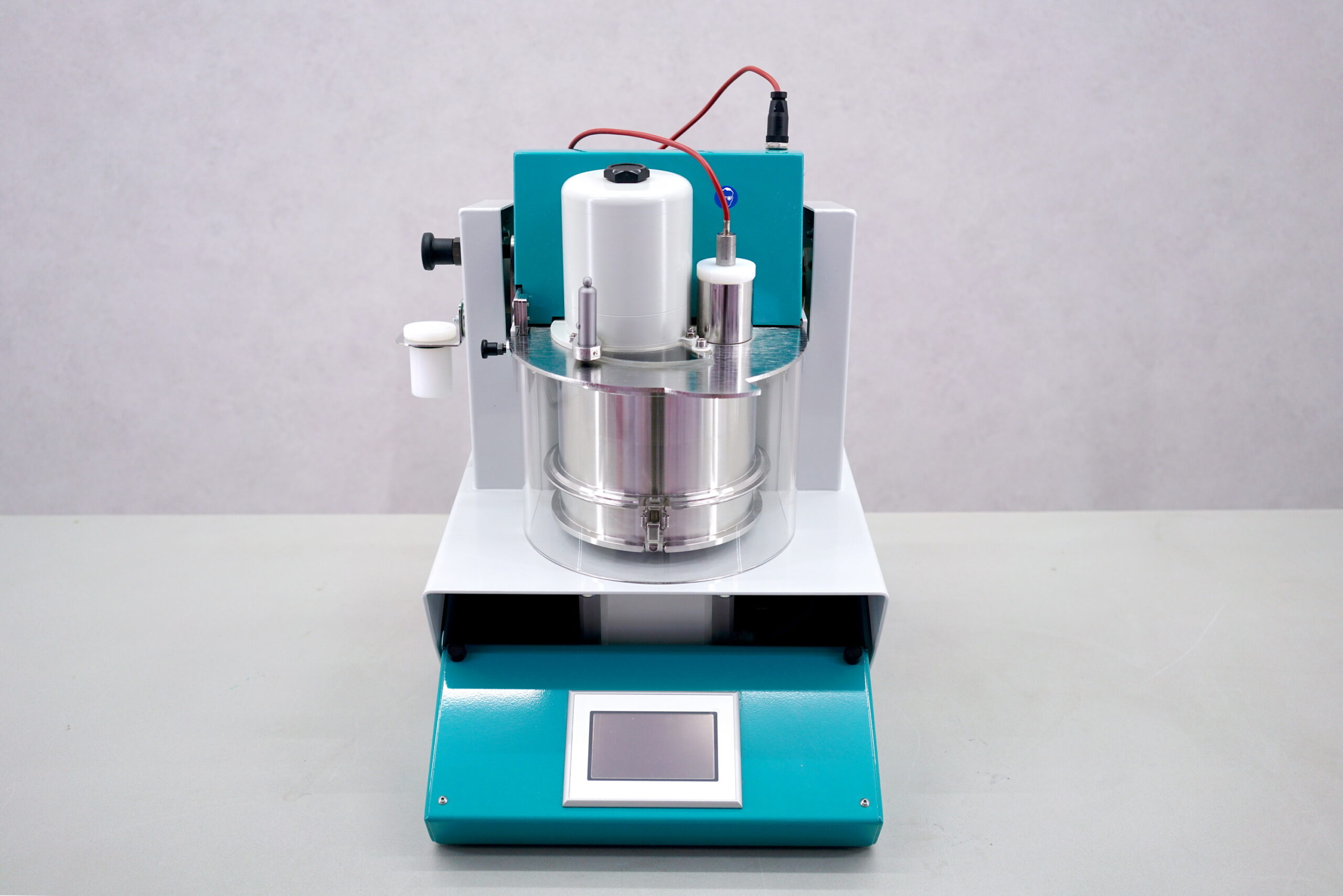

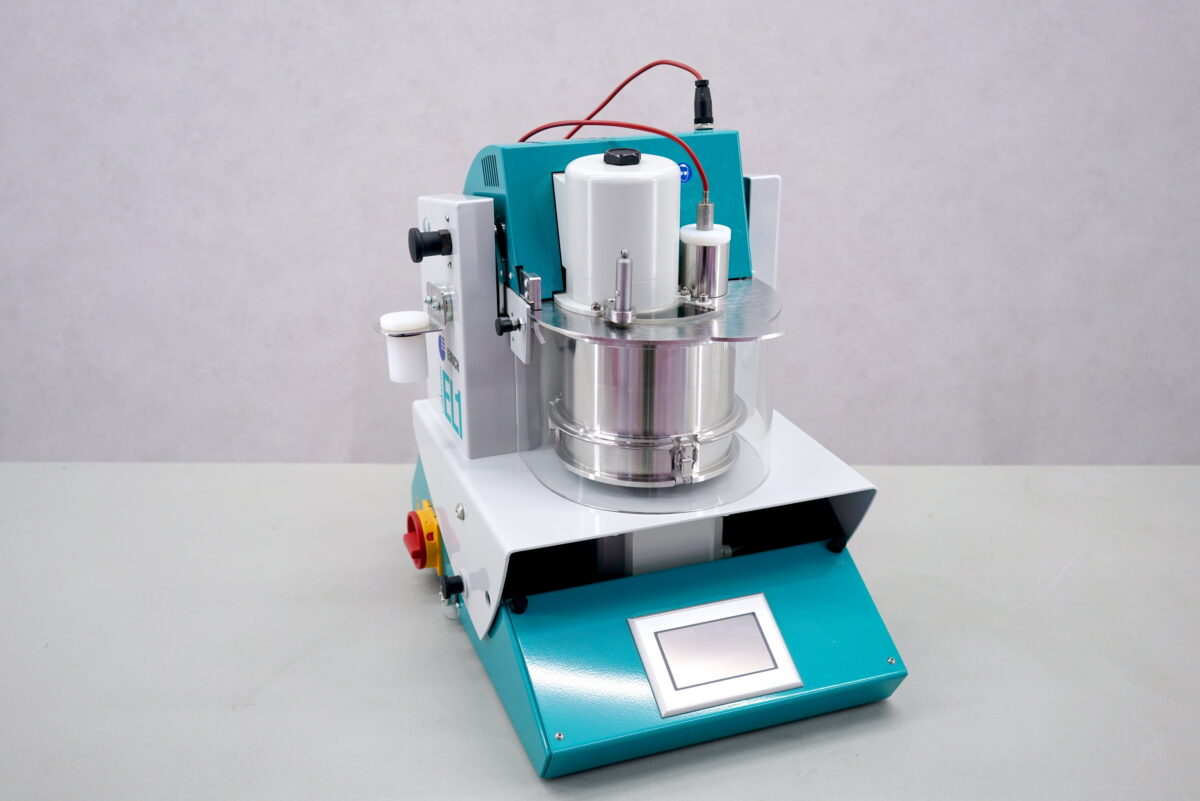

The EIRICH EL1 is a laboratory mixer for mixing, kneading, granulation and dispersion. Application of smart drive solutions have reduced installation space and weight by 80 percent. A permanently mounted mixer with switch cabinet was transformed into a small, portable mixer, that weighs only 46 kilograms. The EIRICH EL1 is extremely flexible in use: from development laboratories, to quality control with small sample volumes.
System solution
The EL1 is so light that it can be transported in a wheeled suitcase. This EIRICH feature is truly unique on the market. To meet requirements for installation space, volume and weight, a solution is developed that consists of two motors and a dual-axis controller that are integrated into the mixer.
Technical specifications:
Voltage: 100 to 240 V
Current: 3.5 A
Power: 0.8 W
Year of construction: 2016
Content: 1 liter / 1.6 kg
Speed: up to 7,200 rpm
Outer dimensions (W) x (D) x (H): 36 x 57 x 57 cm
Mixing vessel: (diameter) x (H): 16 x 13 cm
Weight: 49 kg
