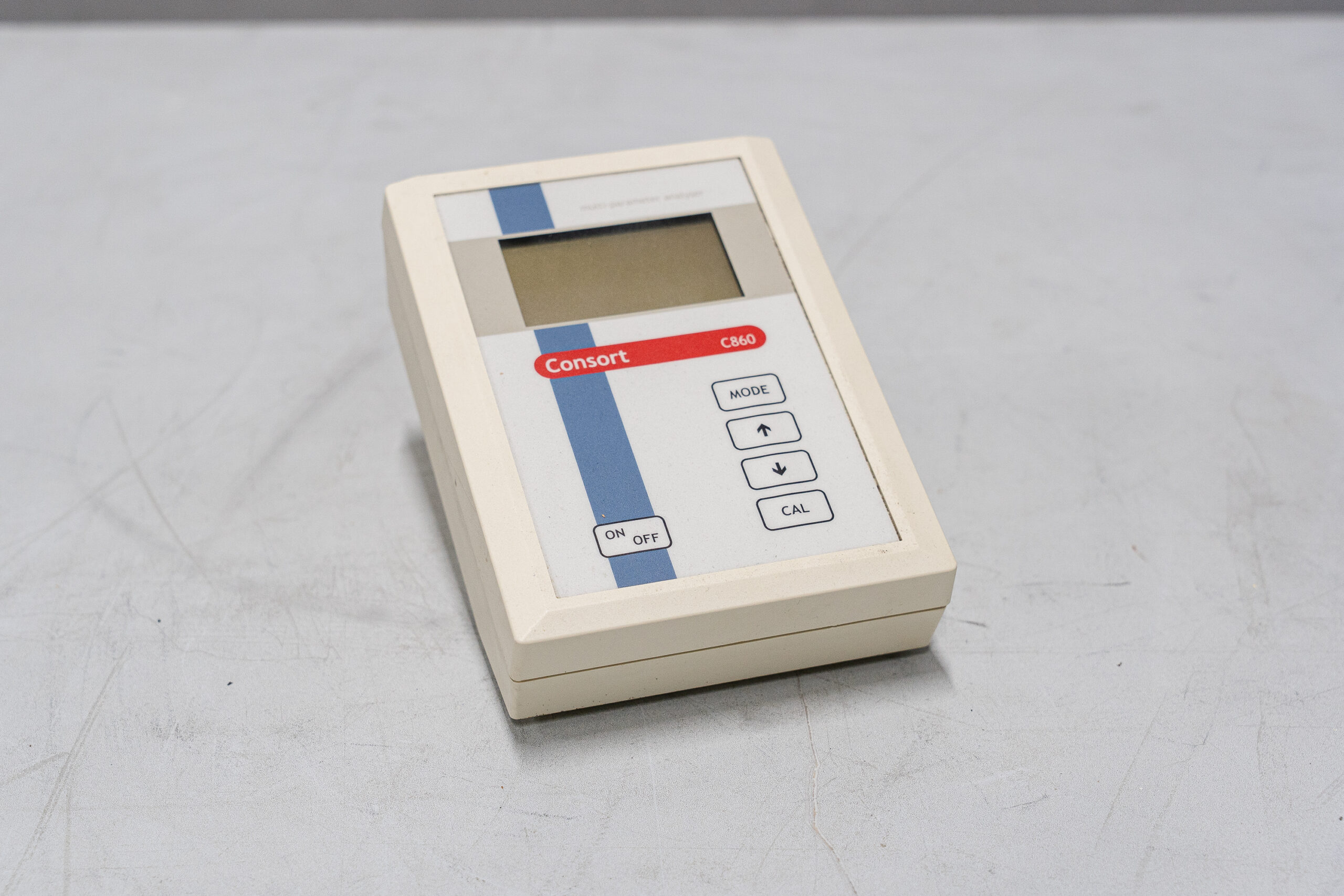

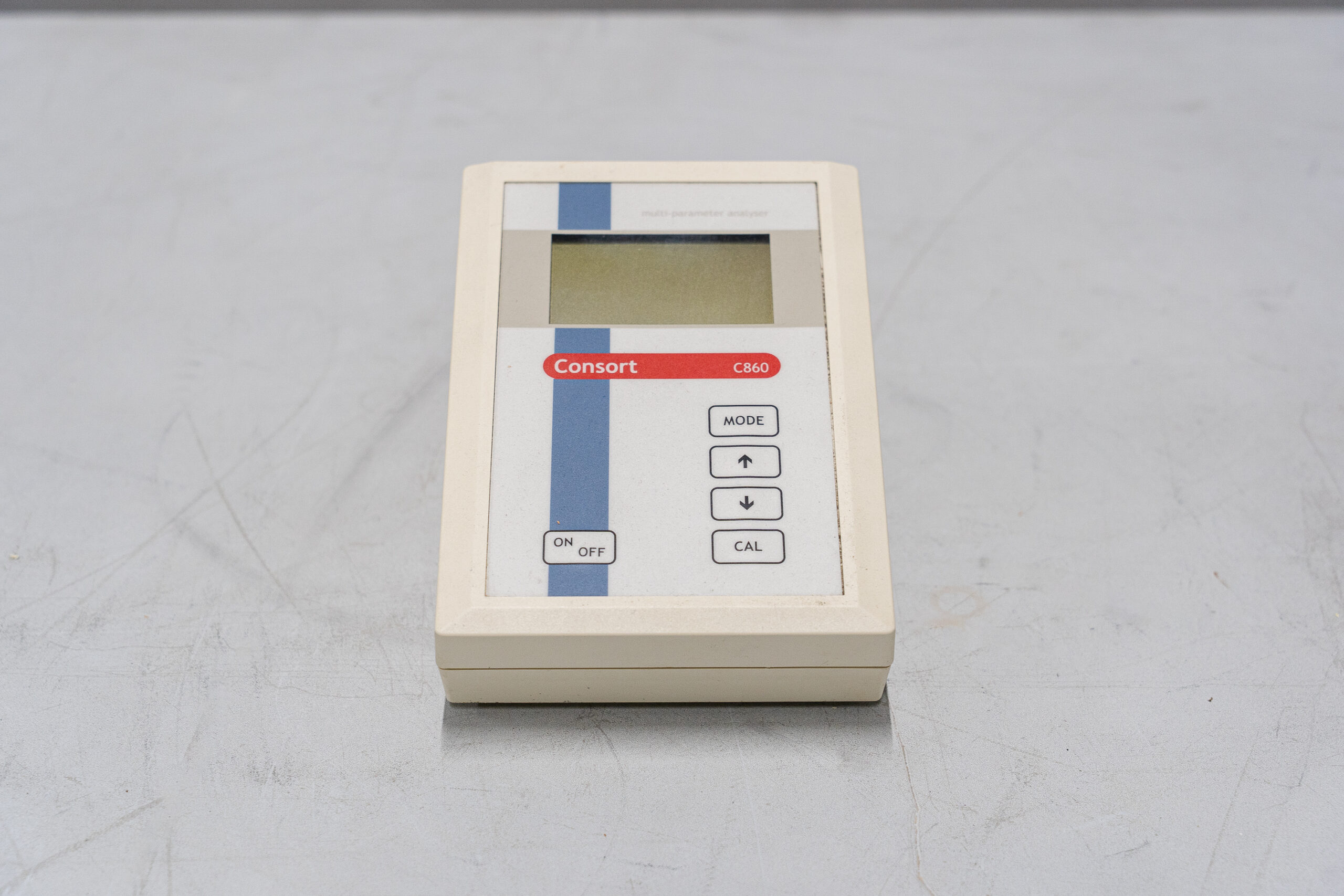

The Consort C860 multi-parameter is a compact laboratory meter that allows you to measure various water quality and chemical parameters in a single device—such as pH, conductivity, salinity, total dissolved solids (TDS), and temperature. Its wide range of measurement options makes it suitable for laboratories, water treatment, production processes, quality control, or general chemical analysis. Electrode not tested.
Technical specifications:
Voltage: 9-12 V
Current: 0.1 A
Measurement parameters: pH, mV (ORP/potential), conductivity, salinity, TDS (total dissolved solids), temperature.
pH: 0…14 pH; resolution 0.01 pH; accuracy ±0.2% ± 1 digit; calibration 1–3 points (buffers).
mV (ORP / potential): ±1000 mV
Conductivity: 0…1000 mS/cm
Salinity: 0…70 ppt
TDS (Total Dissolved Solids): 0…100 g/l
Temperature: 0…100 °C; resolution 0.1 °C; temperature compensation possible.

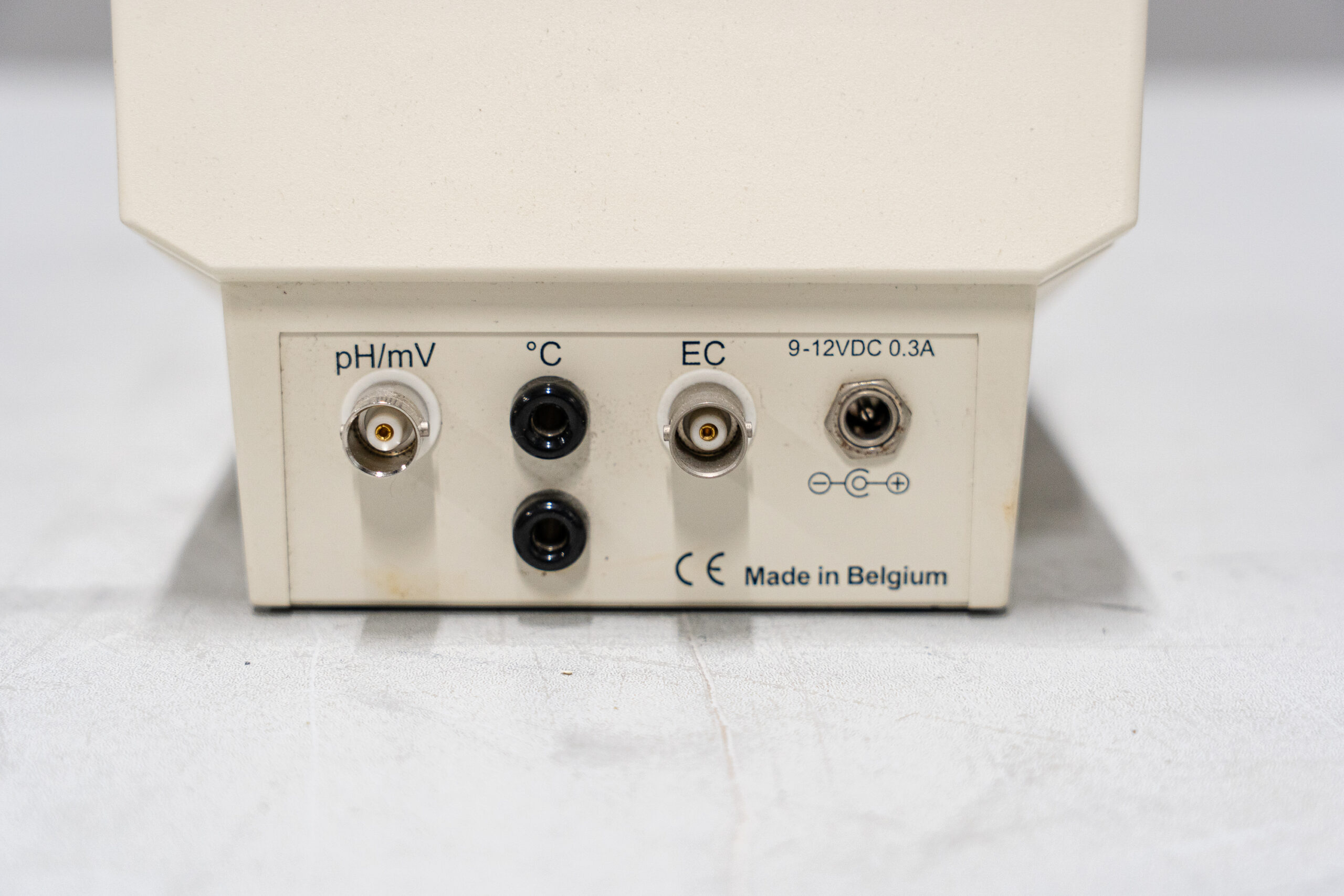

Input / connections: One channel for pH/mV, one channel for conductivity, and one channel for temperature.
PH and EC have BNC connections. Temperature has 2 x 4 mm jacks.
External dimensions (W x D x H): 140 x 190 x 100 mm
Weight: 1 kg
