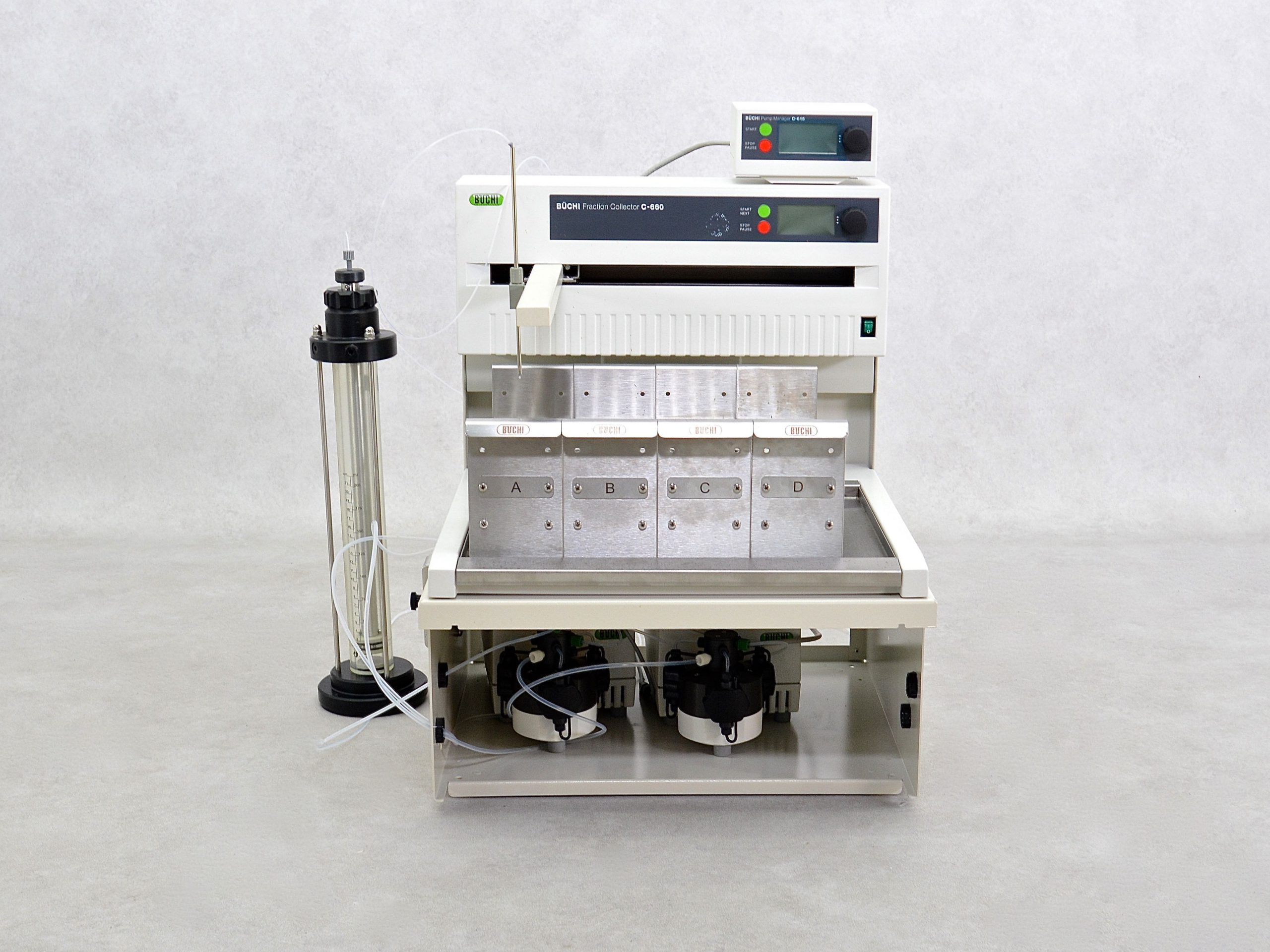

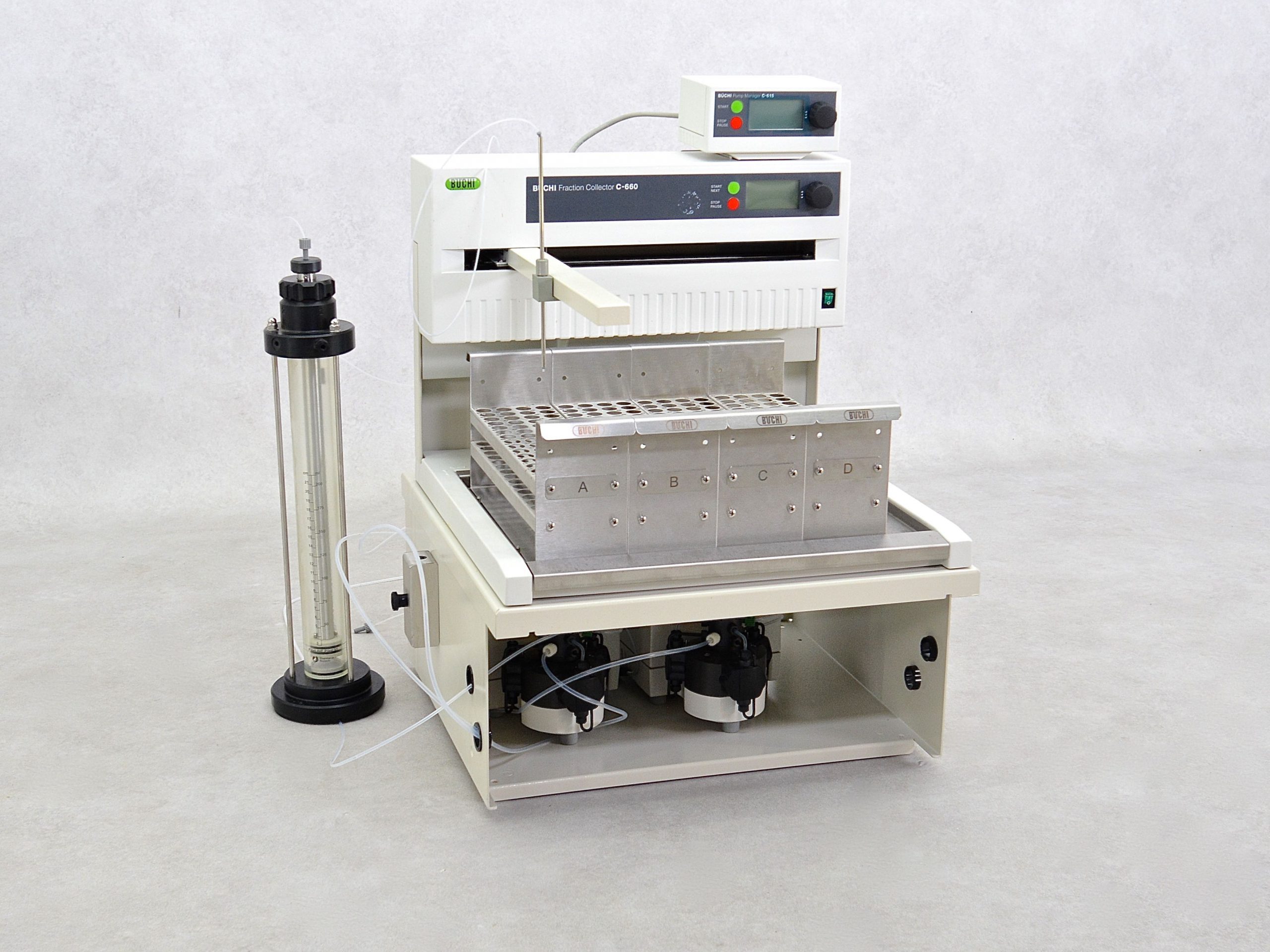

Buchi C-660 Fraction collector

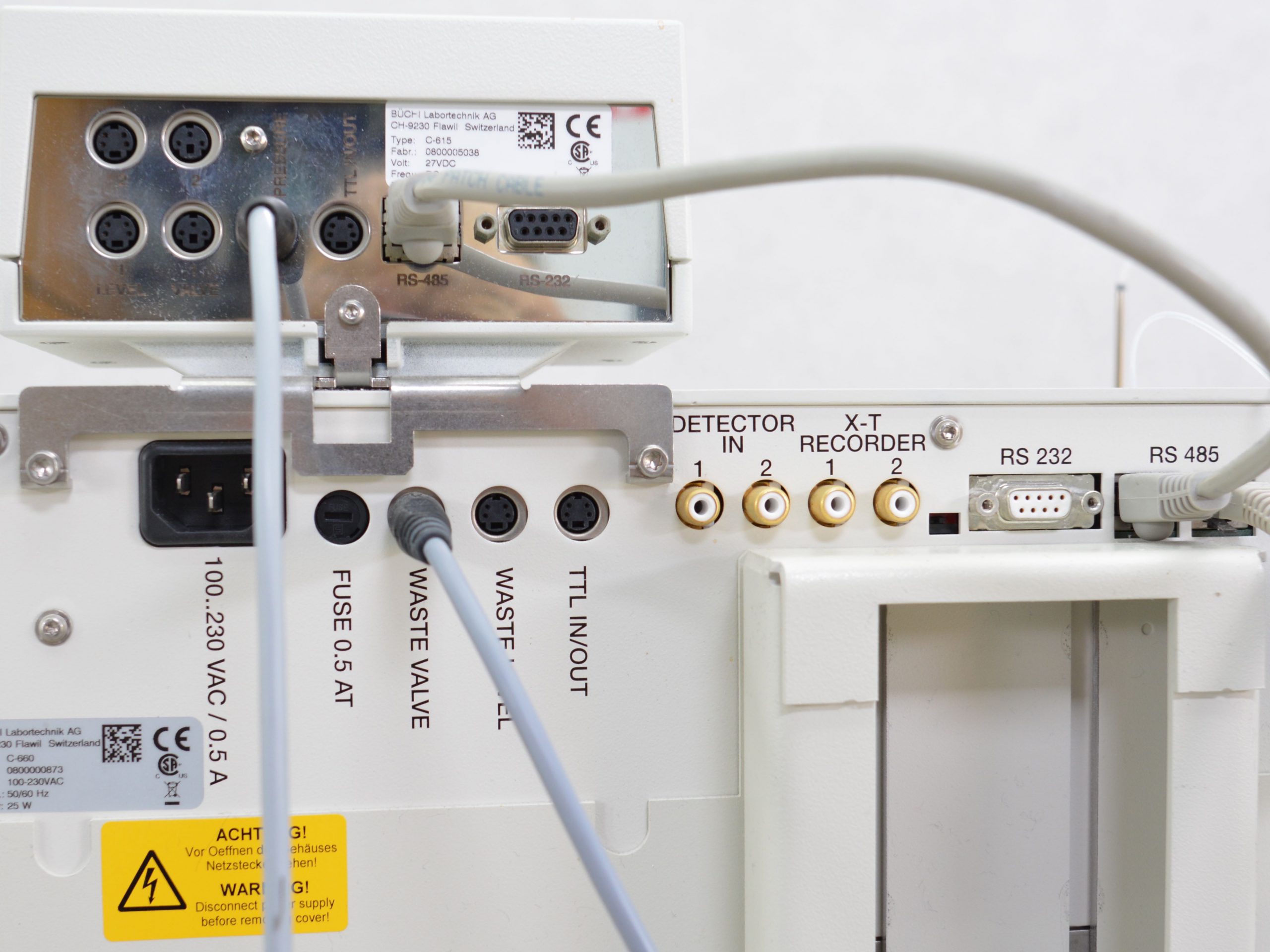

The fraction collector for FPLC (Fast protein liquid chromatography) of the brand Buchi type C-660 is designed to optimally pump solvents into chromatography columns. This fraction collector is able to separate 10 bar or 50 bar gradients. The Buchi C-660 can collect substances according to time, volume or peak (only when a UV detector is connected). During each run, up to 12L can be collected in up to 240 glass tubes. This fraction collector will be supplied with a column. Furthermore, this fraction collector can be connected to a computer via the RS-232 interface to transfer data.
Technical specifications Buchi C-660 fraction collector
Voltage: 100-230VAC 50/ 60Hz
Power: 75W
External dimensions (W) x (D) x (H): 53 x 47.5 x 68 cm
Technical specifications Buchi C-615 pump manager
Voltage: 27VDC
Power: 1W
Flow rate: 2.5 to 250 mL/ min

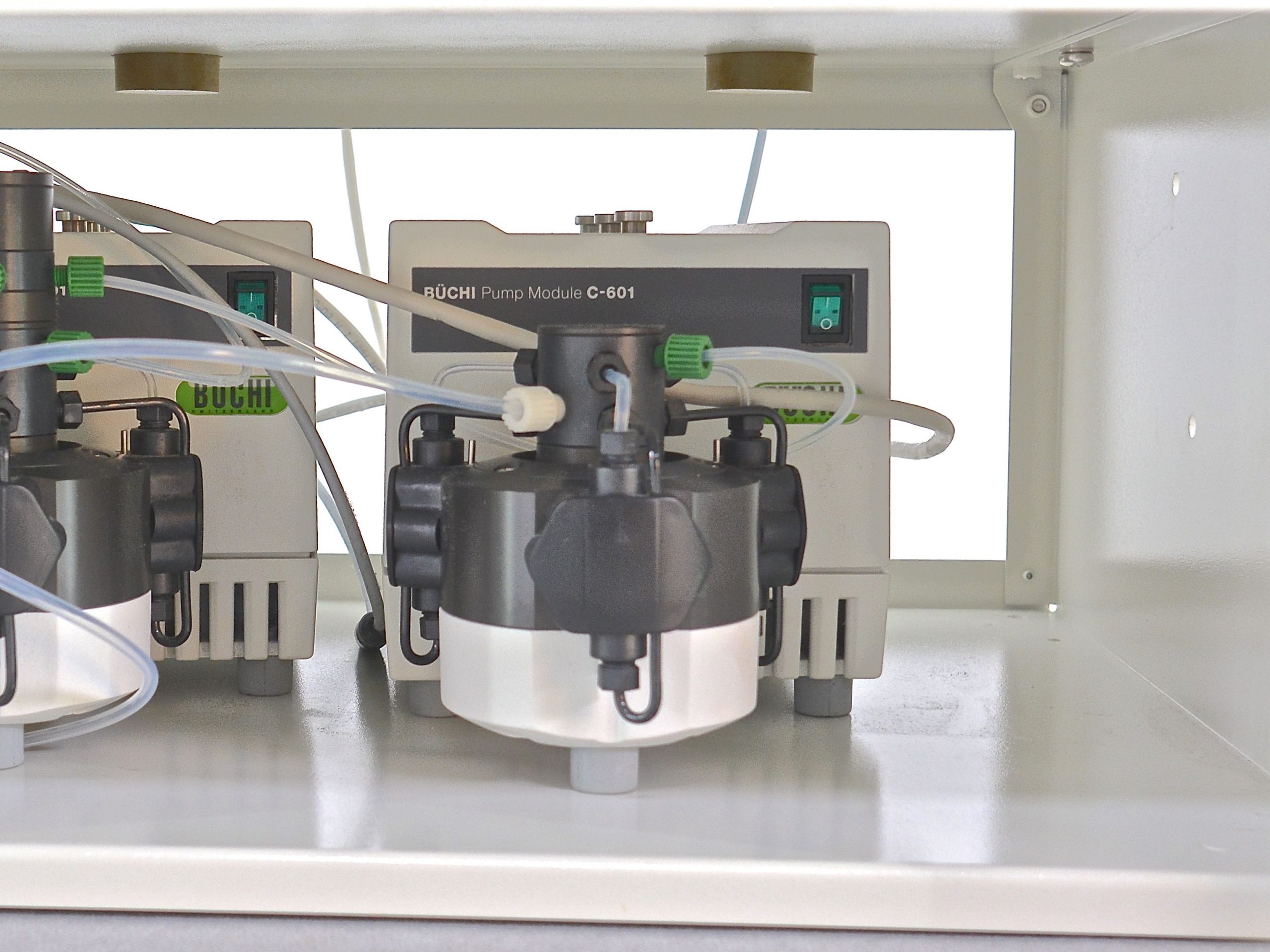

Technical specifications Buchi C-601 pump module
Voltage: 100-230VAC, 50/60Hz
Power: 75W
Maximum operating pressure: 10 bar (145 psi) for C-601 pump module and 50 bar (725 psi) for C-605 pump module
