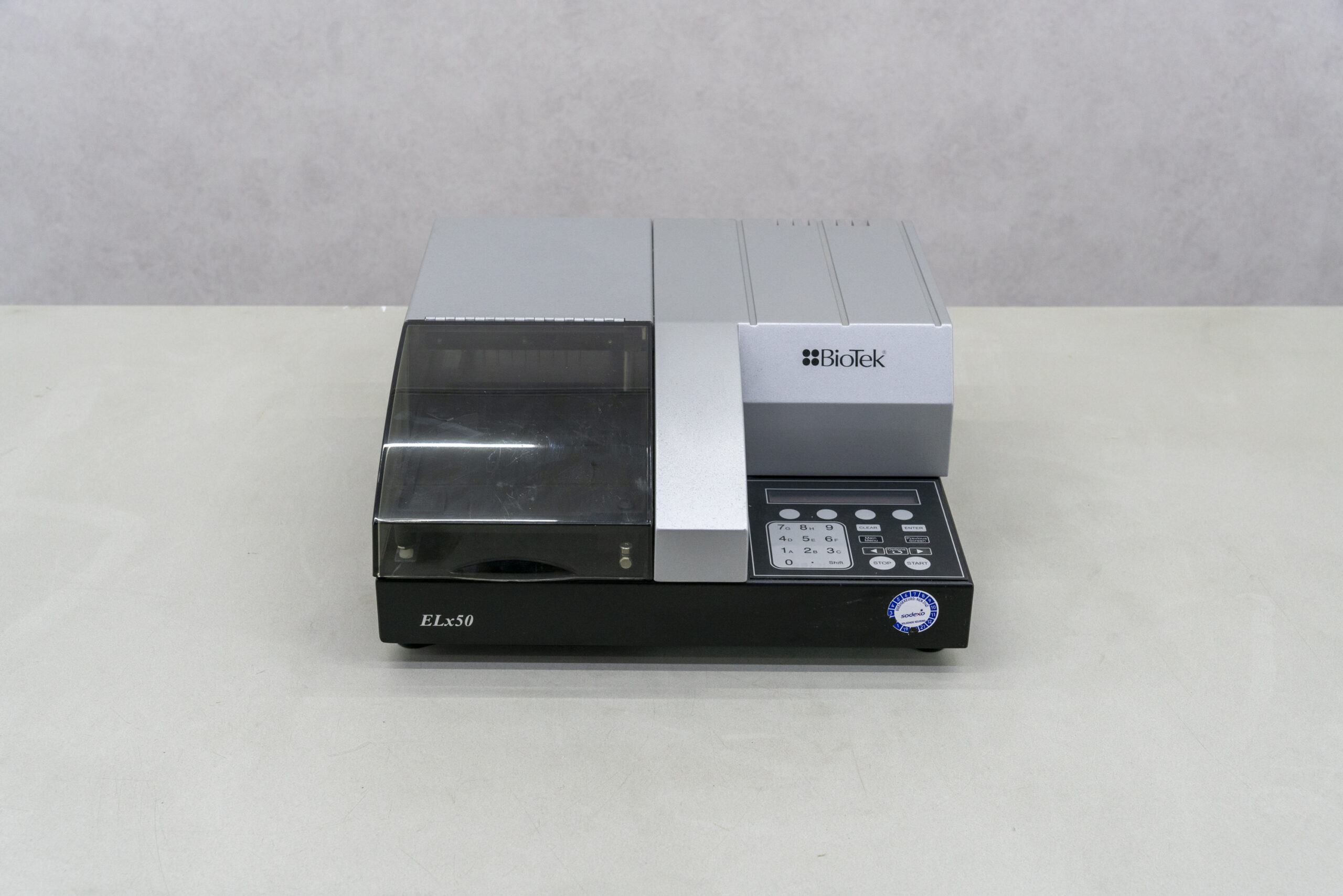

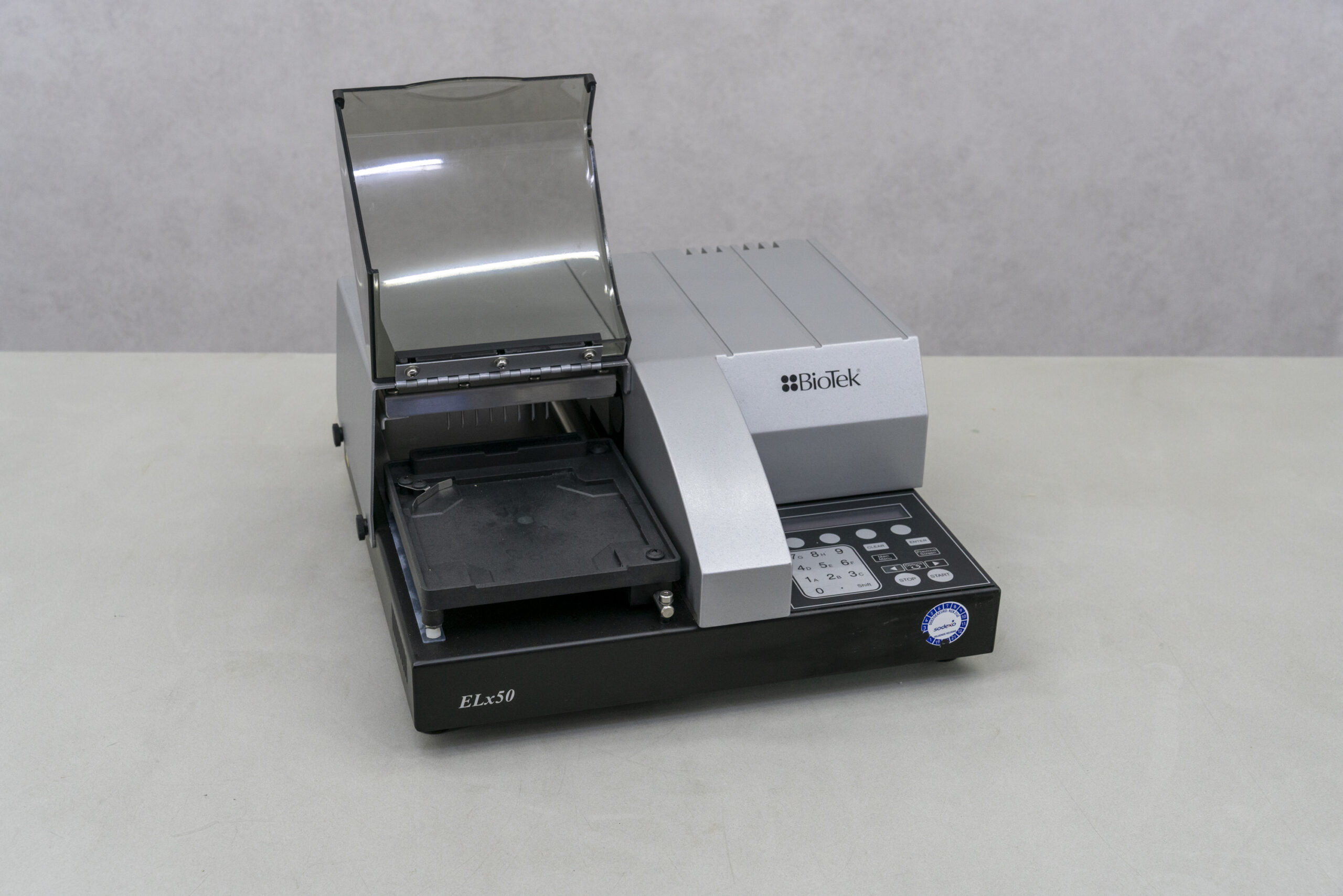

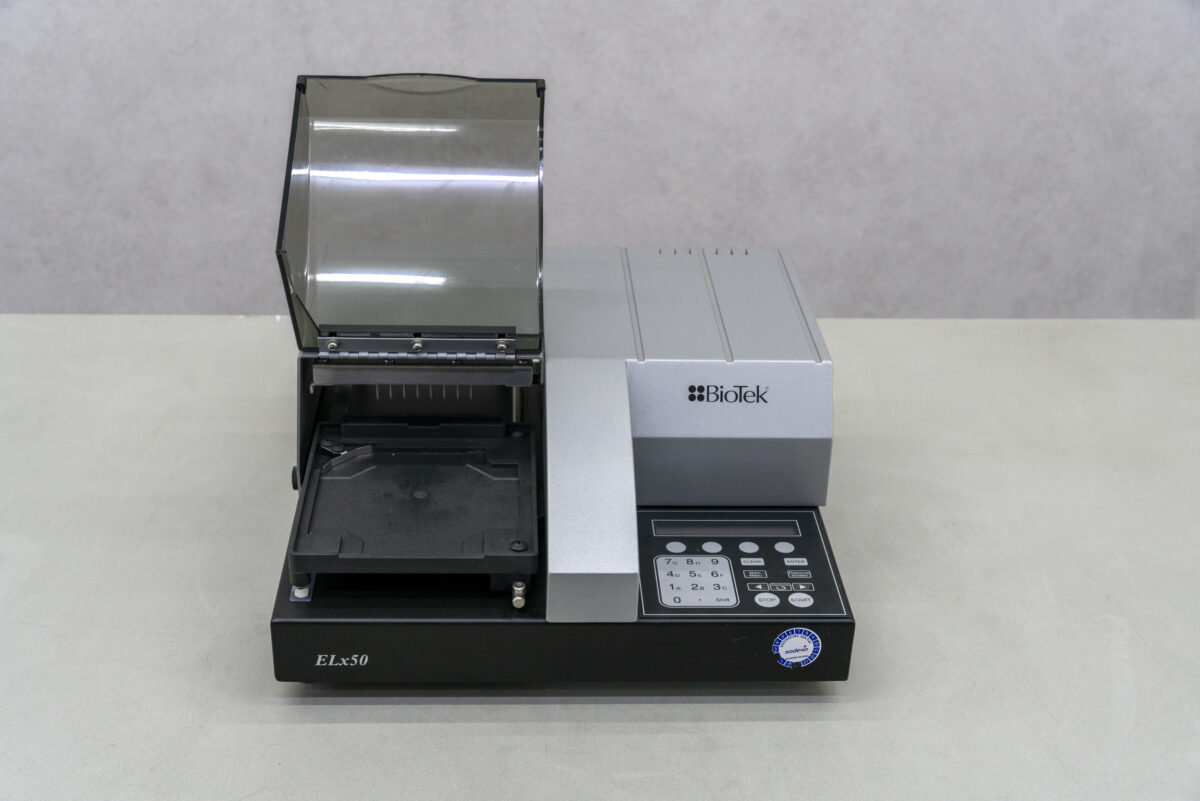

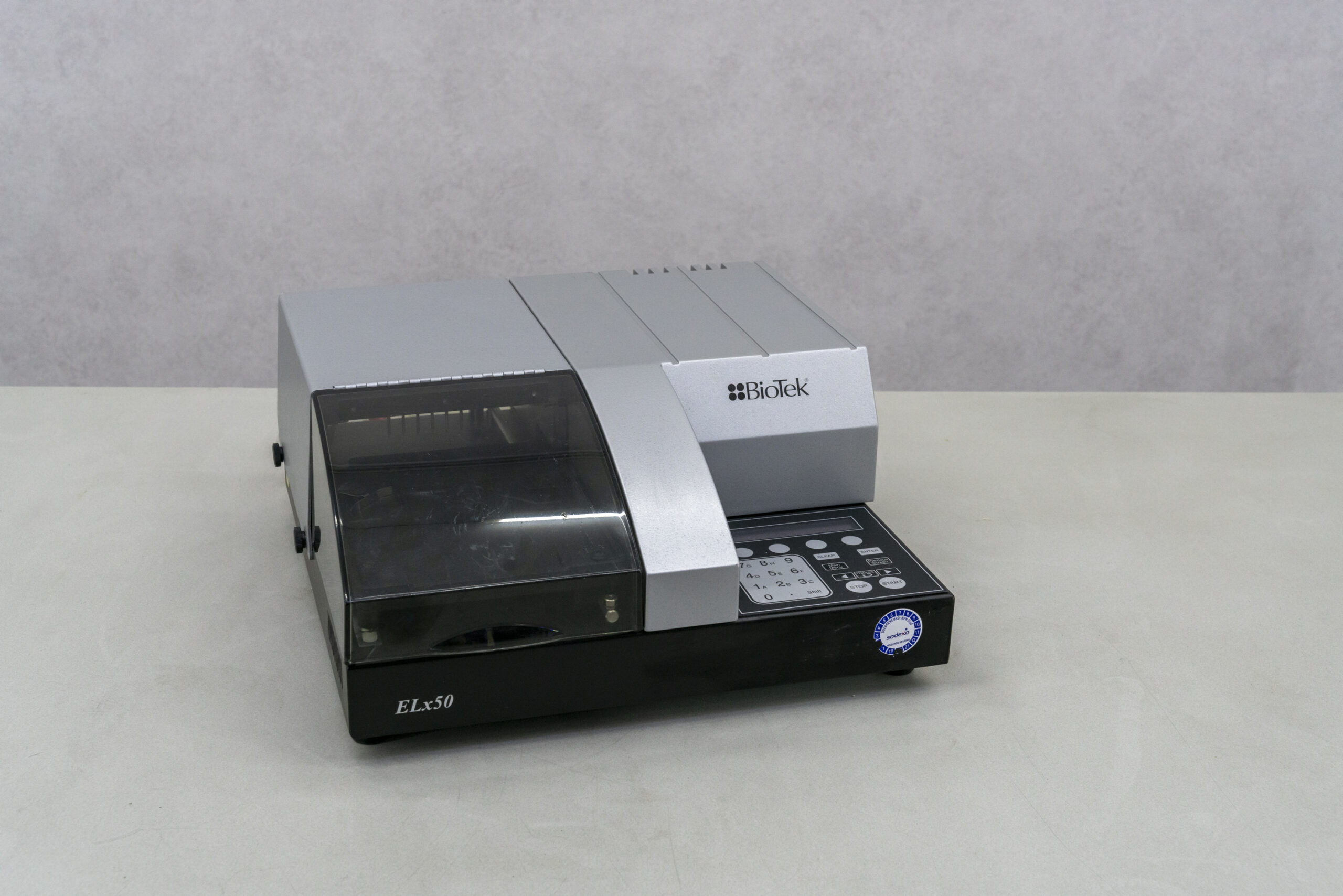

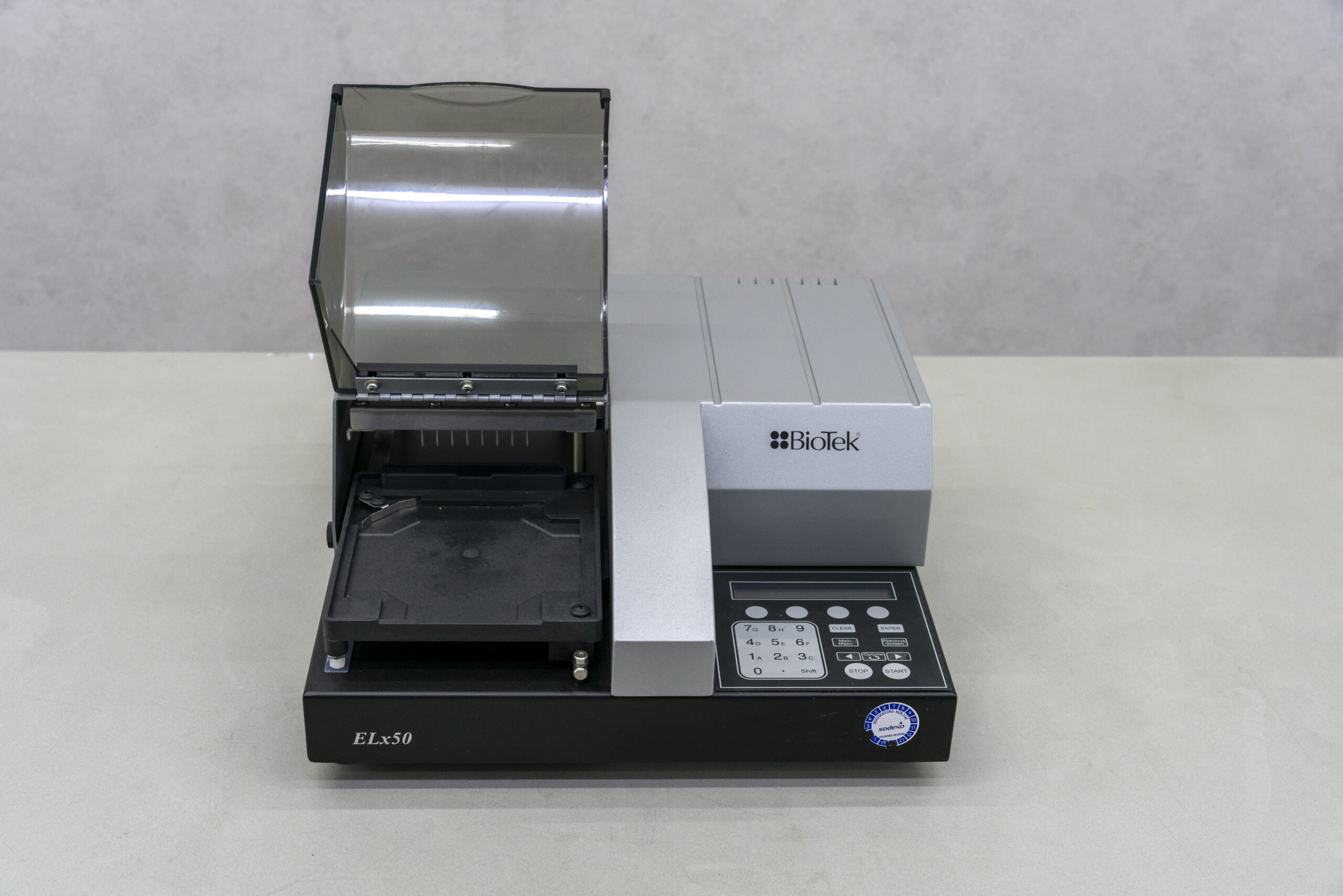

The ELx50’s compact footprint contains a powerhouse of washing capabilities unsurpassed in its class. The washer’s excellent dispense performance and evacuation efficiency supports 96-well plates washing.
Comprehensive and easy-to-use onboard software provides the utmost flexibility for a variety of applications.
Features:
- Syringe drive fl uid-delivery system for precise control over multiple fluid flow rates
- 96- and 384-well microplates
- Patented Dual-Action™ wash manifold for independent control of dispense and aspiration tubes

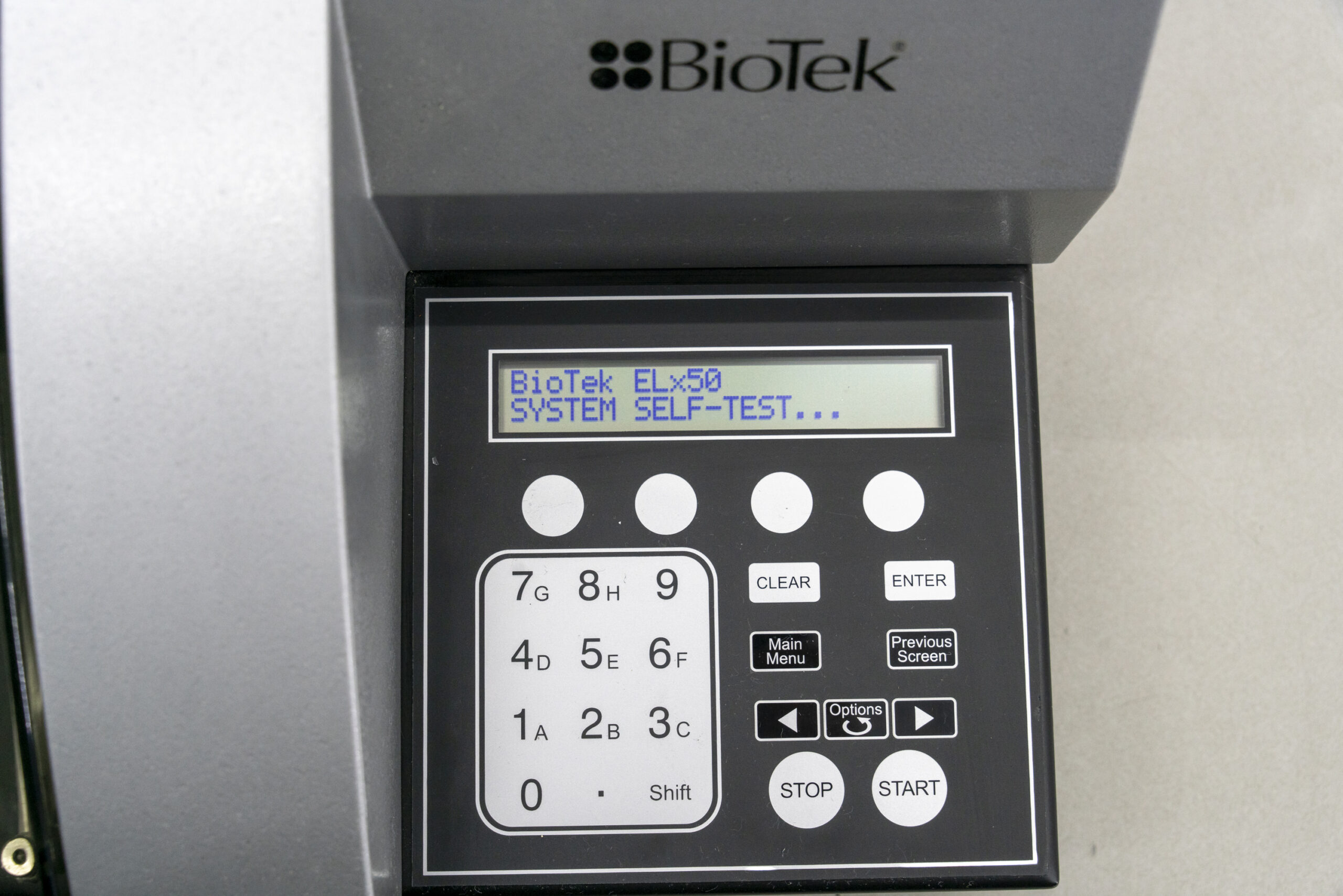

- Fully programmable onboard software for customized assay requirements
- Unique priming trough built into removable microplate carrier for effortless priming and easy maintenance
- Automatic buffer switching of up to three wash buffers
- Automatic liquid level sensing
Technical specifications:
Microplate types: all 96-well plates, 1 x 8 strips (8-channel)
Manifold type: 8-channel dispense/aspiration (8-channel)
Wash Cycles: 1 to 10
Volume Range: 25 to 3000 μL/well
Fluid Delivery: Internal positive displacement syringe pump
Buffer Selection: Optional switching of up to 3 wash buffers
Dispense Precision: ≤ 3% CV
Residual Volume: ≤ 2 μL/well
Onboard Software: 75 programs, program linking, overflow / overfill protection
Soak Time: 1 to 600 seconds
Shaking: User-programmable speeds and timing
Sterilization: Chemical
Voltage: 220-240 V
Outer dimensions (W) x (D) x (H): 356 x 406 x 165 mm
Weight: 8.9 kg
