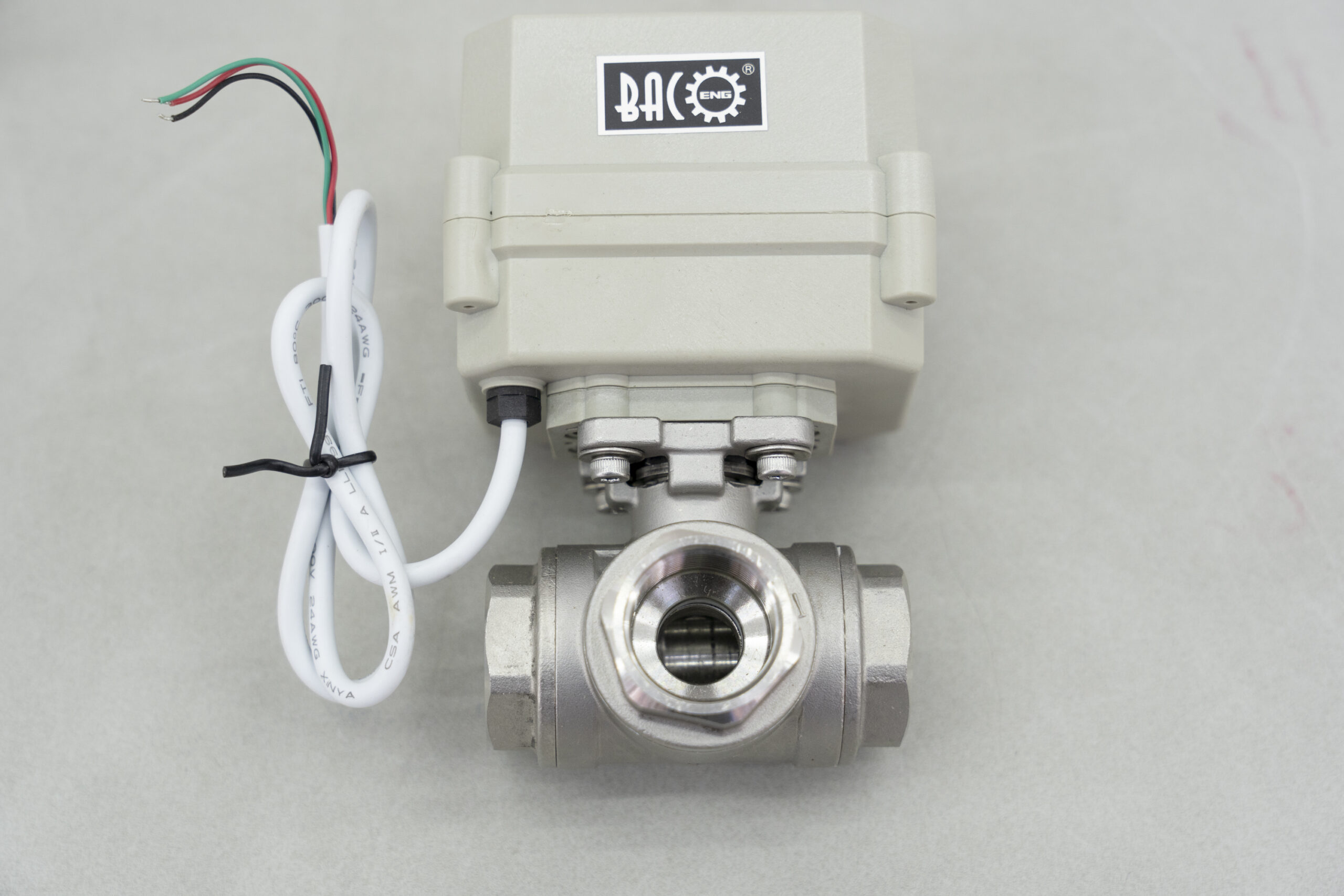

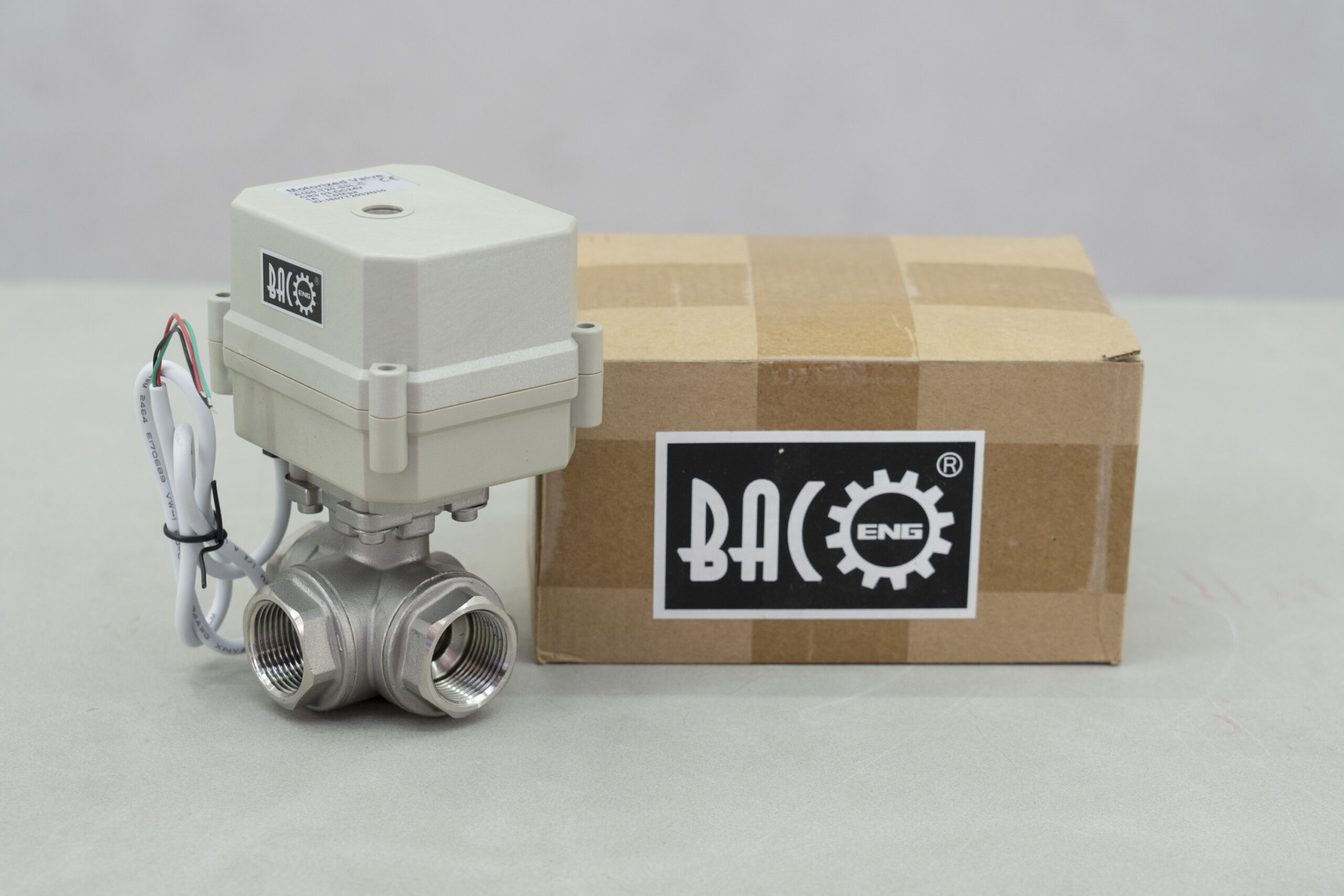

BACOENG focuses on the production of valves and related application components for private laboratories. The Bacoeng A100 T20 S3L-C Motorized Valve is a small industrial equipment for automatic control such as timing humidification, air compressor discharge at regular intervals, HVAC, Water treatment, Chemical processes, etc.
Technical specifications:
Voltage: DC24V
Current: 1A
Exterior finish Metal, stainless steel
Inlet connection type: National pipe conical
Valve type: ‎Ball valve
Actuator material: engineering plastics
Sealing material: EPDM and PTFE
Maximum working pressure: 10 bar
Circulation medium: water, oil, gas
Working current: maximum 500 mA
Open/close time: 3-5 sec.
Maximum torque: 10 N m (A100 series)
Ambient temperature: -15 ~ 50 Celsius
Liquid temperature: -5~100 Celsius
Protection class: IP67
External dimensions (W) x (D) x (H): 8.6 x 7 x 13.5 cm
Internal dimensions (W) x (D) x (H): 2.5 x 2.5 cm
Weight: 0.7kg
