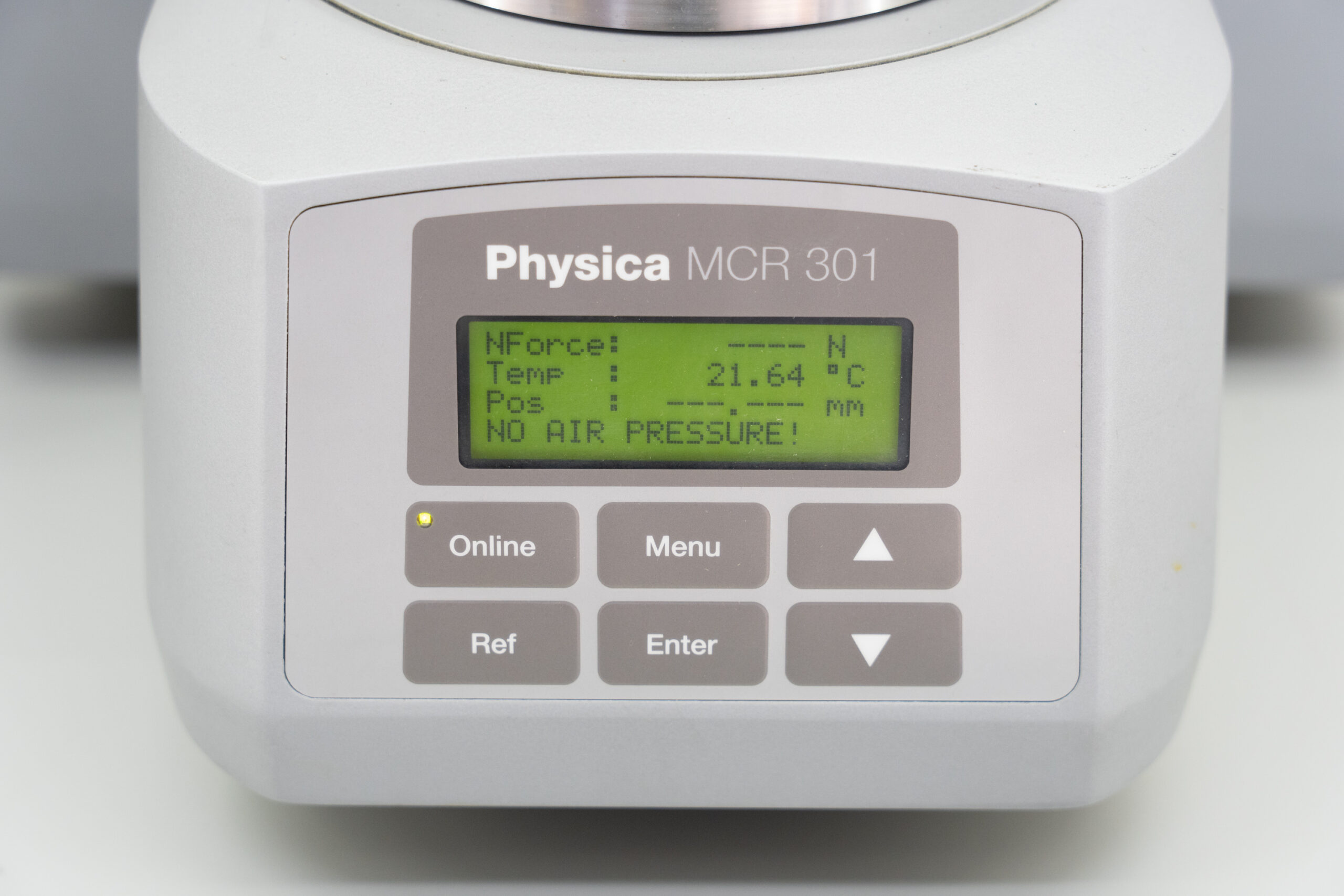

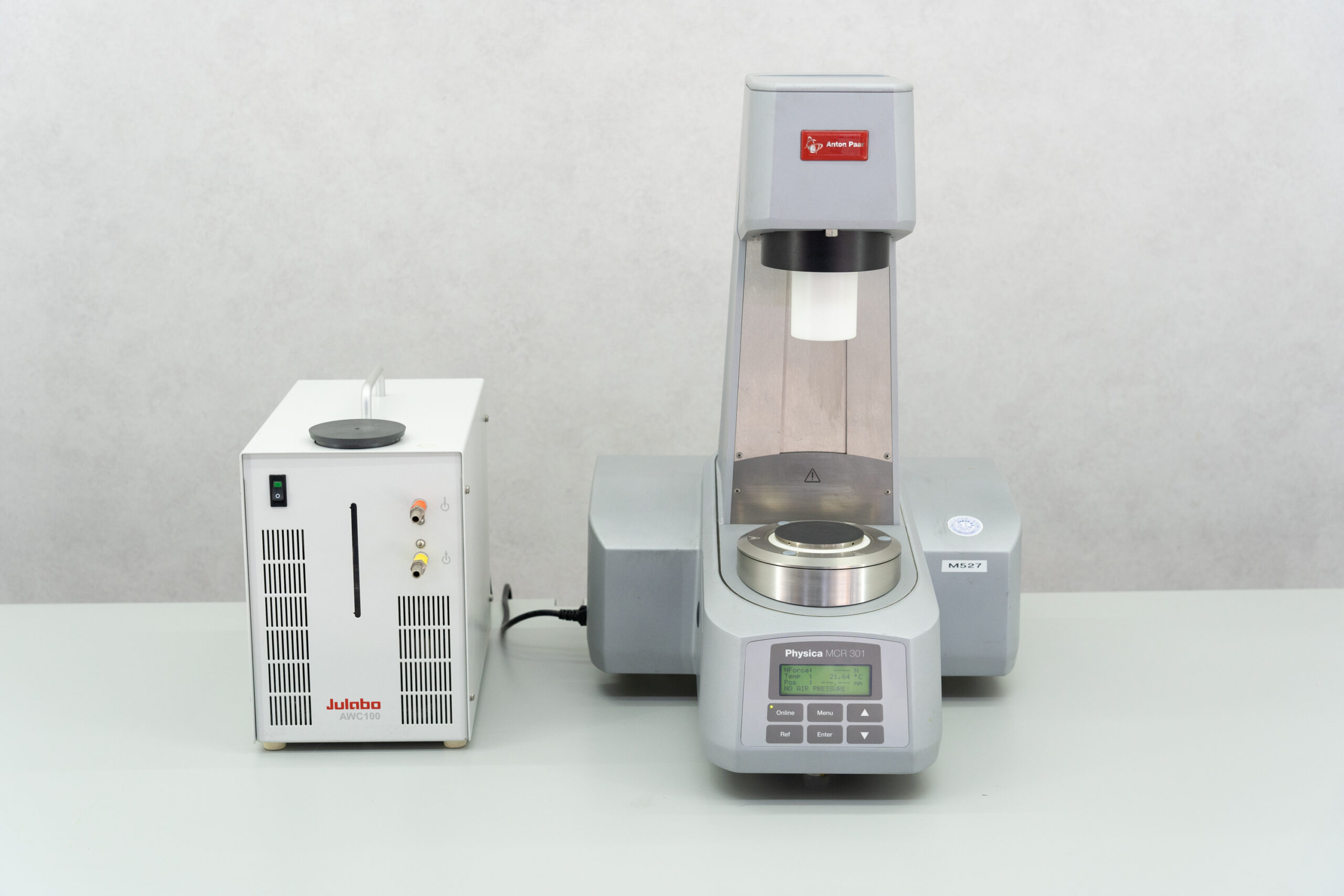

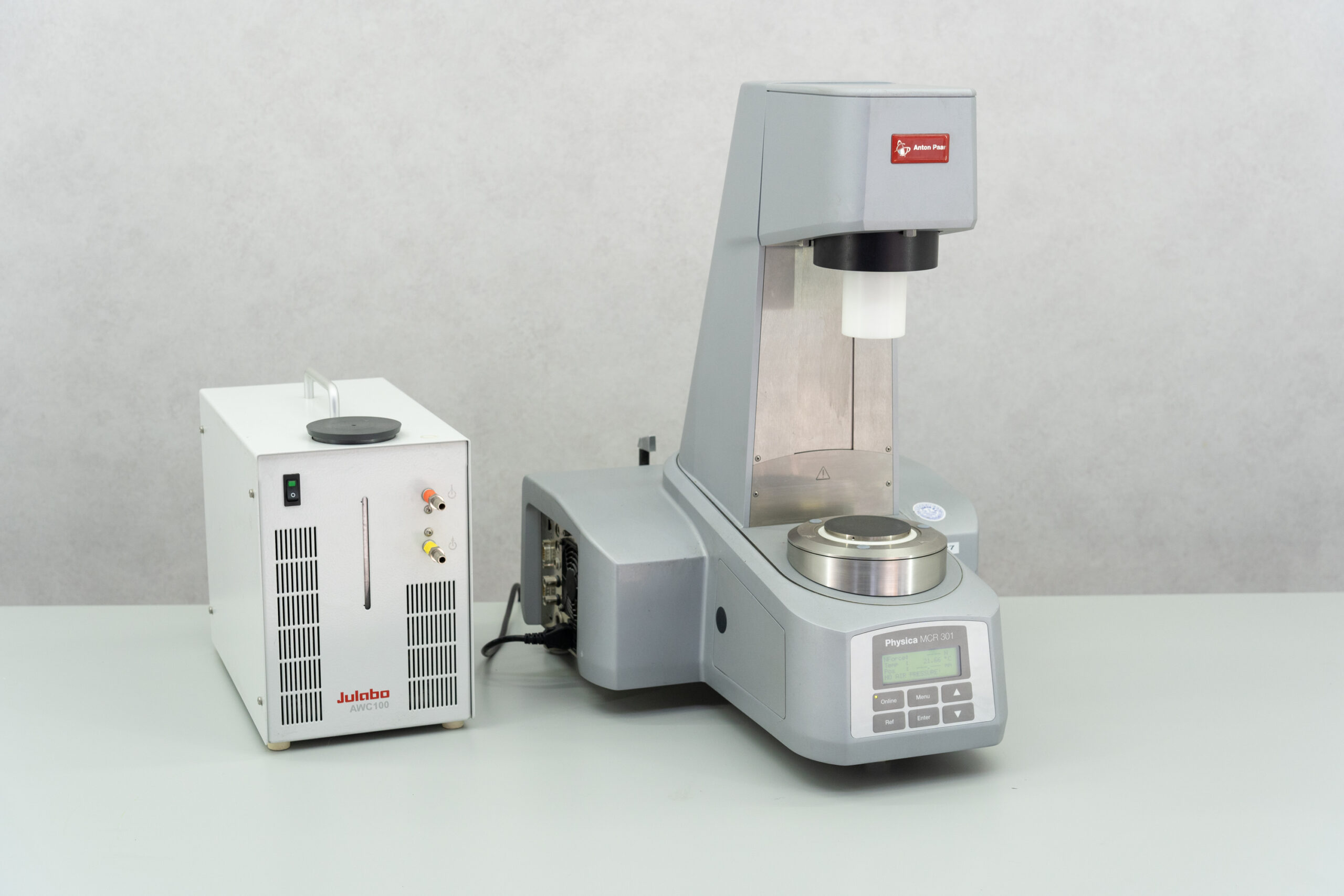

The Anton Paar Physica MCR 301 rheometer is a voltage-controlled rotary rheometer, which can also operate in voltage-controlled mode via a feedback controller. The Physica MCR 301 is equipped with a permanent magnet synchronous drive (minimum torque = 0.1 µNm, torque resolution <0.1 µNm) and an optical incremental encoder for measuring the shear stress (resolution < 1 µrad). Including computer.

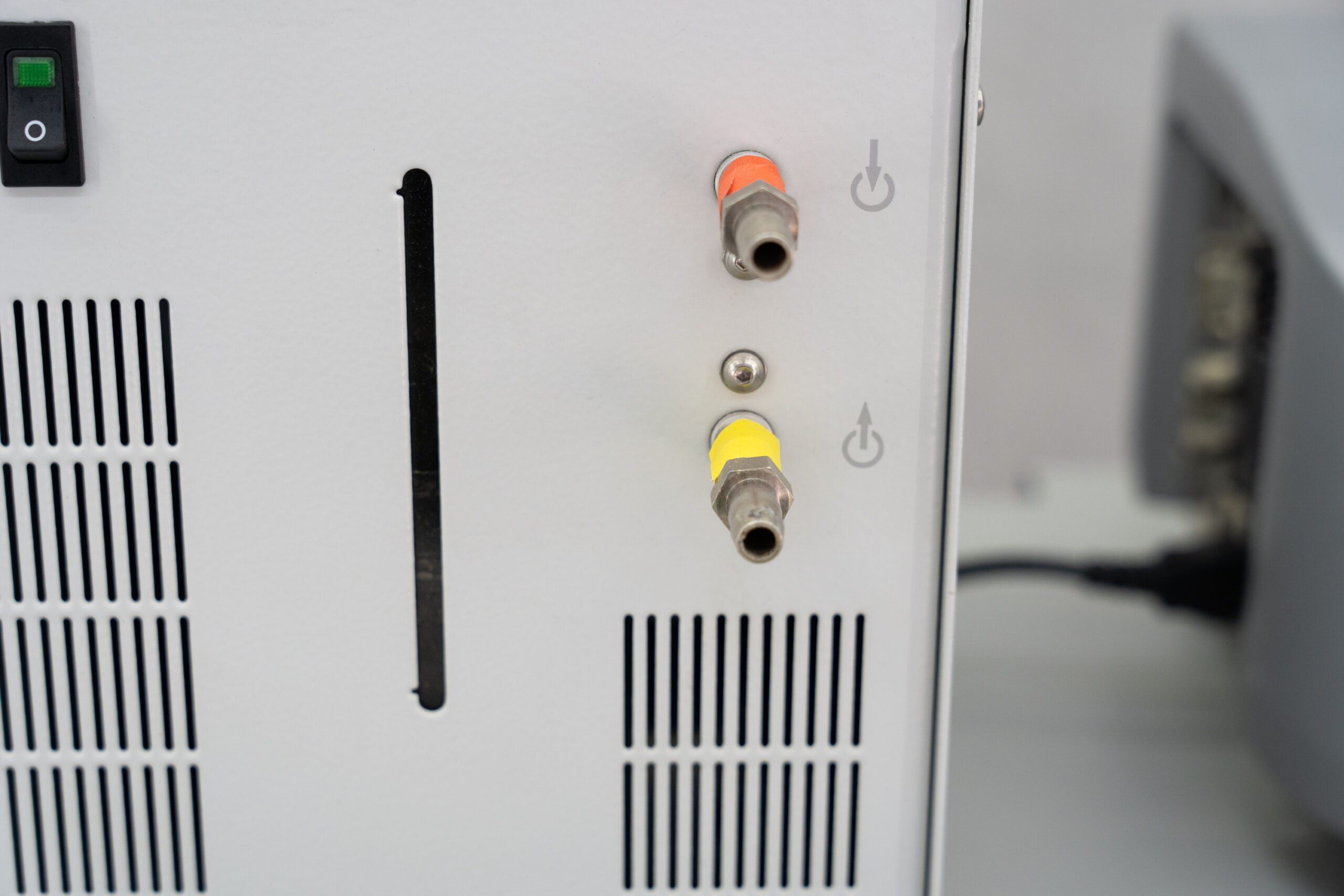

The Julabo AWC100 air-to-water recirculation cooler is a perfect solution for dissipating smaller amounts of heat in external systems, such as those generated by Peltier elements. The AWC100 is used where the cooling water temperature can be above the ambient temperature and the temperature stability plays a minor role.
Rheometer Technical Specifications:
Voltage: 230 V
Power: 850W
Frequency range: 10-5 – 102 Hz
Temperature range: -40 – 200°C
Accuracy: ± 0.01°C (Peltier control)
External dimensions (W) x (D) x (H): 60 x 50 x 60 cm
Weight: 40 kg
Julabo Technical Specifications:
Cooling capacity: 0.55kW
Content: 9 litres
Temperature range: +20°C to +40°C
Pump capacity flow rate: 3.5 (l/min)
Pump capacity discharge pressure: 0.49 bar
External dimensions (W) x (D) x (H): 30 x 35 x 20 cm
Weight: 9.7 kg
