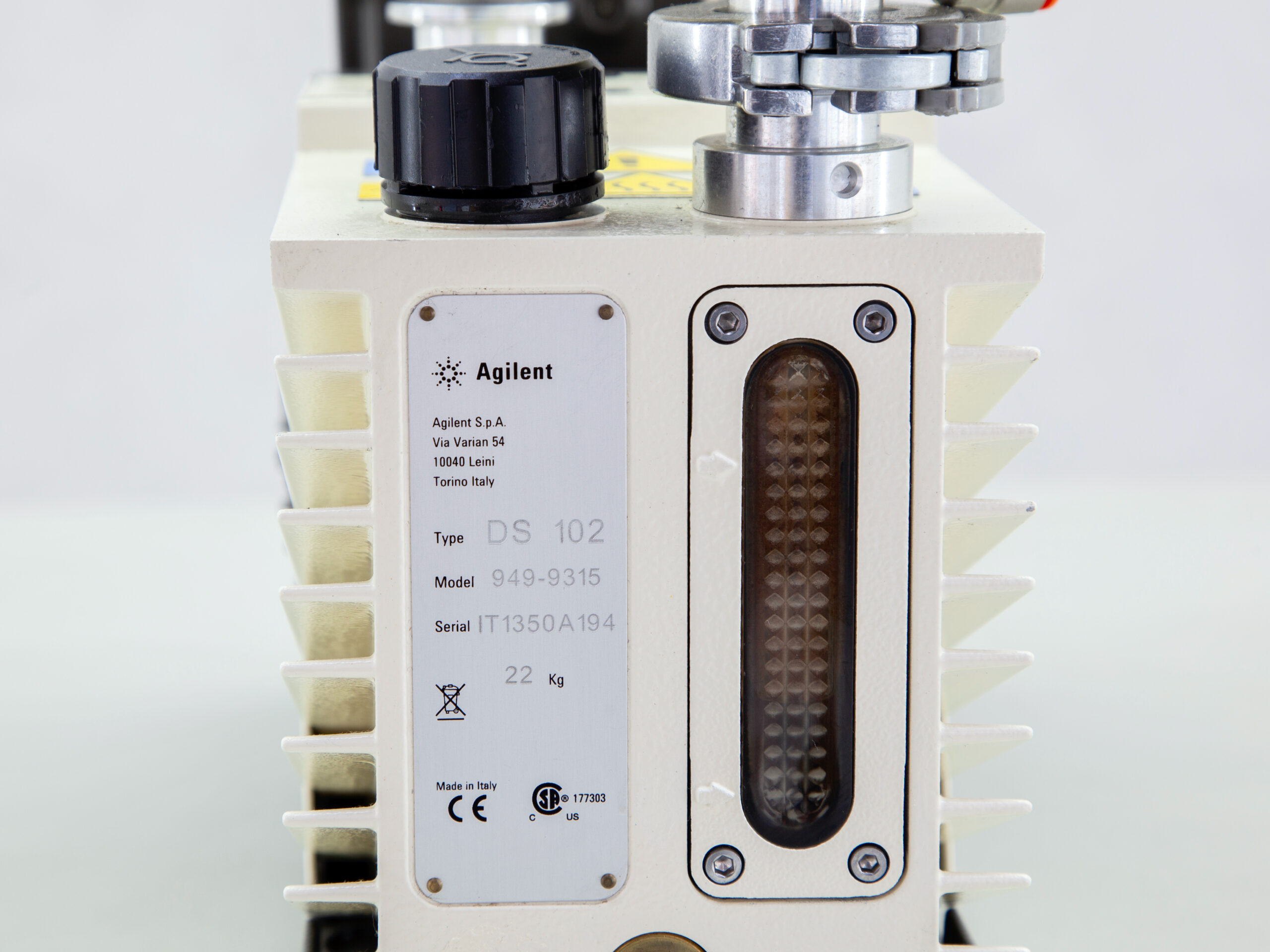

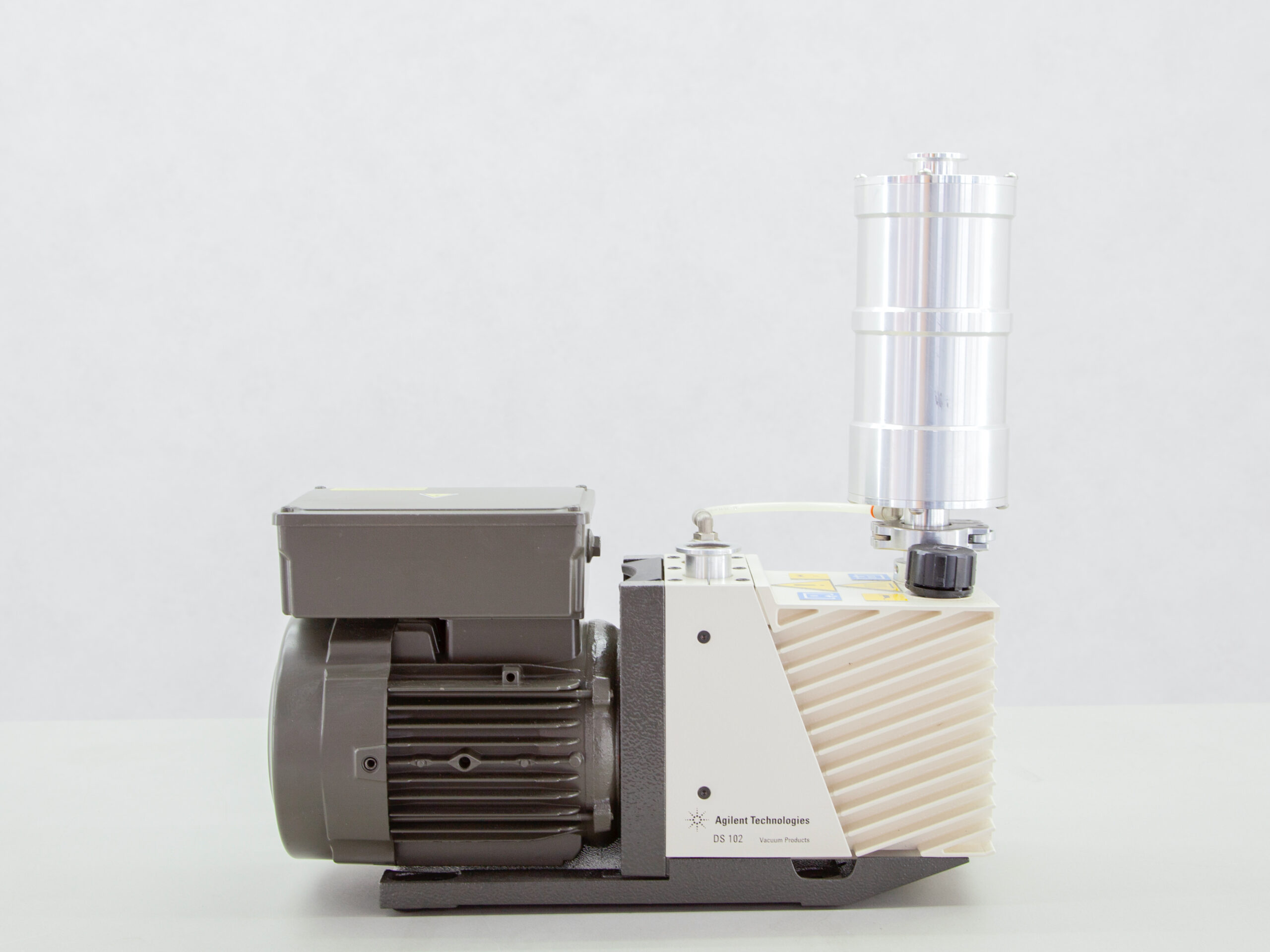

Agilent DS 102 rotary vane Pump / vacuum pump
This pump has been used for an Agilent analyzer and is spotless!
The DS-102 is a dual-stage oil-sealed rotary vane pump that delivers a pumping speed of 5.0 m3/hr at 50 Hz, or 3.5 CFM at 60 Hz, with a base pressure of < 2 x 10-3 mbar. The DS-102 has a ‘universal-voltage’ single-phase electric motor rated for < 0.55 kW, with integral power switch.
An inlet isolation valve is integrated into the pump to close off the inlet port whenever power to the pump is interrupted. This antibackstream valve retains vacuum in the roughing, or foreline, and prevents pump oil from contaminating the vacuum chamber. The DS-102 has a manual gas ballast valve, which when opened, allows the pump to achieve its rated water vapor handling specification.
Technical specifications:
Voltage: 200-240 V
Current: 2A
Power: 0,45 kW
Oil Capacity Min/Max: 0.2 / 0.5 l
Pumping Speed (50 Hz): 5 m3/h
Pumping Speed (60 Hz): 3.5 cfm
Rotational Speed at 50Hz: 1500 rpm
Ultimate Partial Pressure: 10-4 mbar
Ultimate Total Pressure with Gas Ballast: 2∙10-2 mbar
Water Vapour Pumping Capacity: 60 g/h
Water Vapour Tolerance: 15 mbar
Outer dimensions (B) x (D) x (H): 132 x 212 x 430 mm
Weight: 22 kg
