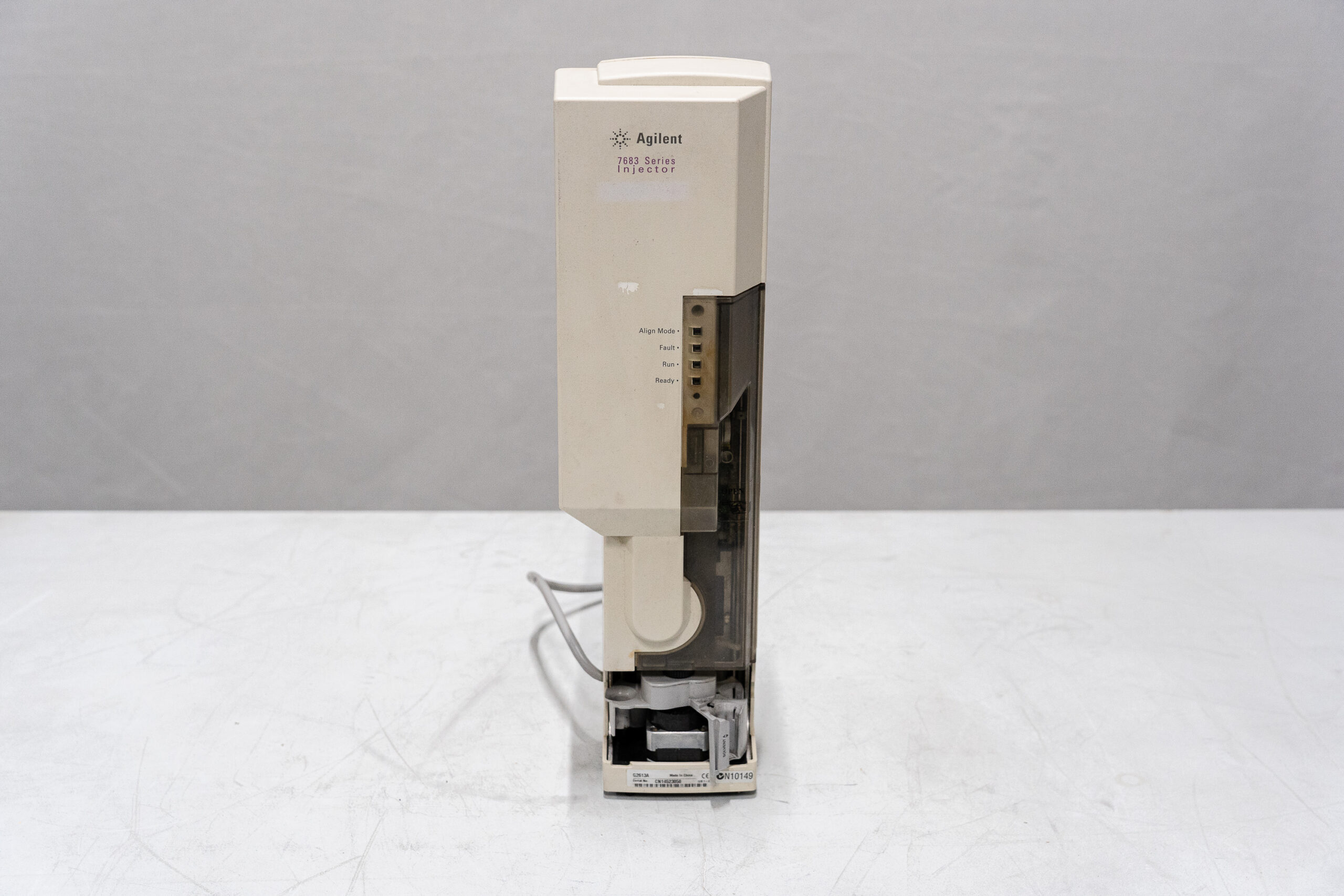

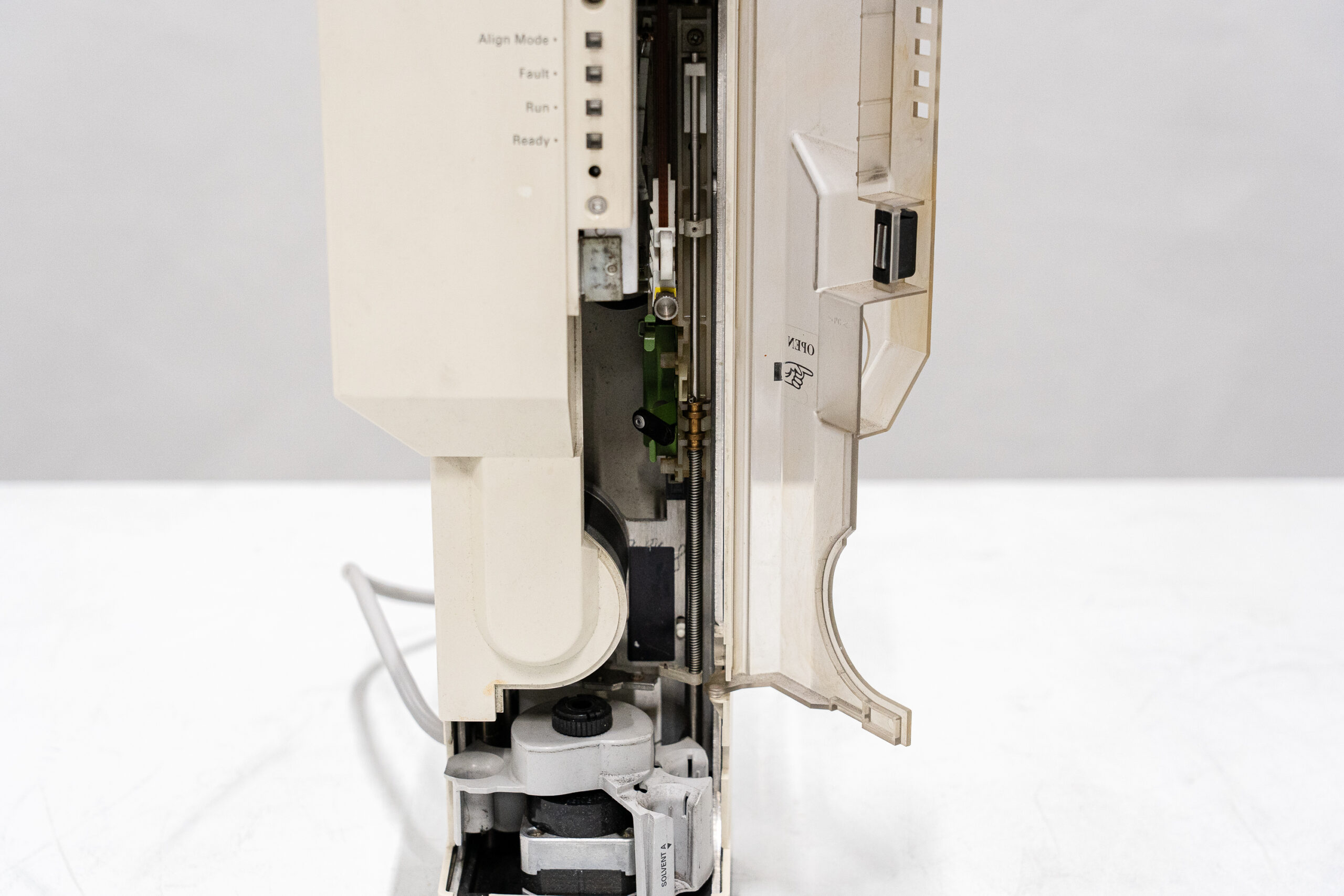

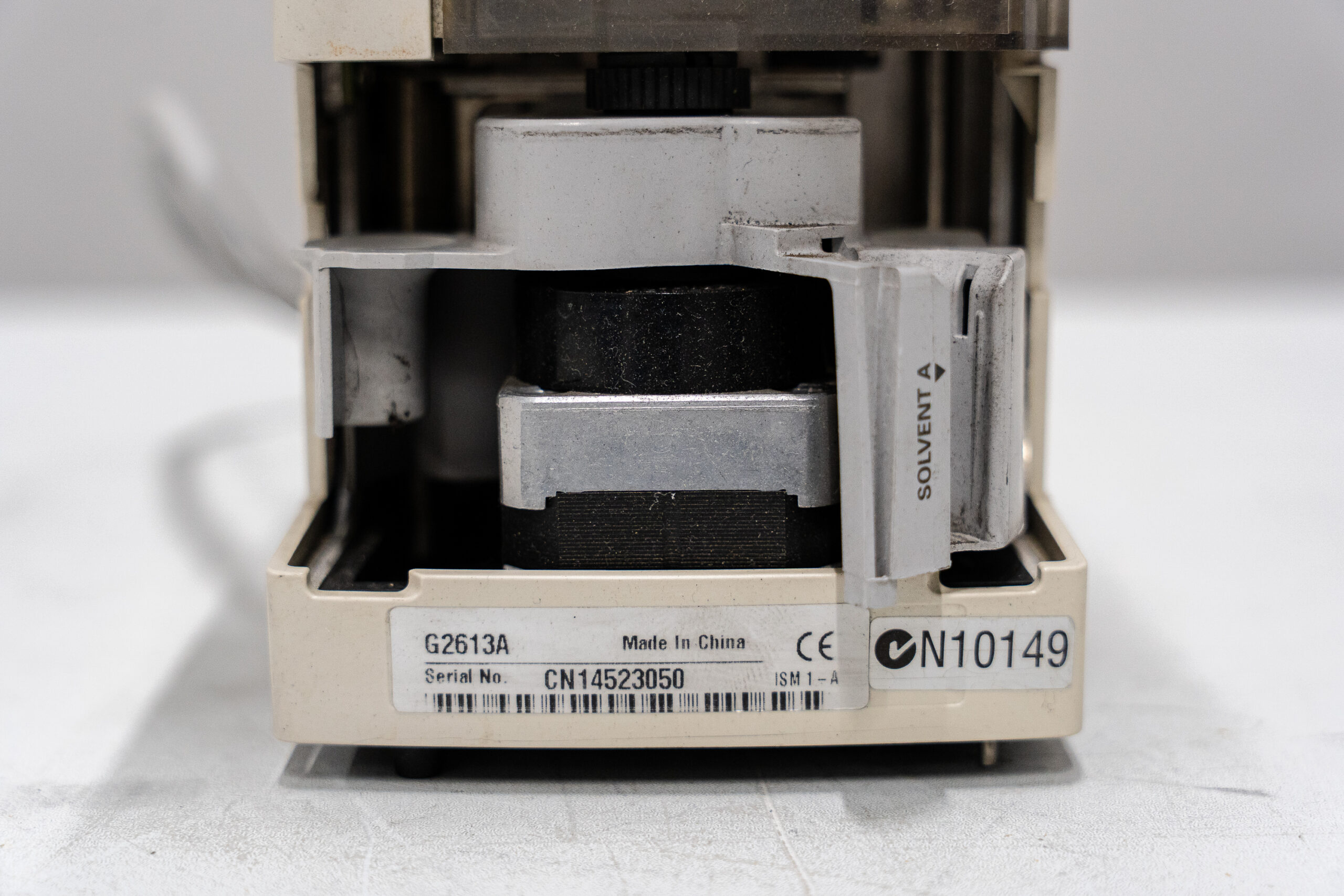

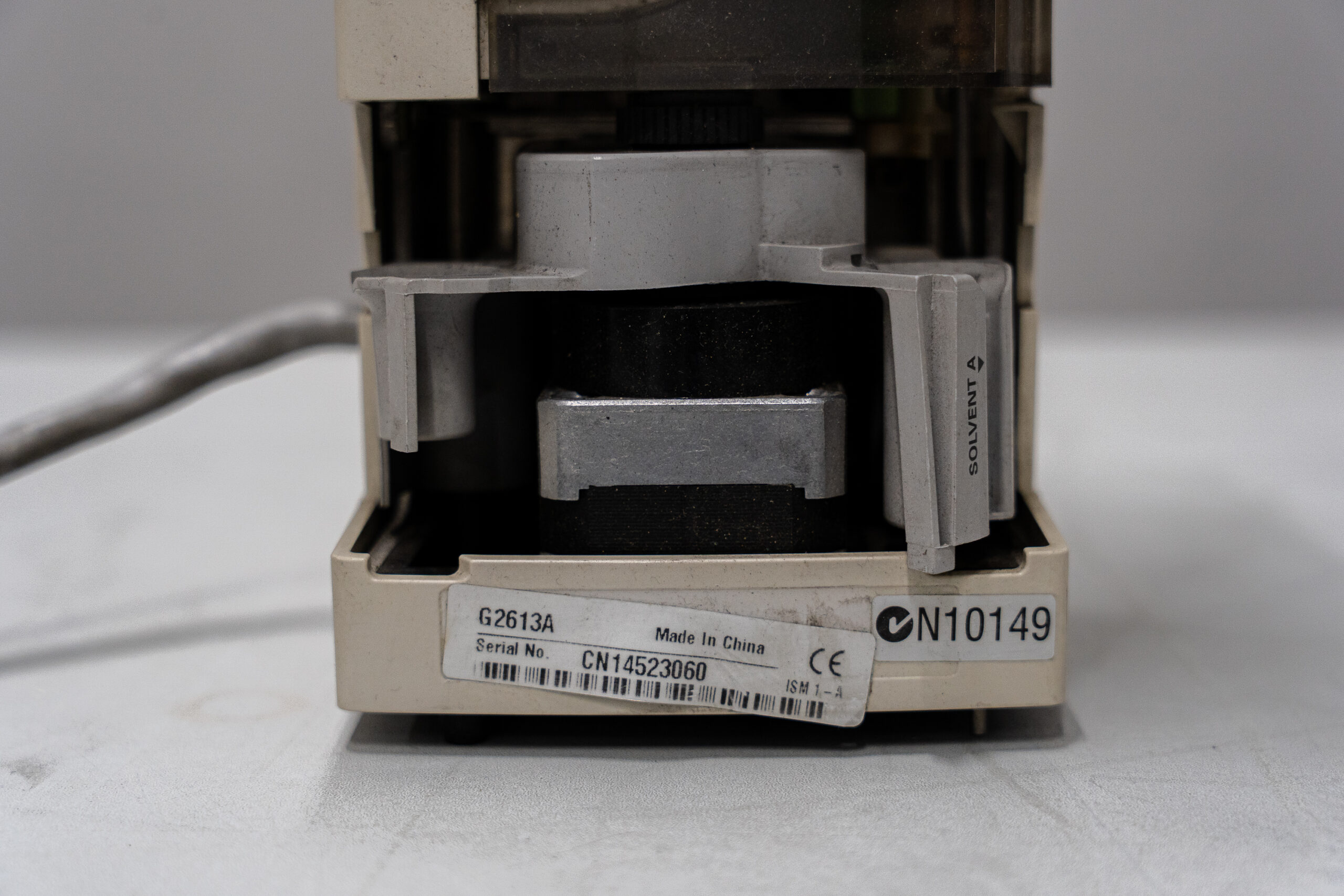

The Agilent 7683 – G2613A GC Injector is an automated liquid sampler for gas chromatography (GC). It automatically draws samples from vials and injects them into the GC inlet, ensuring high throughput, reproducibility, and minimal manual effort. The injector is often used in conjunction with the autosampler tray and is compatible with various Agilent GC systems. (Operation of the HP G1512 controller not tested.)
Technical Specifications:
Voltage: 220-240 V
Injection Volume/Range: Typically 0.1 µL to 5.0 µL
Injection Modes: Split, splitless, and on-column injection available
Sample Capacity: Up to 8 vials with a standard turret; Up to 100 vials with optional tray module
Injection accuracy/reproducibility: For 1 µL injections or low volumes: RSD < 0.5%
Rinsing/washing options: Pre- and post-injection rinsing possible
External dimensions (W x D x H): 450 x 130 x 90 mm
Weight: 2 kg
