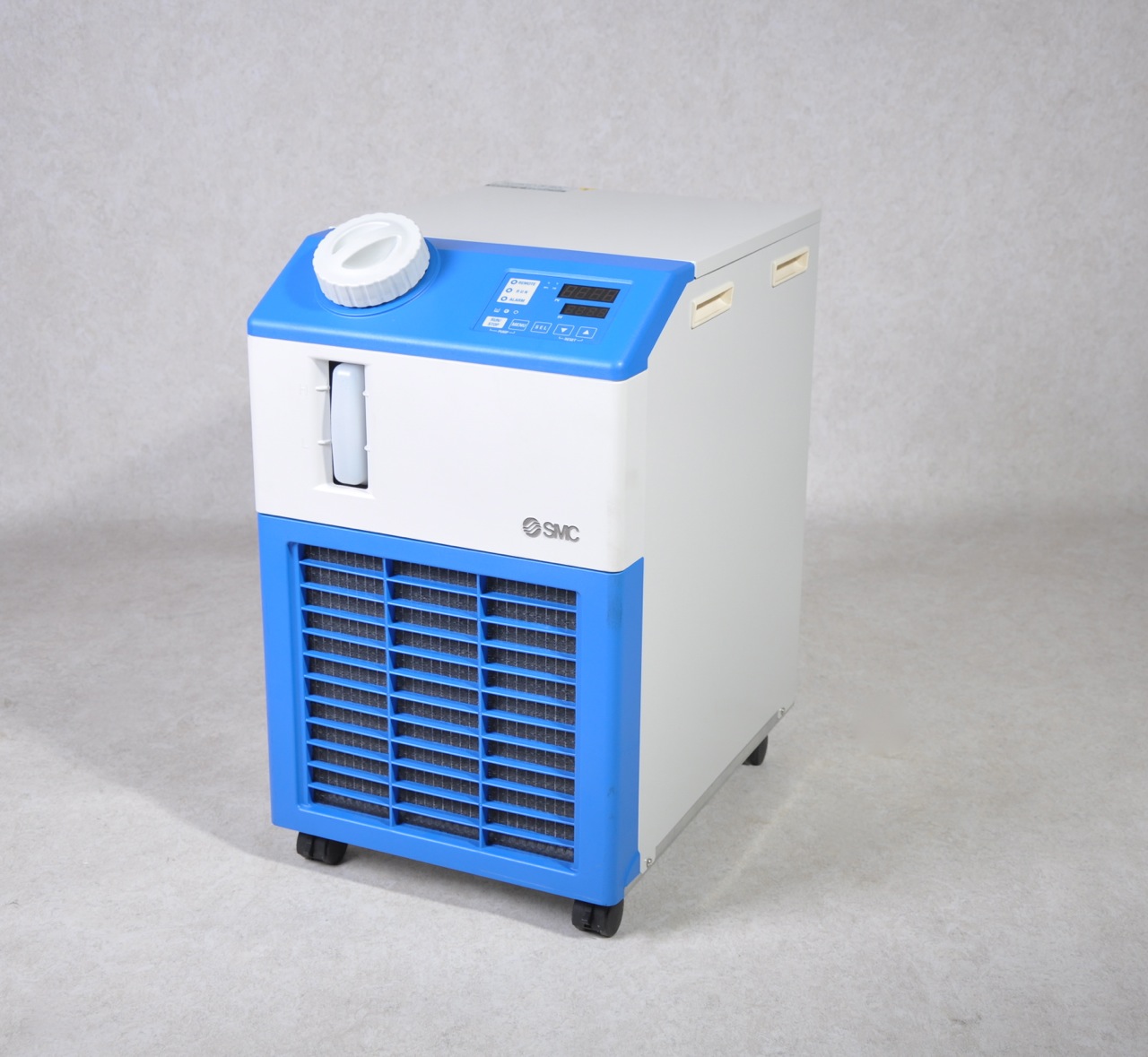

New thermo chiller from SMC corporation, typ HRS024AF20.
Industry requests for a small, lightweight, high performance thermo chiller have been answered with the launch of our new Series HRS Thermo Chiller. Developed for use across a broad range of industry applications, this new addition to our rapidly expanding thermo chiller is ideal when installation space and ventilation flow is restricted yet stable cooling performance is required. Weighing just 43 kilos, the HRS is designed to operate with circulating fluid temperatures between 5 – 40 ºC and its PID control ensures smooth temperature changes and excellent stability of ±0.1ºC.
Technical specifications: 220 V, 50-60 Hz.
Temperature range: 5 to 40°C, High-temperature environment specifications (option): 5 to 45°C. Humidity: 30 to 70%.
Cooling capacity: 2100 / 2400 W.
Housing (D)x(H)x(W): 50 x 61,5 x 37,7 cm.
Weight: 43 kg.
Available models:
1,2kW
1,8kW
2,4kW
4,8kW
More product information can be found in the following product brochure and user manual.
SMC HRS024AF20 thermo chiller
Click for price
Location: NTBLStatus: NewWarranty: 1 year
