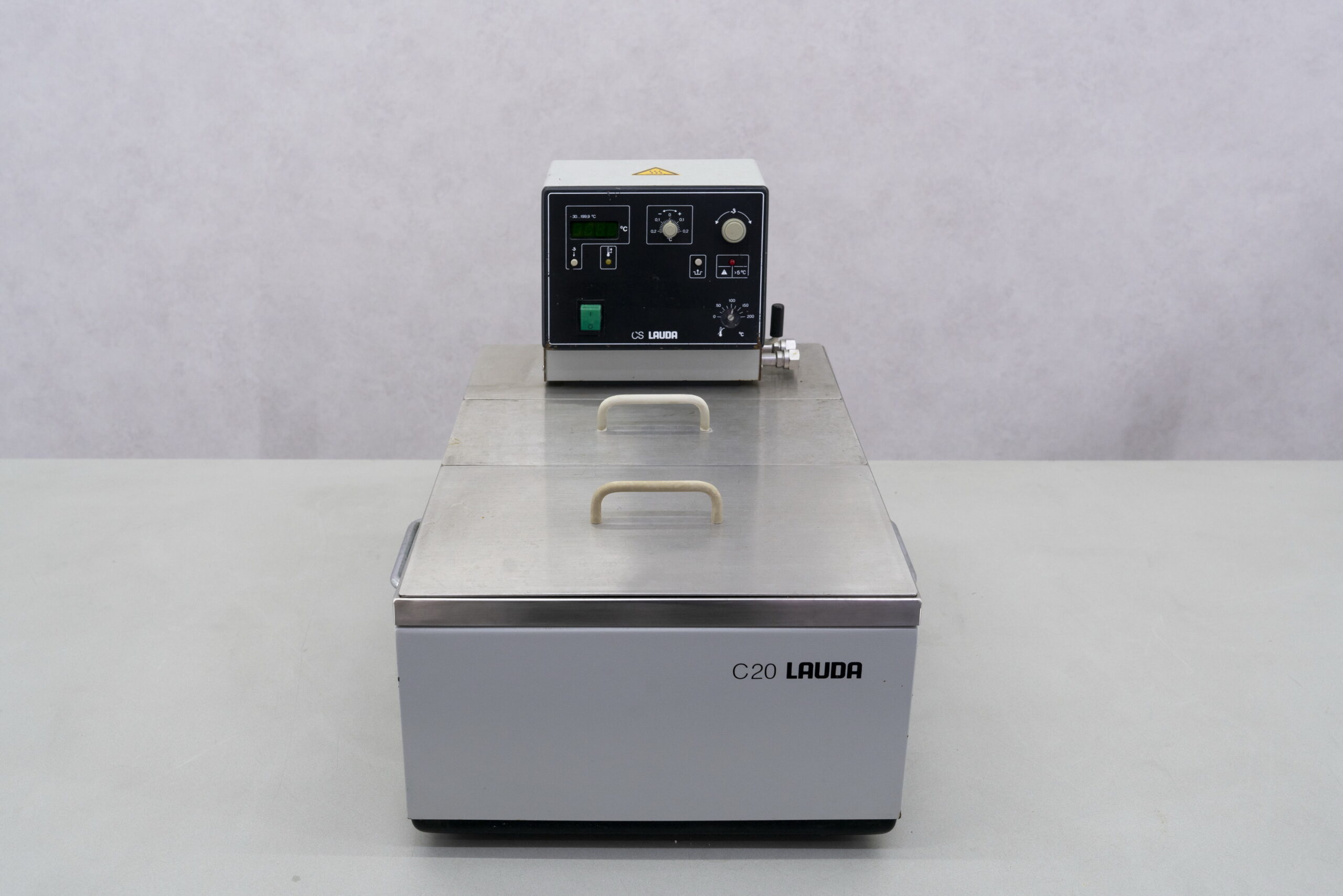

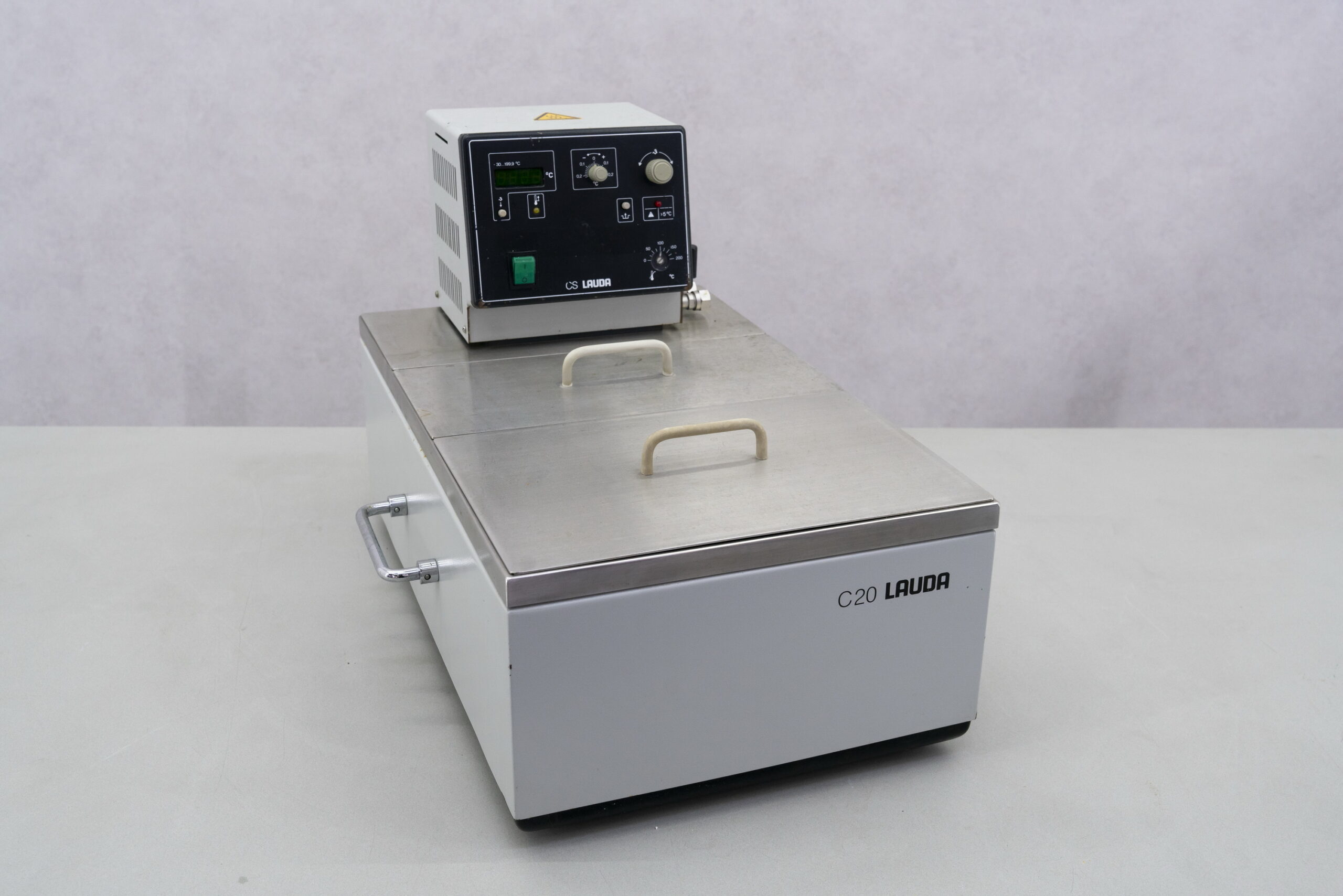

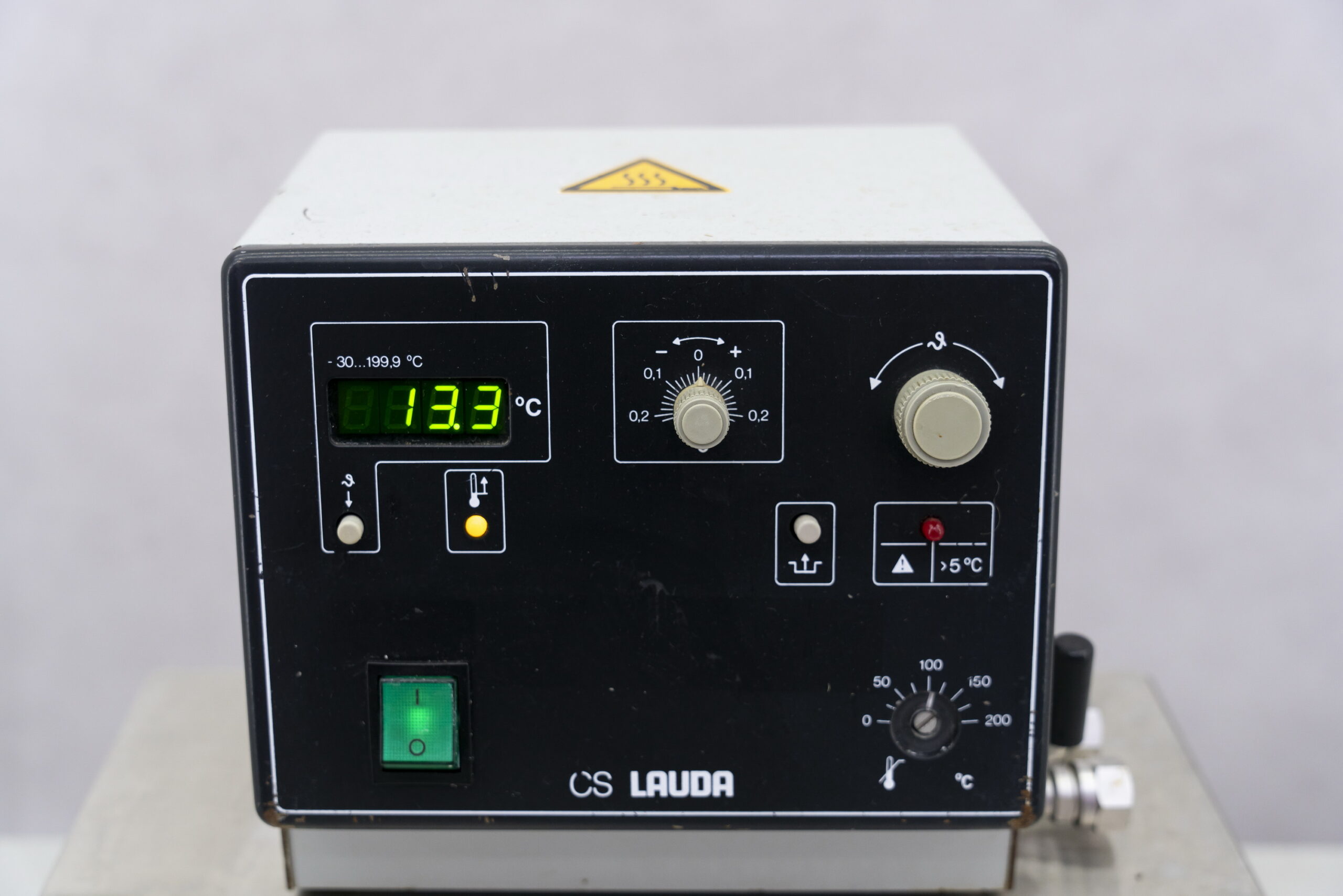

All Lauda CS thermostats offer an operating temperature of 5°C above ambient temperature to 300°C.
Laboratory thermostats work with liquids (operating medium, heat transfer liquid) that serve for the energy transfer to the product to be heated.
The heated products can be immersed in the thermostatic bath (bath thermostat), or placed in an external open bath whose liquid is circulated by the thermostat’s pump. When operating as a circulation pump, the thermostatic liquid is pumped through an external heat exchanger.
Technical specifications:
Voltage: 220-240 V
Heating power: 2.2 kW
Operating temperature range: 5°C above ambient temperature to 300°C
Temperature variation at 70 °C in the bath: +/- 0.1 °C
Filling volume: 14 … 21 litres
Pressure / suction: 20 / 16 l/min
Pump pressure (max): 0.32 / 0.25 bar
External dimensions (W) x (D) x (H): 375 x 590 x 420 mm

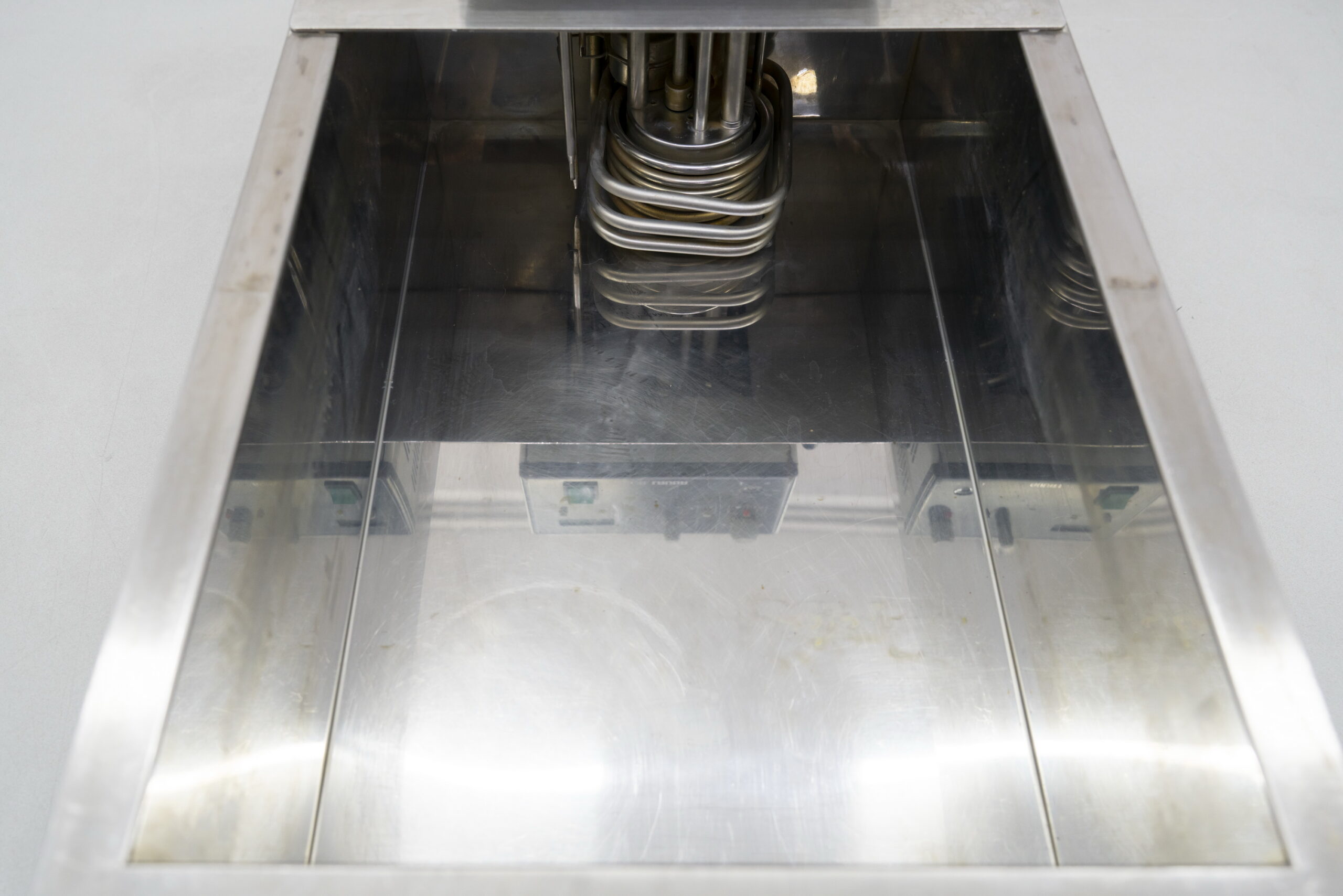

Bath opening dimensions (W) x (D): 300 x 350 mm
Bath depth: 160 mm
Weight: 23 kg
